UH5E Series

Specs

Support

Resource

UH5E Series

Share this content.

You can share the items you like with your friends

UH5E Series

86UH5E-B
(6)
  • Front view of UH5E Series 86UH5E-B
  • LG UH5E Series, 86UH5E-B
  • LG UH5E Series, 86UH5E-B
  • LG UH5E Series, 86UH5E-B
  • LG UH5E Series, 86UH5E-B
  • LG UH5E Series, 86UH5E-B
  • LG UH5E Series, 86UH5E-B

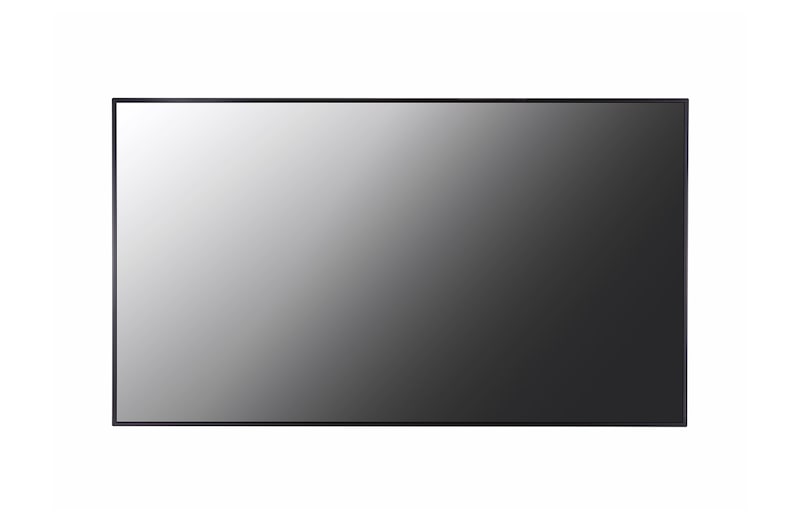

Front view of UH5E Series 86UH5E-B

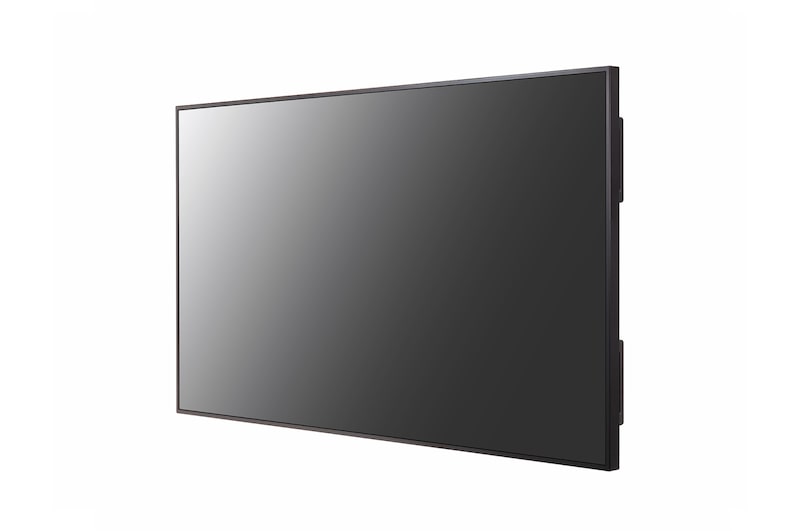

LG UH5E Series, 86UH5E-B

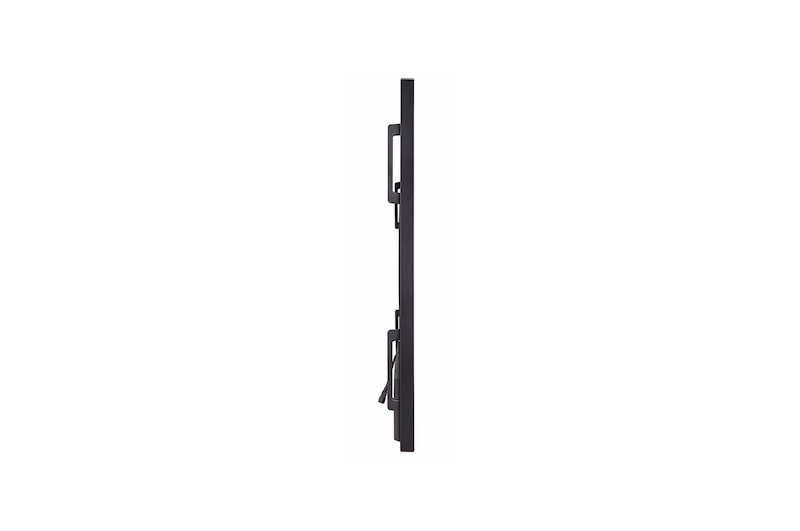

LG UH5E Series, 86UH5E-B

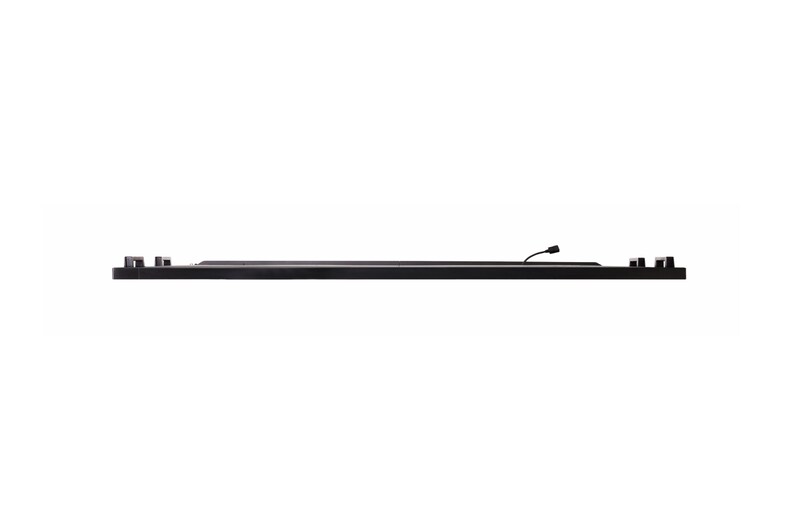

LG UH5E Series, 86UH5E-B

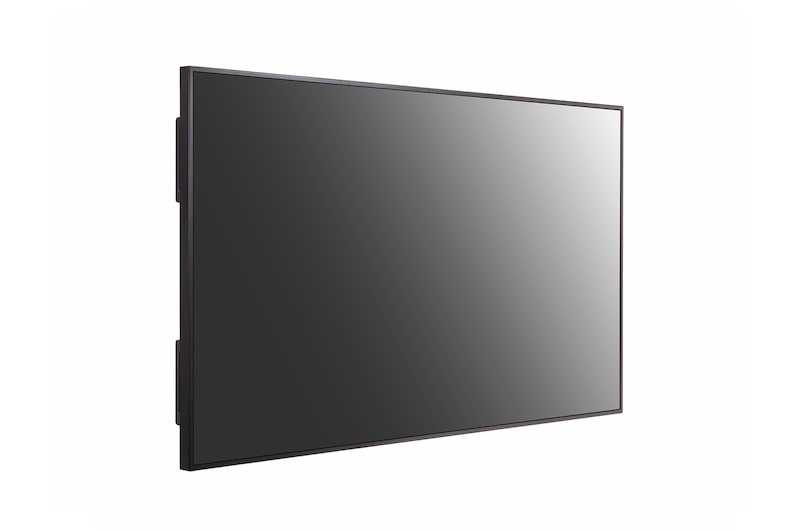

LG UH5E Series, 86UH5E-B

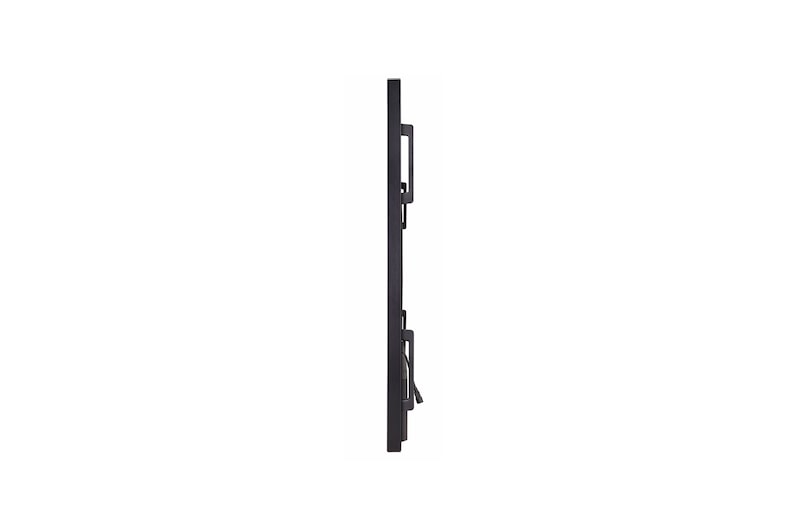

LG UH5E Series, 86UH5E-B

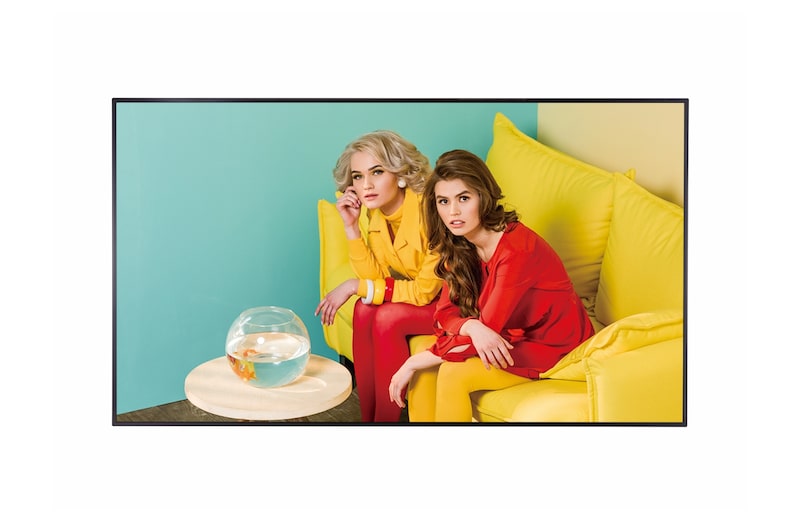

LG UH5E Series, 86UH5E-B

Key Features

  • Ultra HD resolution (3840x2160)
  • IPS panel with wider viewing angles
  • Powerful webOS smart platform
  • Embedded CMS
  • Picture by picture/Picture in Picture
  • Signage 365 Care
More
Print

All Spec

PANEL

  • Screen Size

    86"

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    500 cd/m²

  • Contrast Ratio

    1,200:1

  • Viewing Angle (H x V)

    178 × 178

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Life Time (Typ.)

    50,000 Hrs

  • Operation Hours

    24 Hrs

  • Orientation

    Landscape & Portrait

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) *

  • Output

    DP, Audio (Off/Fixed/Variable), Externel Speaker

  • External Control

    RS232C In/out, RJ45 In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    14.3 mm (Even)

  • Monitor Dimension (W x H x D)

    1,926.2 x 1,097.2 x 60.61) mm

  • Weight (Head)

    49 kg

  • Carton Dimensions (W x H x D)

    2,073 x 1,260 x 292 mm

  • Packed Weight

    61.1 kg

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400 mm

KEY FEATURE

  • Key Feature

    Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customis ation, Content Sync (RS232C, Local Network), Screen Share, Play via URL, OSD Rotation, Content Rotation, PIP/ PBP(4), Tile Mode Setting (Max 15x15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron ConnectedⓇ2), Cisco Compatibility 3), Beacon, HDMI-CEC4), SI Server Setting, webRTC

ENVIRONMENTAL CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Type

    100-240V~, 50/60Hz

  • Power Supply

    Built-In Power

  • Power Consumption-Typ. / Max.

    275 W / 305 W

  • Power Consumption - Smart Energy Saving

    192.5 W

SOUND

  • Speaker

    Built-in (10W×2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    AS/NZS CISPR32,RCM(Class A)

  • ErP / Energy Star

    Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

SOFTWARE COMPATIBILITY5)

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

ACCESSORIES

  • Basic

    Remote Controller (2ea Batteries Included), Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender

  • Optional

    OPS Kit (KT-OPSF), Wall Mount (LSW640A/B)

To access more technical documentation and resources, please visit the LG B2B partner portal.
