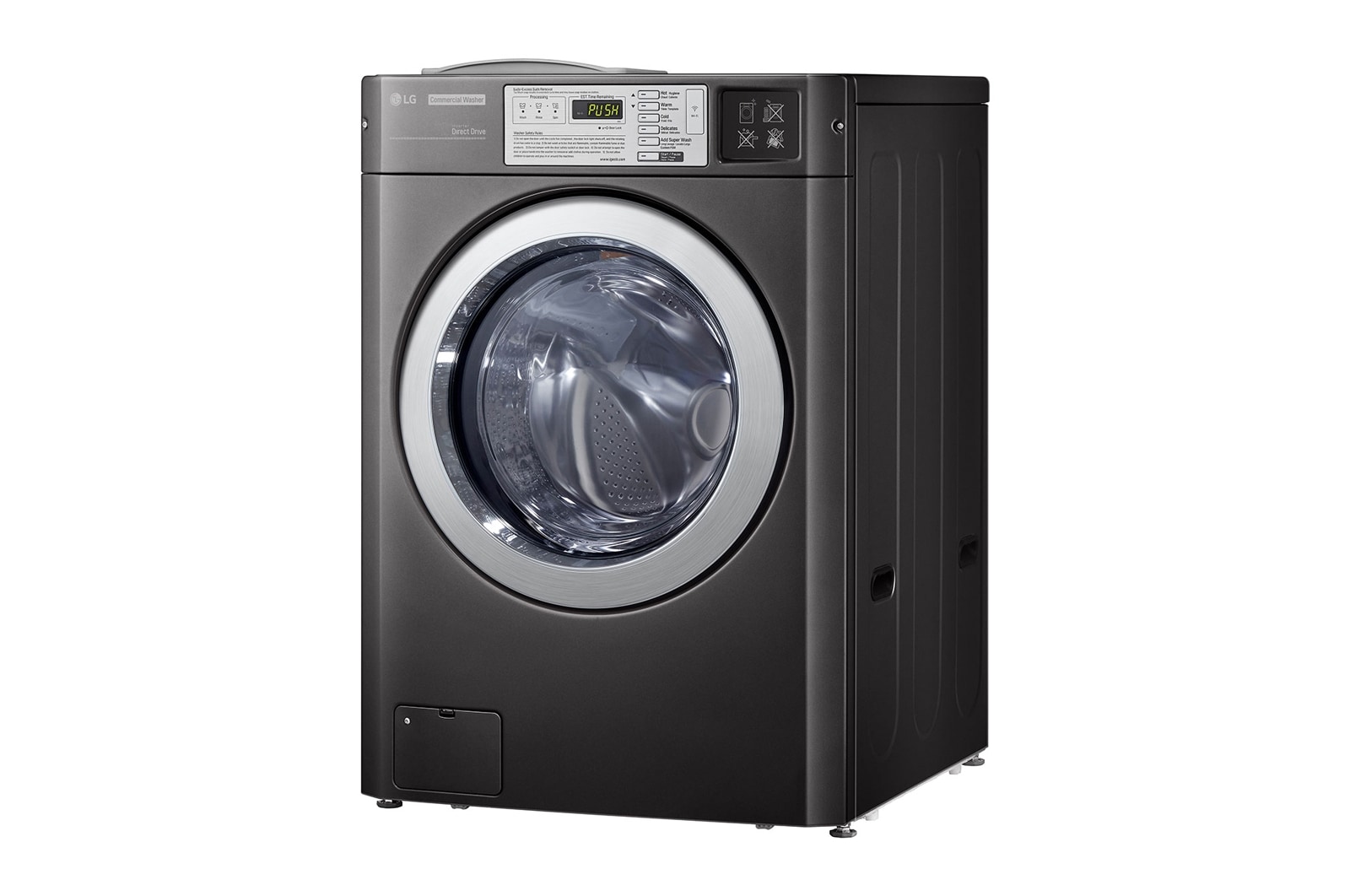

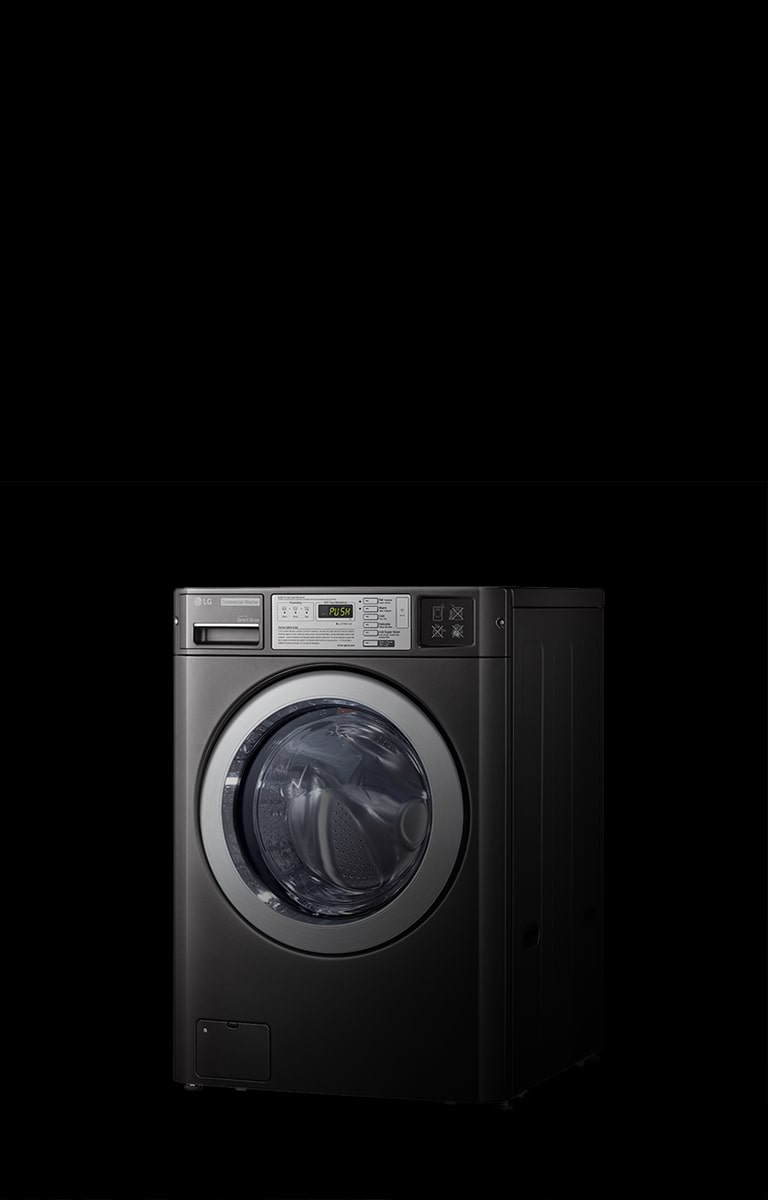

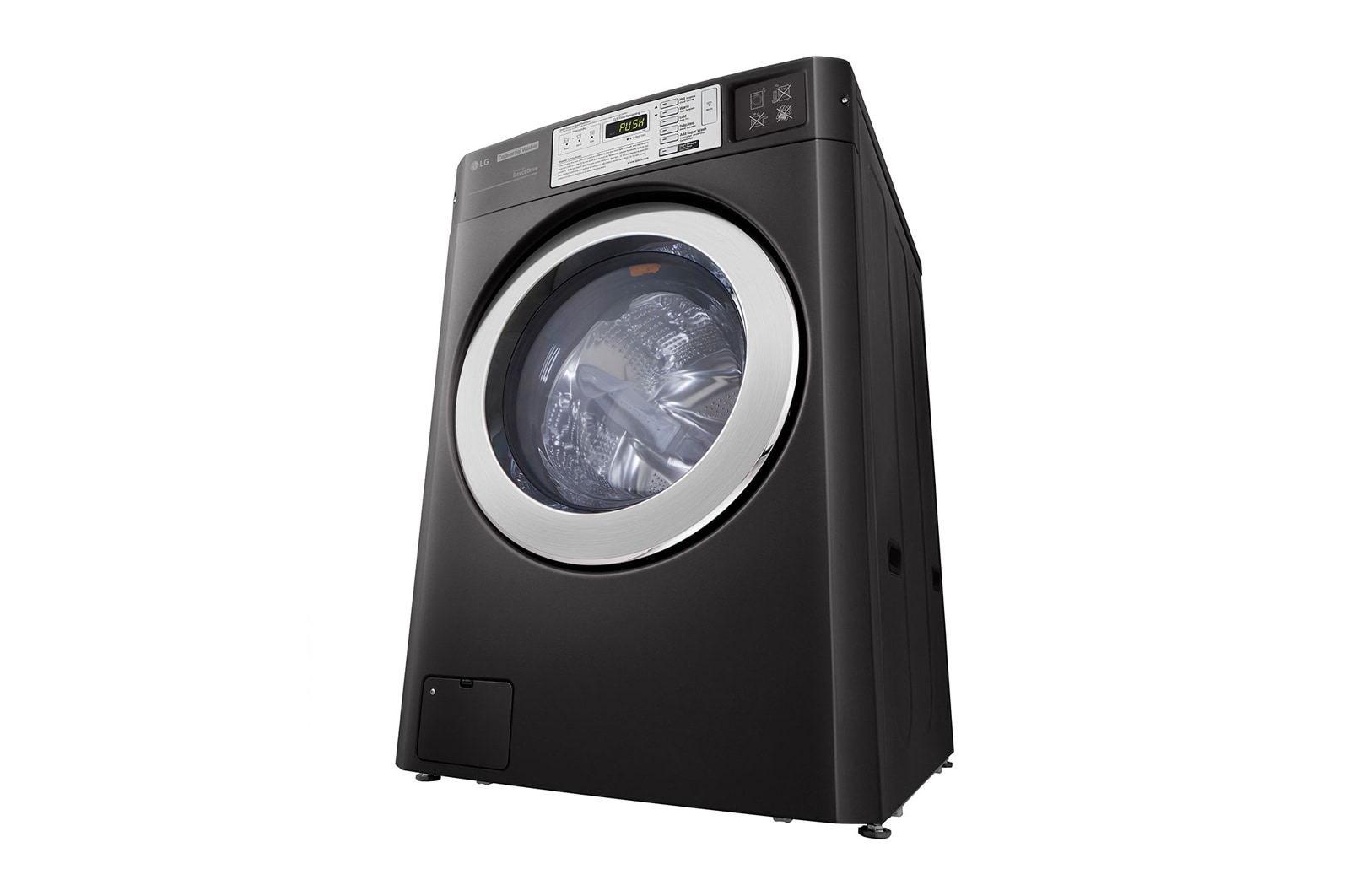

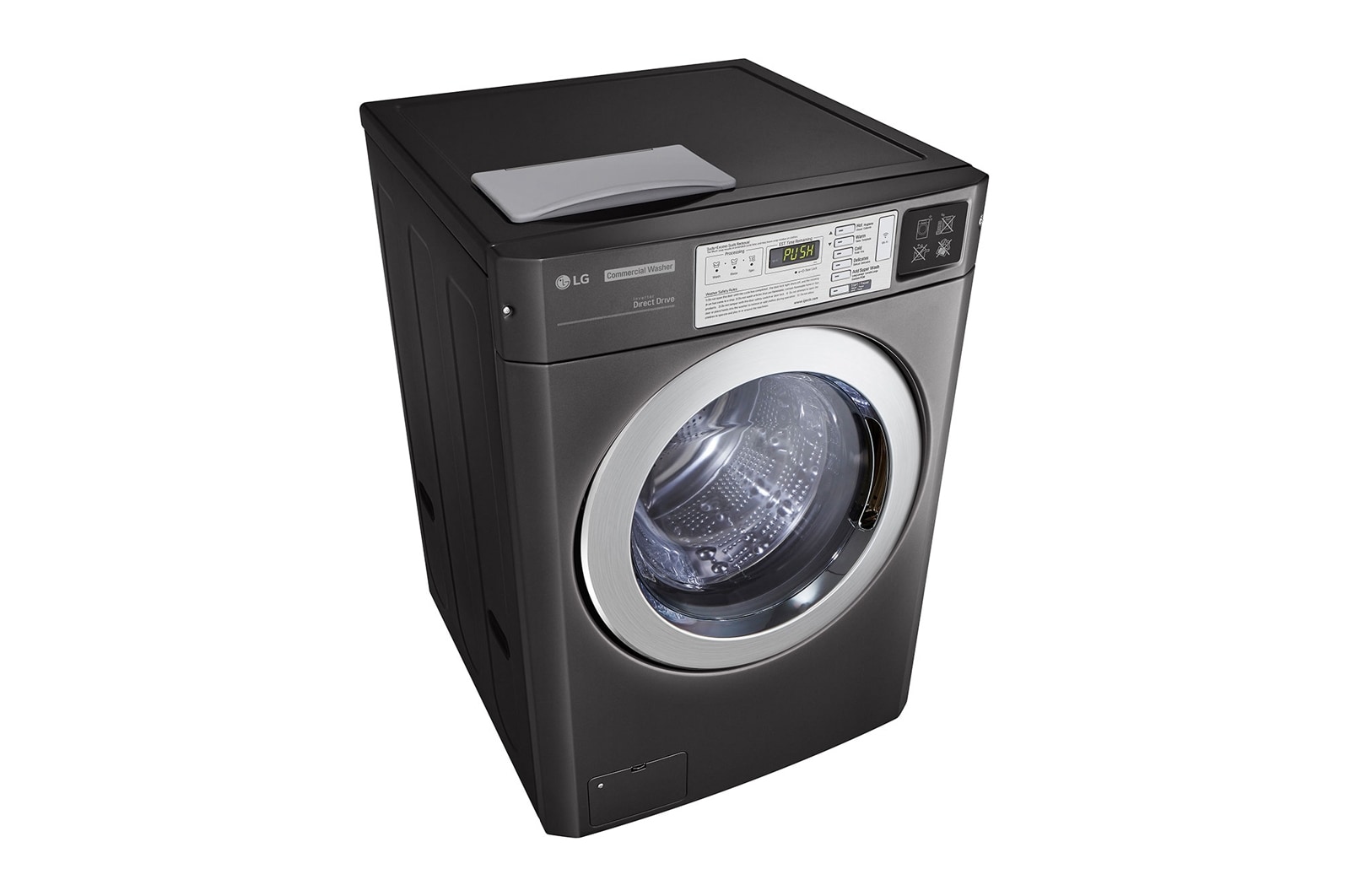

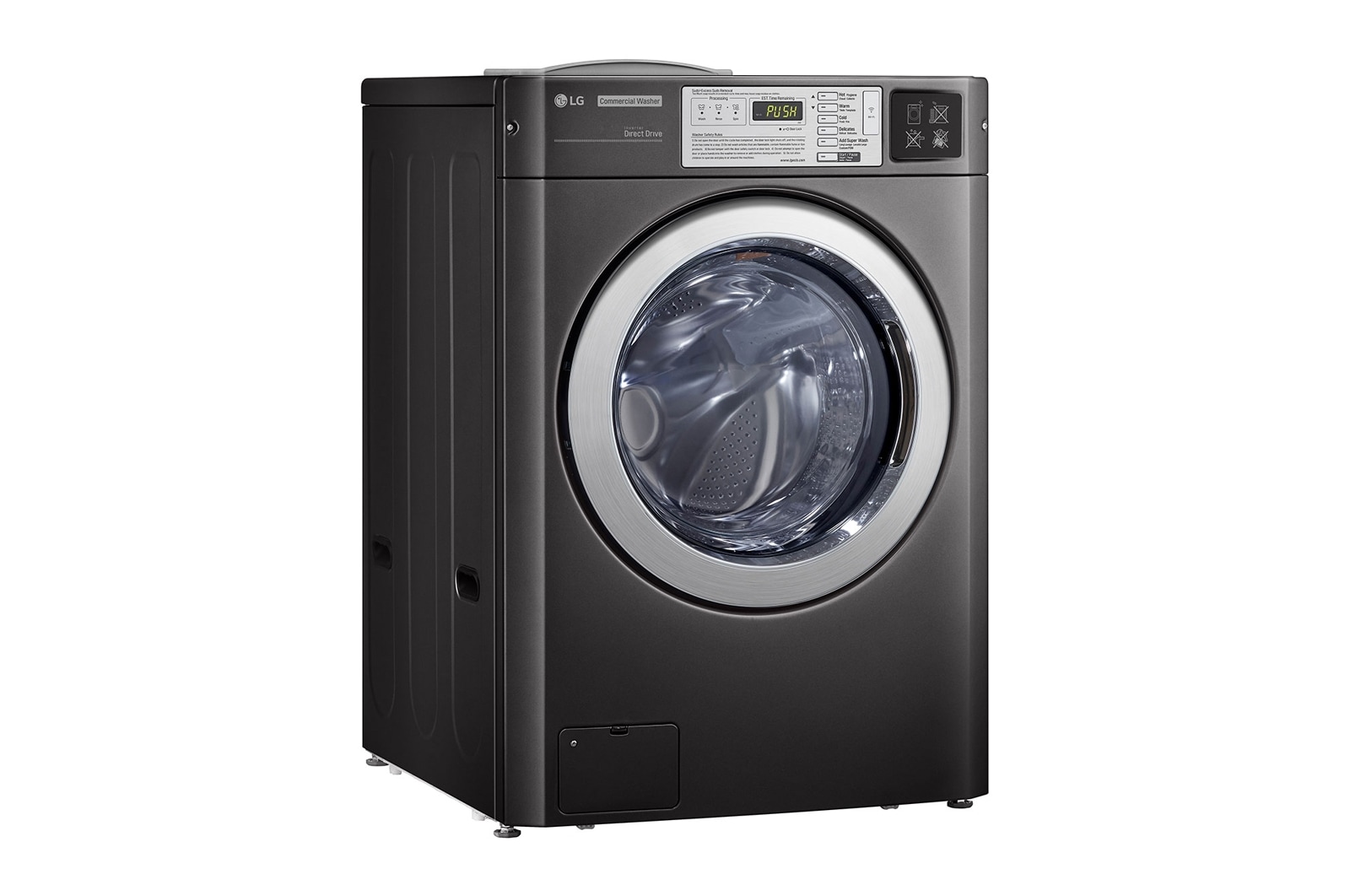

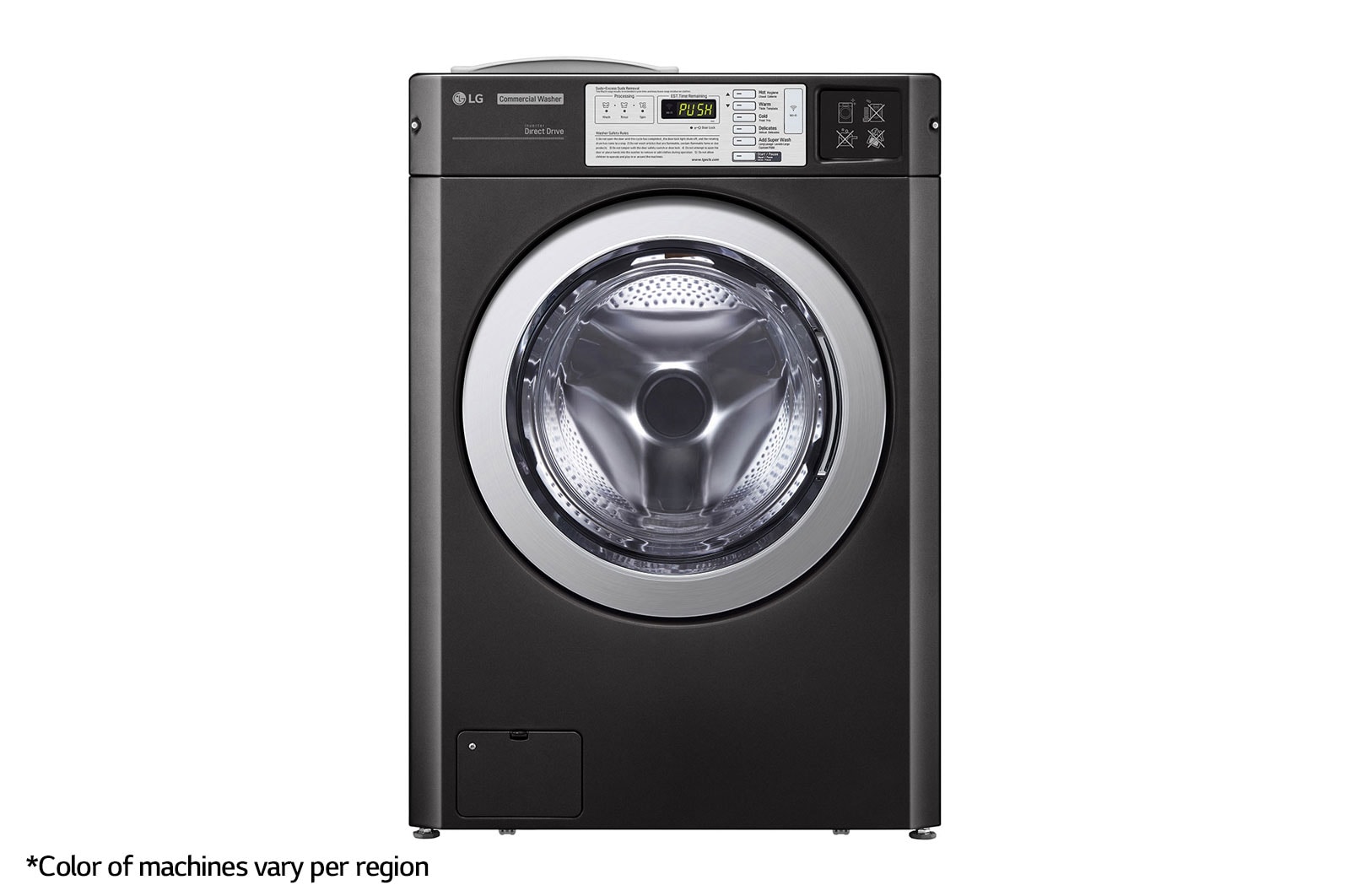

10KG Standard Capacity Frontload Washer

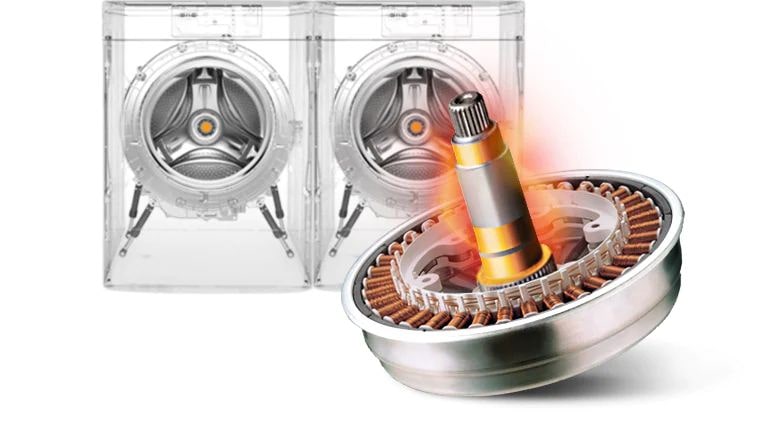

Excellent Durability & Reliability
Fewer Replacements & Repair Expenses
*Product life may vary depending on user patterns & other factors.

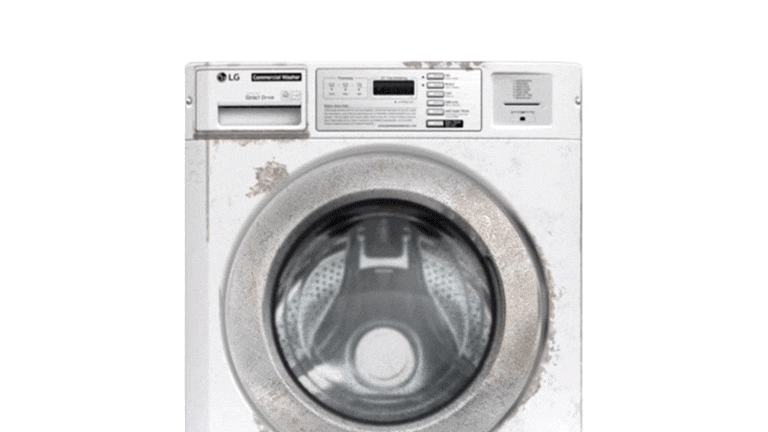

Resistance to Contamination & Rust
*Performance may vary depending on user patterns & other factors.
Drive Success by Saving More

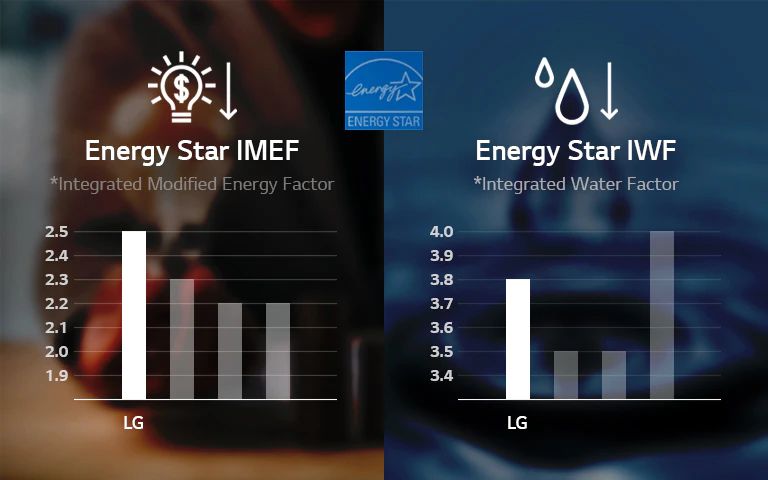

Qualified Energy Star

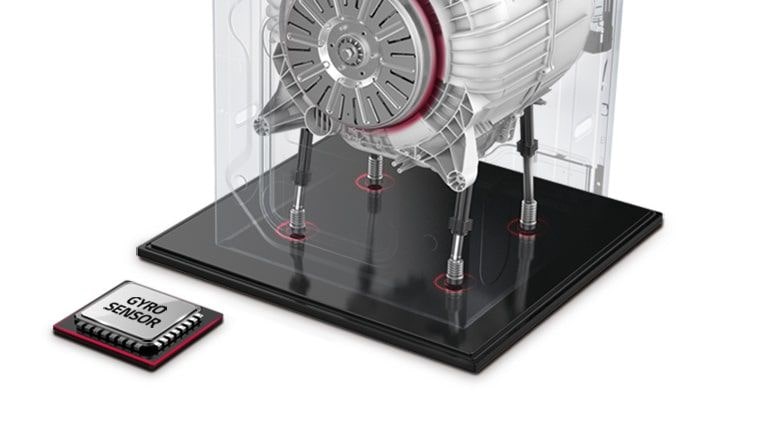

Low Noise and Less Vibration
*Noise levels may vary based on machine settings & other factors.
Save Time and Keep Up with Your Busy Schedule
*The depicted image is intended for promotional purposes only.

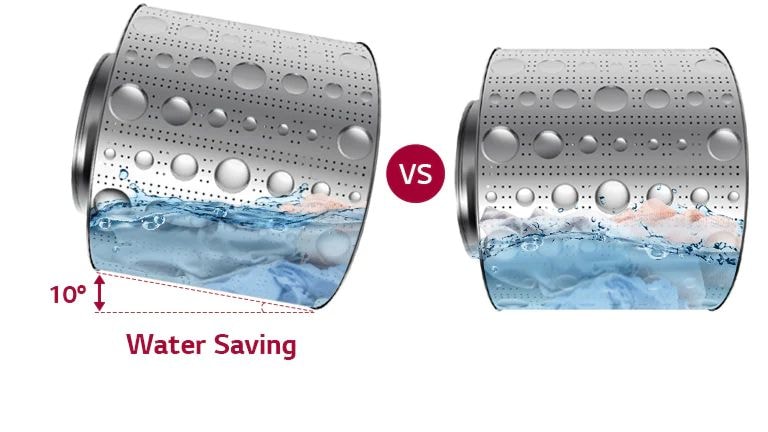

High Performance with Less Water Consumption

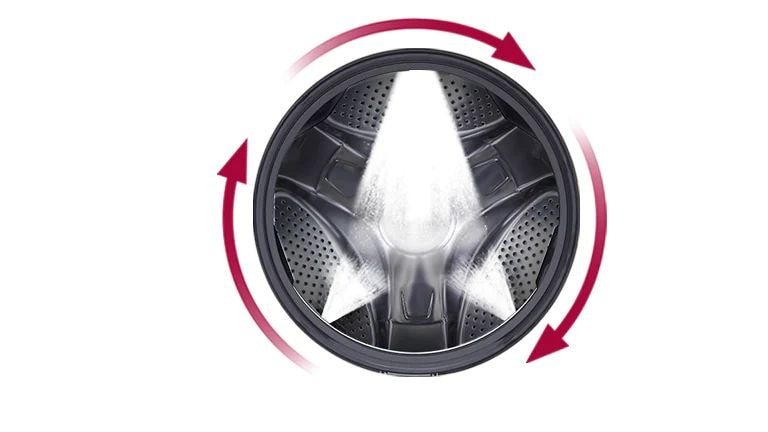

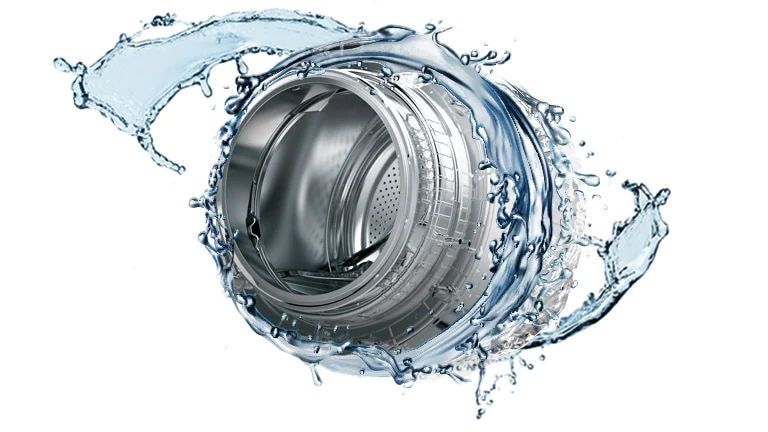

Cleaner Tubs for Cleaner Laundry
*Cleanliness may vary based on tub clean cycles & cleaning agents.
A Smarter Washing Machine
Smarter Convenience
*Wireless internet connection may be required for this function.
All Spec
CYLINDER
Drum Volume - cu.ft (l)
3.7 (102.7)
Diameter - in. (mm)
22.1 (560)
Depth - in. (mm)
16.5 (419.3)
DIMENSIONS
Product (WxHxD) - in. (mm)
27 (686) x 38.7 (983) x 30.2 (767)
with door opening - in. (mm)
55.0 (1,396)
Carton (WxHxD) - in. (mm)
29.61 (752) x 42.91 (1,080) x 31.4 (798)
Weight (Product / Carton) - lb(kg)
196(88.9) / 213(96.5)
SPEED
Wash - RPM
50
Extract (High Speed) - RPM
1,200
G-force - G
451
NOISE & CYCLE TIME
Noise Level (Sound Power) - dB
Lower than 62
Program duration in minutes(Default) - min
36
SYSTEM & CONTROL

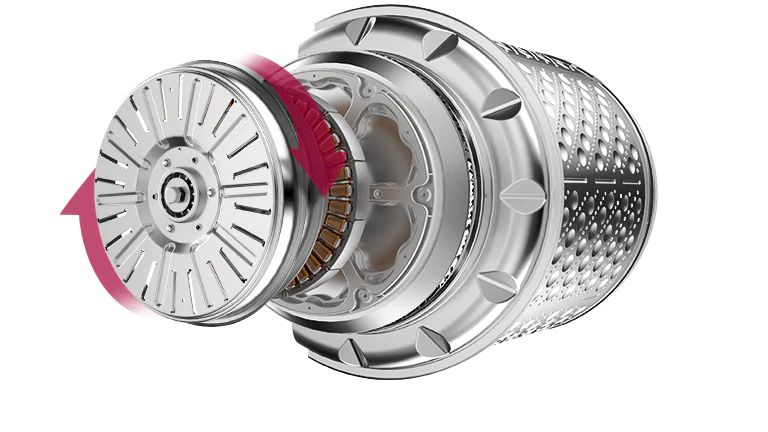

Inverter Direct Drive Motor
Available

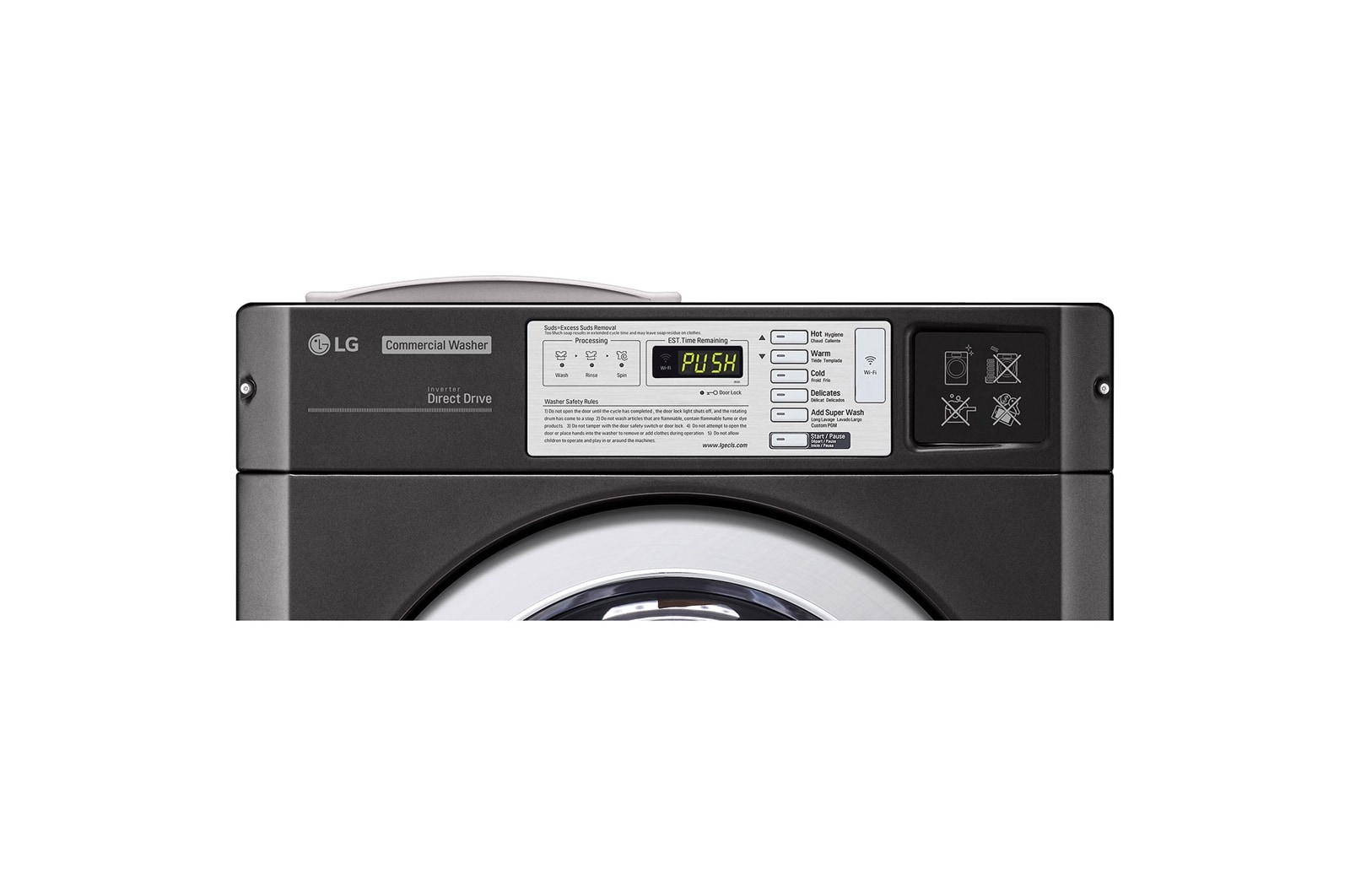

Intelligent Electronics Controls
Available
Heating System - W
2000 (Hyegine course / Tub clean)

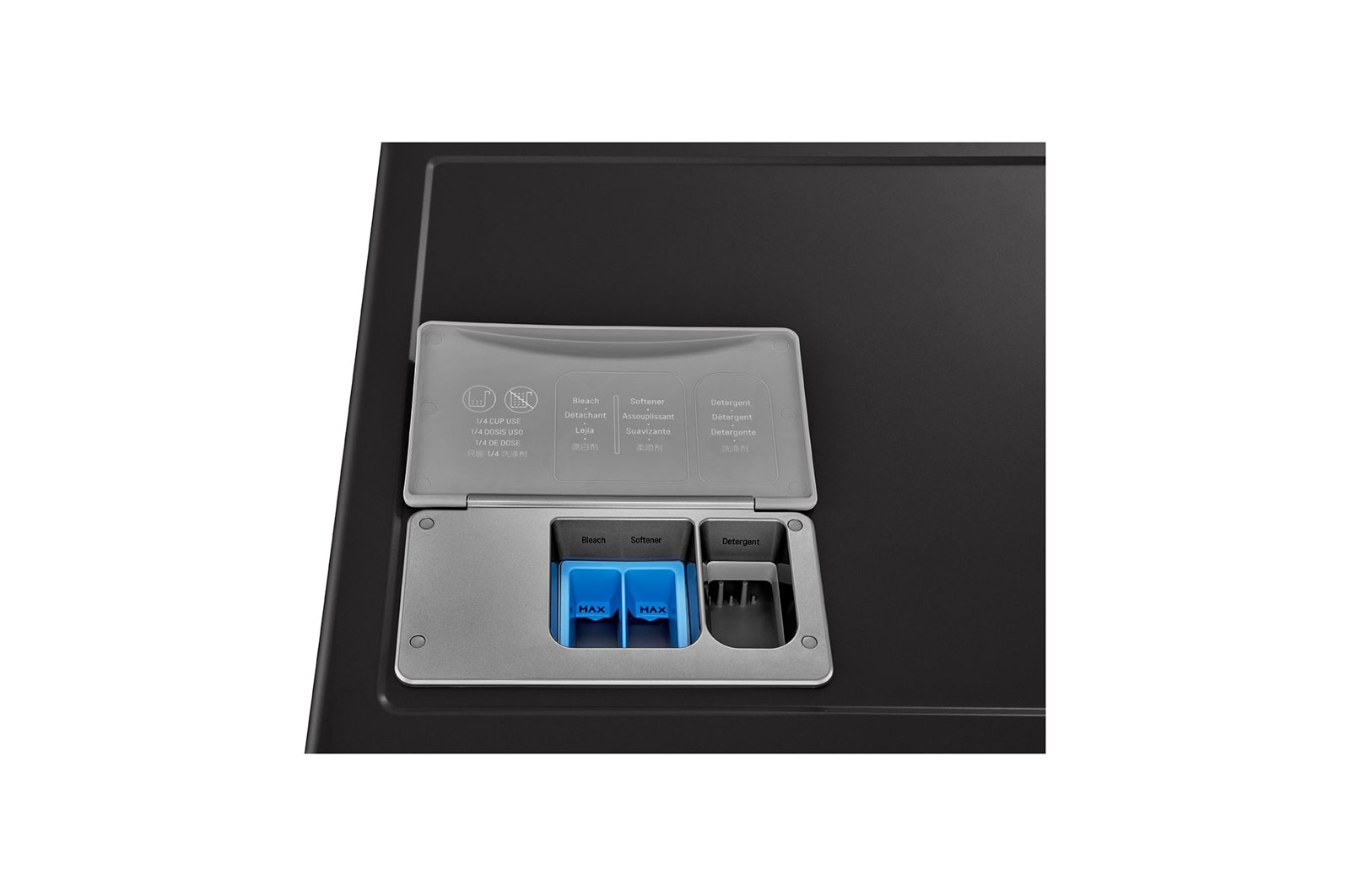

3 Compartment Dispenser
Available
Drain System
BLDC Pump Drain
Pricing Program
Special Vended Price
EXTERNAL FINISH

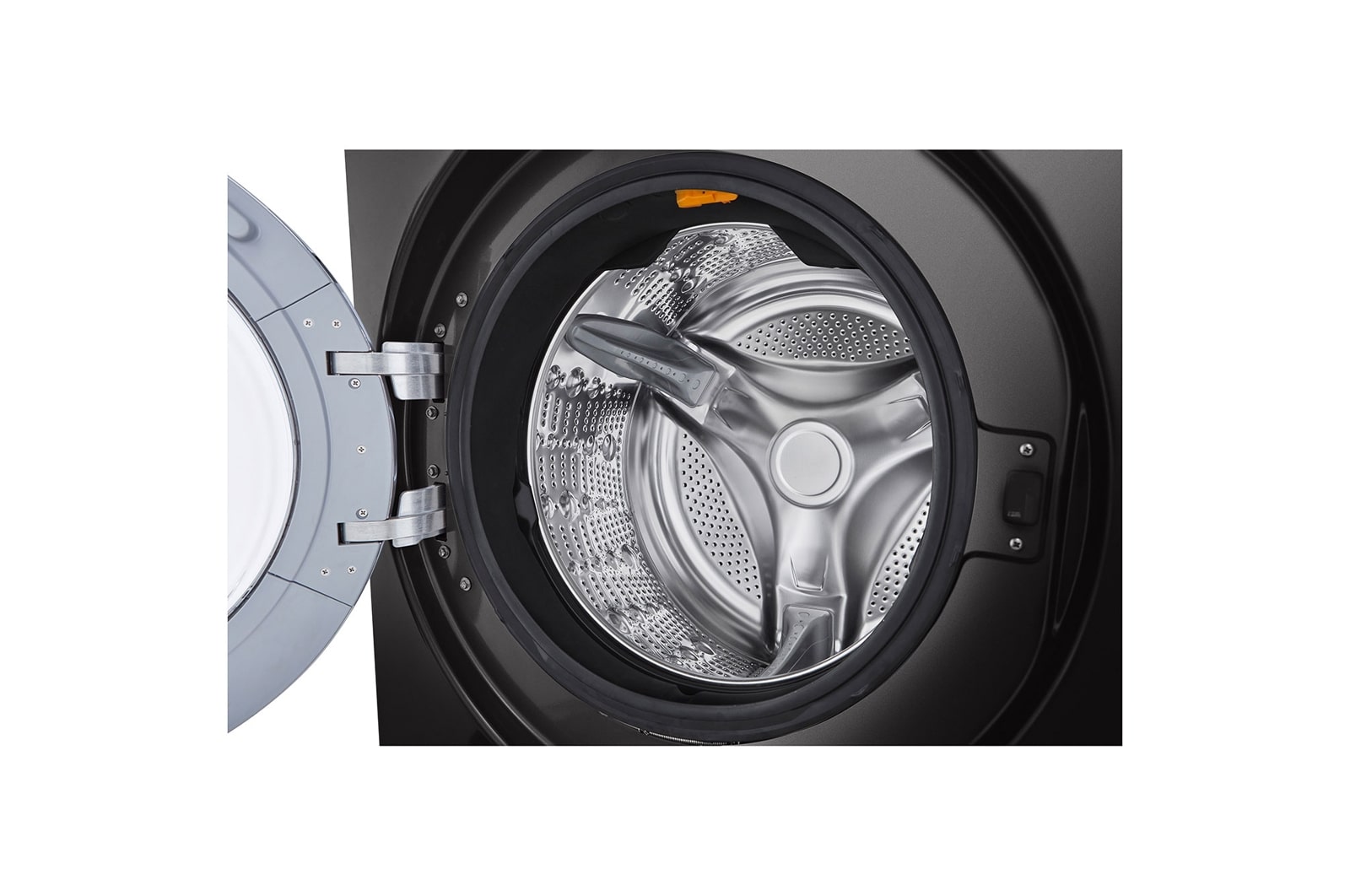

Drum
NeveRust™ Stainless Steel Drum
Top Plate
Powder painted steel

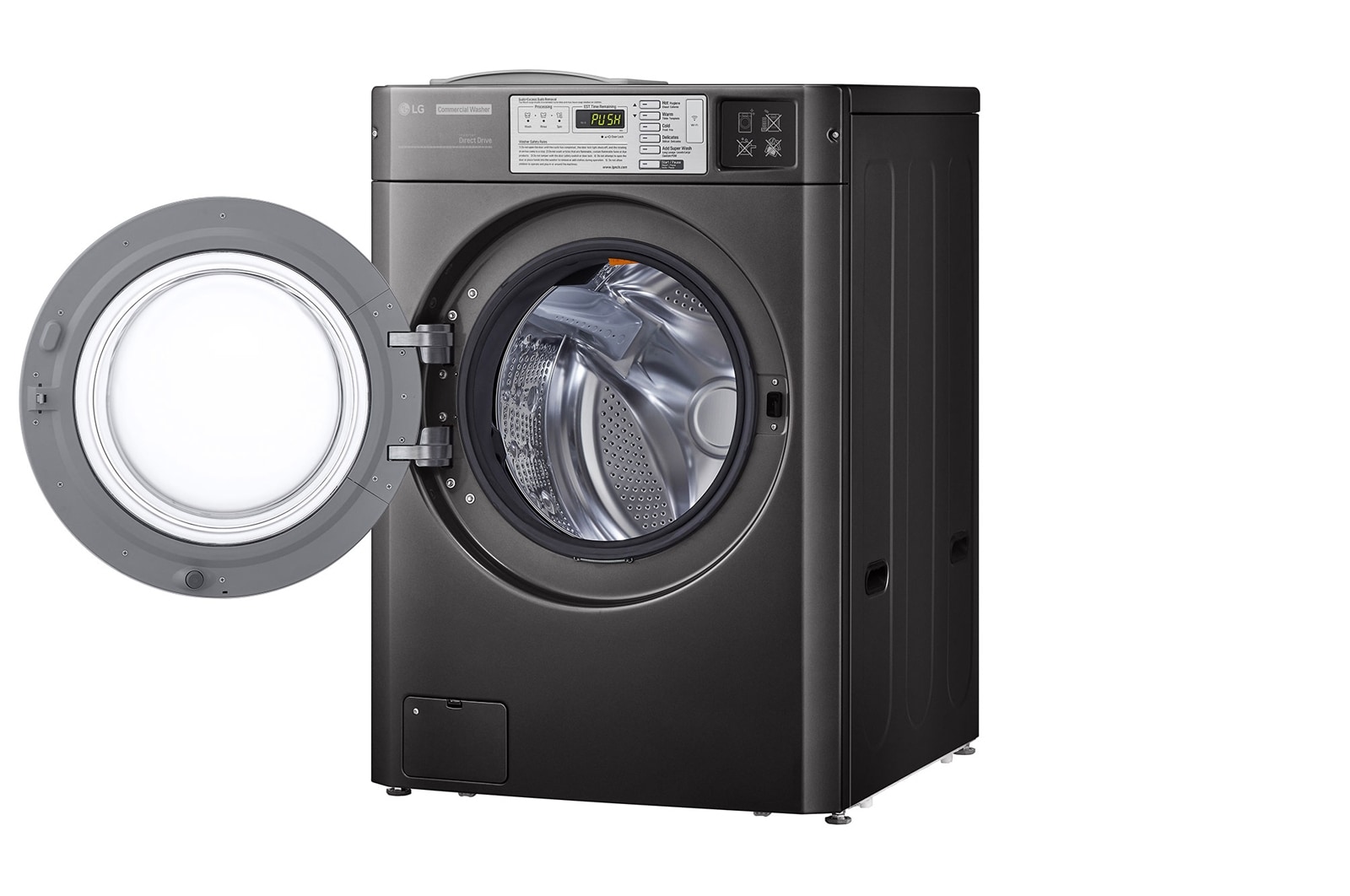

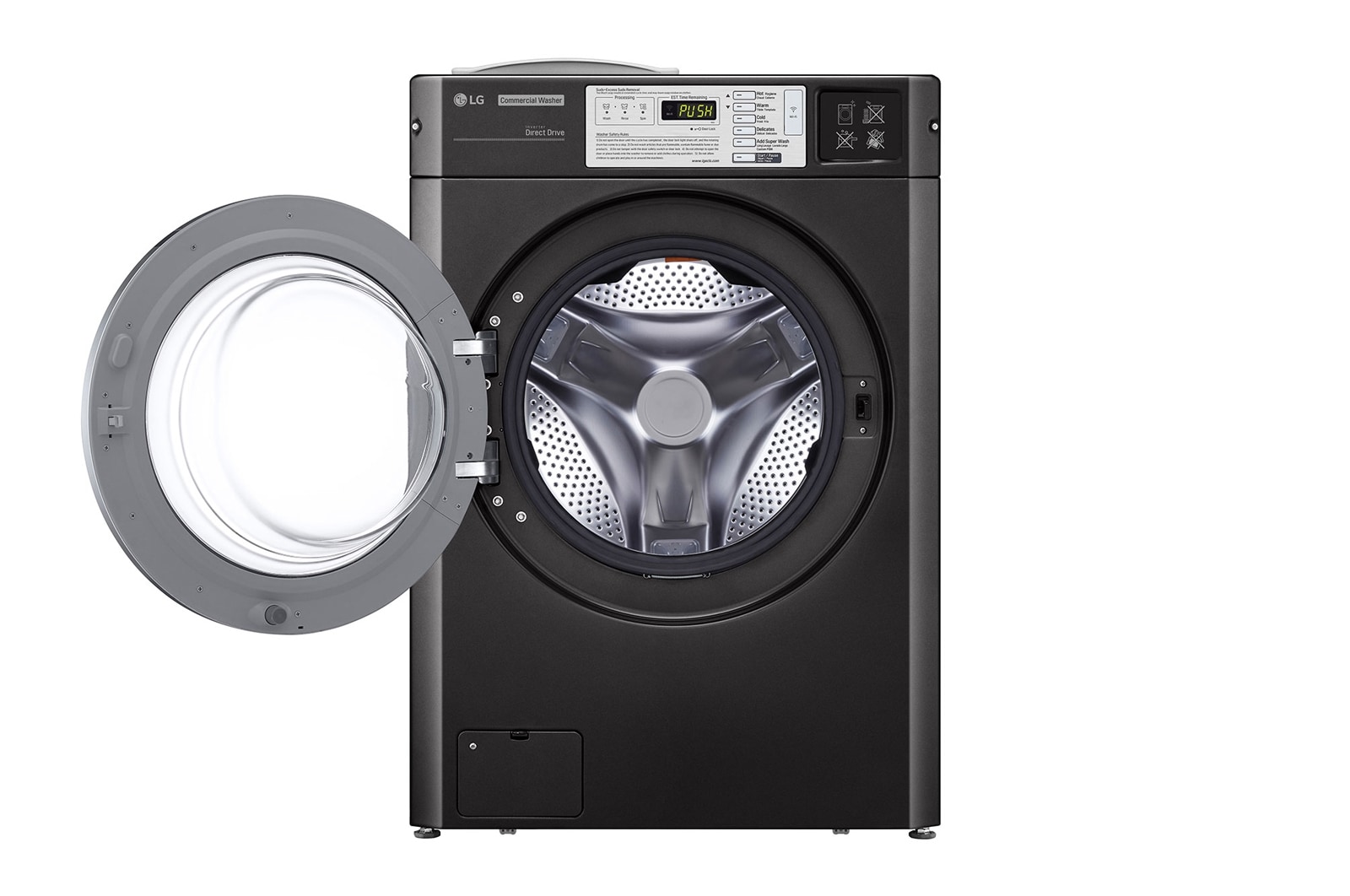

Transparent Glass Window Door
Avialable
Colors
Black Stainless silver
Cabinet
Powder painted steel
Control Panel
Powder painted steel
Frame,Panel
Powder painted steel
Frame,Panel lower
Powder painted steel
Window Display
Silk Screen
Window Display sheet
Aluminum
CIRCUIT PROTECTION
PCB Fuse - Main Control Board - amps
12
PCB fuse - Filter Assembly - amps
15
ENERGY
Electric Power Rating - V/Hz/A
230/60/2.2 (Heating 9.2)
Electric Consumption - W
500 (Heating 2100)
WATER USAGE
Water Consumption - ℓ
50(Without loading)
WASH PROGRAM
Hot
Yes
Hyegine
Yes
Warm
Yes
Cold
Yes
Delicate
Yes
Add Super Wash / Custom PGM
Yes
COVENIENCE FEATURES
End of Cycle Beeper
Yes
Door Lock Display
Yes
Self Diagnosis
Yes
Auto Balancing
Yes
Auto Suds Removal
Yes
Forced Drain System
Yes
Remaining Time Display
Yes
Status Indicator
Yes
4 Adjustable Leveling Legs
Yes
LoDecibel Quiet Operation
Yes
Coin Box Open Sensing
Yes
External Fuse
Yes
3D vibration sensor
Yes
Auto Dosing interface(4Channel)
Yes
Smart solution(Wi-Fi)
Yes
Tub clean
Yes
Wave Force(auto self tub clean)
Yes
4Damping System
Yes
DISCLAIMER
Disclaimer
*Noise level is the measured value based on noise during washing cycle.
