Case 1 (V, Phase, Hz)
220-230-240, 1, 50/60
Running Current by Voltage (Rated) (A)
0.05-0.05-0.05
Rated (kW)
31.5
Rated (kcah/h)
27100
Rated (Btu/h)
107500
Rated (kW)
28
Rated (kcah/h)
24100
Rated (Btu/h)
95900
Rated (kW)
0.01
Rated (W)
10
Rated (kW)
0.01
Rated (W)
10
Type
R410A / R32
Additional Charging amount (kg)
1.60 / 1.32
Control Type
Electric Expansion Valve
Type
Brazed Plate HEX
Quantity (EA)
1
Number of Plate (Sheet)
48
Rated Water Flow (ℓ / min)
92
Head Loss (kPa)
69
Temperature Control
Microprocessor, Thermostat for cooling and heating
Type(Sensor Holder) (inch)
Male PT 1/2
Length (m)
12
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
Safety Device
Fuse
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ22.2 (7/8)
Inlet (inch)
Male PT 1
Outlet (inch)
Male PT 1
Drain Piping Connection
Male PT 1
Cooling / Heating (dB(A))
26
Net(W x H x D) (mm)
520 x 631 x 330
Shipping(W x H x D) (mm)
677 x 687 x 418
Net (kg)
35.5
Shipping (kg)
39.7
Material
Painted Steel Plate
Color
Morning Gray
RAL Code
RAL 7038
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5 x 2C
Type

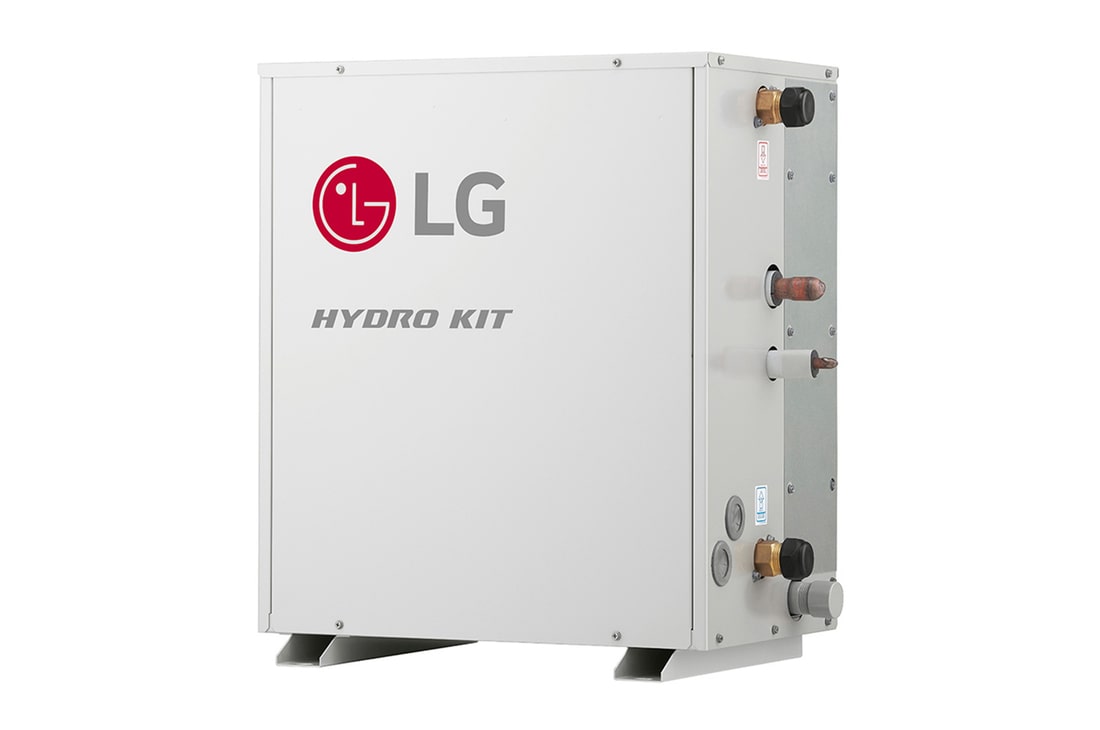

Hydro Kit
