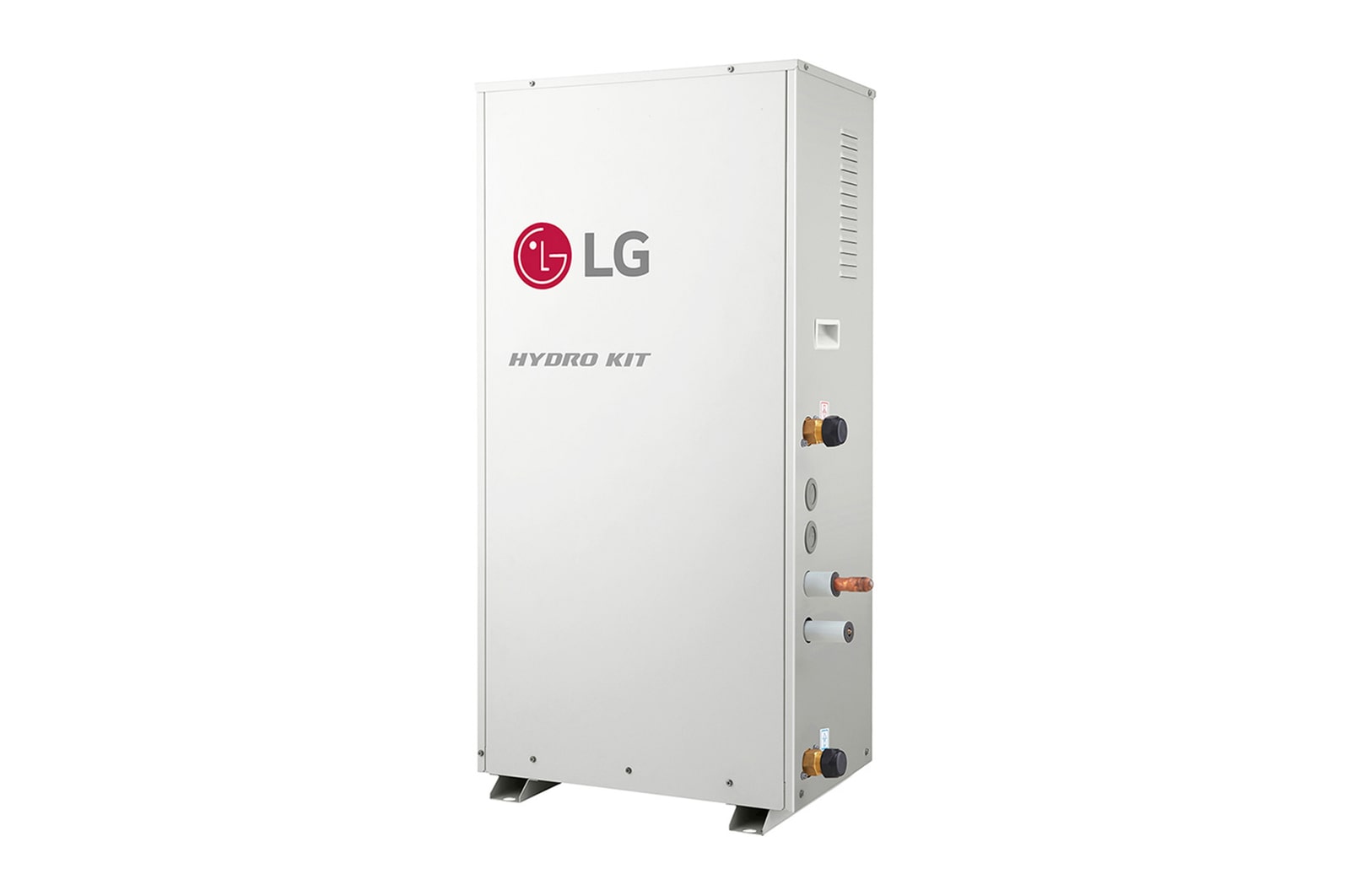

Hydro Kit, Mid Temperature, 14kW
Key Features
Total solution provided with heat pump, air conditioning that is and domestic hot water supply.
Hydro Kit reduces CO2 emissions with its highly efficient solution.
Applicable to a variety of commercial facilities including hospitals, residences, and restaurants that need heating and domestic hot water supply.
Case 1 (V, Phase, Hz)
50/60 Hz, 220~240V, 1Ph
Running Current by Voltage (Rated) (A)
23.00 / 22.00 / 21.08
Rated (kW)
25.2
Rated (kcah/h)
21,700
Rated (Btu/h)
86,000
Rated (W)
5000
Rated (kW)
5
Type
Twin Rotary Inverter
Piston Displacement (cm³/rev)
52.5
Number of Revolution (rev./min)
3,600
Motor Output (W x No.)
4,000 x 1
Starting Method
Direct On Line
Oil Type
FVC68D(PVE)
Oil Charging (cc)
1,300
Type
R410A, R32
Control Type
EEV
Type
R134a
Precharged Amount (kg)
3.0
Additional Charging amount (kg)
1.0
t-CO₂ eq
4.29
Control Type
EEV
Type
Brazed Plate HEX
Quantity (EA)
1
Number of Plate (Sheet)
60
Type
Brazed Plate HEX
Quantity (EA)
1
Number of Plate (Sheet)
48
Rated Water Flow (ℓ / min)
36
Head Loss (kPa)
20
Temperature Control
Microprocessor, Thermostat for heating
Type(Sensor Holder) (inch)
Male PT 1/2
Length (m)
12
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
Safety Device
Fuse, High Pressure Swithch
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ19.05 (3/4)
Connection Type(Liquid)
Brazing
Connection Type(Gas)
Brazing
Inlet (inch)
Male PT1
Outlet (inch)
Male PT1
Drain Piping Connection
Male PT1
Cooling / Heating (dB(A))
- / 46
Net(W x H x D) (mm)
520 x 1074 x 330
Shipping(W x H x D) (mm)
682 x 1168 x 423
Net (kg)
90
Shipping (kg)
98
Material
Painted STeel Plate
RAL Code
RAL 7030
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5 x 2C
Type
Hydro Kit
