Key Features
Total solution provided with heat pump, air conditioning that is and domestic hot water supply.
Hydro Kit reduces CO2 emissions with its highly efficient solution.
Applicable to a variety of commercial facilities including hospitals, residences, and restaurants that need heating and domestic hot water supply.
Case 1 (V, Phase, Hz)
50/60 Hz, 220~240V, 1Ph
Running Current by Voltage (Rated) (A)
10.56 / 10.10 / 9.68
Rated (kW)
13.8
Rated (kcah/h)
11870
Rated (Btu/h)
47000
Rated (W)
2300
Rated (kW)
2.3
Type
Twin Rotary Inverter
Piston Displacement (cm³/rev)
52.5
Number of Revolution (rev./min)
3,600
Motor Output (W x No.)
4,000 x 1
Starting Method
Direct On Line
Oil Type
FVC68D(PVE)
Oil Charging (cc)
1,300
Type
R410A, R32
Control Type
EEV
Type
R134a
Precharged Amount (kg)
2.3
Additional Charging amount (kg)
0.8
t-CO₂ eq
3.29
Control Type
EEV
Type
Brazed Plate HEX
Quantity (EA)
1
Number of Plate (Sheet)
50
Type
Brazed Plate HEX
Quantity (EA)
1
Number of Plate (Sheet)
76
Rated Water Flow (ℓ / min)
19.8
Head Loss (kPa)
5
Temperature Control
Microprocessor, Thermostat for heating
Type(Sensor Holder) (inch)
Male PT 1/2
Length (m)
12
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
Safety Device
Fuse, High Pressure Swithch
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Connection Type(Liquid)
Brazing
Connection Type(Gas)
Brazing
Inlet (inch)
Male PT1
Outlet (inch)
Male PT1
Drain Piping Connection
Male PT1
Cooling / Heating (dB(A))
- / 44
Net(W x H x D) (mm)
520 x 1074 x 330
Shipping(W x H x D) (mm)
682 x 1168 x 423
Net (kg)
86
Shipping (kg)
94
Material
Painted Steel Plate
RAL Code
RAL 7030
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5 x 2C
Type

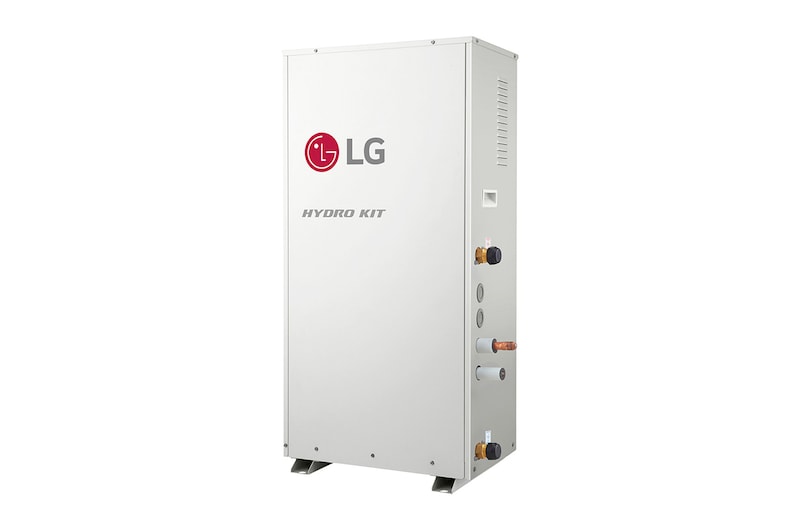

Hydro Kit
