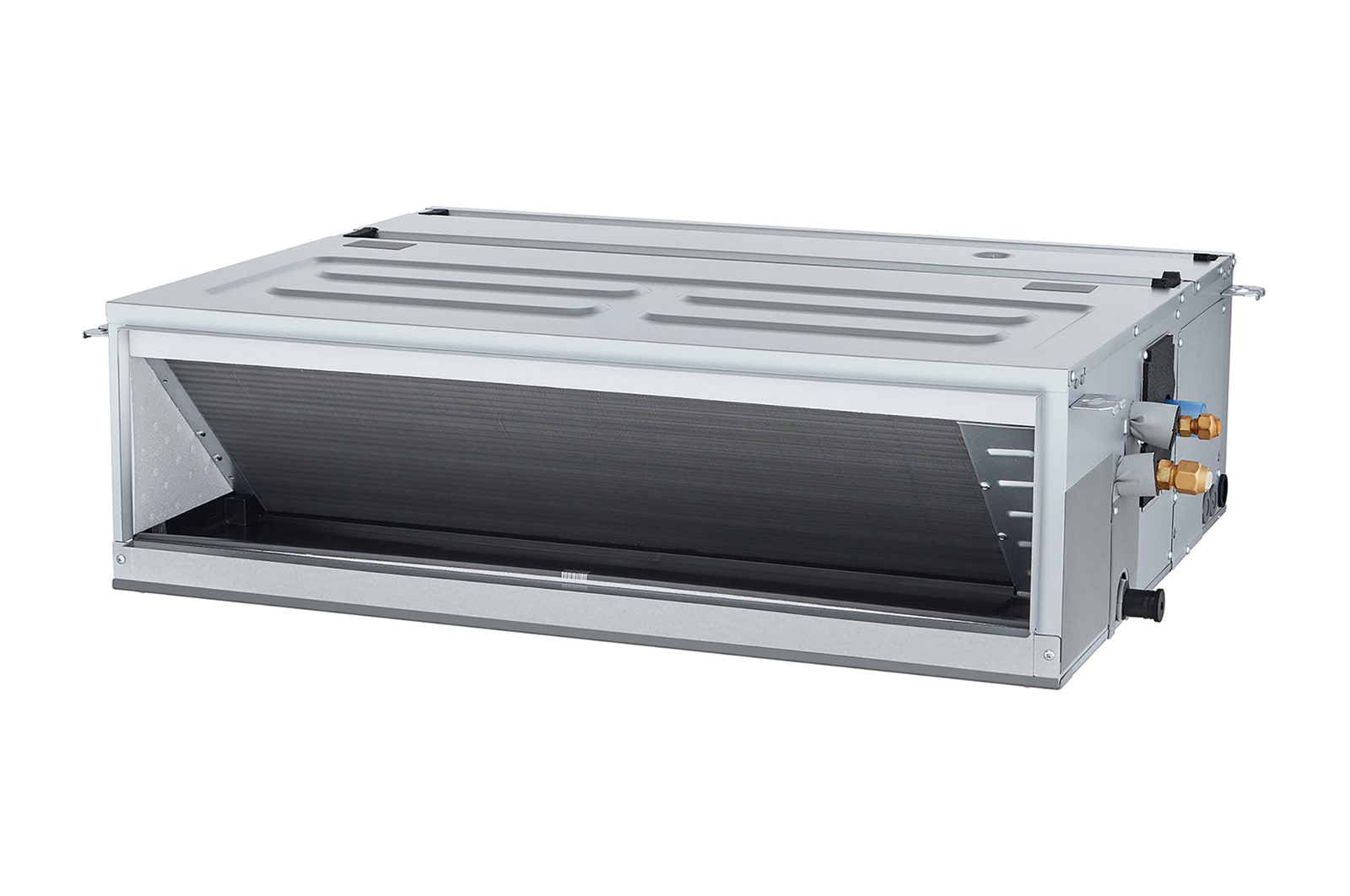

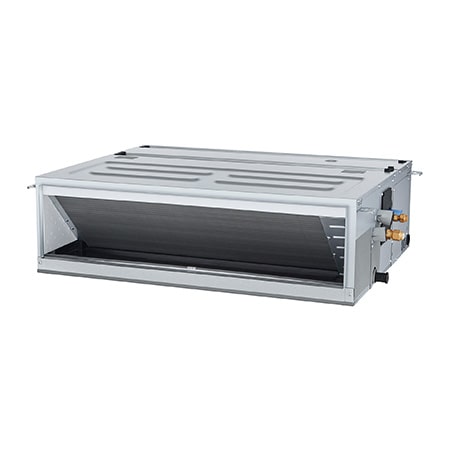

Concealed Duct, Mid/High Static (Slim), Indoor Unit, 18kBtu/h
Key Features
It is possible to operate cooling and heating for several rooms simultaneously by using a spiral duct(embedded or flexible type and stream chamber.
The user has easy access to air volume selection via the remote control by using the ESP(External Static Pressure) control function. The BLDC motor can control the fan speed and air volume.
Two thermistors detect difference between ceiling and floor air temperature and optimize indoor air temperature for a more comfortable environment.
Rated (Btu/h)
19 100 / 21 500
External Static Pressure(Min ~ Max) (mmAq)
2~15
External Static Pressure(Min ~ Max) (Pa)
20~147
Net(W x H x D) (mm)
900 x 270 x 700
Shipping(W x H x D) (mm)
1,100 x 338 x 773
Net (kg)
25
Indoor Fan Motor_Full Load Amperes (FLA) (A)
1.6
