Case 1
50/60 Hz 220-240 V~
Limit Range of Voltage(Case 1) (V)
220-240
Nominal (kW)
7.10
Nominal (Btu/h)
24200
Nominal (kW)
8.00
Nominal (Btu/h)
27300
H/M/L (W)
25 / 21 / 17
H/M/L (A)
0.28 / 0.23 / 0.18
Type
Cross Flow Fan
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
- / 14.0 / 13.0 / 12.0
Air Flow Rate(Heating,(SH)/H/M/L) (m³/min)
14.0 / 13.0 / 12.0
Type
BLDC
Drive
Direct
Output (W)
85.9
Output (No.)
1
Rows x Columns x FPI
3 × 18 × 18
No.
1
Face Area (m²)
0.32
Type

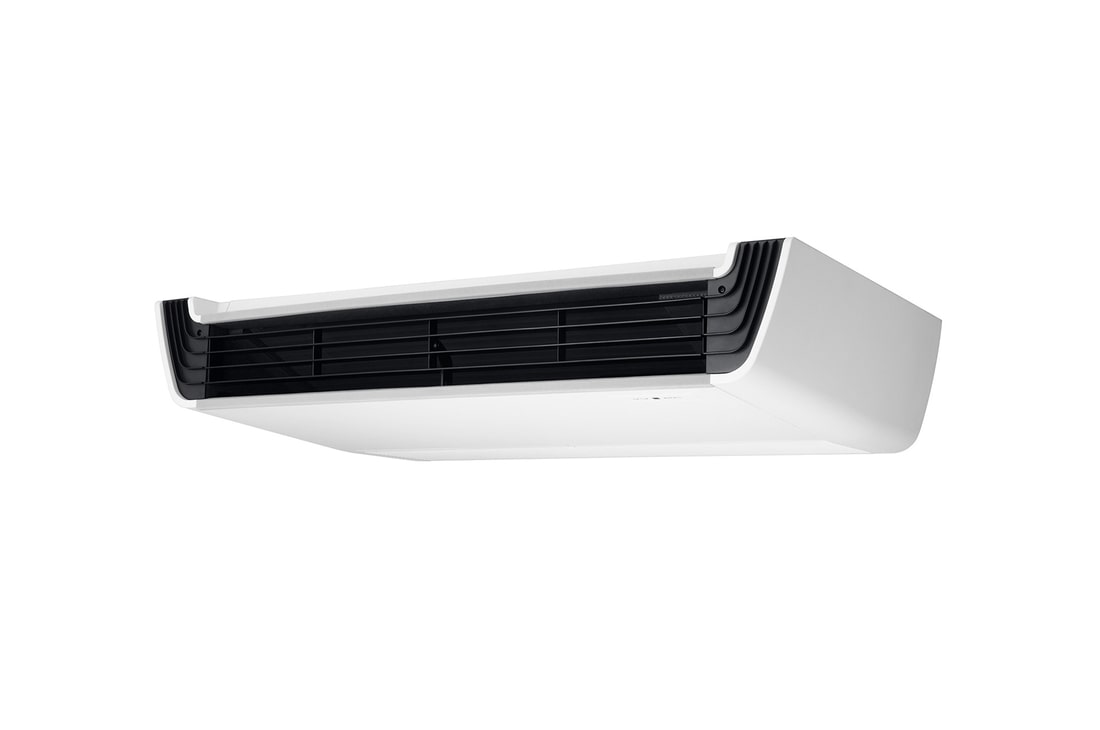

Ceiling Suspended
Net (kg)
29.0
Shipping (kg)
36.0
Color
Galvanized Steel Plate + Painting
Temperature Control
Microprocessor, Thermostat for cooling and heating
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
Fuse
Fuse
Type
R410A
Additional Charging amount (kg(each))
0.53
Control Type
EEV
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Liquid
Flare
Gas
Flare
Cooling((SH)/H/M/L) (dB(A))
-/ 37 / 35 / 33
Heating((SH)/H/M/L) (dB(A))
37 / 35 / 33
Measurement Standard (Pressure Level)
ISO 3745
Cooling((SH)/H/M/L) (dB(A))
-/ 62 / 59 / 56
Heating((SH)/H/M/L) (dB(A))
62 / 59 / 56
Measurement Standard (Power Level)
ISO 3741
Communication Cable(VCTF-SB) (mm² × cores)
1.0 ~ 1.5 × 2C
Minimium Circuit Amperes (MCA) (A)
1.21
Indoor Fan Motor_Full Load Amperes (FLA) (A)
0.97
Net(W x H x D) (mm)
1200 x 235 x 690
