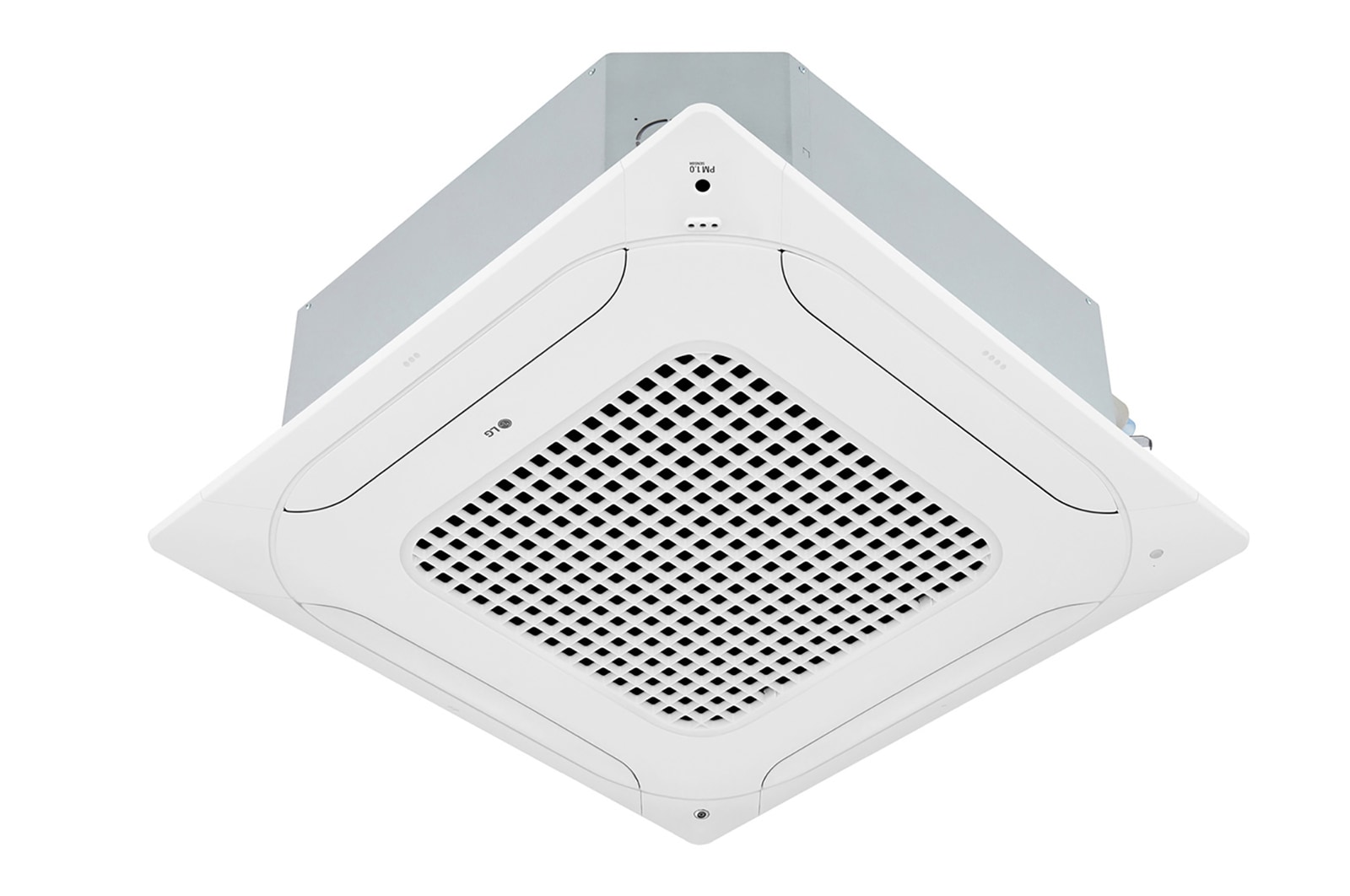

Ceiling Cassette, 4 Way Standard, Indoor Unit, 30kBtu/h

ARNU30GTPA4

Key Features

4 Way Air Flow with New Design
Convenient & Powerful 5-step Air Purification (Optional)
Human Detection Air Flow (Optional)

All Spec

POWER SUPPLY

Case 1: 50 Hz 220-240 V~

Limit Range of Voltage(Case 1) (V): 198~264

Case 2: 60 Hz 220 V~

Limit Range of Voltage(Case 2) (V): 198~242

COOLING CAPACITY

Nominal (kW): 9.00

Nominal (Btu/h): 30 700

Sensible Heat (kW): 6.50

Sensible Heat (Btu/h): 22 179

HEATING CAPACITY

Nominal (kW): 10.0

Nominal (Btu/h): 34 100

POWER INPUT(INDOOR)

H/M/L (W): 26 / 24 / 21

RUNNING CURRENT(INDOOR)

H/M/L (A): 0.15 / 0.14 / 0.14

INDOOR FAN

Type: Turbo Fan

Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min): - / 24.3 / 22.8 / 19.5

Air Flow Rate(Heating,(SH)/H/M/L) (m³/min): - / 24.3 / 22.8 / 19.5

INDOOR FAN MOTOR

Type: BLDC

Drive: Direct

Output (W): 30

HEAT EXCHANGER

Rows x Columns x FPI: 2 x 8 x 19

Face Area (m²): 0.4

DIMENSIONS

Net(W x H x D) (mm): 840 x 204 x 840

Shipping(W x H x D) (mm): 922 x 276 x 917

WEIGHT

Net (kg): 20.8

Shipping (kg): 25.0

EXTERIOR

Color: Morning Fog

RAL (Classic): RAL9001

AIR FILTER

Type: Pre Filter

TEMPERATURE CONTROL

Temperature Control: Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

Sound Absorbing / Thermal Insulation Material: Foamed polystrene

PROTECTION DIVICE

Fuse: O

REFRIGERANT

Type: R410A / R32

Additional Charging amount (kg(each)): 0.32 / 0.26

Control Type: EEV

DRAIN PIPE(USING DRAIN PUMP)

O.D / I.D (mm(inch)): - / 25(1)

CONNECTING PIPE

Liquid (mm(inch)): Φ9.52 (3/8)

Gas (mm(inch)): Φ15.88 (5/8)

SOUND PRESSURE LEVEL (INDOOR UNIT)

Cooling((SH)/H/M/L) (dB(A)): - / 40 / 36 / 33

Heating((SH)/H/M/L) (dB(A)): - / 40 / 36 / 33

MEASUREMENT STANDARD (PRESSURE LEVEL)

Measurement Standard (Pressure Level): ISO 3745

SOUND POWER LEVEL (INDOOR UNIT)

Cooling((SH)/H/M/L) (dB(A)): - / 58 / 57 / 54

Heating((SH)/H/M/L) (dB(A)): - / 58 / 57 / 54

MEASUREMENT STANDARD (POWER LEVEL)

Measurement Standard (Power Level): ISO 9614

CONNECTING CABLE

Communication Cable(VCTF-SB) (mm² × cores): 1.0~1.5 x 2C

ELECTRICAL CHARACTERISTIC

Minimium Circuit Amperes (MCA) (A): 0.19

Indoor Fan Motor_Full Load Amperes (FLA) (A): 0.15

PRODUCT

Type: Ceiling Cassette
