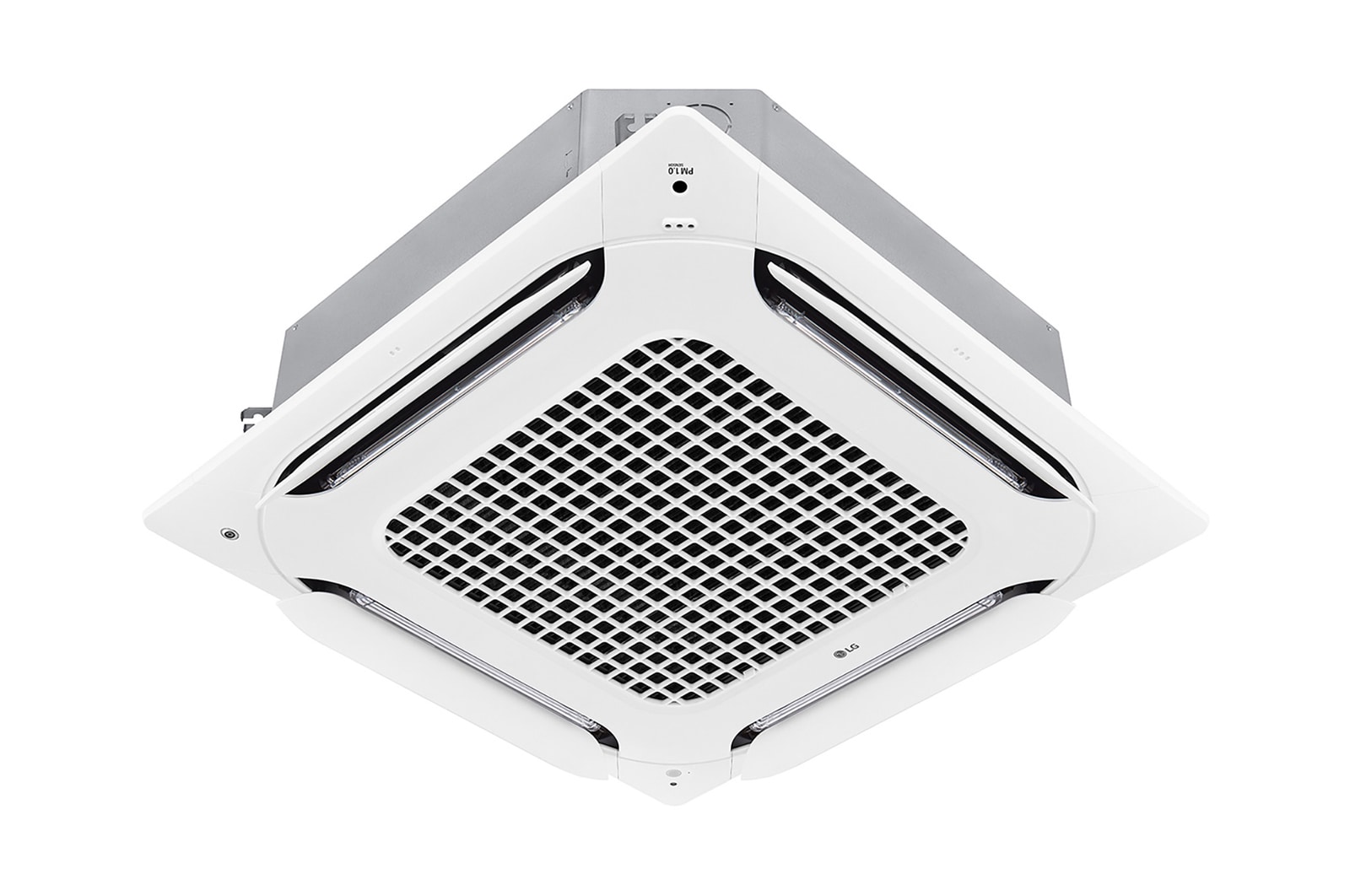

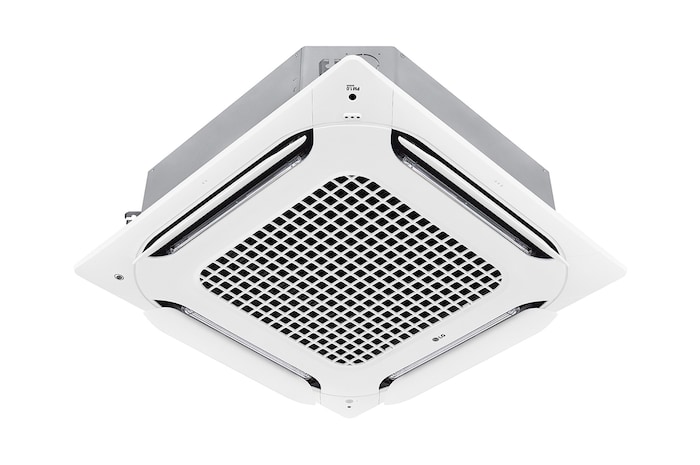

- 4 Way Air Flow with New Design
- Convenient & Powerful 5-step Air Purification (Optional)
- Human Detection Air Flow (Optional)
All Spec
POWER SUPPLY
Case 1
50/60 Hz 220-240 V~
Limit Range of Voltage(Case 1) (V)
198~242
Case 2
50/60 Hz 220-240 V~
COOLING CAPACITY
Nominal (kW)
12.30
Nominal (Btu/h)
42000
HEATING CAPACITY
Nominal (kW)
13.8
Nominal (Btu/h)
47000
POWER INPUT(INDOOR)
H/M/L (W)
97 / 69 / 49
RUNNING CURRENT(INDOOR)
H/M/L (A)
0.85 / 0.62 / 0.46
INDOOR FAN
Type
3D Turbo Fan
Air Flow Rate(H/M/L) (m³/min)
33 / 29 / 26
INDOOR FAN MOTOR
Type
Brushless DC
Drive
Direct
Output (W)
135
Output (No.)
1
HEAT EXCHANGER
Rows x Columns x FPI
3 x 12 x 21
No.
1
Face Area (m²)
0.50
DIMENSIONS
Net(W x H x D) (mm)
840 x 288 x 840
Shipping(W x H x D) (mm)
922 x 360 x 917
WEIGHT
Net (kg)
27
Shipping (kg)
31.5
EXTERIOR
Color
White
AIR FILTER
Type
Long life filter
TEMPERATURE CONTROL
Temperature Control
Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
REFRIGERANT
Type
R410A/R32
Additional Charging amount (kg(each))
0.49 / 0.41
Control Type
EEV
DRAIN PIPE(USING DRAIN PUMP)
O.D / I.D (mm(inch))
32 / 25
CONNECTING PIPE
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
PIPING CONNECTION TYPE
Liquid
Flare
Gas
Flare
SOUND PRESSURE LEVEL (INDOOR UNIT)
Cooling((SH)/H/M/L) (dB(A))
- / 47 / 43 / 40
Heating((SH)/H/M/L) (dB(A))
- / 47 / 43 / 40
SOUND POWER LEVEL (INDOOR UNIT)
Cooling((SH)/H/M/L) (dB(A))
- / 56 / 53 / 49
Heating((SH)/H/M/L) (dB(A))
- / 56 / 53 / 49
CONNECTING CABLE
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5 x 2
ELECTRICAL CHARACTERISTIC
Minimium Circuit Amperes (MCA) (A)
2.29
Indoor Fan Motor_Full Load Amperes (FLA) (A)
1.83
PRODUCT
Type
Dual Vane
