Fresh Air Intake, Indoor Unit, 76kBtu/h

Features

Gallery

Specs

Support

Resource

Find a dealer

Fresh Air Intake, Indoor Unit, 76kBtu/h

Fresh Air Intake, Indoor Unit, 76kBtu/h

ARNU76GB8Z4

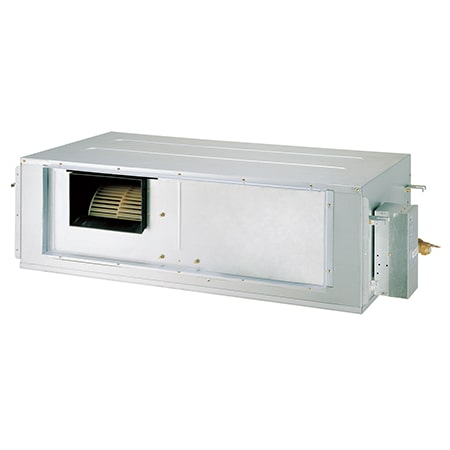

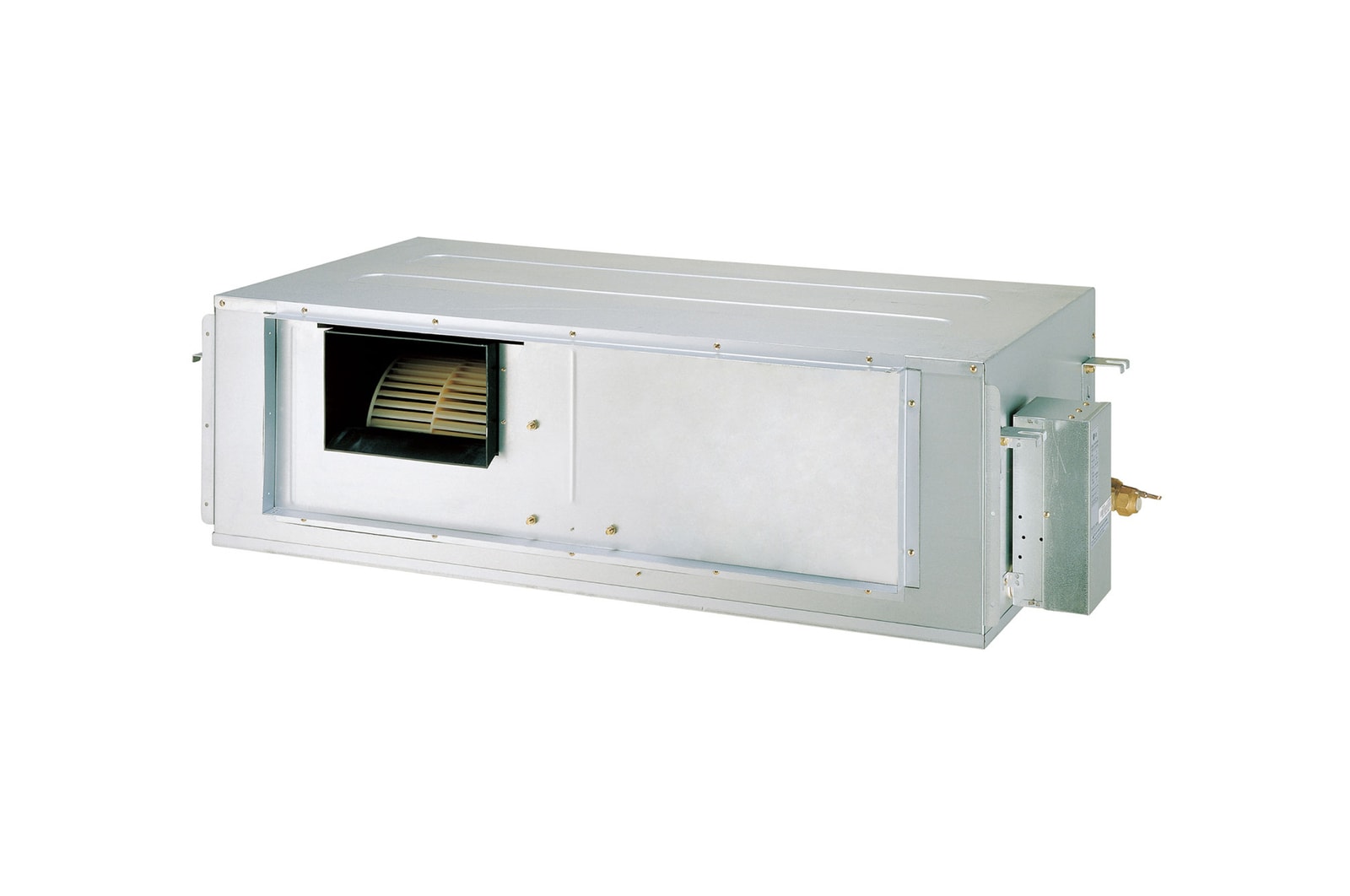

  • LG Concealed Duct ARNU76GB8Z4 is a gray rectangular parallelepiped with some air inlets on the right side and an small air outlet vent on the front.
LG Concealed Duct ARNU76GB8Z4 is a gray rectangular parallelepiped with some air inlets on the right side and an small air outlet vent on the front.

Key Features

  • Fresh Outdoor Air Supply
  • Economic Operation

Fresh Outdoor Air Supply

LG Fresh Air Intake Unit is alternative solution for ventilation that supplies fresh air from the outdoors. It allows the indoor space to have consistent positive air pressure blocking cold air.

Economic Operation

Natural outdoor air is utilized as seasons change for cost efficiency. In spring, it provides outdoor air supply with warm air. In autumn, it provides outdoor air supply with cool air.

Print

All Spec

INDOOR FAN

  • External Static Pressure(Min ~ Max) (Pa)

    69~245

DIMENSIONS

  • Net(W x H x D) (mm)

    1 562 x 460 x 688

WEIGHT

  • Net (kg)

    73

ELECTRICAL CHARACTERISTIC

  • Indoor Fan Motor_Full Load Amperes (FLA) (A)

    2.15

PRODUCT

  • Type

    Fresh Air Intake

To access more technical documentation and resources, please visit the LG B2B partner portal.
