Fresh Air Intake, Indoor Unit, 96kBtu/h

Fresh Air Intake, Indoor Unit, 96kBtu/h

ARNU96GB8Z4

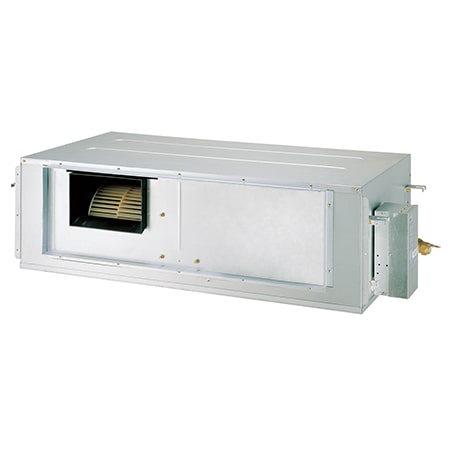

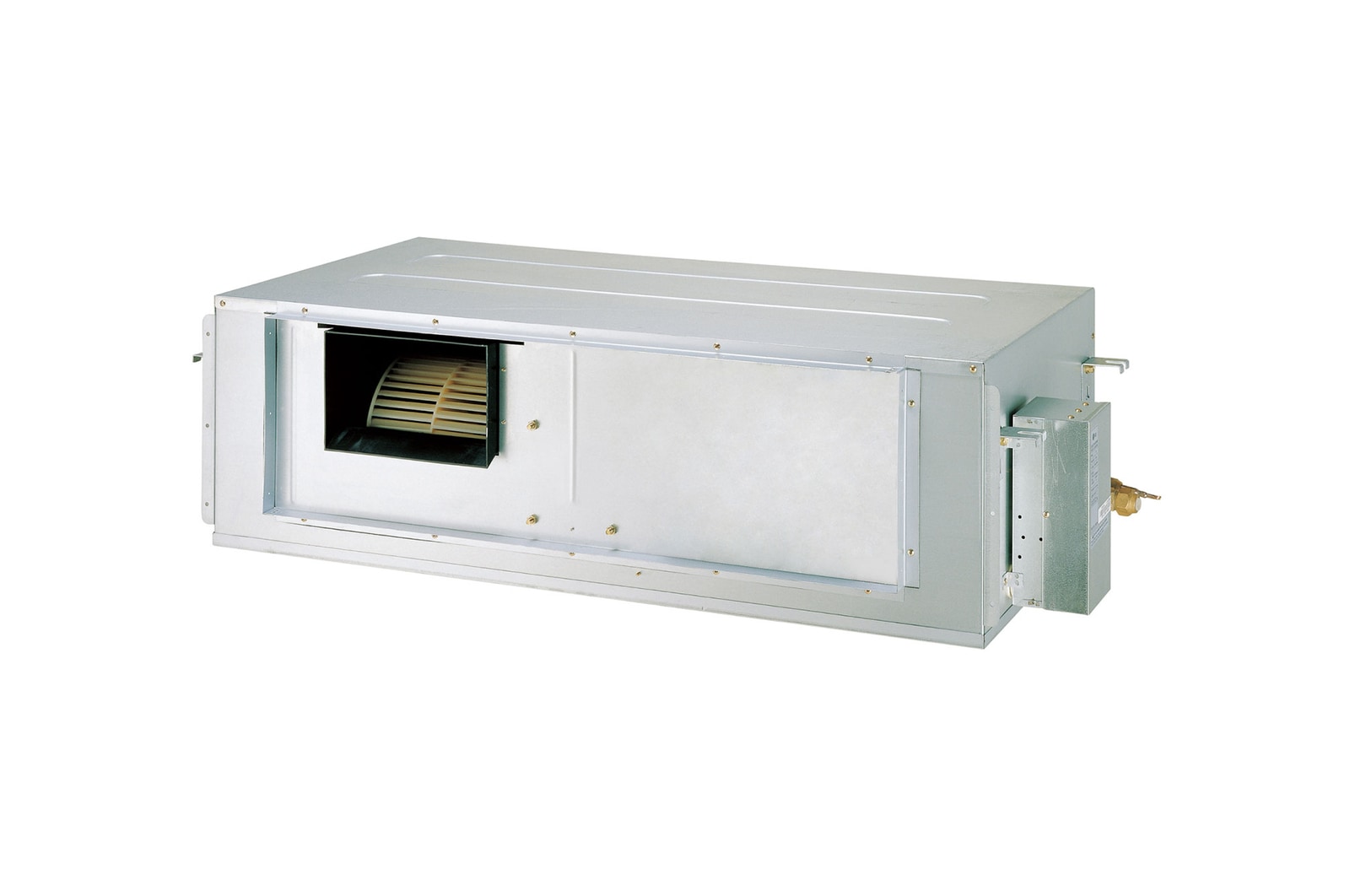

  • LG Concealed Duct ARNU96GB8Z4 is a gray rectangular parallelepiped with some air inlets on the right side and an small air outlet vent on the front.
LG Concealed Duct ARNU96GB8Z4 is a gray rectangular parallelepiped with some air inlets on the right side and an small air outlet vent on the front.

Key Features

  • Fresh Outdoor Air Supply
  • Economic Operation

Fresh Outdoor Air Supply

LG Fresh Air Intake Unit is alternative solution for ventilation that supplies fresh air from the outdoors. It allows the indoor space to have consistent positive air pressure blocking cold air.

Economic Operation

Natural outdoor air is utilized as seasons change for cost efficiency. In spring, it provides outdoor air supply with warm air. In autumn, it provides outdoor air supply with cool air.

Print

All Spec

POWER SUPPLY

  • Case 1

    50/60Hz, 220~240V, 1~

COOLING CAPACITY

  • Nominal (kW)

    28.00

  • Nominal (Btu/h)

    95900

HEATING CAPACITY

  • Nominal (kW)

    26.7

  • Nominal (Btu/h)

    91360

POWER INPUT(INDOOR)

  • H/M/L (W)

    360/230/230

RUNNING CURRENT(INDOOR)

  • H/M/L (A)

    2.05/1.96/1.88

INDOOR FAN

  • Type

    Sirocco Fan

  • External Static Pressure(Factory Set) (Pa)

    69~245

  • External Static Pressure(Min ~ Max) (Pa)

    69~245

INDOOR FAN MOTOR

  • Type

    BLDC

  • Drive

    Direct

  • Output (W)

    375

  • Output (No.)

    1

DIMENSIONS

  • Net(W x H x D) (mm)

    1 562 x 460 x 688

WEIGHT

  • Net (kg)

    73

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ22.2 (7/8)

PRODUCT

  • Type

    Fresh Air Intake

SOUND POWER LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    -/58/56/56

  • Heating((SH)/H/M/L) (dB(A))

    -/58/56/56

ELECTRICAL CHARACTERISTIC

  • Indoor Fan Motor_Full Load Amperes (FLA) (A)

    2.15

SOUND PRESSURE LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    -/47/45/45

  • Heating((SH)/H/M/L) (dB(A))

    -/47/45/45

To access more technical documentation and resources, please visit the LG B2B partner portal.
