UHD Signage Display

65UM5N-H

Key Features

Resolution : 3,840 x 2,160 (UHD)
Brightness (Typ.) : 500 nit
Surface Treatement (Haze) : 28 %
Bezel : 12.4 mm (T/R/L/B)
Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
webOS Smart Platform

A screen showing the meeting’s contents is installed on the meeting room’s wall.

* 65 inch
* All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

A number of tasks can be done at the same time with the intuitive GUI.

Convenient webOS Platform

The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UM5N-H is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

The UM5N-H has Conformal Coating on the power board to protect display even in a salty or humid environment.

Design for Space Utilization

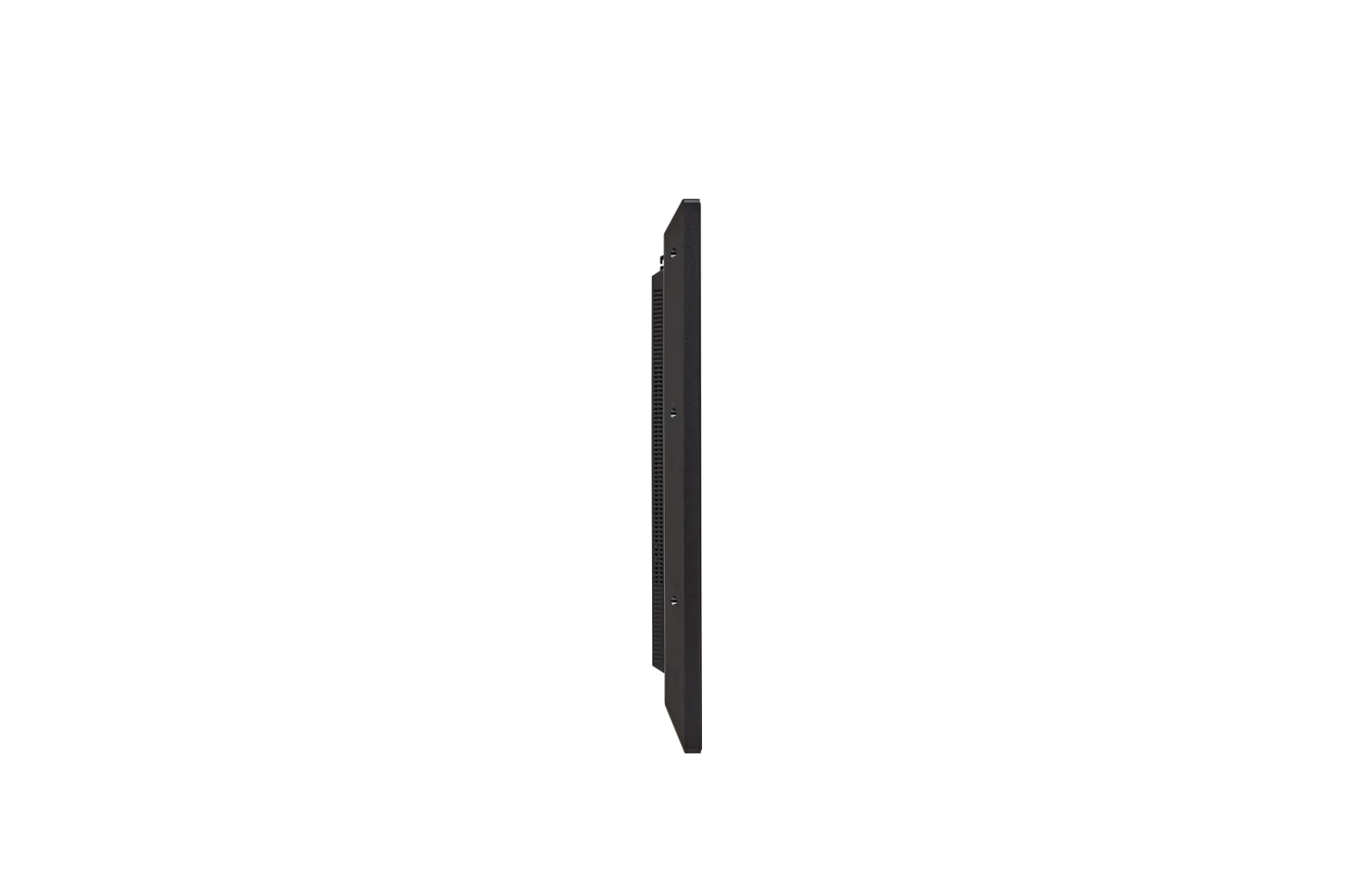

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

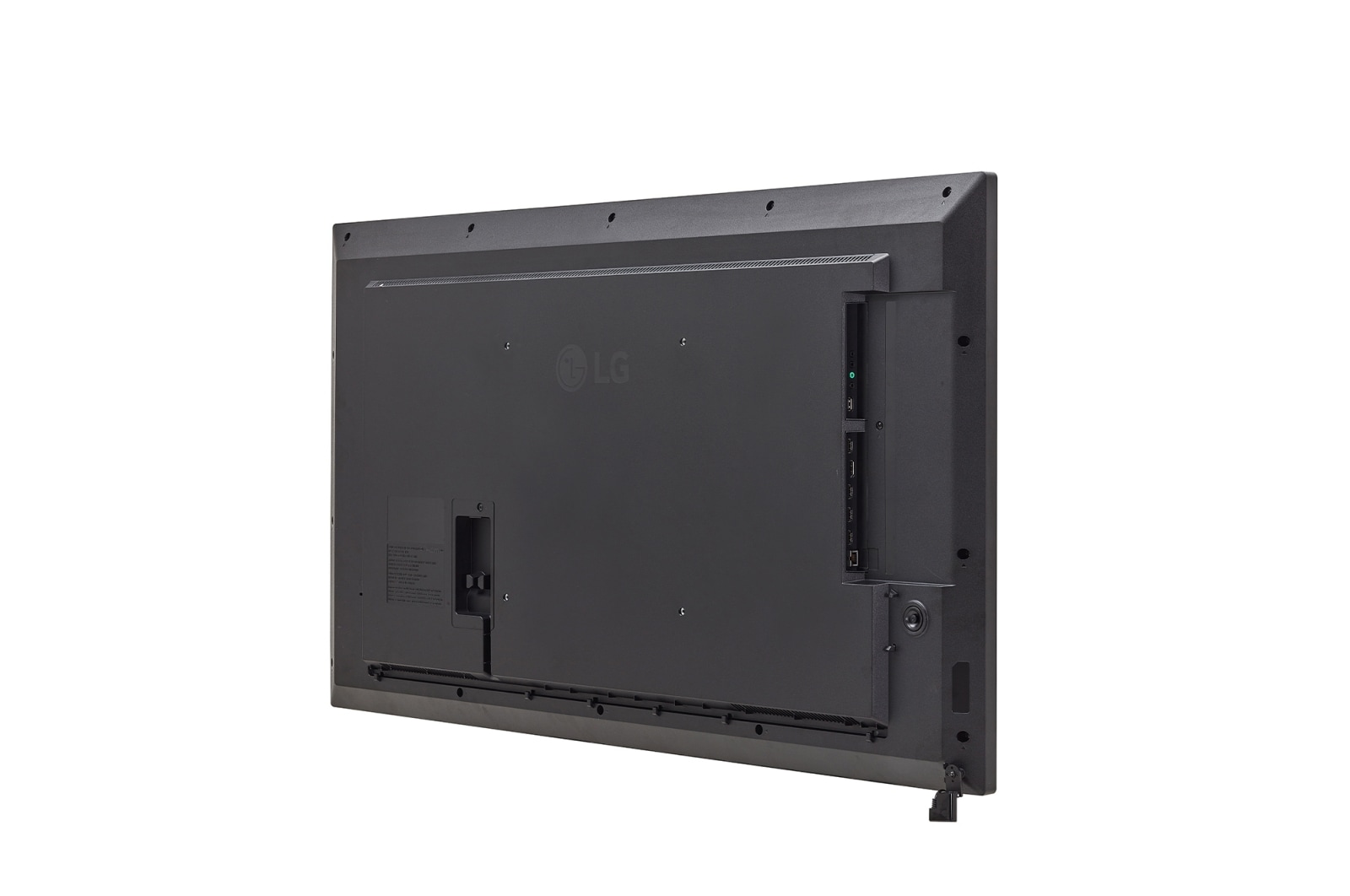

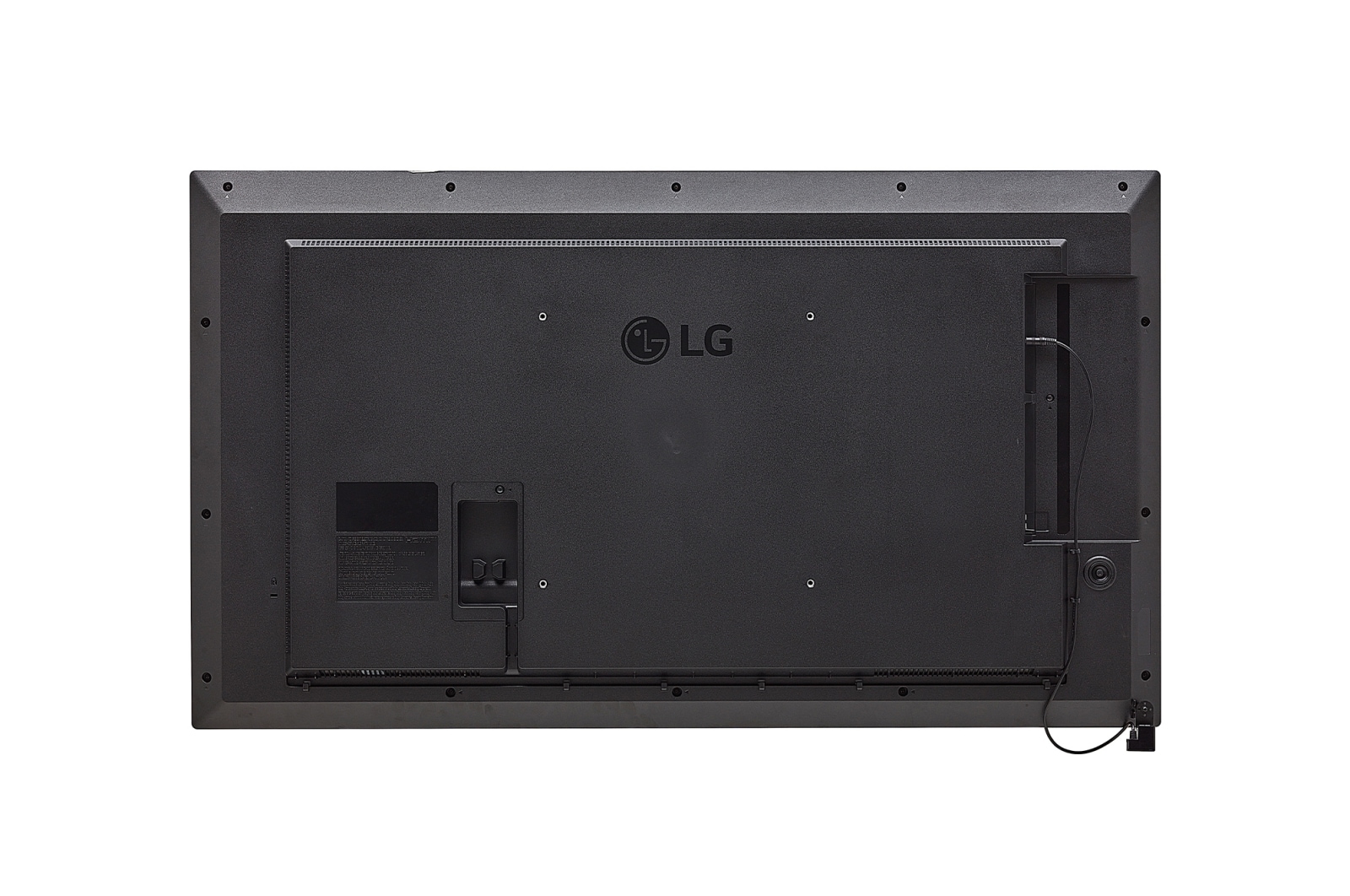

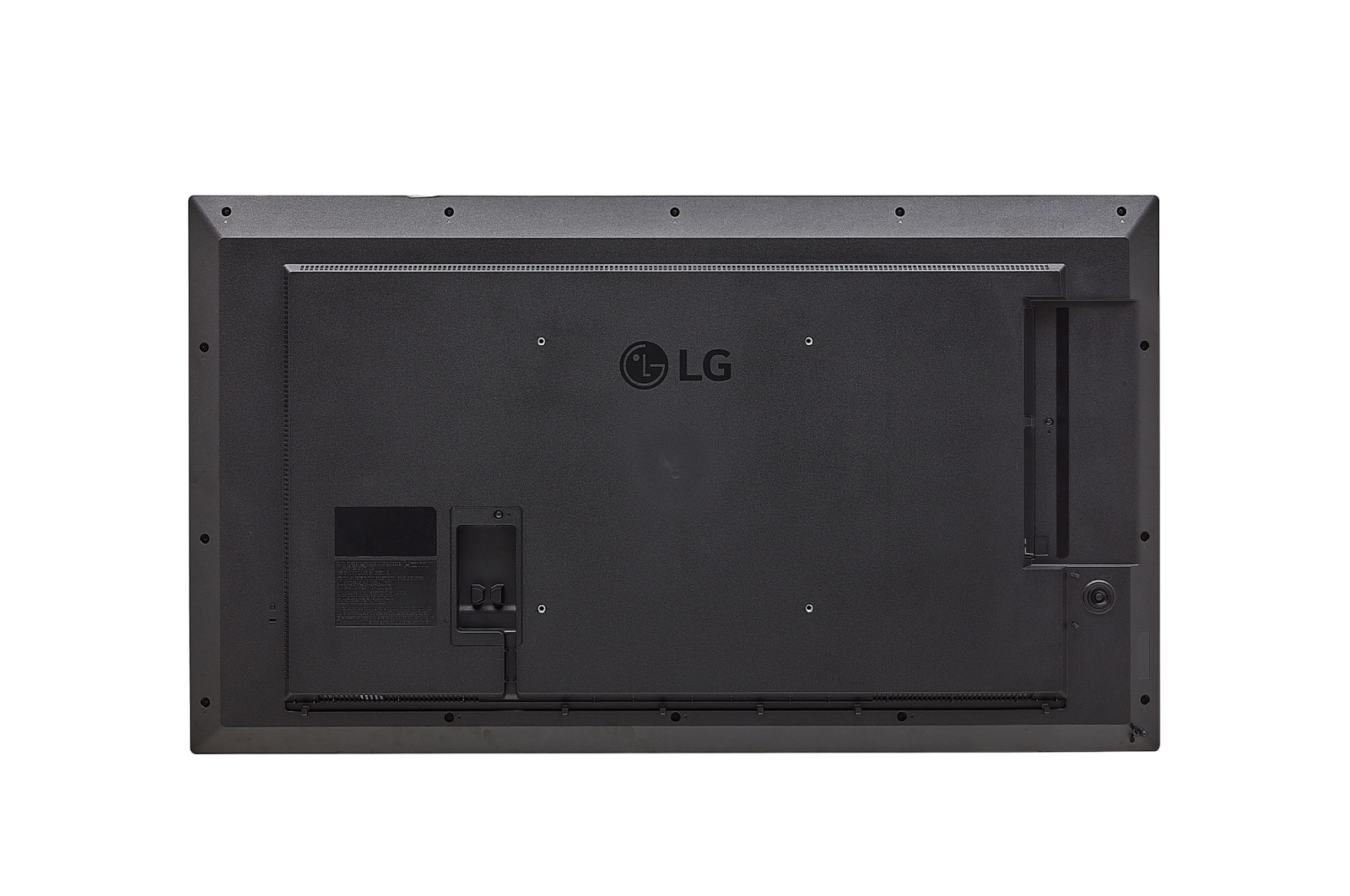

The UM5N-H with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.

* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

The UM5N-H provides security features to protect important data from external access or attacks.

Enhanced Security Features

The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

All Spec

PANEL

Screen Size (Inch)
65"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness (Typ.)
500nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
1,000,000:1
Color gamut
BT709 95%
Viewing Angle(H x V)
178 X 178
Color Depth
10bit(D), 1.07Billion colors
Response Time
Tr : 8ms / Tf :10ms
Surface Treatment(Haze)
28%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ.)
145W
Power Consumption (Max.)
200W
Power Consumption (British Thermal Unit)
495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
Power Consumption (Smart Energy Saving, ~70%)
101.5W
Power Consumption (DPM)
0.5W
Power Consumption (Power Off)
0.5W

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE

Tilt (Face Down)
Yes(Max 30º degree, 40ºC temperature)
IP Rating
IP5X
Conformal Coating (Power Board)
Yes

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ErP / Energy Star
Yes (NewErP) / Yes
ISTA6
Yes(~'23.9, US Suffix Only)
Carbon Trust
Yes(~'23.9, CO2 Measured)

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic
