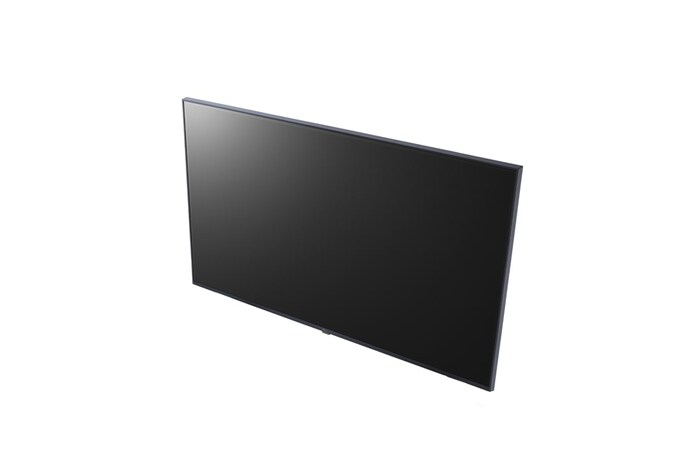

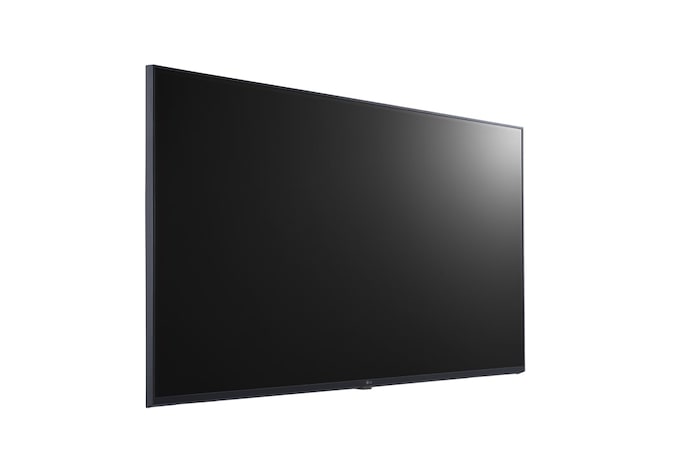

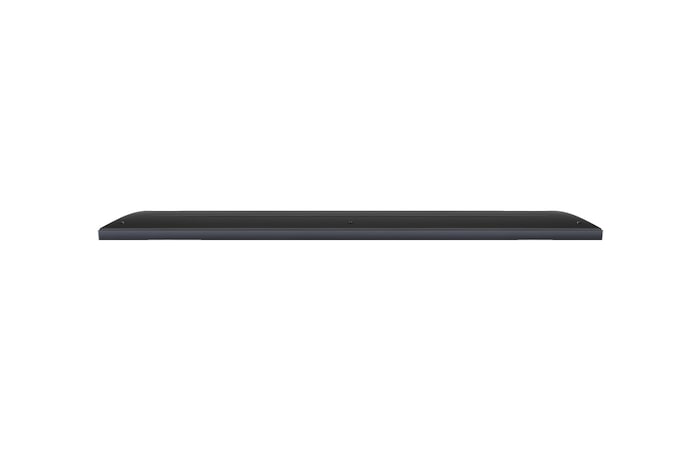

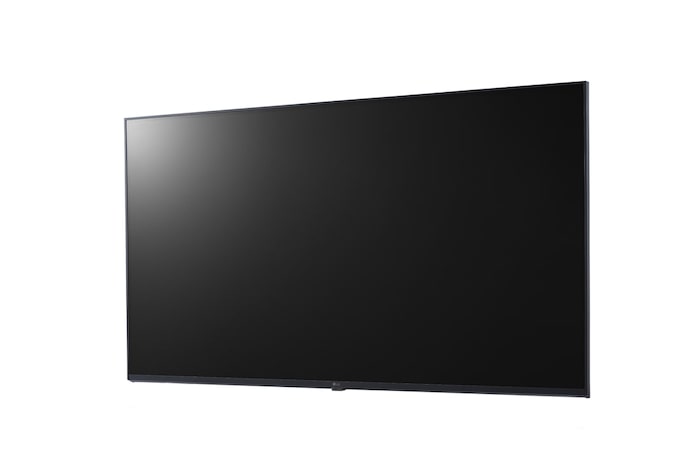

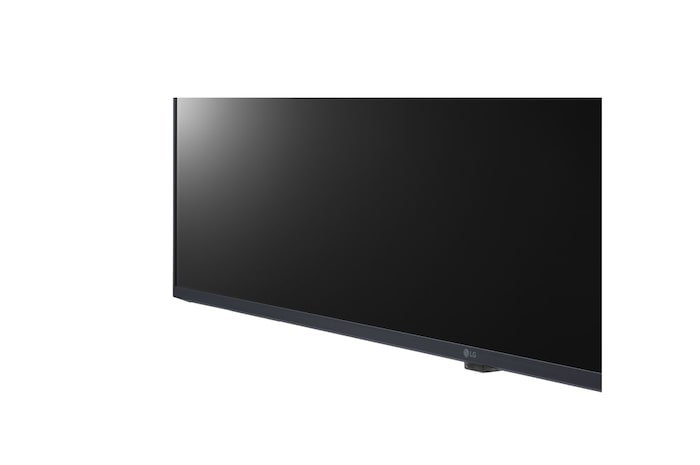

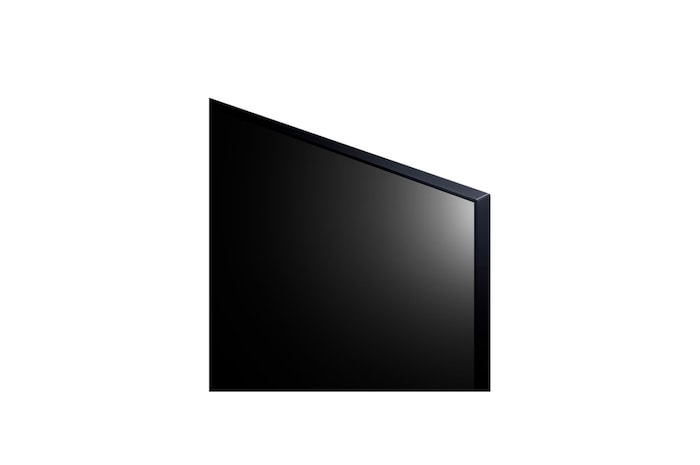

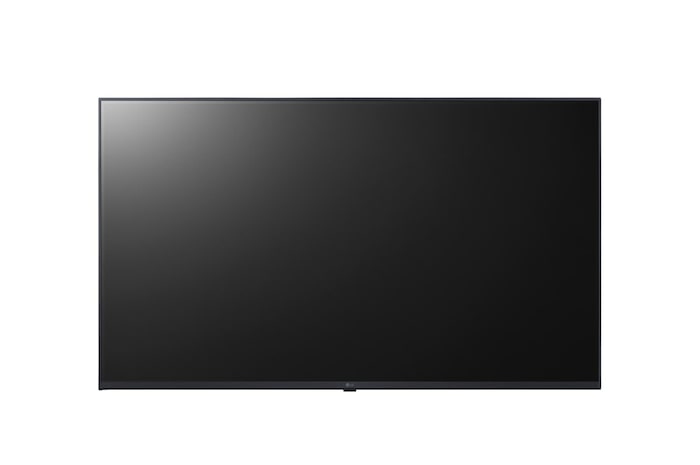

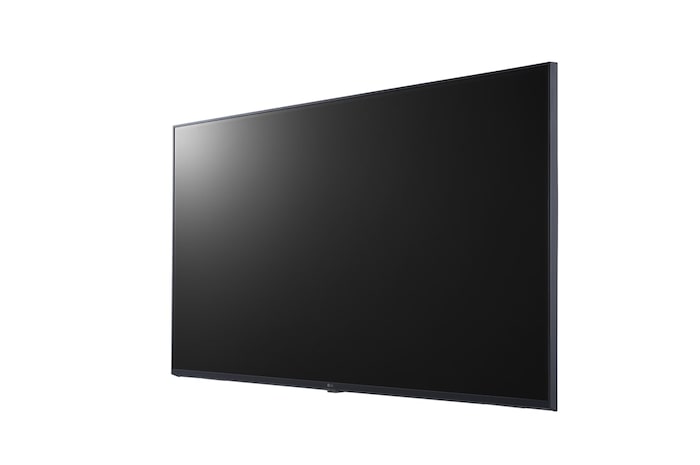

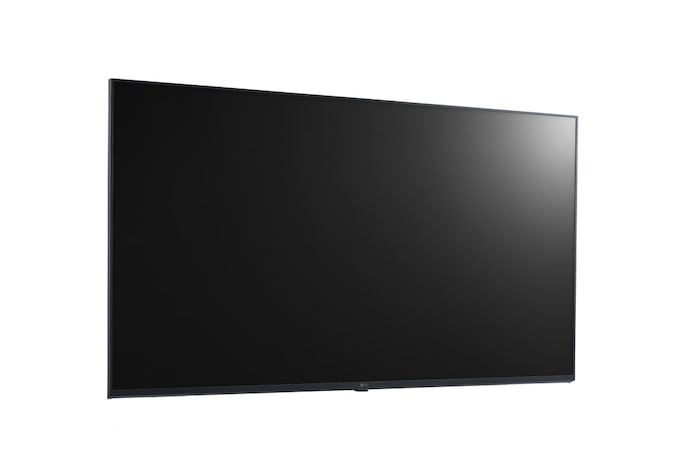

UHD Standard Signage

43UL3J-N

Key Features

Brightness(Typ.) : 300 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker

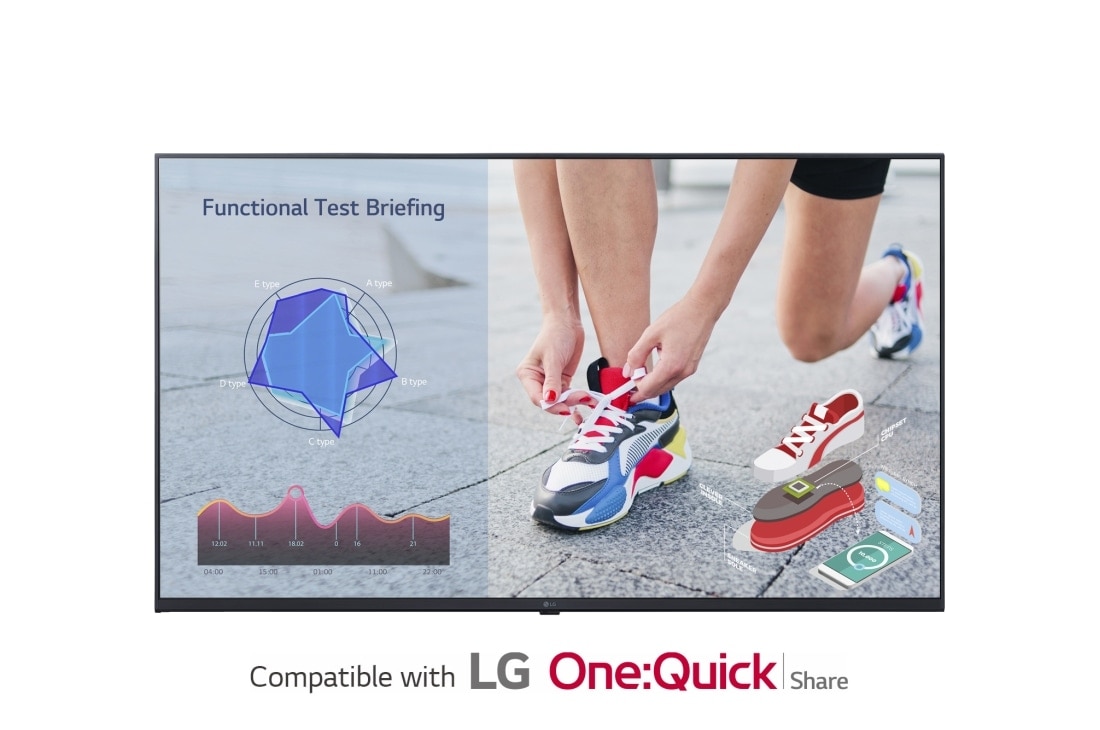

Compatible with LG's One:Quick Share
Compatible with AV Control Systems

All Spec

PANEL

Screen Size: 43"

Panel Technology: ADS

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840x2160 (UHD)

Refresh Rate: 60Hz

Brightness: 300nit (Typ.)

Contrast Ratio: 1,200:1

Dynamic CR: 1,000,000:1

Color gamut: DCI 80%

Viewing Angle(H x V): 178x178

Color Depth: 1.07G (8bits + FRC)

Response Time: 8ms (G to G)

Surface Treatment(Haze): 1%

Life time: 30,000Hrs (Min)

Operation Hours (Hours/Day): 16/7

Portrait / Landscape: Yes / Yes

CONNECTIVITY

Input: HDMI (3, HDCP 2.2/1.4), RS-232C In (4 Pin Phone-jack), RJ45 (LAN), USB 2.0 (2, Type A)

Output: Audio Out, RS-232C Out (4 Pin Phone-jack)

MECHANICAL SPECIFICATION

Bezel Color: Ashed Blue

Bezel Width: Off : 6.9/6.9/6.9/18.4 mm On : 12.8/12.8/12.8/19.9 mm

Weight(Head): 8.8 kg

Packed Weight: 10.9 kg

Monitor Dimension(W x H x D): 967 x 564 x 57.1 mm

Carton Dimensions(W x H x D) (Box outer size): 1055 x 660 x 142 mm

VESA™ Standard Mount Interface: 200 x 200 mm

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

SOUND

Speaker: Yes (10W x 2)

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder

KEY FEATURE

HW: Internal Memory (eMMC) 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor), Local Key Operation (Power On/Off Only)

SW: webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Screen Share, Video Tag (4, Max One HDMI Input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Cisco Certi. (TBD, ~`23.7)), Crestron Inside, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC1), SI Sever Setting, webRTC, Pro:Idiom

POWER CONSUMPTION

Typ.: 80 W

Max.: 120 W

BTU (British Thermal Unit): 273 BTU/Hr(Typ.), 409 BTU/Hr(Max.)

Smart Enegy Saving(70%): 56W

DPM: 0.5 W

Power off: 0.5 W

CERTIFICATION

Safety: CB

EMC: FCC Class "A" / CE

ErP: Yes (OldErP for Jordan)

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign WB: Yes

LG ConnectedCare: Yes
