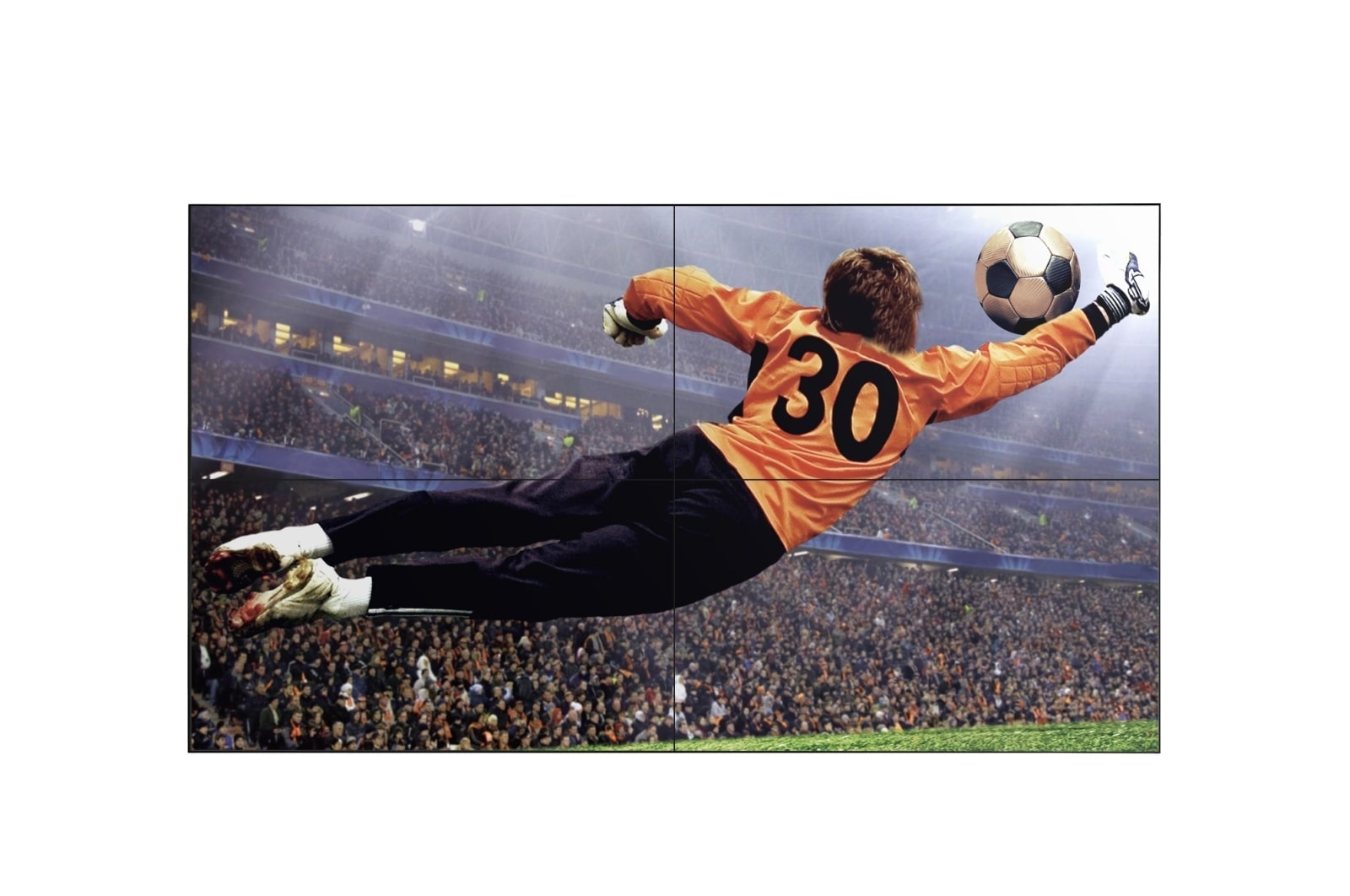

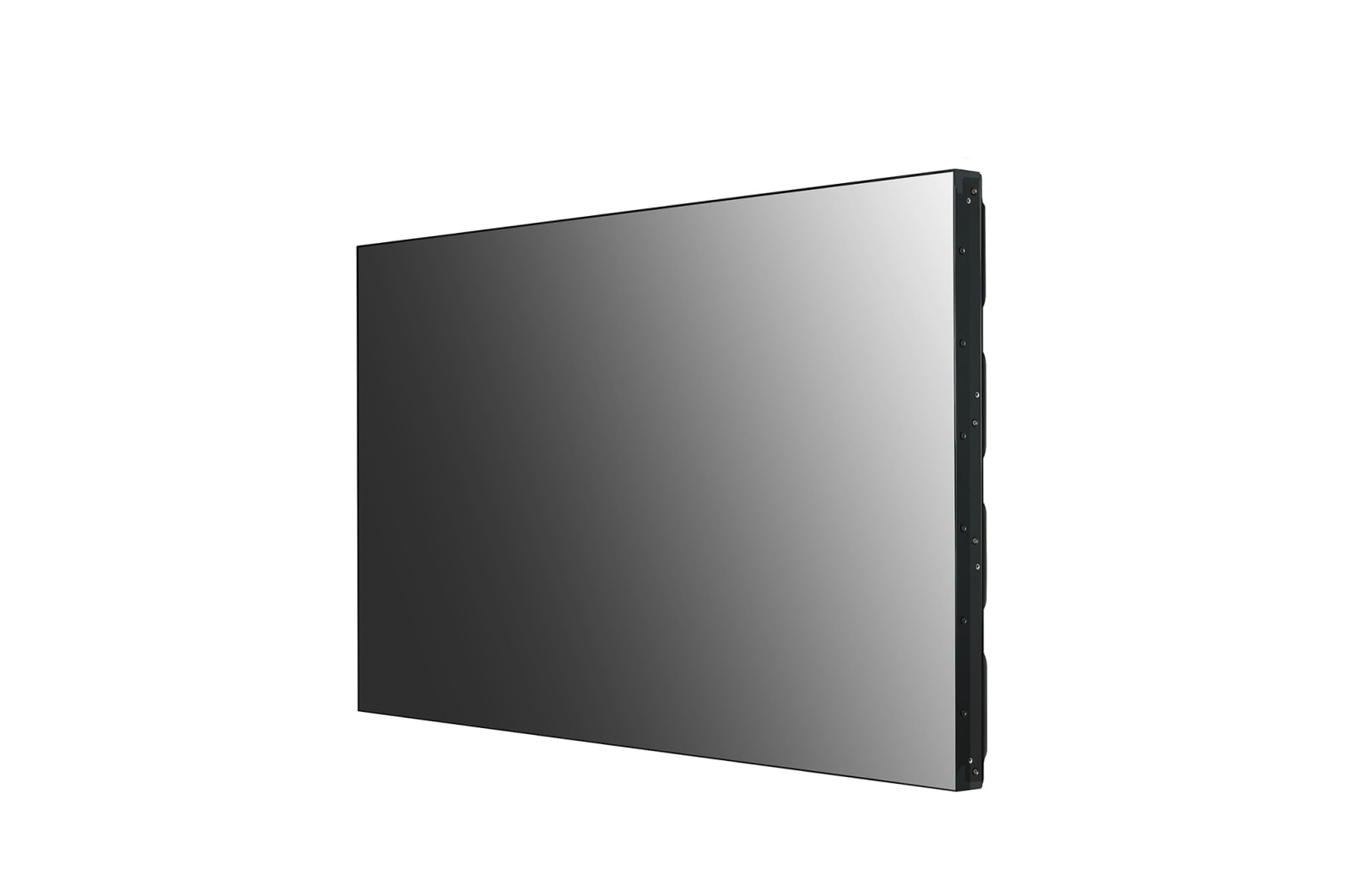

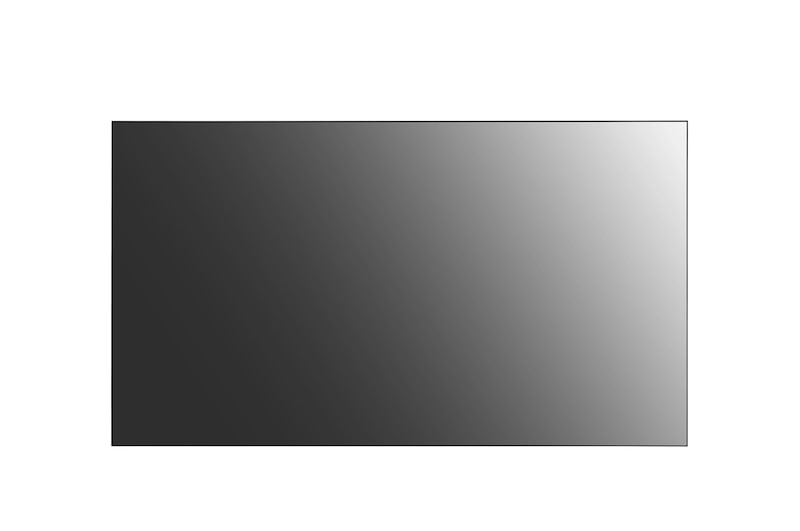

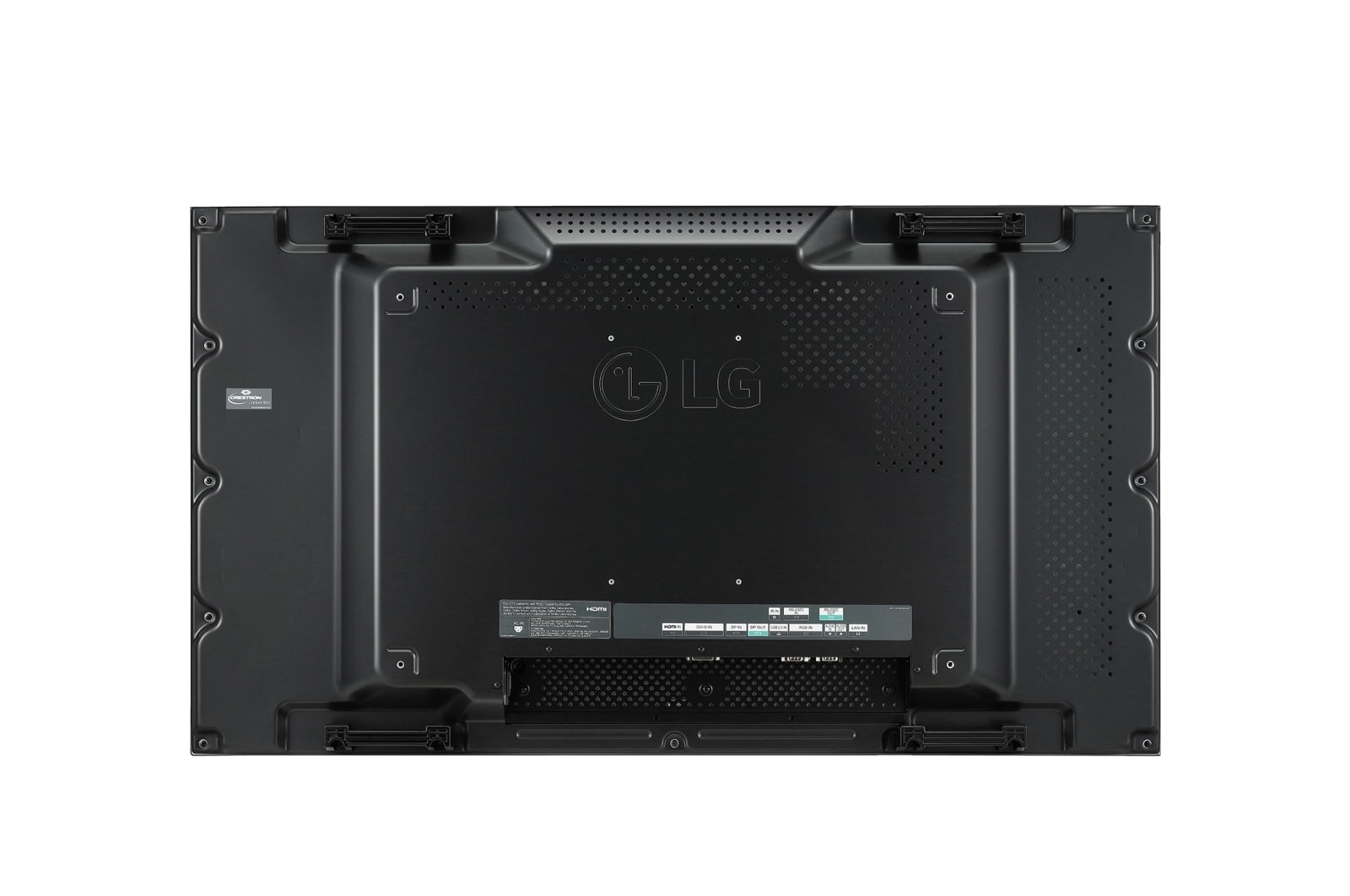

49'' 500 nits FHD Slim Bezel Video Wall

49VL5G-M

Key Features

Brightness(Typ.) : 500 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

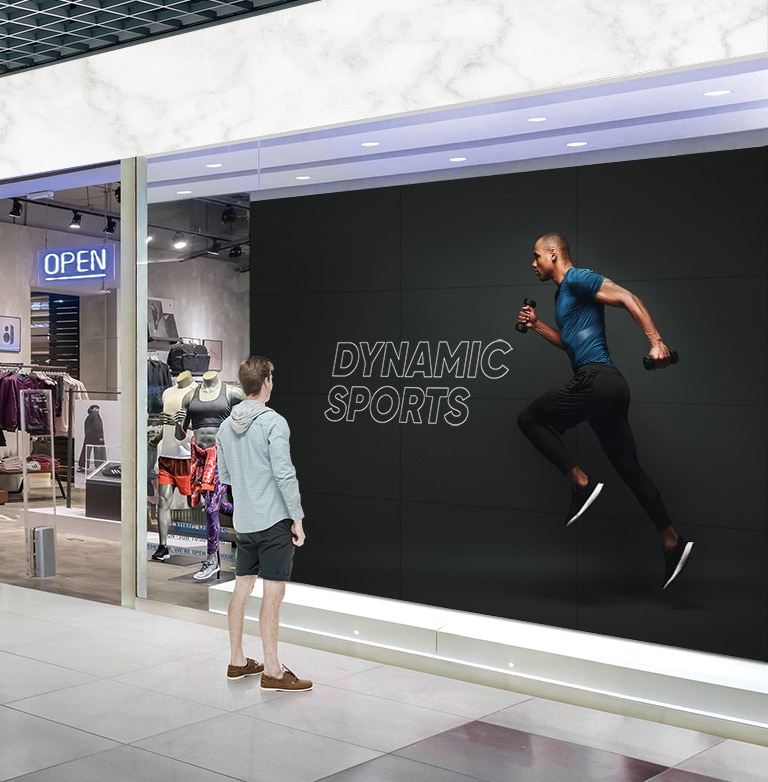

A man is looking at a big screen attached to the window of a sports store.

*All images in this web page are for illustrative purposes only.

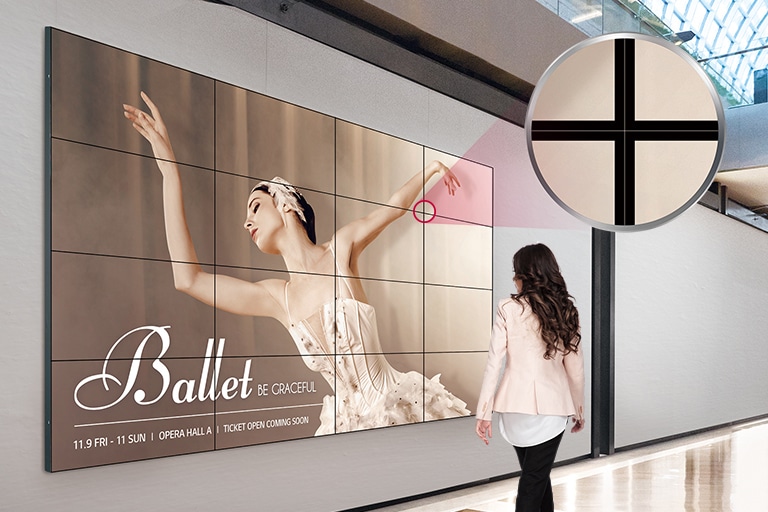

The ultra-narrow bezel screens are attached to the wall in the form of tiles, displaying large and dynamic content.

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

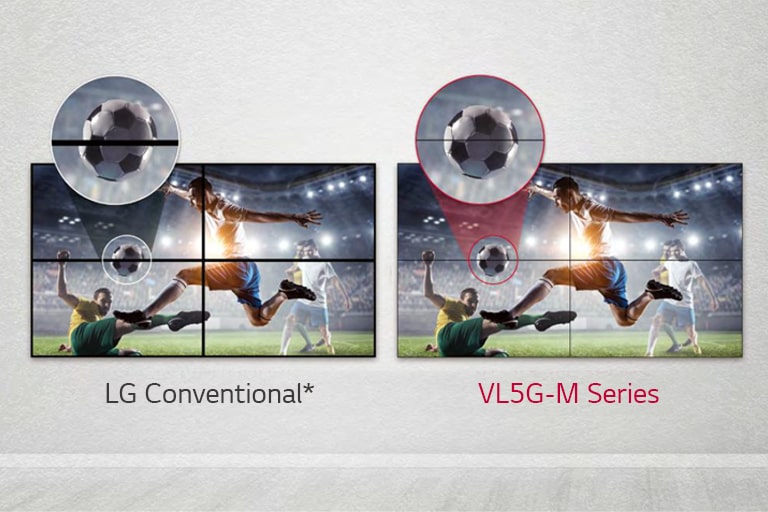

VL5G-M series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap.

Image Gap Reduction

The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

*The "LG Conventional" refers to displays which do not include an image improvement algorithm.

A woman is looking up at the screen installed upstairs.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.

*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

A number of screens installed on both sides and front wall provide a more vivid and wider view.

Wide Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

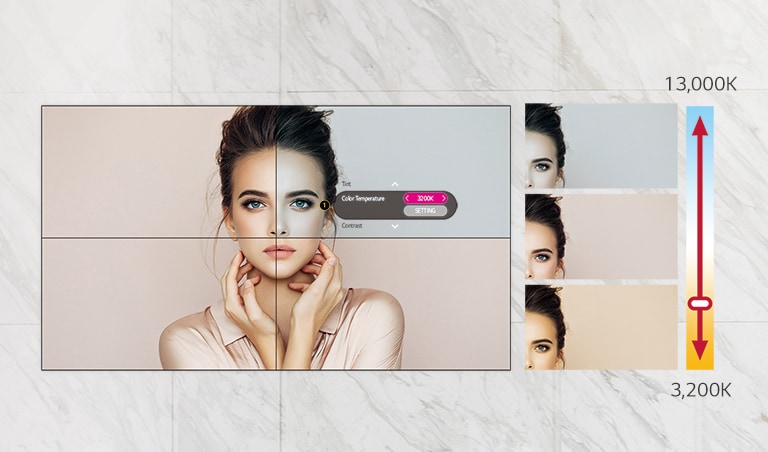

VL5G-M series can adjust the color temperature from 3,200K to 13,000K in units of 100K.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

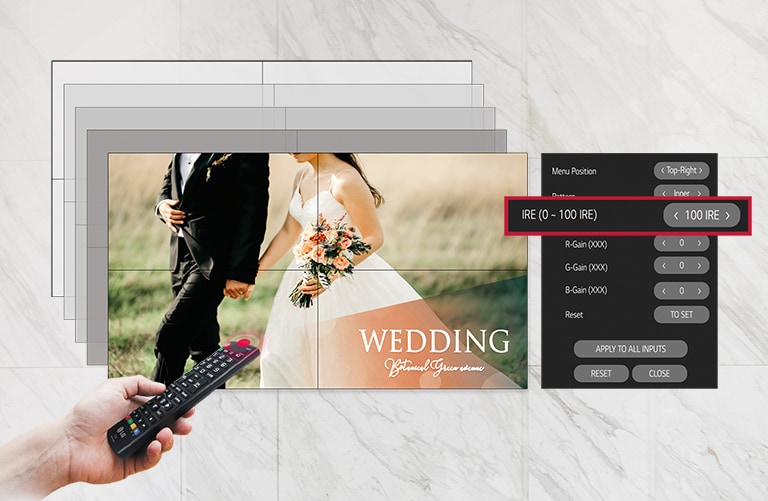

VL5G-M series can be more accurately adjust white balance.

White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

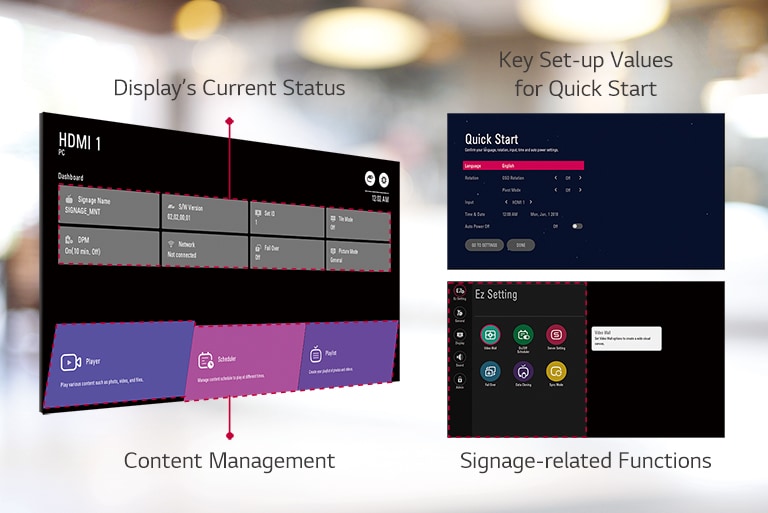

A number of tasks can be done at the same time with the intuitive GUI.

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

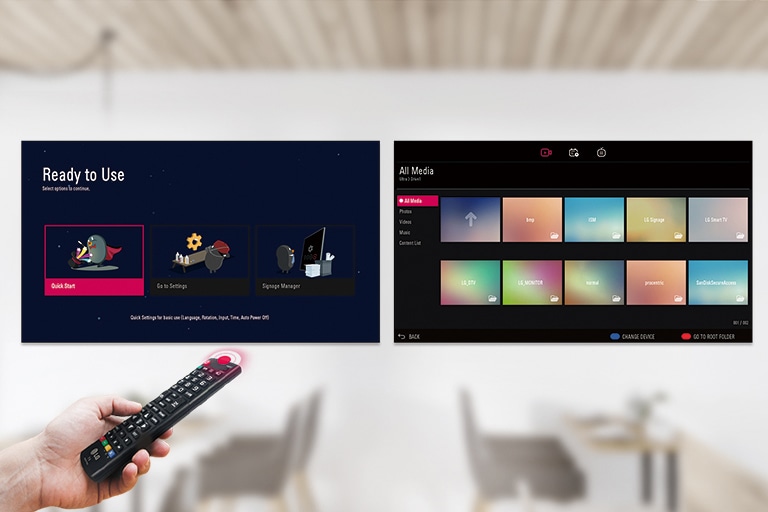

A display is easily controlled using a user-friendly GUI and a remote control.

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.

All Spec

PANEL

Screen Size
49"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
500,000 : 1
Color gamut
NTSC 72%
Viewing Angle(H x V)
178 X 178
Color Depth
10bit, 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment(Haze)
3%
Life time
60,000Hrs (Typ.) / 50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes

CONNECTIVITY

Input
HDMI (2, HDCP 1.4), DP (1, HDCP 1.3),DVI-D (1, HDCP 1.4) Audio In, RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A (1)
Output
DP Out, Audio Out, RS232C OUT

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 2.25/1.25/2.25/1.25mm
Weight(Head)
16.9Kg
Packed Weight
29.3kg
Monitor Dimension(W x H x D)
1077.6 x 607.8 x 89.7mm
Carton Dimensions(W x H x D) (Box outer size)
1214 x 778 x 263mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)

KEY FEATURE

HW - Sensor - Temperature Sensor
Yes
SW - Embedded CMS - Local Contents Scheduling
Yes
SW - USB Plug & Play
Yes
SW - Fail over
Yes
SW - Background Image - Booting Logo Image
Yes
SW - Background Image - No Signal Image
Yes
SW - Sync Mode - RS-232C Sync
Yes
SW - Rotation - Screen Rotation
Yes
SW - Tile Mode Setting
Yes (Max. 15x15)
SW - Setting Data Cloning
Yes
SW - SNMP
Yes
SW - ISM Method
Yes
SW - Auto Set ID
Yes
SW - 3rd Party Compatibility - Crestron Inside
Yes
SW - Power - Smart Energy Saving
Yes
SW - Power - PM mode
Yes
SW - Power - Wake on LAN
Yes
SW - HDMI-CEC
Yes
SW - SI Server Setting
Yes
SW - W/B Setting by Grey scale
Yes
SW - Scan Inversion
Yes

POWER CONSUMPTION

Typ.
100W
Max.
120W
BTU (British Thermal Unit)
341 BTU/Hr(Typ.), 409 BTU/Hr(Max)
Smart Enegy Saving
60W
DPM
0.5W
Power off
0.5W

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / Energy Star 8.0(US Only)

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
