Compact Series

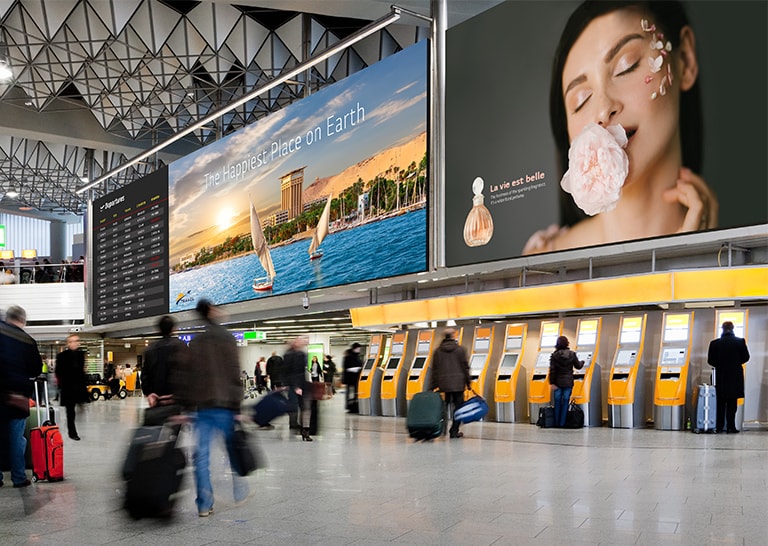

Large LEDs inside an airport show passengers’ departure schedules and advertisements.
* All images in this web page are for illustrative purposes only.
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

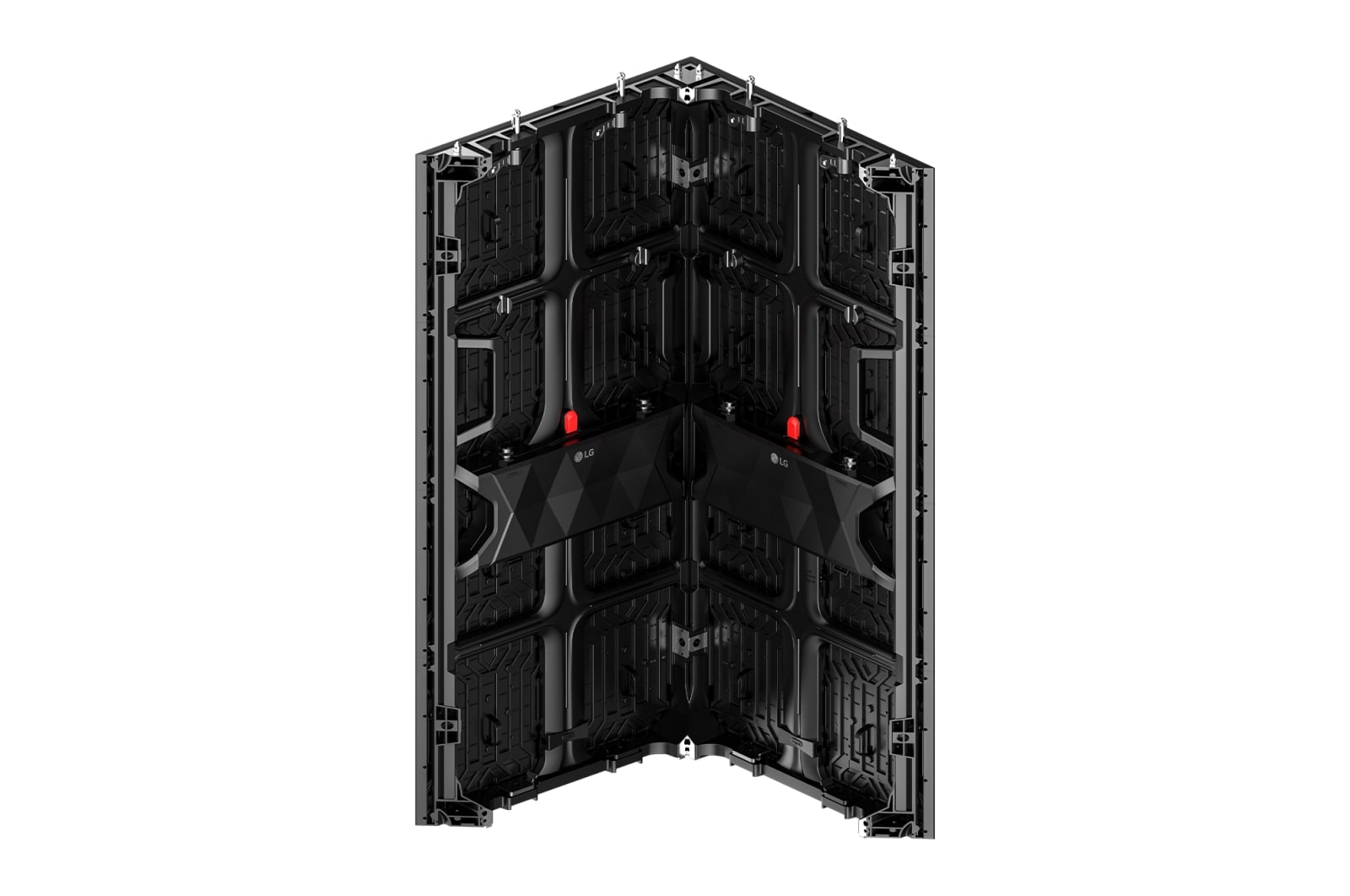

* Corner option may incur additional costs.

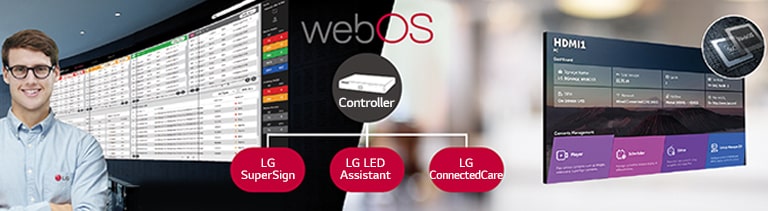

The LG employee is remotely monitoring the LSBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBC series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.953
Module Resolution (W × H)
128 × 128
Module Dimensions (W × H, mm)
250 × 250
Weight per Module (kg, ±0.003 kg)
0.70
No. of Modules per Cabinet (W × H)
2 × 4
Cabinet Resolution (W × H)
256 × 512
Cabinet Dimensions (W × H × D, mm)
500 × 1,000 × 68
Cabinet Surface Area (m²)
0.500
Weight per Cabinet (kg/Cabinet)
12.0
Weight per Square Meter (kg/m²)
24.0
Physical Pixel Density (pixels/m²)
262,144
Flatness of Cabinet (mm)
0.5
Cabinet Material
Die Casting Aluminum

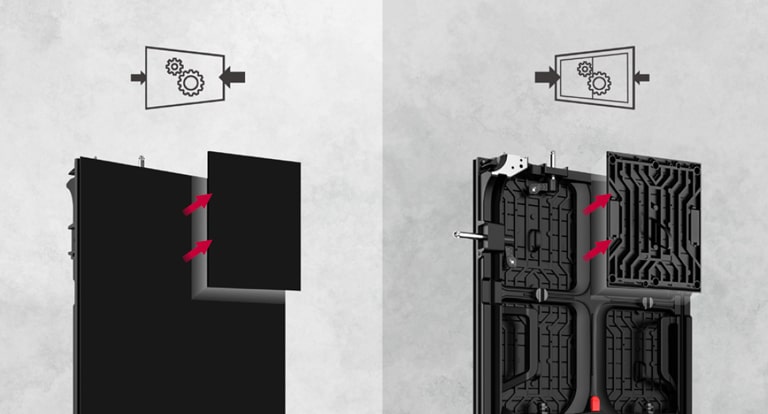

Service Access
Front or Rear
Max. Brightness (After Calibration)
800
Color Temperature (K)
3,200-9,300
Visual Viewing Angle (H × V)
160 × 140
Brightness Uniformity
97%
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio (Typ.)
5,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/m², Max.)
600
Power Consumption (BTU/Cabinet, Max.)
1,024
Power Consumption (BTU/Cabinet, Avg.)
341
Power Consumption (BTU/m², Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
≥3,840
Lifetime (Half brightness)
100,000
Operating Temperature (°C)
-20 to +40
Operating Humidity
10-90% RH
IP Rating Front / Rear
IP5X / IP5X
Series
LSBC
