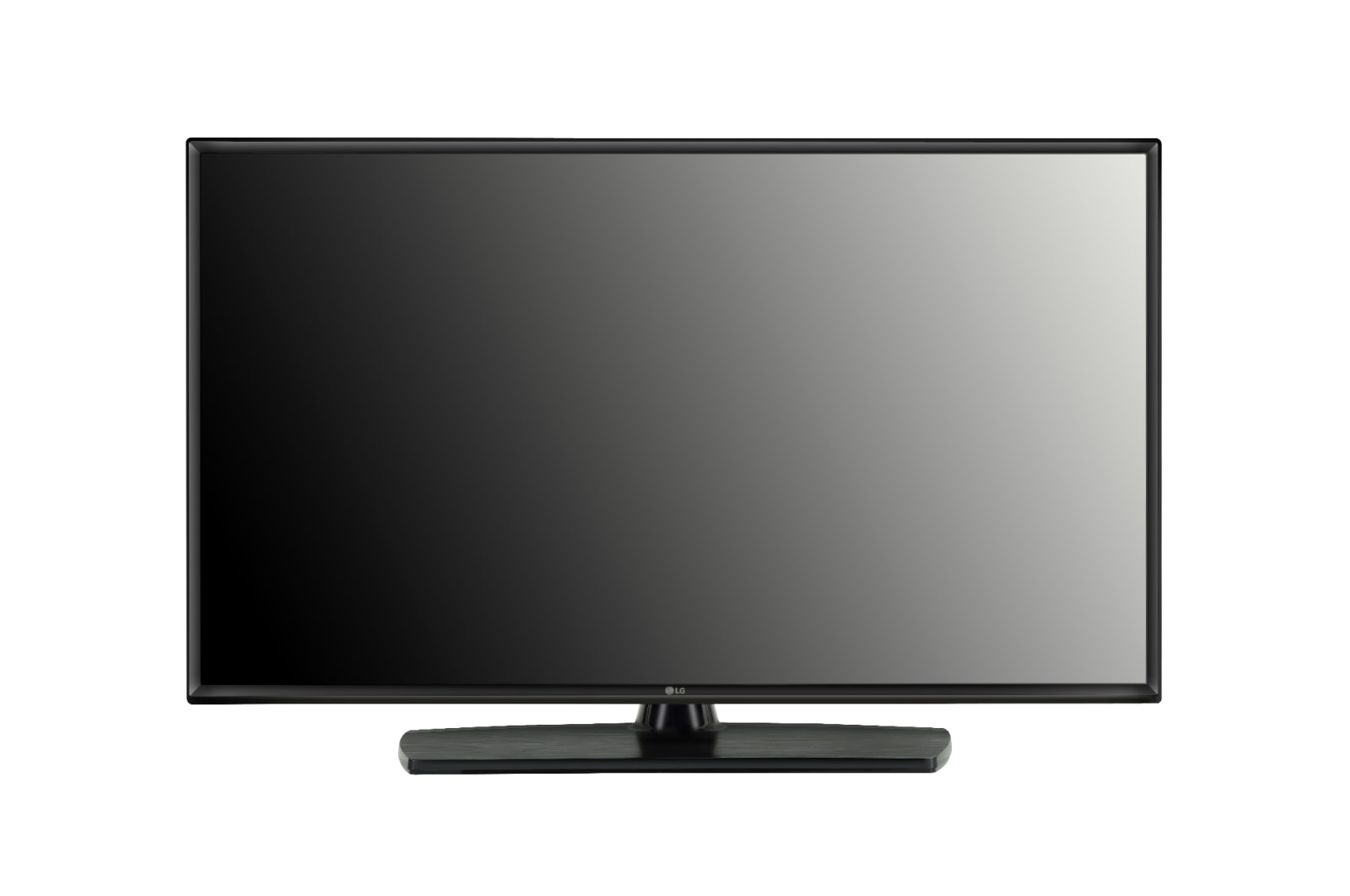

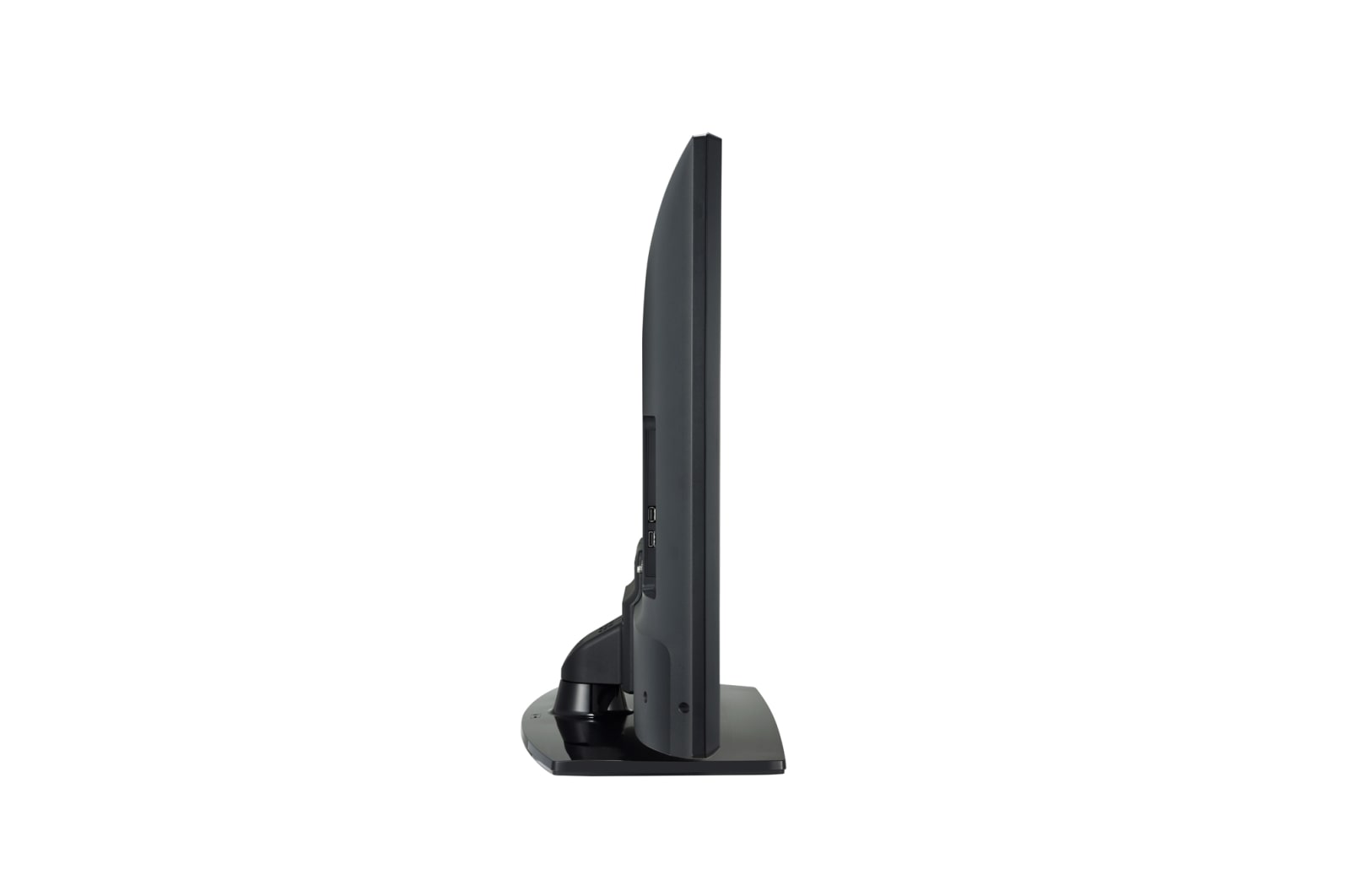

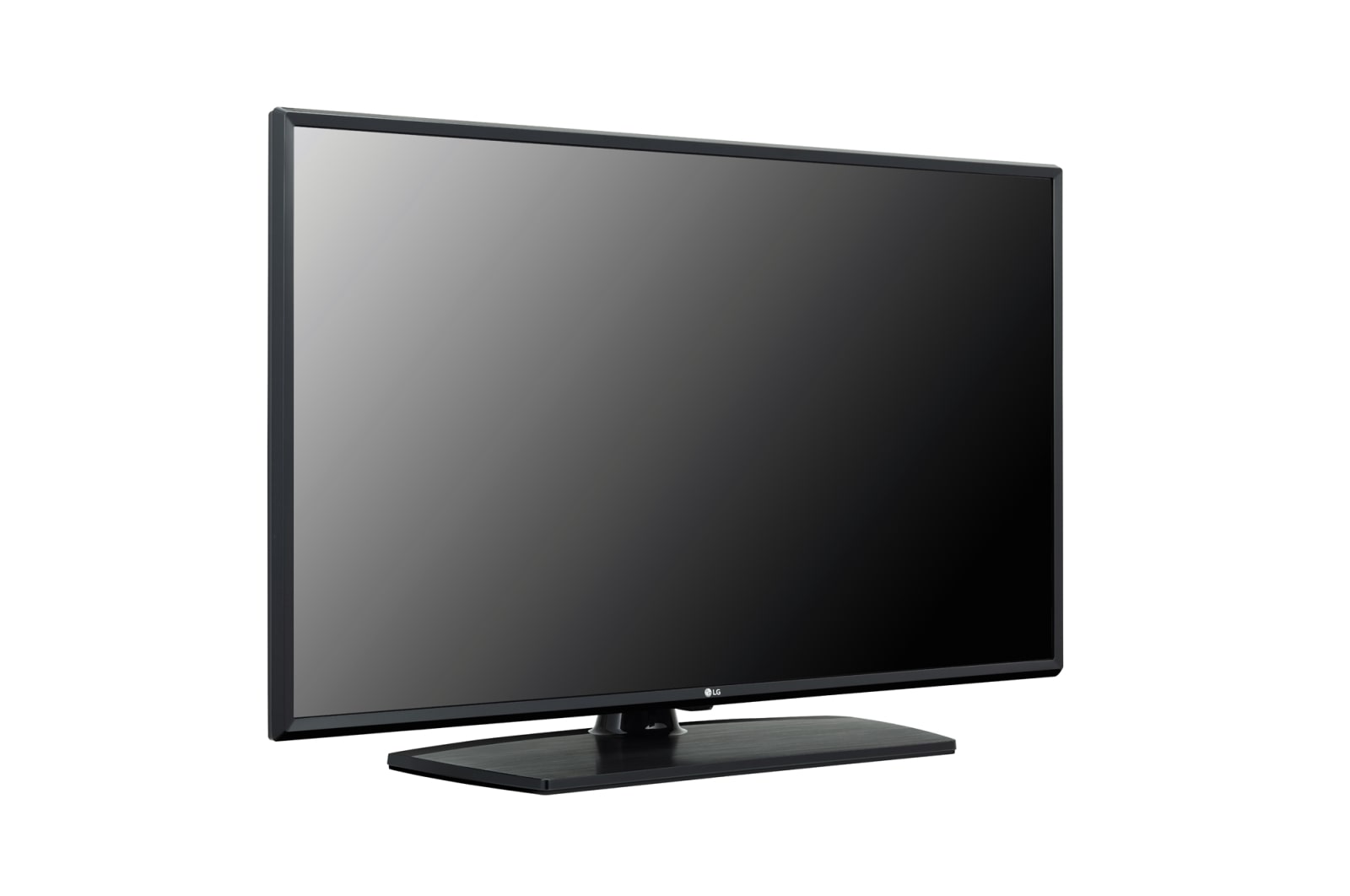

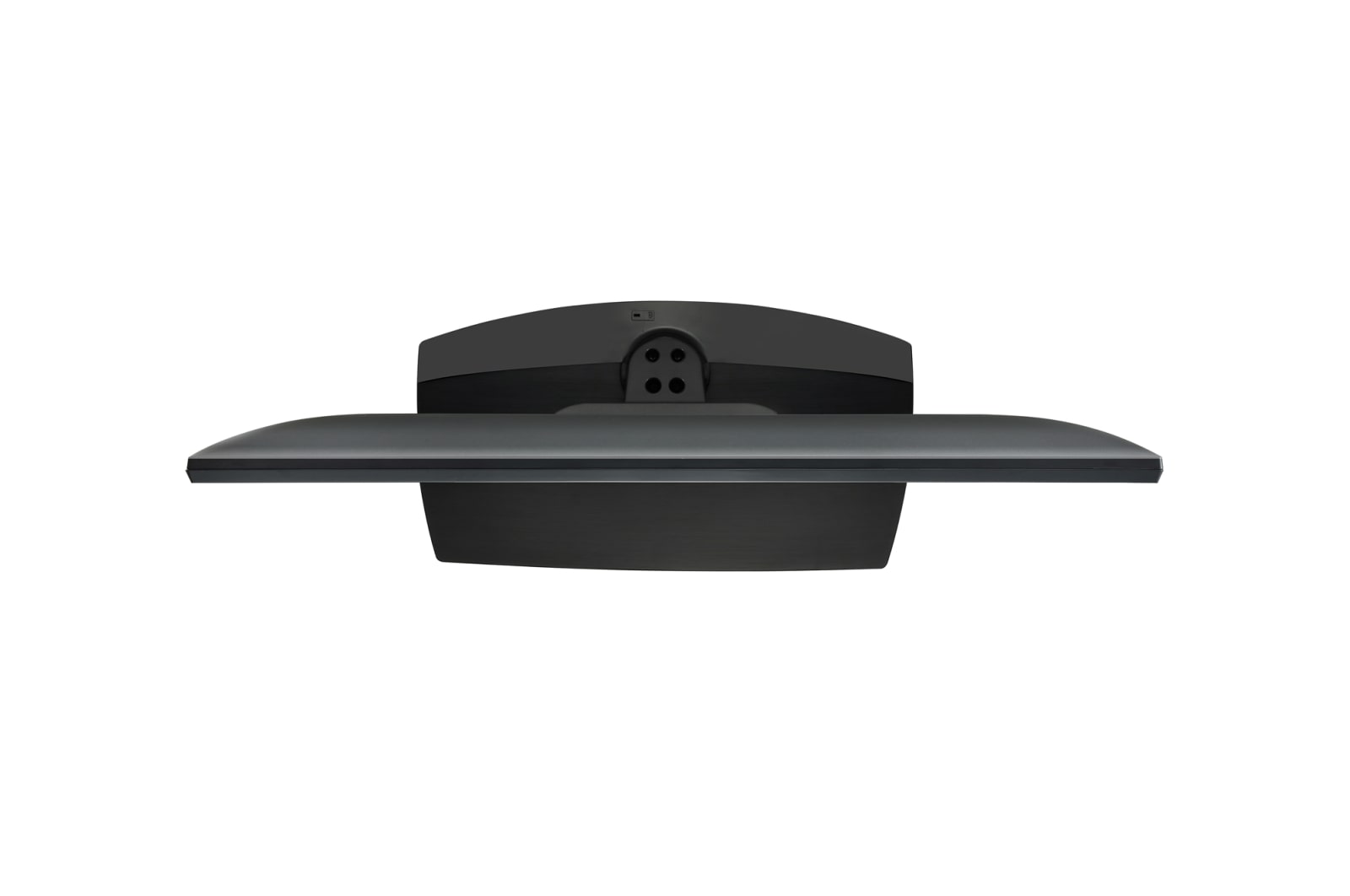

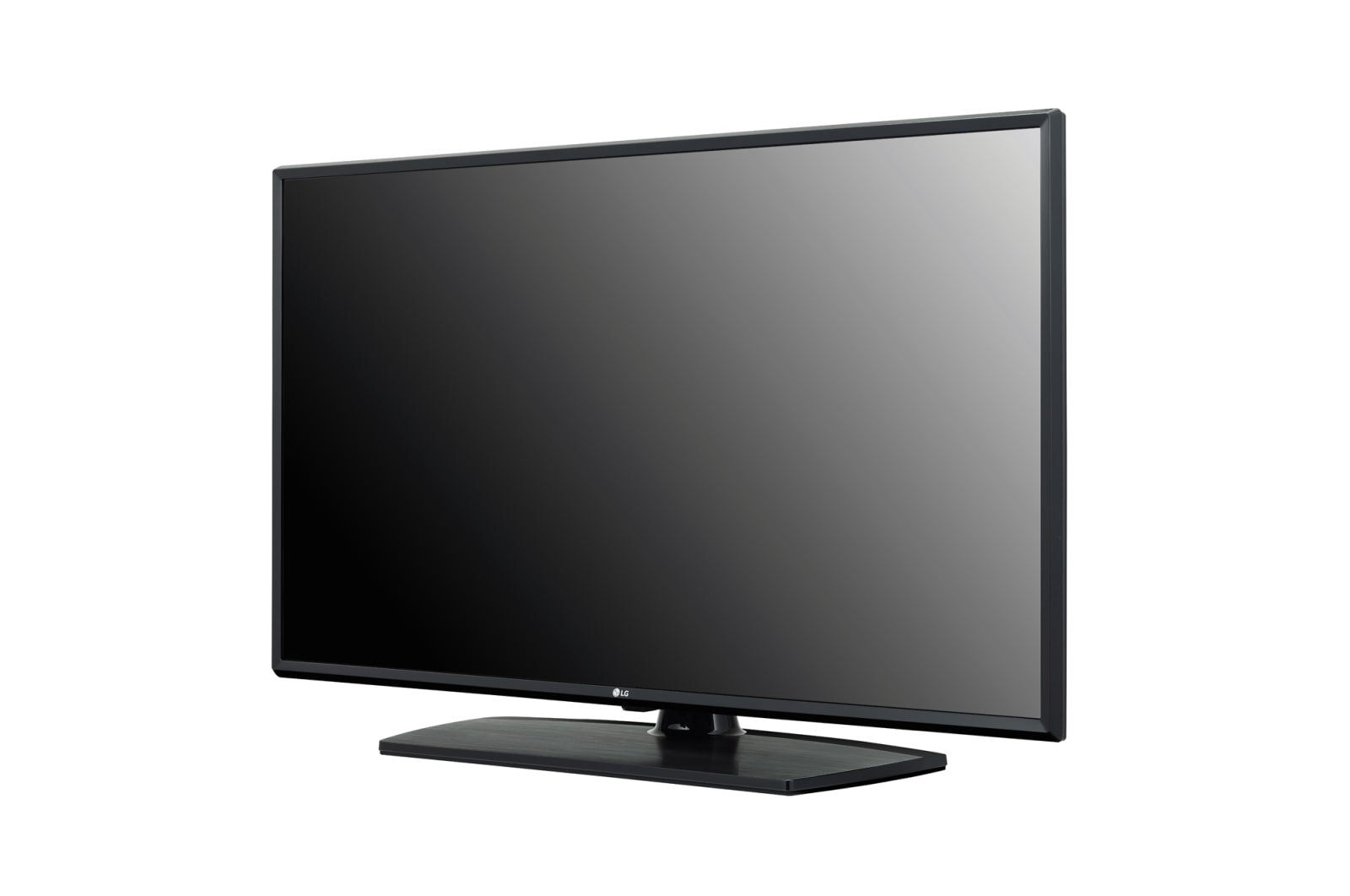

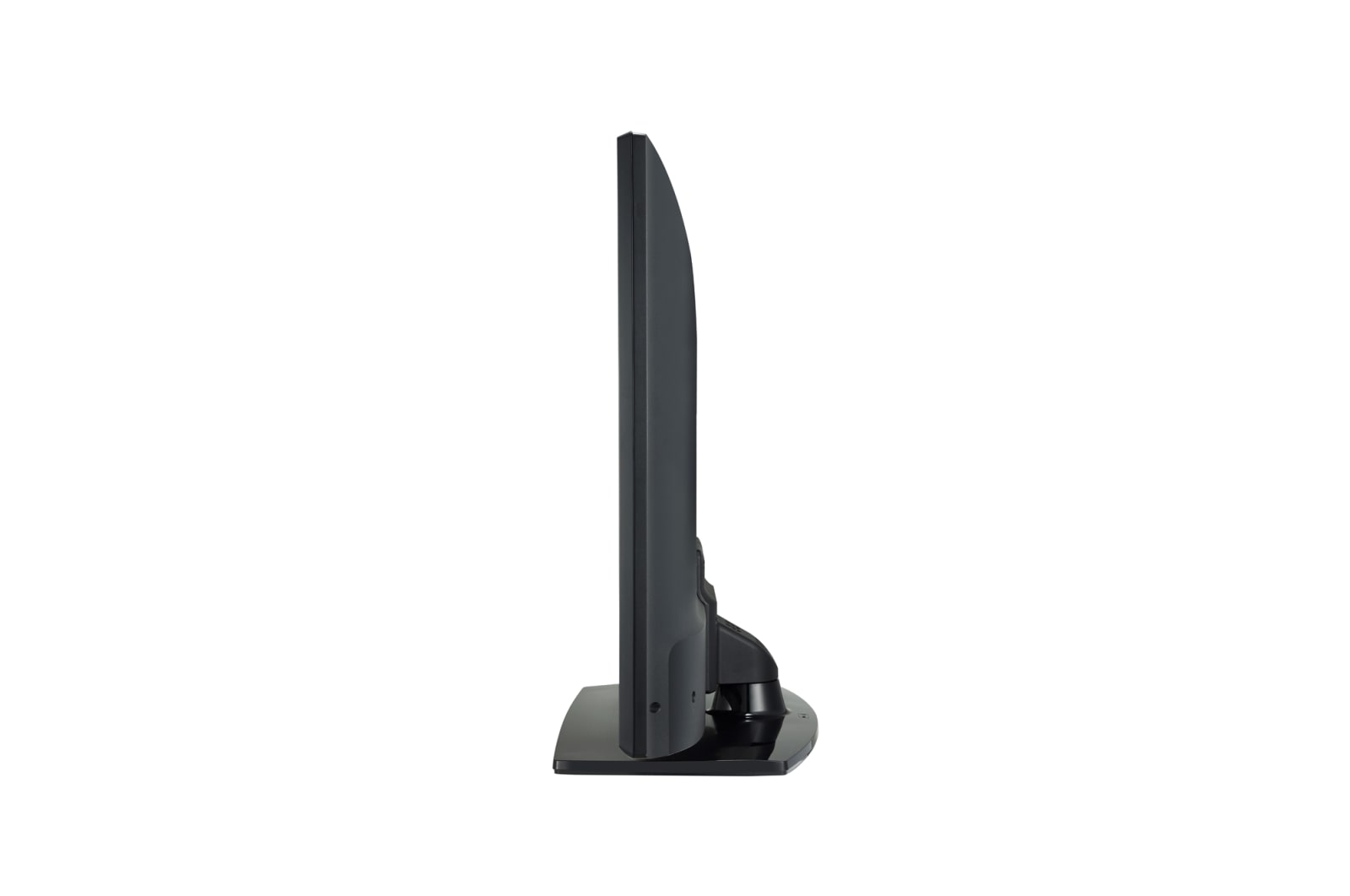

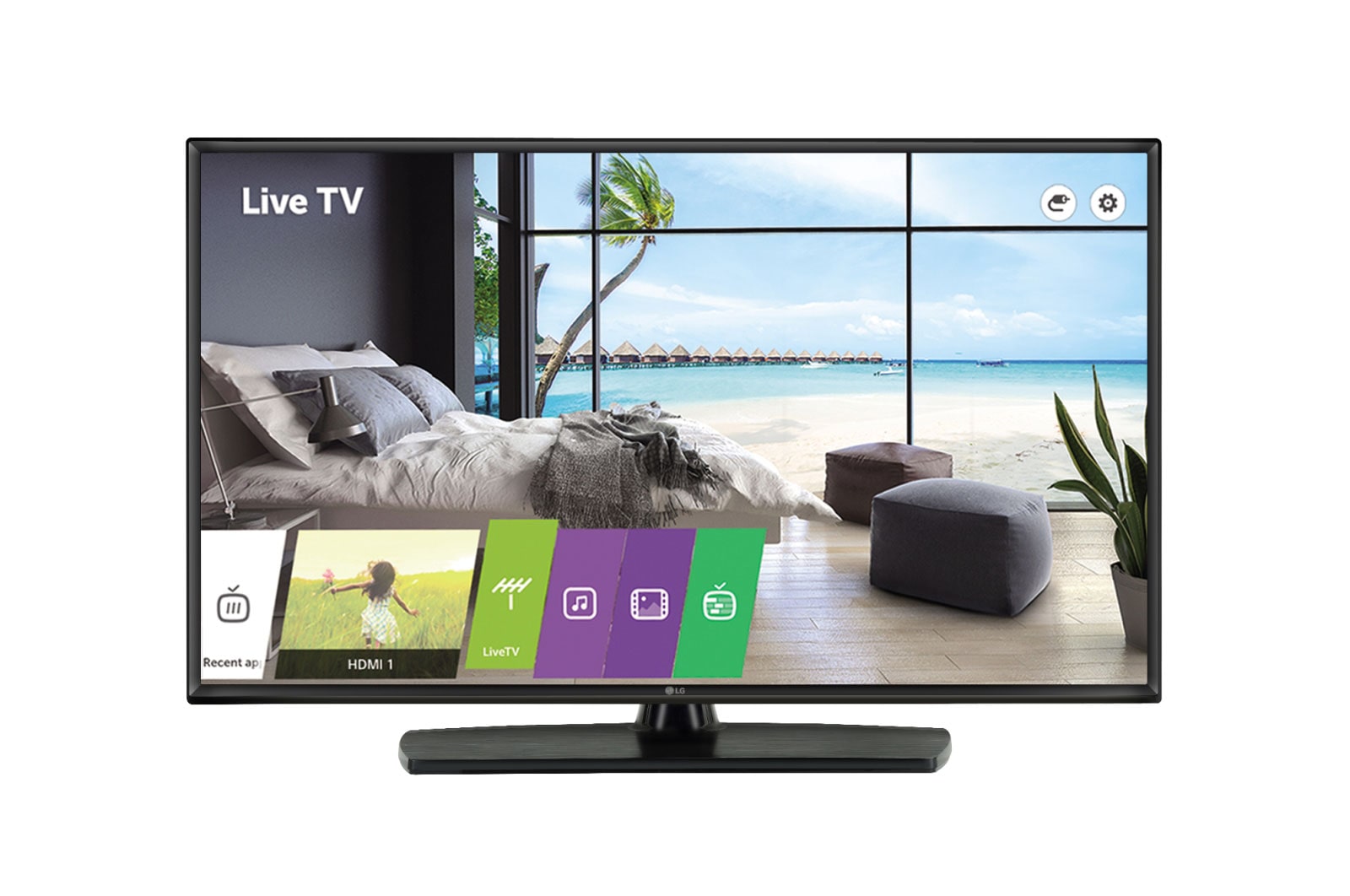

49" TV Signage
* Only available for LG TV models
All Spec
AUDIO
Audio Output
10W + 10W
Speaker System
2.0 ch
FEATURES
Hospitality

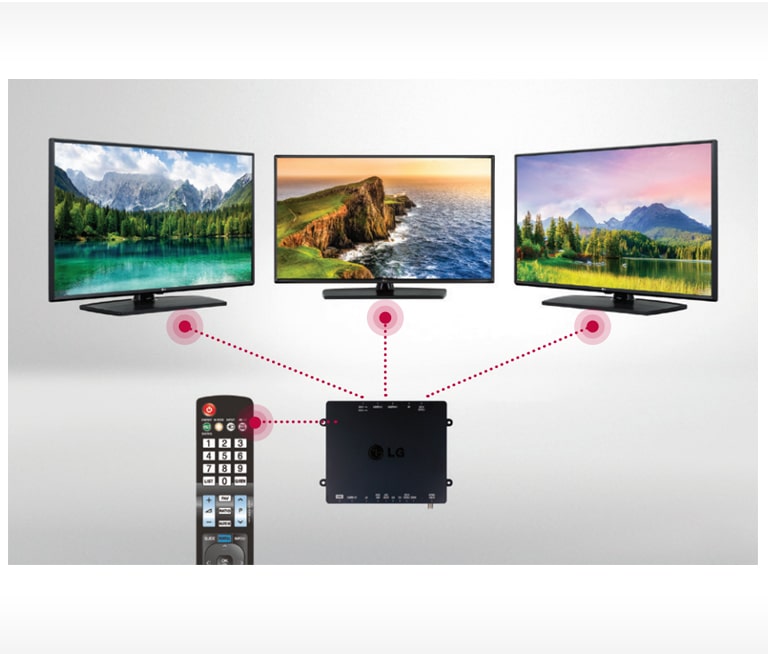

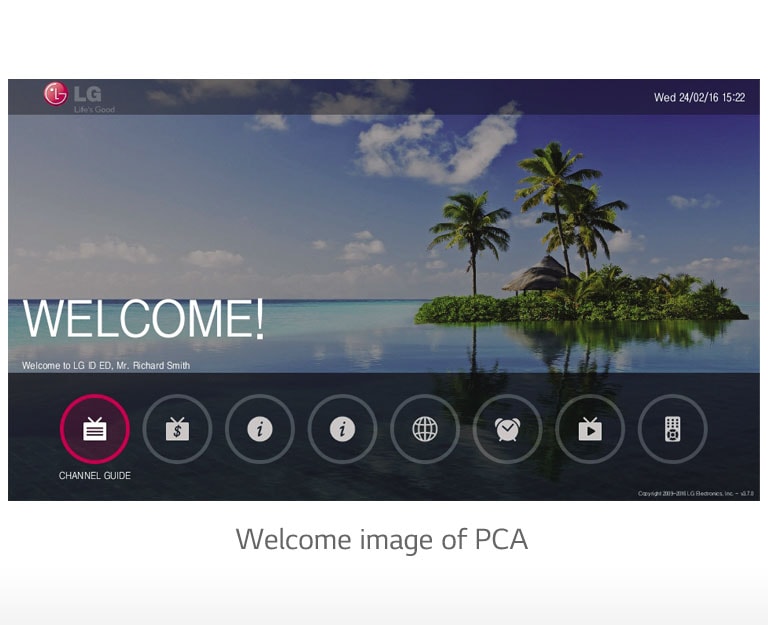

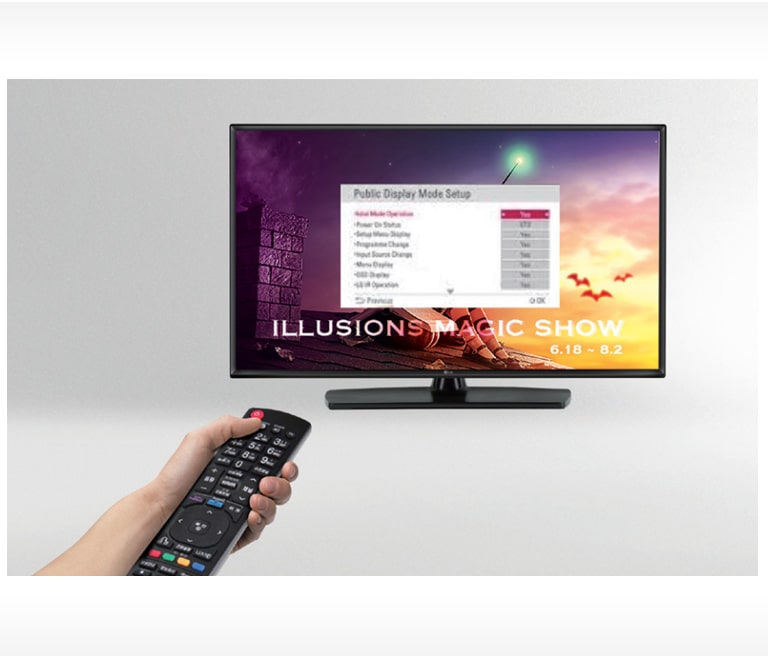

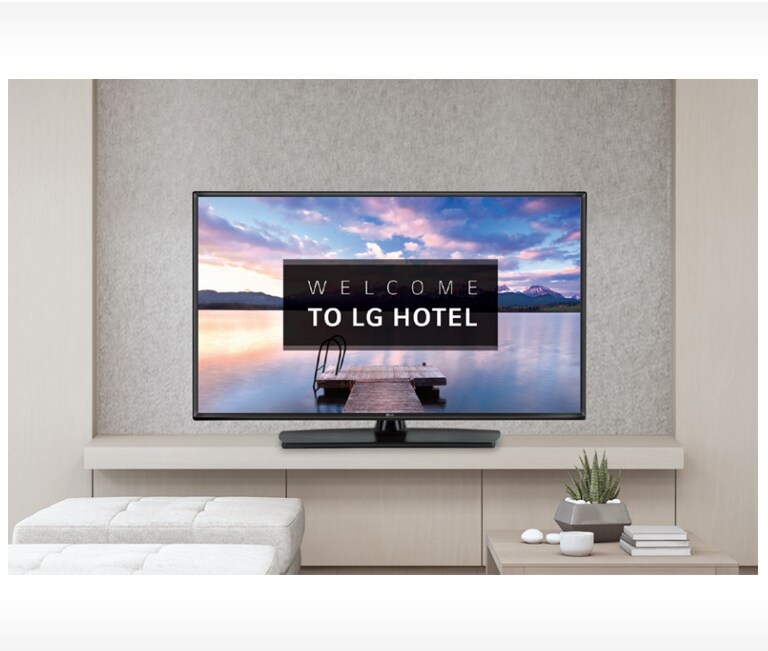

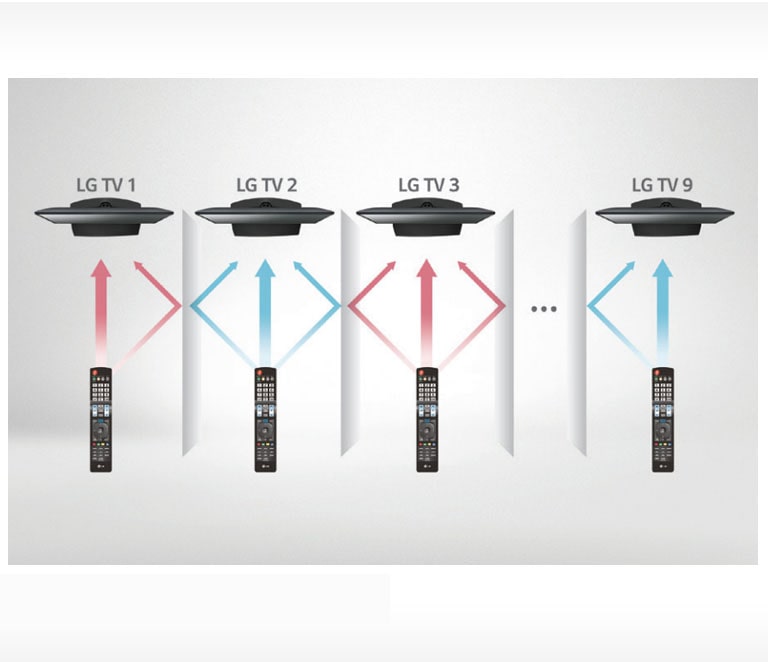

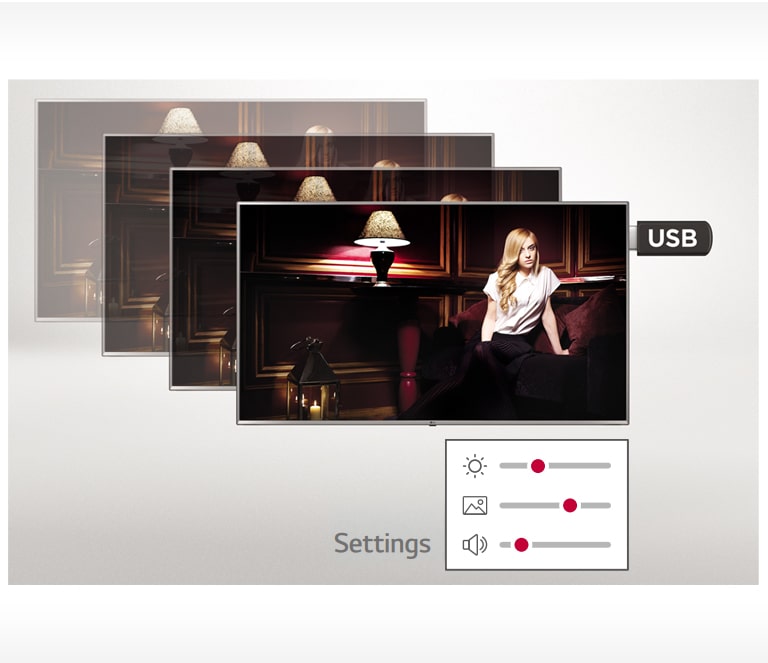

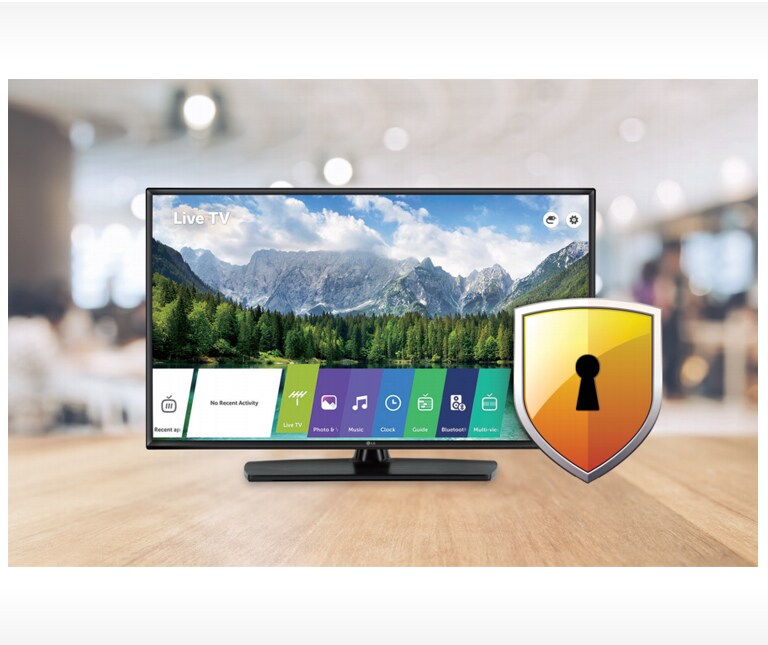

EzManager (Simplicity), USB Cloning, Self Diagnostics(USB), HTNG-CEC, Simplink (HDMI-CEC, 1.4), IR Out (RS-232C), Multi IR Code, Hotel Mode, Lock mode (Limited), Welcome Video / Screen, Insert Image, One Channel Map, External Speaker Out (Int / Fixed, 3.5mm, Stereo, Single ended Type(GND, L+, R+), 2W with 8Ω), RJP (Remote Jack Pack) Compatibility, USB Auto playback, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Healthcare Headphone Mode, Time Scheduler, Anti-theft System (Kensington Lock, Credenza / Security Screw Hole, Lock Down Plate), Chromecast Dongle Anti-theft Cover (Optional)
GENERAL
Region
Europe
DISPLAY
Inch
49"
Resolution
1,920 x 1,080 (FHD)
Backlight Unit Type
Direct
Brightness (cd/m²)
400
HOSPITALITY SOLUTION
Solution Type

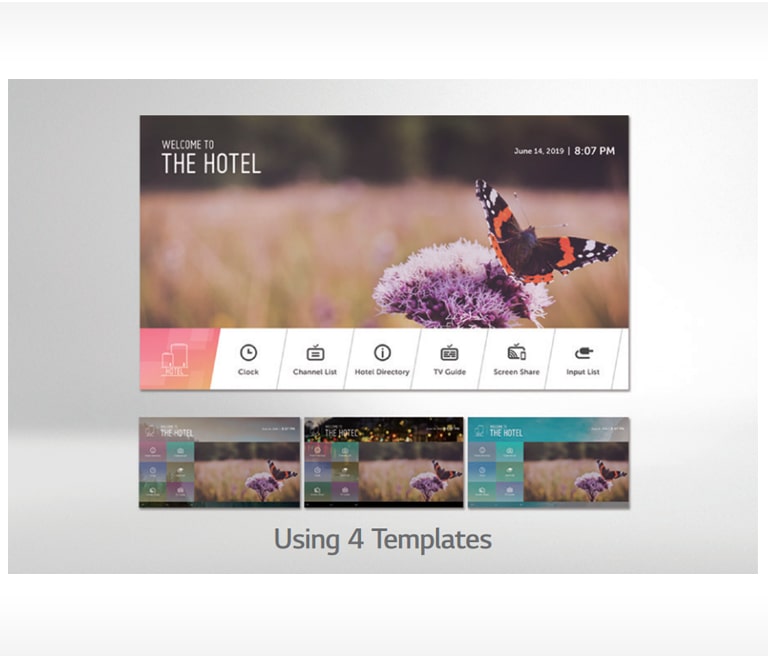

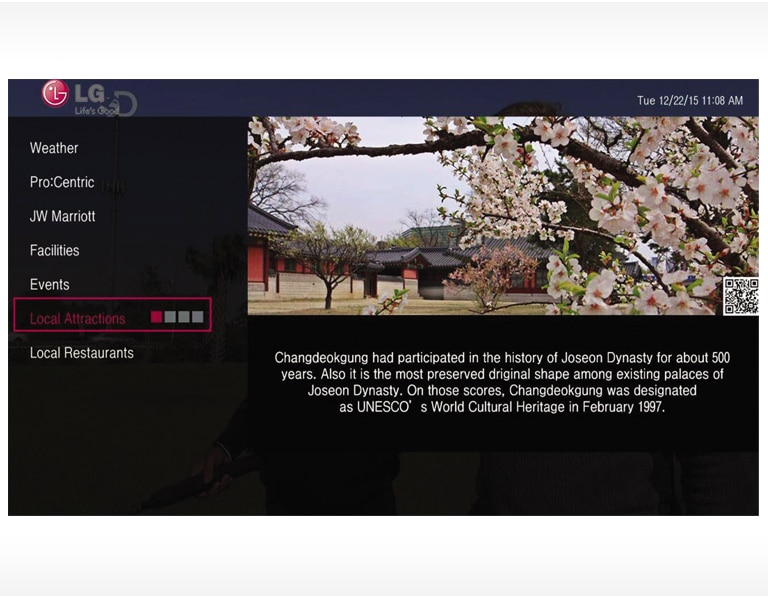

Pro:Centric (V), Quick Menu 3.0
Data Streaming (IP &RF)
Yes (RF Only)
HCAP (GEM/FLASH/HTML)br※ Service Carousel (TLL/XML)
GEM
Pro:Centric Server
PCS400R, PCS200R
JACK INTERFACE
Set Side
Headphone Out, HDMI In (1.4), USB 2.0, CI Slot
Set Rear
HDMI In (HDCP, 1.4), USB, RF In (2), AV In (Phone Jack Type), Component in (RCA5 Type), Digital Audio Out (Optical), RGB In (D-sub 15pin) - PC, RS-232C (D-Sub 9pin, Control & Service), RJ45 (Usage Purpose, SNMP& Service), RJ45 (Usage Purpose, SNMP&MHEG), External Speaker Out (3.5 mm Phone Jack)
POWER(UNIT : WATTS)
Voltage, Hz
100 ~ 240, 50 / 60
Typical
71.6
Stand-by
0.3
BROADCASTING SYSTEM
Digital
Yes (DVB-T2 / C / S2)
DIMENSION(UNIT: MM/KG)
Vesa
300 x 300
W x H x D / Weight (with stand)
1,110 x 705 x 303 / 14.5
W x H x D / Weight (without stand)
1,110 x 650 x 72 (81.1) / 11.3
W x H x D / Weight (Shipping)
1,296 x 770 x 171 / 17.2
