ADD TO WISHLIST

Discontinued
S4-Q18KLRJD

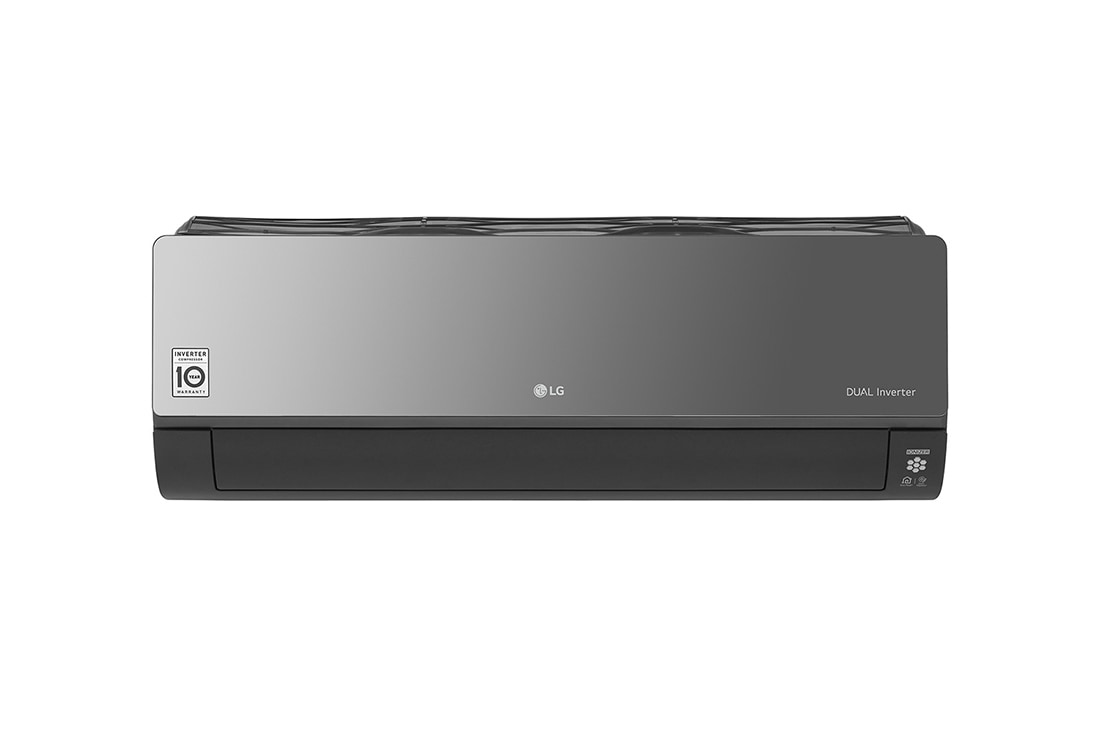

ARTCOOL Inverter AC, 2.0HP, Ioniser, Smart Diagnosis, Dual Inverter Compressor
  • Stylish Artcool Design
  • Inverter Compressor
  • 70% Energy Saving l 40% Faster Cooling
  • Ionizer
  • ThinQ™

component-OBScountrySelectDesc

ARTCOOL Inverter AC, 2.0HP, Ioniser, Smart Diagnosis, Dual Inverter Compressor

Dimensions

SPEC SUMMARY

  • CAPACITY
    2HP
  • DIMENSIONS (W X H X D)
    998 x 345 x 212
  • COMPRESSOR
    Dual Inverter
  • FEATURE
    Ionizer

BASIC SPEC

  • Type
    Wall Mount
    Color
    Black
  • Smart Function
    ThinQ™

CAPACITY

  • Cooling-Min (kW)
    0.95
    Cooling-Rated (kW)
    5.28
  • Cooling-Max (kW)
    5.84
    Cooling-Min (Btu/h)
    3,250
  • Cooling-Rated (Btu/h)
    18,000
    Cooling-Max (Btu/h)
    19,910

POWER INPUT

  • Cooling-Min (W)
    300
    Cooling-Rated (W)
    1,640
  • Cooling-Max (W)
    1,850

RUNNING CURRENT

  • Cooling-Min (A)
    1.90
    Cooling-Rated (A)
    7.60
  • Cooling-Max (A)
    8.90

EER

  • EER(W/W)
    3.22
    EER ((Btu/h)/W)
    10.98

POWER SUPPLY

  • Power Supply (Ø , V , Hz)
    1, 220 ~ 240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range (V)
    187 ~ 276

POWER FACTOR

  • Cooling (%)
    95.2

MOISTURE REMOVAL

  • Moisture Removal (l/h)
    1.30

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L (㎥/min)
    18/12.7/10.2/8.4
    Sound Pressure Level - Cooling, Max / H / M / L / SL (dB(A))
    45/40/37/32
  • Dimensions (W × H × D) - Net (mm)
    998 × 345 × 212
    Dimensions (W × H × D) - Shipping (mm)
    1085 × 427 × 286
  • Weight - Net (kg)
    12.6
    Weight - Shipping (kg)
    16.2
  • Exterior Color Code
    Munsell 7.5PB 0.2/20 (RAL 9005)

OUTDOOR

  • Air Flow Rate - Max (㎥/min)
    38.0
    Fan Motor Speed - Cooling, Min ~ Max (rpm)
    650~900
  • Sound Pressure Level - Cooling, Rated (dB(A))
    54
    Dimensions (W × H × D) - Net (mm)
    770 x 545 x 288
  • Dimensions (W × H × D) - Shipping (mm)
    920 x 593 x 388
    Weight - Net (kg)
    32.8
  • Weight - Shipping (kg)
    35.2
    Max. Fuse Size (A)
    15
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling (℃ DB)
    18 ~ 48

CIRCUIT BREAKER

  • Circuit Breaker (A)
    20

POWER SUPPLY CABLE

  • Power Supply Cable (No. × ㎟)
    3 × 1.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Indoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable (No. × ㎟)
    4 x 1.5

PIPING

  • Size - Liquid (mm)
    Ø 6.35
    Size - Gas (mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared/Flared

DRAIN HOSE SIZE

  • Drain Hose Size - O.D, I.D (mm)
    21.5,16.0

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max (m)
    3/7.5/20
    Piping Length - No Charge (m)
    7.5
  • Max. Elevation Difference (m)
    15
    Piping Connection Heat Insulation
    Both liquid and gas pipes

REFRIGERANT

  • Type
    R410A
    Pre Charge (g)
    1,150
  • Additional Charge (g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    2.401

TOOL CODE(CHASSIS)

  • Indoor / Outdoor
    SK/UL2

COMPRESSOR

  • Type
    Twin Rotary
    Model
    GAT156MAD
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A)/Sun Oil or Jx Nippon
  • Oil Charge
    400
    Manufacturer / Country of Origin
    LG Electronics/China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output- W
    30

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output- W
    43
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu/Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    (ø7 x 2 x 16 x 20 x 744) x 1
  • Evaporator - Corrosion Protection
    PCM
    Condenser - Material, Tube / Fin
    Cu/Al
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    (ø7 x 2 x 24 x 18 x 823) x 1
    Condenser - Corrosion Protection
    Gold

COUNTRY

  • Country
    Nigeria
    Ghana
    Angola
    Cote D'Ivoire
    Cameroon
    Benin
