32HL512D-B
LG 8MP Diagnostic Monitor

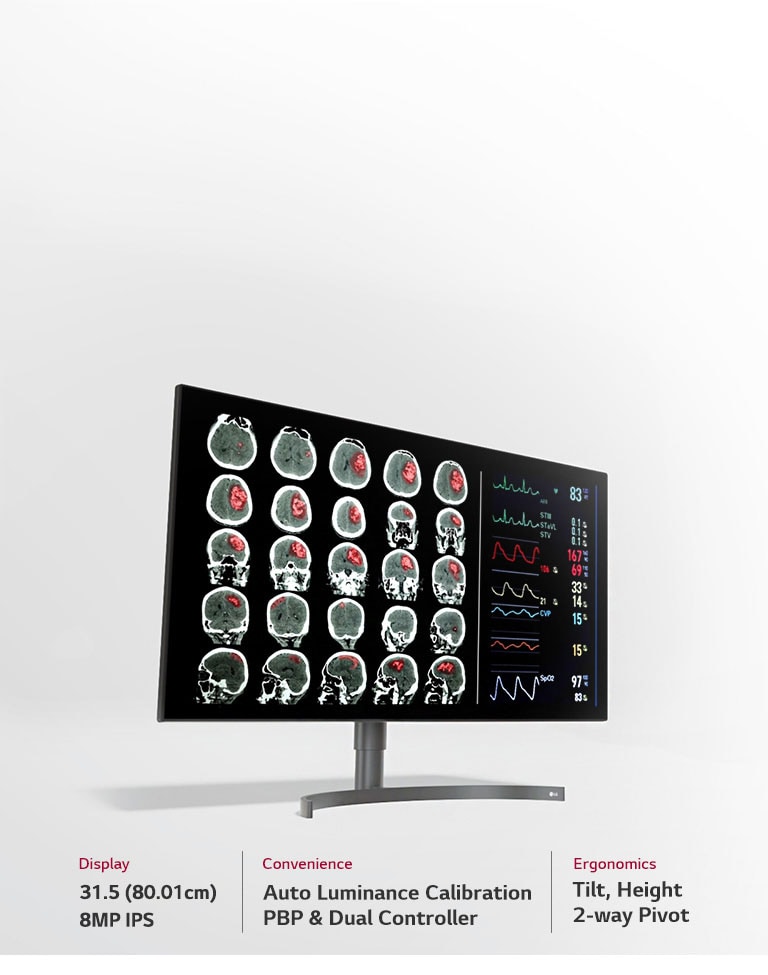

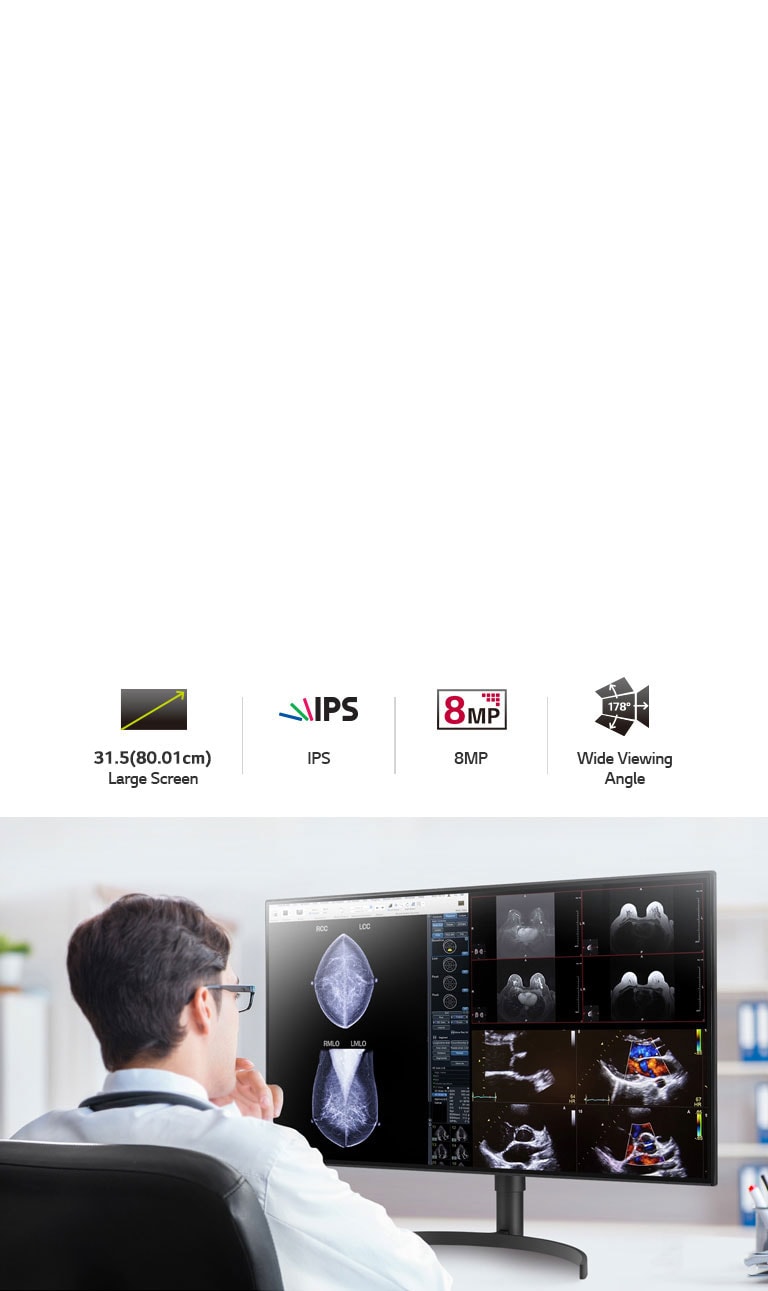

  • 31.5 (80.01cm) 8MP IPS Display

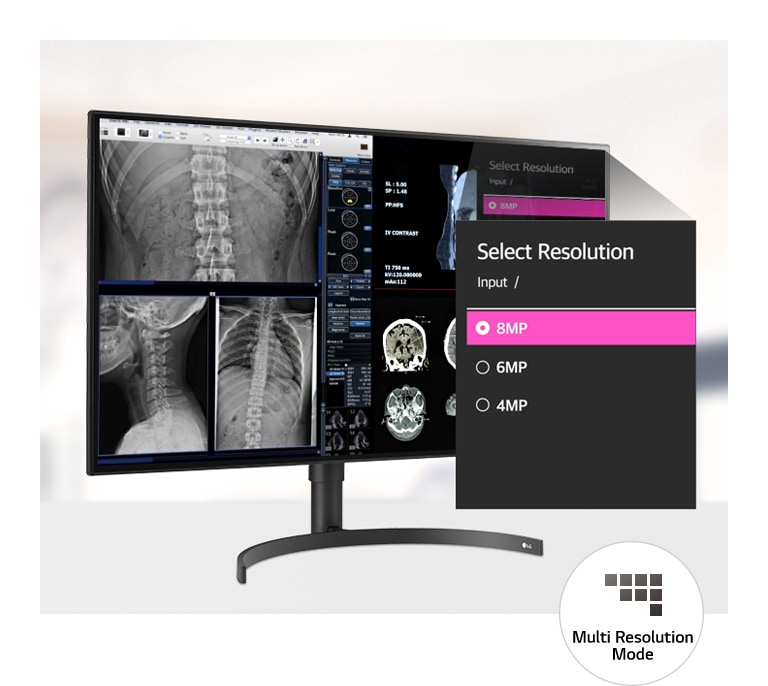

  • Multi Resolution Mode

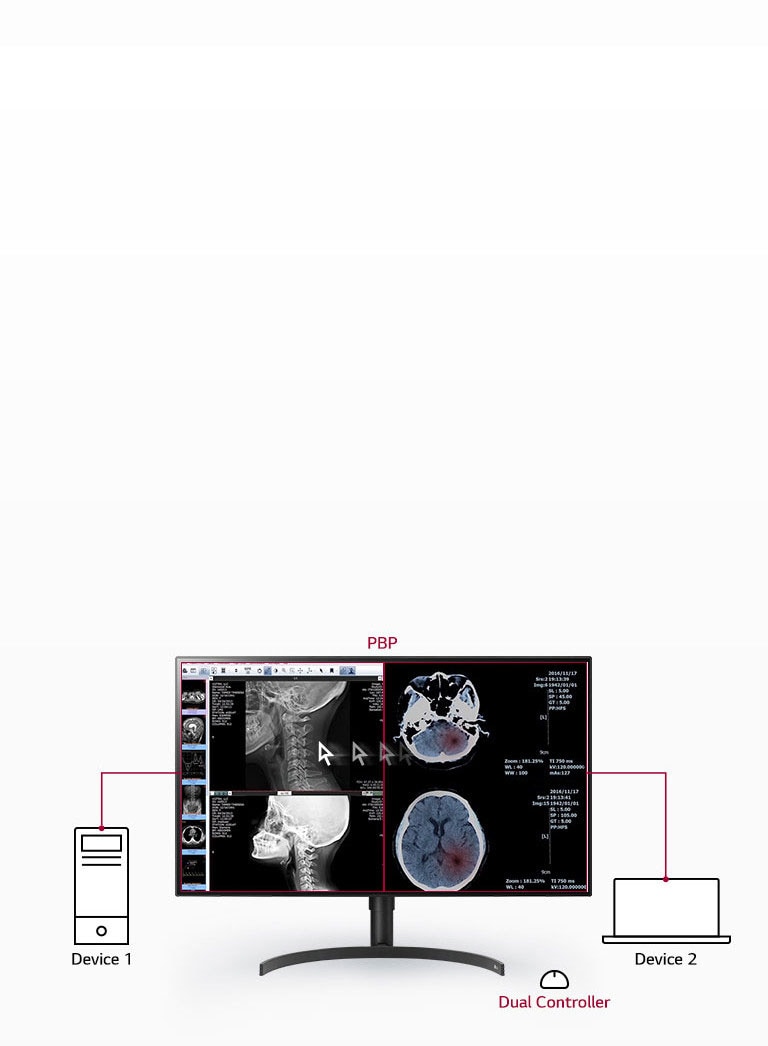

  • PBP / Dual Controller

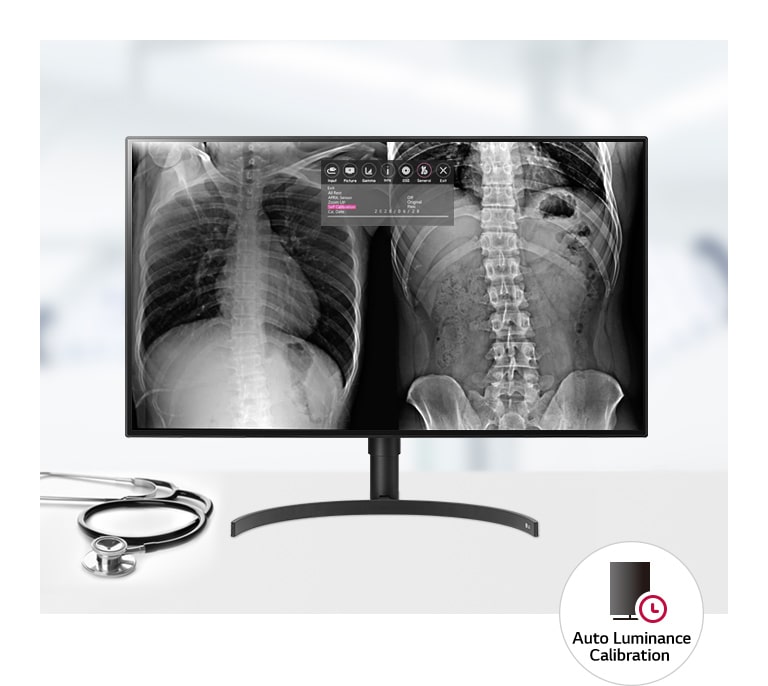

  • Auto Luminance Calibration

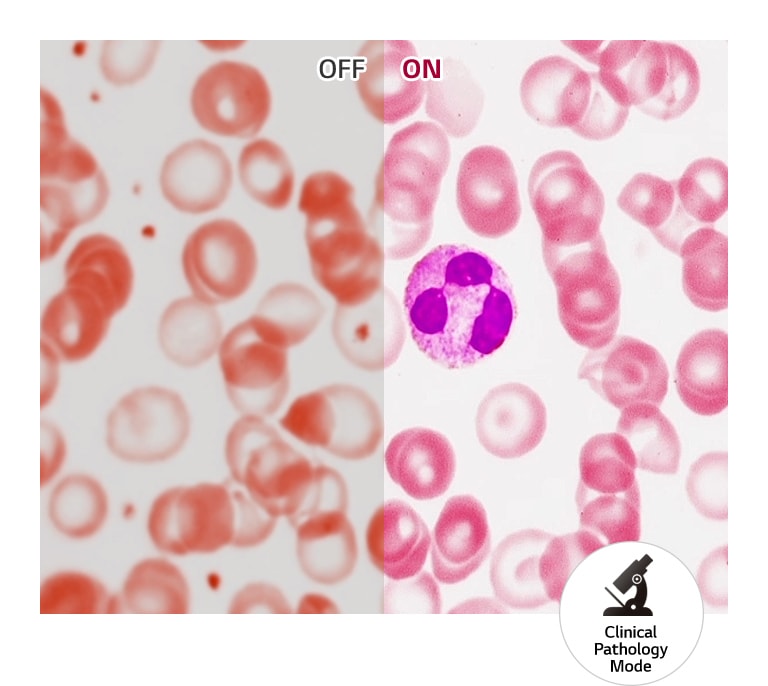

  • Clinical Pathology Mode

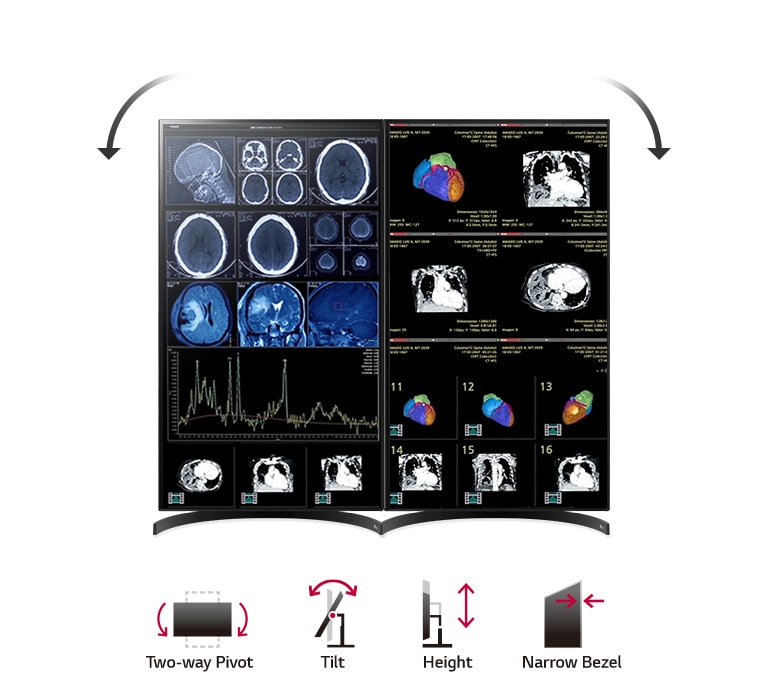

  • Ergonomic Design
LG 8MP Diagnostic Monitor
$
Optimized Image Quality for Diagnostic Review
To Increase Efficiency & Convenience

DISPLAY

  • Aspect Ratio
    16:9
    Brightness (Typ.)
    450
  • Brightness (DICOM Cal.)
    250/350
    Color Gamut (Typ.)
    DCI-P3 98% (CIE1976)
  • Contrast Ratio (Typ.)
    1300:1
    Panel Type
    IPS
  • Peak Brightness (Typ.)
    450
    Pixel Pitch
    0.18159(H)mm x 0.18159(V)mm
  • Resolution
    3840 x 2160
    Response Time (GTG)
    14ms (Off), 5ms (Faster)
  • Surface Treatment
    Anti-Glare
    Viewing Angle (CR≥10)
    178(R/L), 178(U/D)

FEATURE

  • Auto Luminance sensor
    Yes
    Black Stabilizer
    Yes
  • Factory Calibration
    Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
    DICOM
    Yes (<=10%)
  • Color Temperature
    6500K/7500K/9300K Manual (5000K ~ 10000K)
    Flicker safe
    Yes
  • HDR 10
    Yes
    HDR Effect
    Yes
  • HW Calibration
    Yes (PerfectLum)
    OSD Language
    17 Languages
  • PBP
    Yes(2PBP)
    Pathology
    Yes
  • Picture Mode
    (SDR) Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM (Clinical), DICOM (Diagnostic), Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
    Reader Mode
    Yes
  • Smart Energy Saving
    Yes
    Super Resolution+
    Yes
  • Uniformity
    Yes

SW APPLICATION

  • Dual Controller
    Yes
    OnScreen Control (LG Screen Manager)
    Yes
  • Qubyx
    Yes

CONNECTIVITY

  • DP Version
    1.4
    DisplayPort
    Yes (2ea)
  • HDMI
    Yes (1ea)
    HDMI Version
    2.0
  • USB Downstream Port
    Yes (2ea/ver2.0)
    USB Upstream Port
    Yes (1ea/ver2.0)

POWER

  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 3.42A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    65W
  • Power Consumption (Sleep Mode)
    Less than 1.2W
    Type
    External Power(Adapter)

MECHANICAL

  • Display Position Adjustments
    Tilt/Height/Pivot
    Down Height
    85.3
  • Height Range
    0 ~ 110 mm
    Pivot
    Bi-Direction
  • Tilt
    Yes
    Wall Mountable
    100 x 100 mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)
    822 X 537 X 215 mm
    Dimension with Stand (W x H x D)
    718.2 X 598.0 X 231.2 mm (Up)
    718.2 X 488.0 X 231.2 mm (Down)
  • Dimension without Stand (W x H x D)
    718.2 X 414.3 X 45.1 mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    TBD
  • Weight in Shipping
    TBD
    Weight with Stand
    7.3kg
  • Weight without Stand
    5.9kg

STANDARD

  • IEC (IEC 60601-1/IEC 60601-1-2)
    Yes
    EN (EN 60601-1/EN 60601-1-2)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    FCC (FCC part 15 Class A)
    Yes
  • FDA
    510 (k) (Class II)
    CE (MDD 93/42/EEC, 2007/47/EC)
    Yes
  • ISO13485
    Yes
    GMP
    Yes
  • KGMP
    Yes
    RoHS
    Yes
  • REACH
    Yes
    WEEE
    Yes
  • MFDS
    Yes

ACCESSORY

  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • Display Port
    Yes
    HDMI
    Yes
  • Power Cord
    Yes
