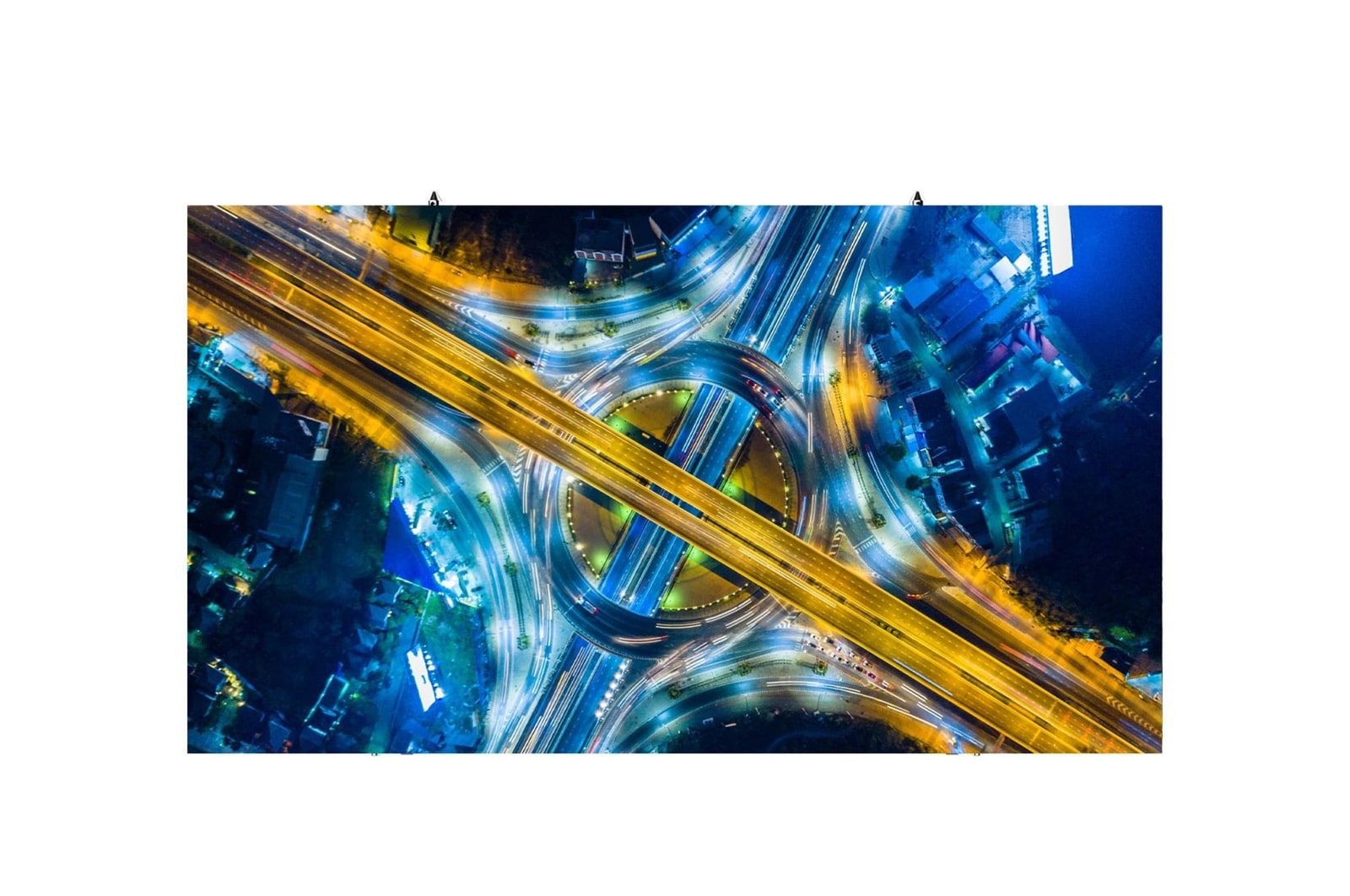

LSBB 細緻像距 Essential 系列

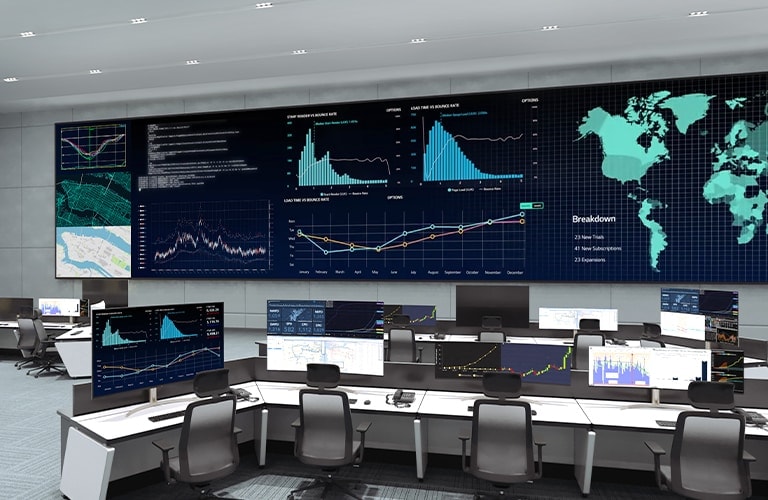

監控安裝在控制室牆上的 LED 屏幕上顯示的圖表。
*此網頁上的所有圖像僅供參考。

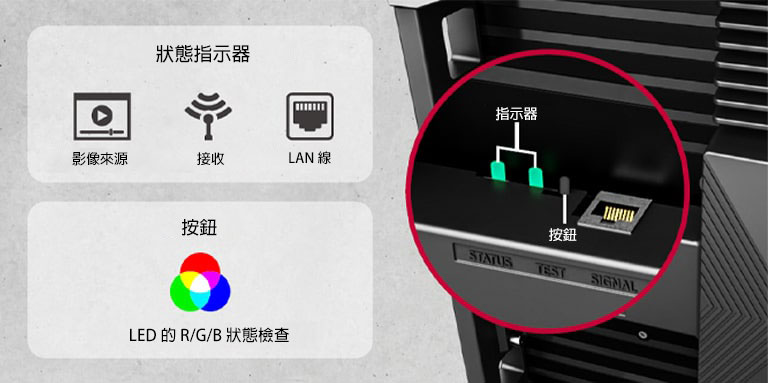

*有關狀態指示器和按鈕的更多詳情，請查看 LSBB 用戶手冊。
*LG ConnectedCare 服務的供應情況因地區而異，且需另行購買。因此，請向你所在地區的 LG 銷售代表了解詳情。
*LG ConnectedCare 可監控的物品：主板 (溫度、訊號狀態、FPGA Ver、以太網連接狀態)、接收卡 (溫度、LED 電源)
Power Consumption (W/㎡, Max.)
600
Frame Rate (Hz)
50 / 60
Power Consumption (W/Cabinet, Avg.)
40
Power Consumption (W/Cabinet, Max.)
120
Power Supply (V)
AC 100-240 V (50-60 Hz)
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
IP rating Front
IP5X
IP rating Rear
IP5X
Operating Humidity
10-80% RH
Operating Temperature(℃)
-20 to +40
Visual Viewing Angle (Horizontal)
160
Brightness Uniformity(%)
97%
Max. Brightness (After Calibration)
600
Color Temperature (K)
3,200-9,300
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
5,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Visual Viewing Angle (Vertical)
140
Pixel Configuration
3 in 1 SMD

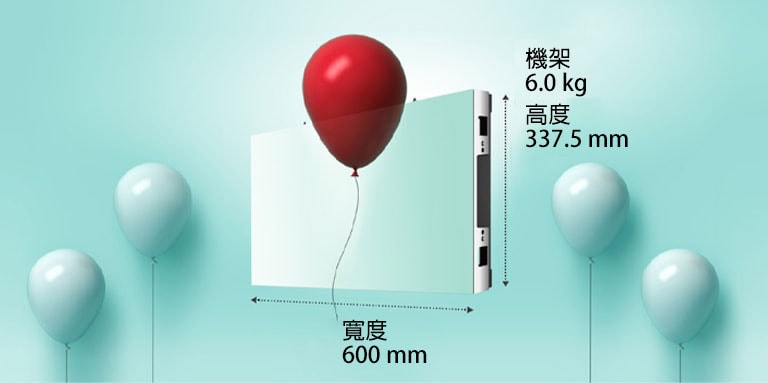

Cabinet Dimensions (W x H x D, mm)
600 × 337.5 × 56
Cabinet material
Die Casting Aluminum
Cabinet Resolution (WxH)
480 × 270
Cabinet Surface Area (㎡)
0.203
Flatness of Cabinet (mm)
0.5
Module Dimensions(WxH,mm)
150 × 337.5
Module Resolution (WxH)
120 × 270
No. of Modules per Cabinet (WxH)
4 × 1
Physical Pixel Density (pixels/㎡)
640,000
Pixel Pitch (mm)
1.250

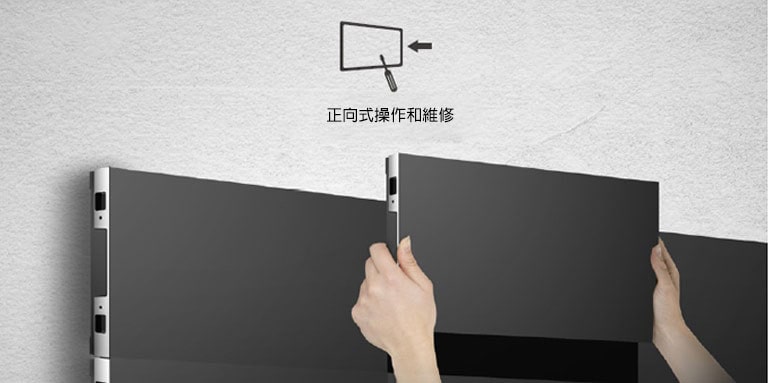

Service access
Front
Weight per Cabinet (kg/unit)
6.0
Weight per Module (kg)
0.50
Weight per Square Meter (kg/㎡)
30.0
