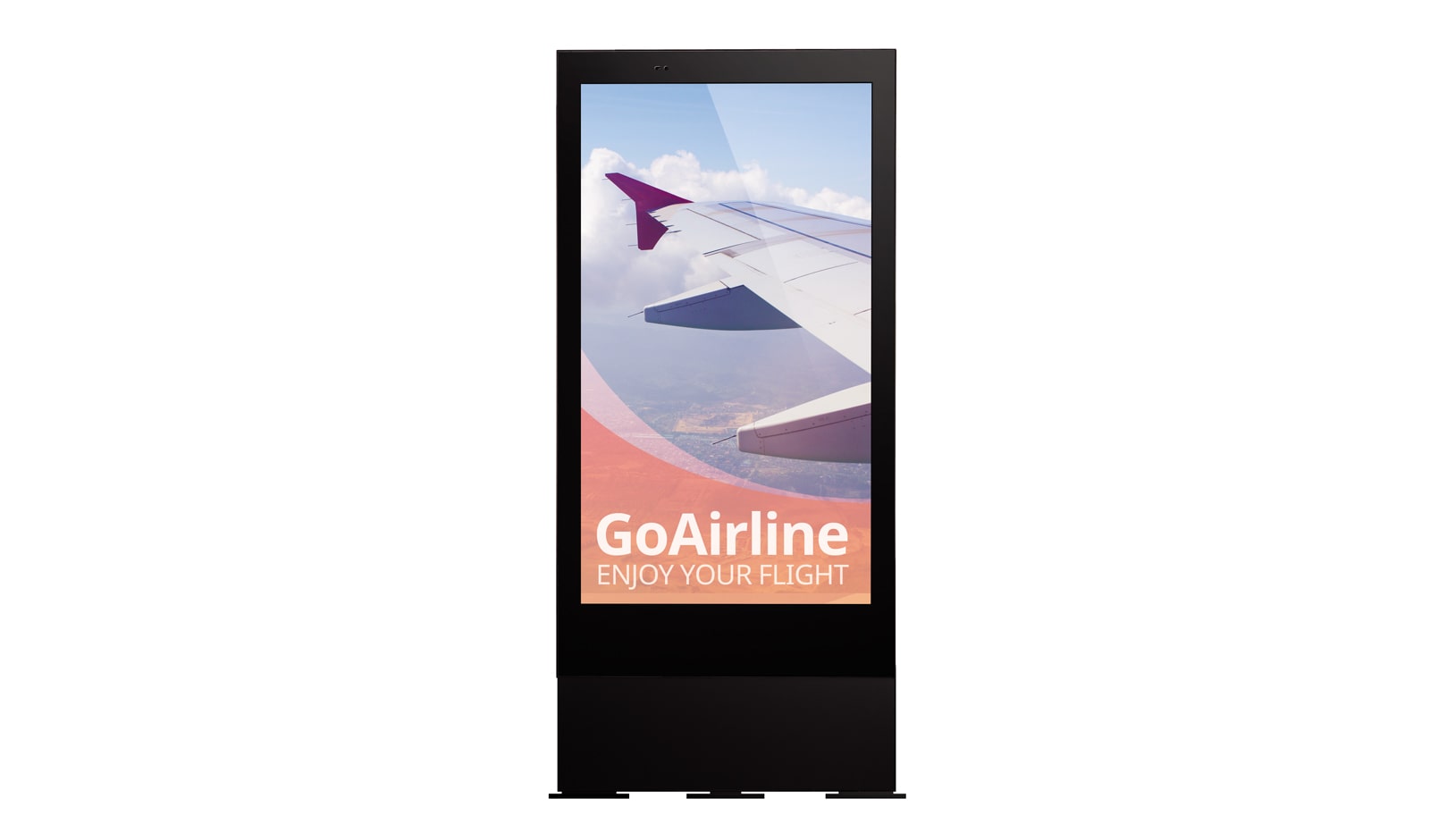

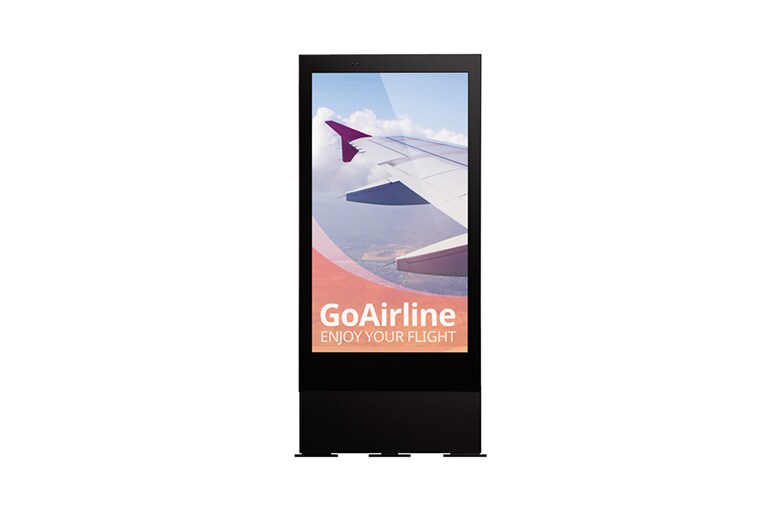

XE3C Series - 75" High Brightness Signage

75XE3C

XE3C Series - 75" High Brightness Signage

Smart Brightness Control<br>1
Outstanding Visibility

Smart Brightness Control

The auto-brightness sensor and preset time scheduler save power whenever possible.
Advanced Local Dimming<br>1
Outstanding Visibility

Advanced Local Dimming

The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.
*55XE3C: 160 Blocks
QWP (Quarter Wave Plate)<br>1
Outstanding Visibility

QWP (Quarter Wave Plate)

FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
Advanced IPS Technology

Wide Viewing Angle

IPS technology provides better control of
the liquid crystals, which in turn allows the
screen to be viewed at virtually any angle.
Anti-reflection<br>1
Advanced IPS Technology

Anti-reflection

Less interference between reflection of external light & back light thanks to anti-reflection coating.
Dust & Humidity Protection in IP56 Rating<br>1
Product Reliability

Dust & Humidity Protection in IP56 Rating

The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.
High Operating Temperature<br>1
Product Reliability

High Operating Temperature

The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.
Enhanced Thermal Management<br>1
Product Reliability

Enhanced Thermal Management

Environmentally sealed structure for waterproofing and protection against brake dust and fumes. Thermal management solution prevents heating from the LCD, Circuit / Power board and Solar loading. Totally self-contained and suitable for outdoor use without air filter.
9.5 mm Protective Glass<br>1
Product Reliability

9.5 mm Protective Glass

Designed to protect panel from impacts and vandalism for outdoor use. Features OCA* film to protect against heating in direct sunlight.
Low Power Consumption Using The M+ Panel<br>1
Cost Effective

Low Power Consumption Using The M Panel

The M panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels*.
* With same luminance
Web Monitoring
Easy Operation

Web Monitoring

The embedded web monitoring allows a variety of parameters to be diagnosed in real time using temperature, pixel, door, ambient light and gyro sensors. It can be easily controlled at all times.
Optional Stand
Easy Operation

Optional Stand

Optional stand to allow panel to stand freely and facilitate easy cable management.

All Spec

PANEL

Screen Size (Inch)

75

Panel Technology

IPS / M+

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz

Brightness

3,000nit (Typ.), 2,400nit (Min.)

Contrast Ratio

1,200:1

Dynamic CR

500,000:1

Color Gamut

NTSC 72%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

1.07 Billion colors

Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 3%

Life time

50,000Hrs (Typ.)

Operation Hours (Hours/Day)

24/7

Portait / Landscape

YES / NO

Transparency

N/A

QWP (Quarter Wave Plate)

YES

CONNECTIVITY

HDMI In

YES (1ea)

HDMI In (HDCP Ver.)

2.2

DP In

YES (HDCP 1.3)

DVI-D In

YES

RGB In

NO

Audio In

YES

RS232C In

YES

RJ45(LAN) In

YES (1ea)

IR In

NO

USB In

USB3.0 Type A (1ea)

HDMI Out

NO

DP Out

YES

Audio Out

NO

Touch USB

NO

External Speaker Out

YES

RS232C Out

YES

RJ45(LAN) Out

NO

IR Out

NO

Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L/B : 110/73.3/73.3/230mm

Weight (Head)

180Kg

Packed Weight

247Kg

Monitor Dimensions (W x H x D)

1075.6 x 2361.6 x 218.9mm

Monitor Dimension with Stand (W x H x D)

1075.6 x 2361.6 x 218.9mm

Handle

YES

VESA Standard Mount Interface

N/A

Carton Dimensions (W x H x D)

1292 x 2296 x 468mm

Weight (Head+Stand)

N/A

PROTECTION GLASS

Thickness

9.5mm

Degree of Protection

YES (P2A)

Tempered / Chemical strengthening

Tempered strengthening

Anti-Reflective

YES

Infrared - Resistance (IR)

YES

Shatter-Proof

YES

FEATURE - HARDWARE

Internal Memory (eMMC)

8GB

Wi-Fi/BT (Built-in)

NO

Temperature Sensor

YES

Auto Brightness Sensor

YES

Pixel Sensor

YES

Proximity Sensor

NO

Current Sensor

NO

BLU Sensor

NO

Humidity Sensor

NO

Acceleration(Gyro) Sensor

YES

Power Indicator

YES

Local Key Operation

NO

FAN (Built-in)

YES

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 3.0

Local Contents Scheduling

YES

Group Manager

NO

USB Plug & Play

YES

Fail over

YES

Booting Logo Image

YES

No Signal Image

NO

RS232C Sync

YES

Local Network Sync

YES

Backlight Sync

NO

PIP

NO

PBP

NO

Screen Share

NO

Video Tag

YES (2 Video Tag)

Play via URL

NO

Screen Rotation

YES

External Input Rotation

YES

Gapless Playback

YES

Tile Mode Setting

YES

Setting Data Cloning

YES

SNMP

YES

ISM Method

YES

Auto Set ID

YES

Status Mailing

YES

Control Manager

YES

Cisco Certification

NO

Crestron Connected

NO

Smart Energy Saving

YES

PM mode

YES

Wake on LAN

YES

Network Ready

NO

Beacon

NO

HDMI-CEC

YES

SI Server Setting

YES

webRTC

NO

Pro:Idiom

NO

Brightness Compensation

NO

W/B Setting by Grey scale

NO

Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

-30 °C to 50 °C

Operation Humidity

5 % to 100 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

750W (Full White) 403W (IEC 62087)

Max.

1000W

BTU (British Thermal Unit)

2559 BTU/Hr(Typ.), 3412 BTU/Hr(Max.)

DPM

1W

Power off

0.5W

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

CB / UL / cUL

EMC

FCC Class "A" / CE / KC

ERP / Energy Star

NO / NO

ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO

OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES

SuperSign Control+

YES

SuperSign WB

NO

SuperSign Cloud

NO

Promota

NO

Mobile CMS

NO

Connected Care

NO

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller, Manual, QSG, Regulation Book, Phone to RS232C Gender, USB cable, HDMI cable

Optional

Enclosure Stand (ST-750X), Handle

SPECIAL FEATURE

Overlay Touch Compatibility

N/A

Smart Calibration

N/A

Tilt (Face up)

N/A

Tilt (Face down)

N/A

IP Rating

N/A

Conformal Coating (Power Board)

YES

Power Protection

N/A

Direct Sunlight

YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

N/A

Response Time ('Paint' app on Windows 10 PC)

N/A

Accuracy (Typ.)

N/A

Interface

N/A

Protection Glass Thickness

N/A

Protection Glass Transmission

N/A

Operating System Support

N/A

Multi Touch Point

N/A
