55" In-Cell Touch Open Frame Signage

Support

55" In-Cell Touch Open Frame Signage

55TNF5J-B

Key Features

Brightness : 450 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

New In-Cell Touch Open Frame for Optimal Customization

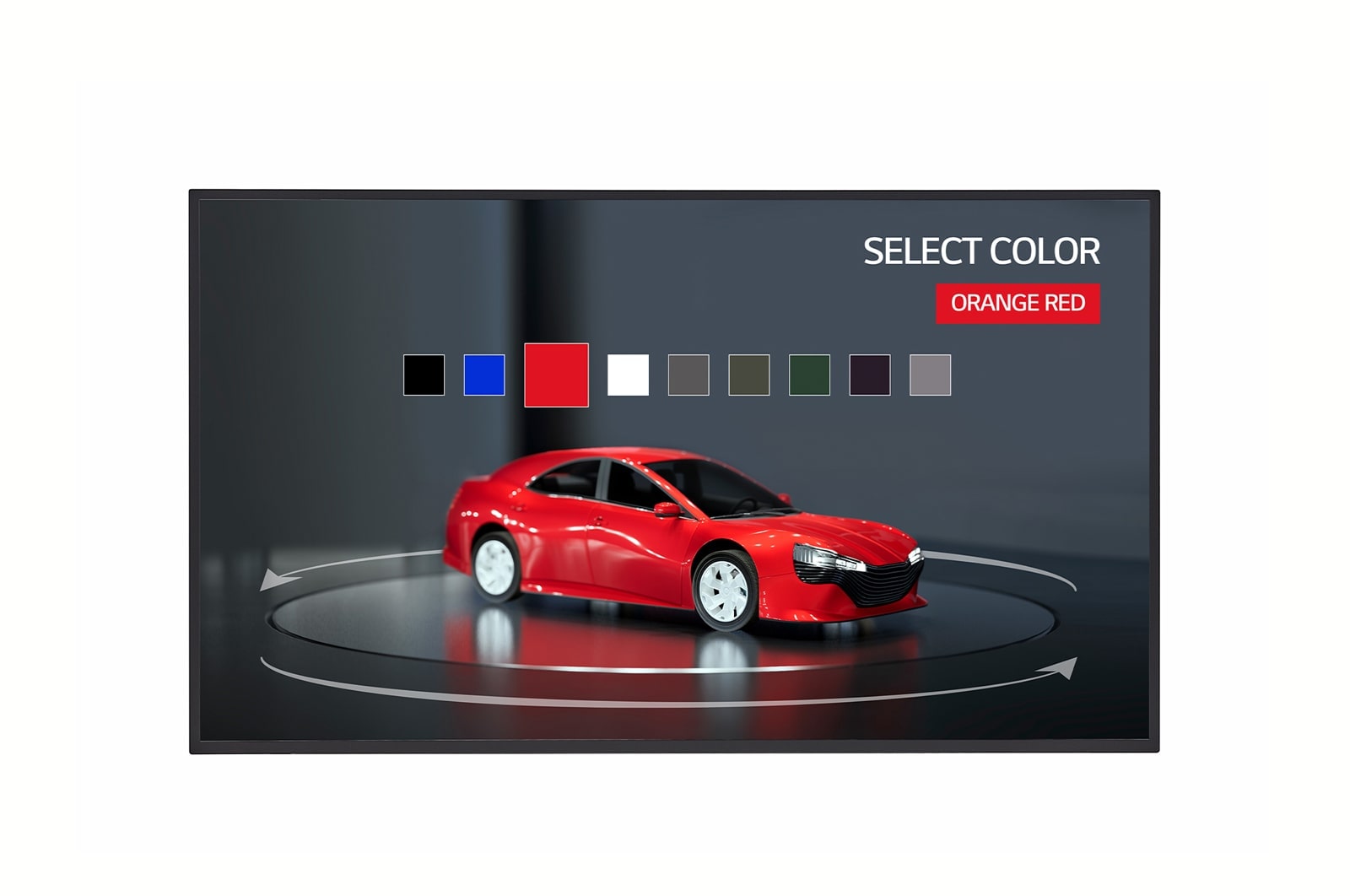

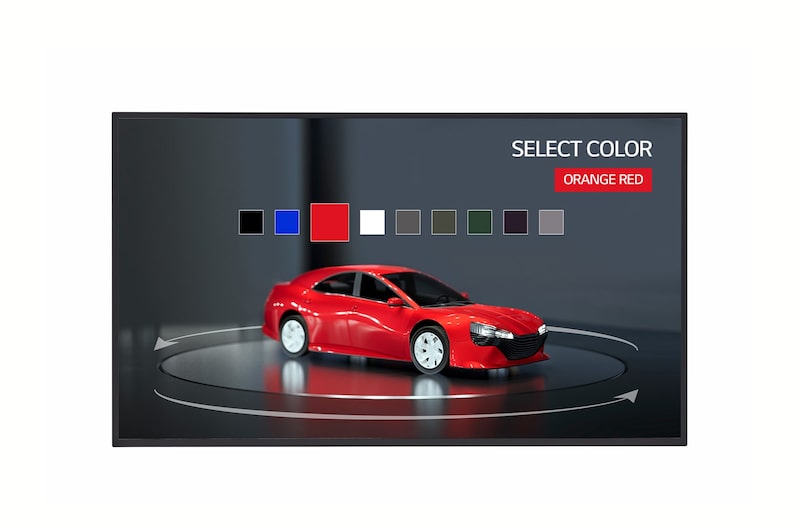

In a car dealership, a man is touching TNF5J to change the color of a car on the display.

* All images in this page are for illustrative purposes only.

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.

Clear Picture Quality

Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.

While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

Various types of displays using TNF5J such as kiosk displays and publicity displays are placed.

A woman is touching a kiosk to select a hamburger from the menu.

24hrs / 7days

TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

A woman is touching a lower installed TNF5J. The TNF5J is installed tilted toward the woman so she can see the display content well.

45-degree Tilt
(Face up)
Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

The user places all ten fingers on the TNF5J display to touch it.

10 Points of
Multi-Touch

The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with
webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

* SoC : System On Chip
** GUI : Graphical User Interface

All Spec

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES / NO

SOUND

Speaker (Built-in)
NO

ACCESSORY

Optional
NO
Basic
Power Cord 1.55m, USB Cable(Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

POWER

Power Type
Built-In Power
Power Supply
AC 100-240V~, 50/60Hz

DEDICATED FEATURE - TOUCH

Response Time ('Paint' app on Windows 10 PC)
90ms ↓
Accuracy (Typ.)
3.5mm
Available Object Size for Touch
Ø6 mm ↑
Interface
USB2.0
Multi Touch Point
Max. 10 Points
Operating System Support
Windows 10
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

MECHANICAL SPECIFICATION

Bezel Width
T/R/L/B : 9.1/9.1/9.1/16.1mm
Bezel Color
Black
Carton Dimensions (W x H x D)
1360 x 835 x 175mm
Handle
NO
Monitor Dimensions (W x H x D)
1231.8 x 709.6 x 39.2mm
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
21.6Kg
VESA Standard Mount Interface
300 x 300 mm
Weight (Head)
16.8Kg
Weight (Head+Stand)
N/A

OPS COMPATIBILITY

OPS Power Built-in
NO
OPS Type compatible
NO

SPECIAL FEATURE

Power Protection
N/A
Conformal Coating (Power Board)
YES
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face down)
N/A
Tilt (Face up)
Max. 45 degree

SOFTWARE COMPATIBILITY

Connected Care
YES
Mobile CMS
YES
Promota
NO
SuperSign Cloud
YES
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO

PANEL

Contrast Ratio
1,000:1
Aspect Ratio
16:9
Back Light Type
Edge
Brightness
450nit (Typ.)
Color Depth (Number of Colors)
1.07 Billion colors
Color Gamut
NTSC 72%
Dynamic CR
NO
Life time
50,000Hrs (Min.)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
60Hz
Response Time
9ms (G to G)
Screen Size (Inch)
55
Surface Treatment (Haze)
Haze 12%
Transparency
N/A
Viewing Angle (H x V)
178º x 178º

FEATURE - HARDWARE

Local Key Operation
NO
Acceleration(Gyro) Sensor
YES
Auto Brightness Sensor
NO
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
NO

CONNECTIVITY

Daisy Chain
NO
Audio In
NO
Audio Out
YES
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
NO
Touch USB
USB2.0 Type B (1ea)
USB In
USB2.0 Type A (1ea)

FEATURE - SOFTWARE

Pro:Idiom
YES
Auto Set ID
NO
Backlight Sync
NO
Beacon
NO
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
YES
Control Manager
YES
Crestron Connected
YES
External Input Rotation
NO
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
NO
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 6.0
PBP
NO
PIP
NO
Play via URL
YES
PM mode
YES
RS232C Sync
NO
Scan Inversion
NO
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
NO
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO

POWER CONSUMPTION

BTU (British Thermal Unit)
433 BTU/Hr(Typ.), 580 BTU/Hr(Max.)
DPM
0.5W
Max.
170W
Power off
0.5W
Smart Energy Saving (70%)
89W
Typ.
127W
