UM5J Series - 98" UHD Large Screen Signage

UM5J Series - 98" UHD Large Screen Signage

98UM5J-B

UM5J Series - 98" UHD Large Screen Signage

UHD Large Screen Signage

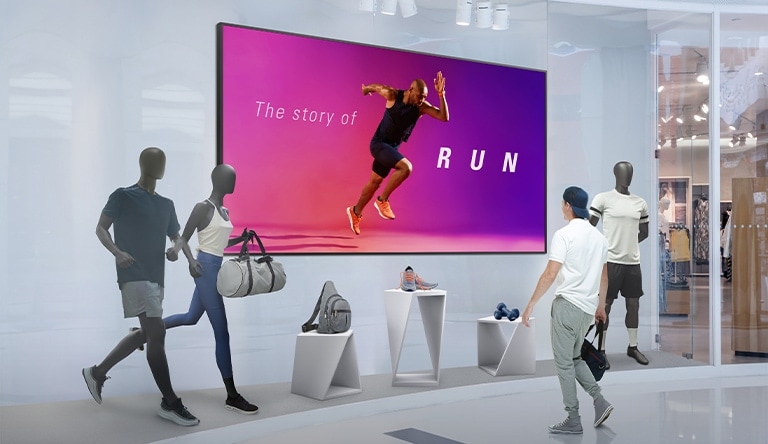

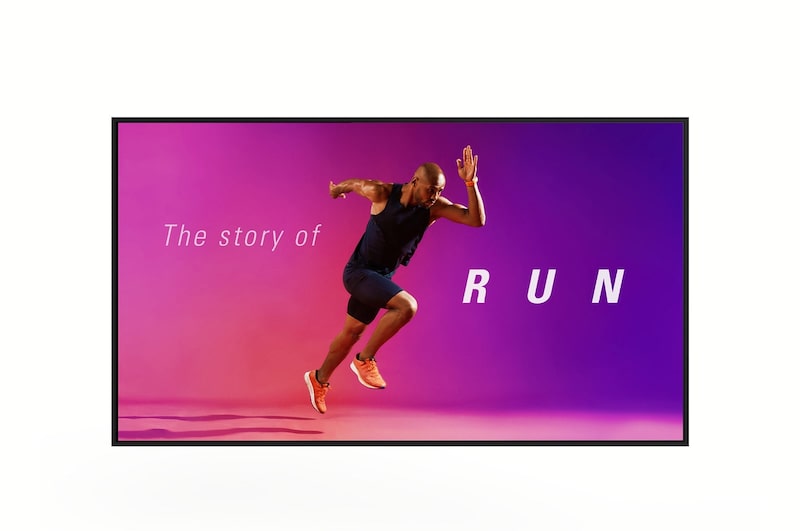

A man is watching an advertisement on the big screen of a sports store.

* All images in this web page are for illustrative purposes only.

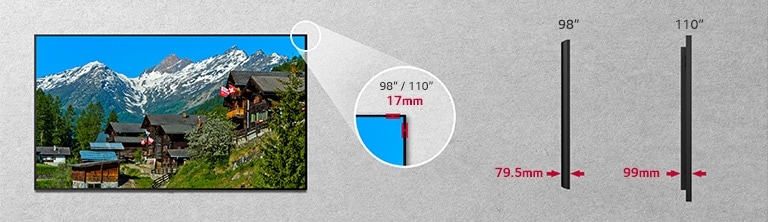

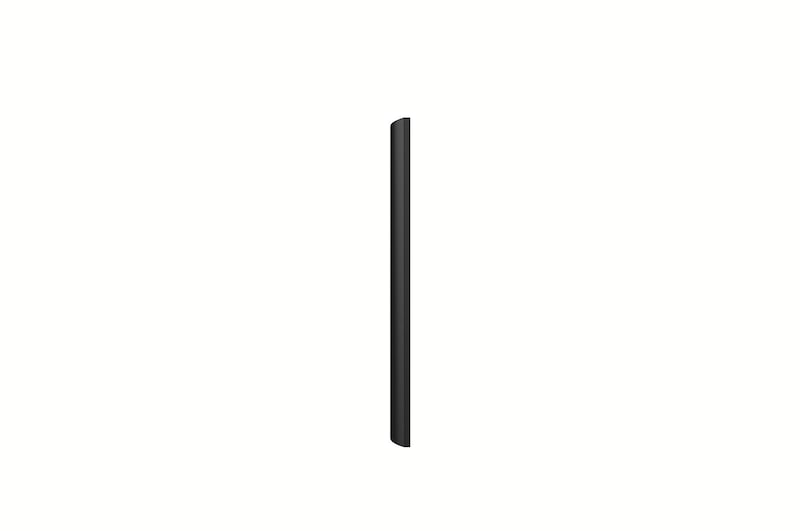

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

The bezel size of UM5J series is 17mm. The depth is 79.5mm (98") and 99mm (110") .

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

With a resolution 4 times higher than FHD, UHD displays content more vivid and colorful.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

One signage on the wall has a built-in speaker which renders rich audio.

* Internal Built-in Speaker Support (L/R max 10 W)

High Brightness

With a great brightness of 500 cd/m², UM5J series clearly deliver contents and attract public attention, which is the ultimate display for market of retail, cooperate etc.

UM5J series has a brightness of 500 nits, so it is clearly visible, even under strong light.

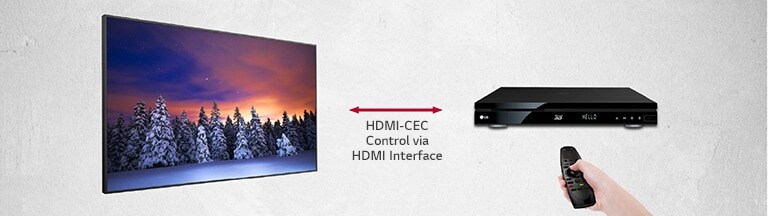

Support HDMI CEC Command

This allows you to use the LG Remote Controller to control the basic functions of connected HDMI devices.

UM5J has a function called HDMI-CEC, so when HDMI is connected, other devices connected to the TV can be easily operated using an LG Remote Controller.

* The LG Media Player and LG Remote Controller may appear differently than the actual ones.

All Spec

PANEL

Screen Size (Inch)

98

Panel Technology

IPS

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz

Brightness

500nit (Typ.)

Contrast Ratio

1,200:1

Dynamic CR

200,000:1

Color Gamut

DCI 85%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

1.07 Billion colors

Response Time

8ms (G to G)

Surface Treatment (Haze)

Haze 25%

Life time

30,000Hrs (Typ.)

Operation Hours (Hours/Day)

16/7

Portait / Landscape

YES / YES

Transparency

N/A

QWP (Quarter Wave Plate)

N/A

CONNECTIVITY

HDMI In

YES (3ea)

HDMI In (HDCP Ver.)

2.2/1.4

DP In

NO

DVI-D In

NO

RGB In

NO

Audio In

NO

RS232C In

NO

RJ45(LAN) In

YES (1ea)

IR In

NO

USB In

USB2.0 Type A (2ea)

HDMI Out

NO

DP Out

NO

Audio Out

YES

Touch USB

NO

External Speaker Out

NO

RS232C Out

NO

RJ45(LAN) Out

NO

IR Out

NO

Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/B/L/R: 17mm

Weight (Head)

78Kg

Packed Weight

105Kg

Monitor Dimensions (W x H x D)

2198 x 1253 x 79.5mm

Monitor Dimension with Stand (W x H x D)

N/A

Handle

NO

VESA Standard Mount Interface

800 x 400 or 800 x 800 mm

Carton Dimensions (W x H x D)

2440 x 1468 x 275mm

Weight (Head+Stand)

N/A

FEATURE - HARDWARE

Internal Memory (eMMC)

16GB

Wi-Fi/BT (Built-in)

YES

Temperature Sensor

NO

Auto Brightness Sensor

NO

Pixel Sensor

NO

Proximity Sensor

NO

Current Sensor

NO

BLU Sensor

NO

Humidity Sensor

NO

Acceleration(Gyro) Sensor

NO

Power Indicator

YES

Local Key Operation

YES

FAN (Built-in)

NO

FEATURE - SOFTWARE

OS Ver. (webOS)

Non-webOS

Local Contents Scheduling

NO

Group Manager

NO

USB Plug & Play

NO

Fail over

NO

Booting Logo Image

NO

No Signal Image

NO

RS232C Sync

NO

Local Network Sync

NO

Backlight Sync

NO

PIP

NO

PBP

NO

Screen Share

NO

Video Tag

NO

Play via URL

NO

Screen Rotation

YES

External Input Rotation

NO

Gapless Playback

NO

Tile Mode Setting

NO

Setting Data Cloning

NO

SNMP

NO

ISM Method

NO

Auto Set ID

NO

Status Mailing

NO

Control Manager

NO

Cisco Certification

NO

Crestron Connected

NO

Smart Energy Saving

NO

PM mode

NO

Wake on LAN

NO

Network Ready

NO

Beacon

NO

HDMI-CEC

YES

SI Server Setting

NO

webRTC

NO

Pro:Idiom

NO

Brightness Compensation

NO

W/B Setting by Grey scale

NO

Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

500W

Max.

560W

BTU (British Thermal Unit)

1706 BTU/Hr(Typ.), 1911 BTU/Hr(Max.)

Smart Energy Saving (70%)

N/A

DPM

N/A

Power off

0.5W

SOUND

Speaker (Built-in)

YES (10W x 2)

CERTIFICATION

Safety

UL / CB

EMC

FCC Class "A" / CE Class "A"

ERP / Energy Star

YES(NewErP) / NO

ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO

OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

NO

SuperSign Control+

NO

SuperSign WB

NO

SuperSign Cloud

NO

Promota

NO

Mobile CMS

NO

Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

Basic

LG Remote Controller(include battery 2ea), Power Cord, Manual

Optional

NO

SPECIAL FEATURE

Overlay Touch Compatibility

N/A

Smart Calibration

N/A

Tilt (Face up)

N/A

Tilt (Face down)

N/A

IP Rating

N/A

Conformal Coating (Power Board)

N/A

Power Protection

N/A

Direct Sunlight

N/A
