Transparent LED Film

Transparent LED Film

Transparent LED Film

LAT140

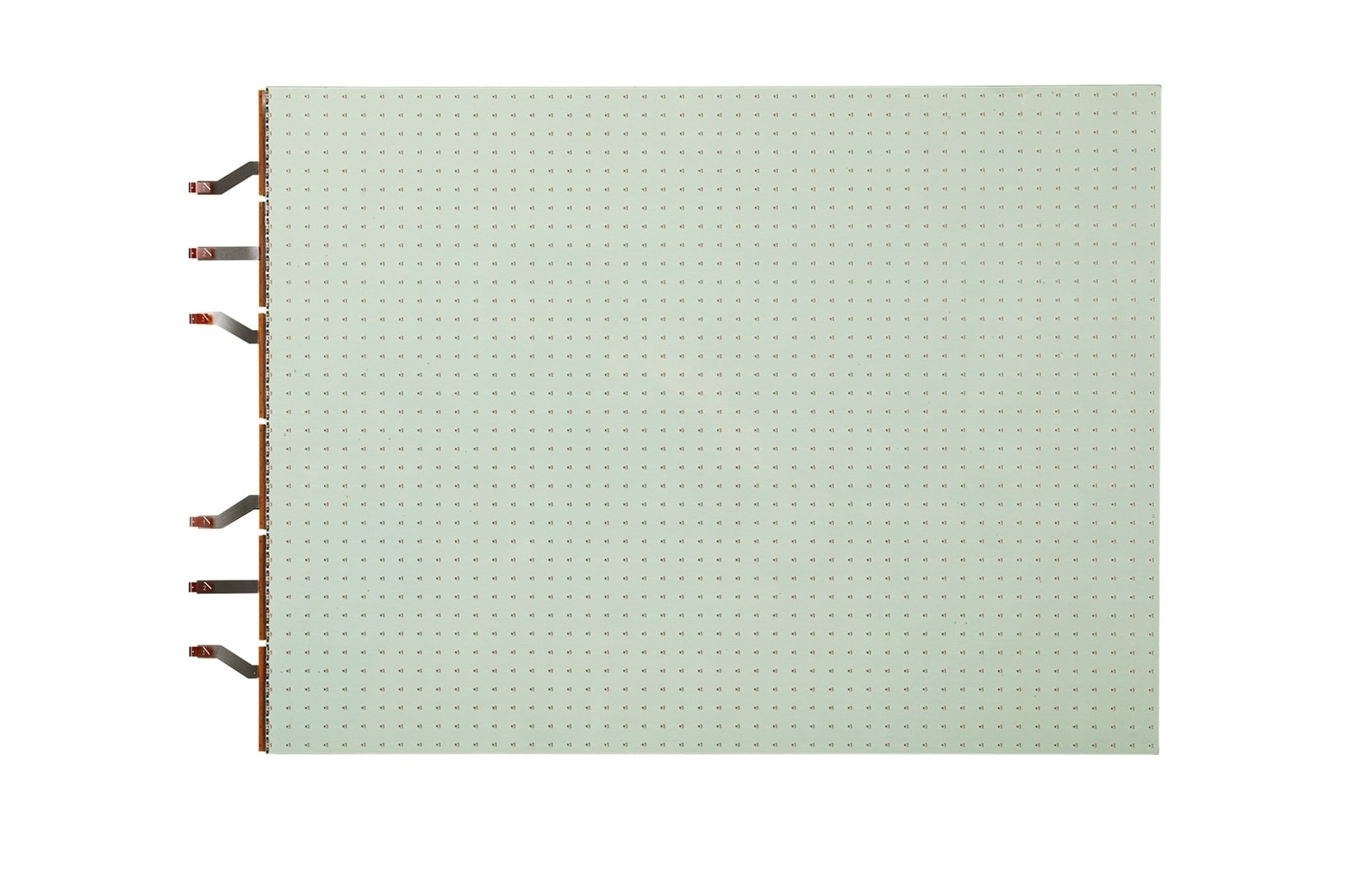

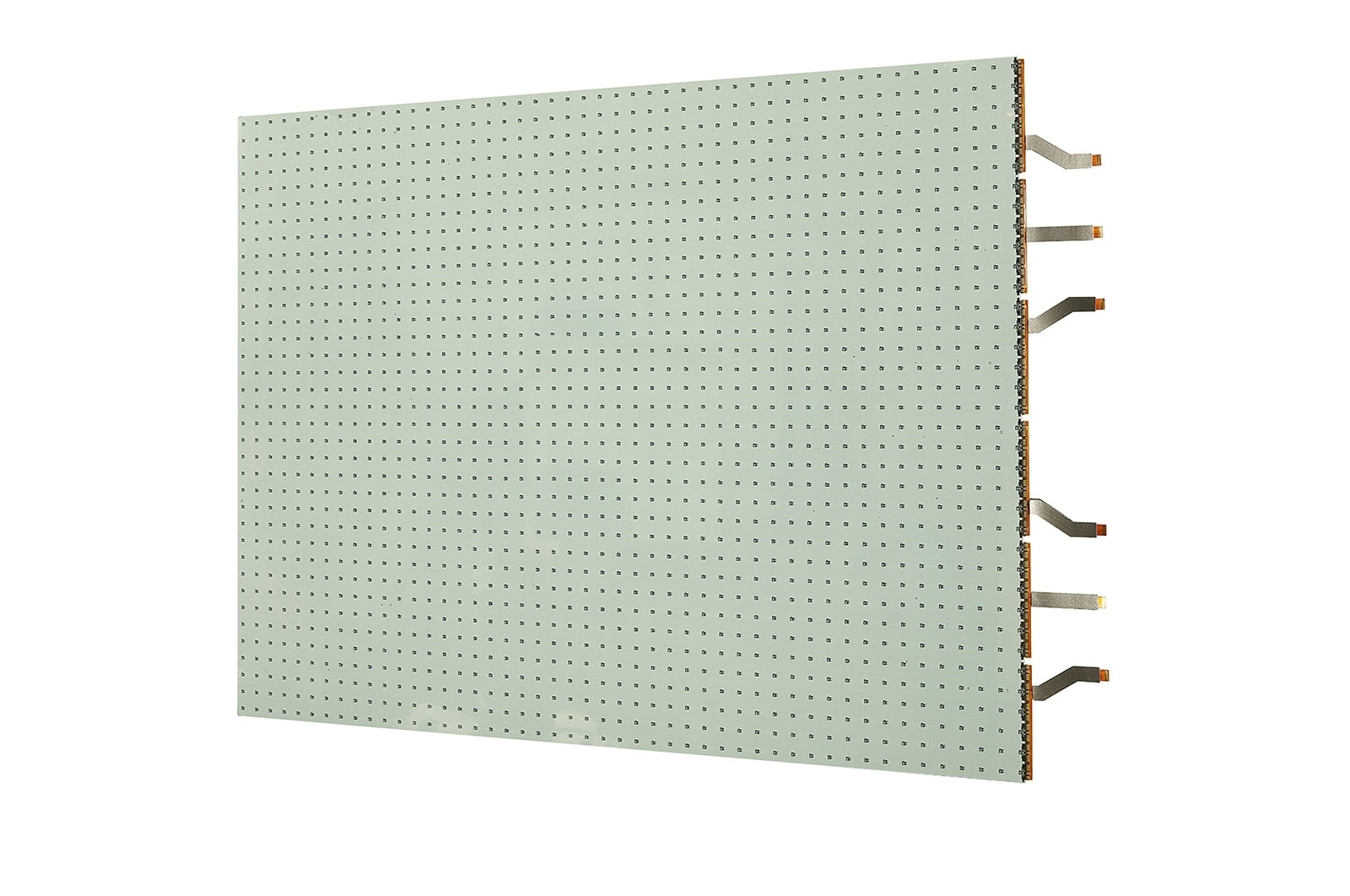

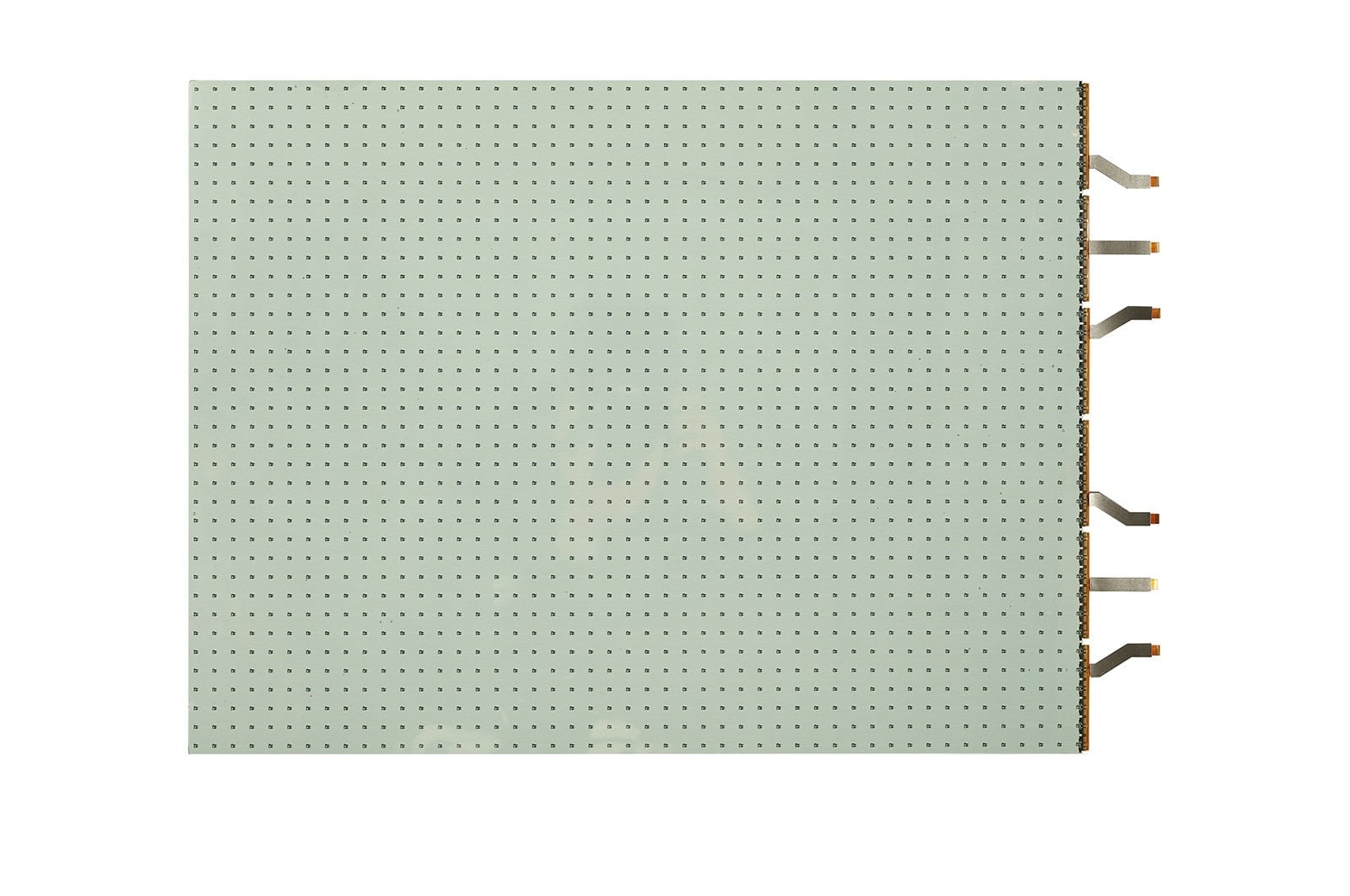

Front view of LAT140GT81
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
Front view of LAT140GT81
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140
LG Transparent LED Film, LAT140

Key Features

  • Self-adhesive film, size and layout can be customized
  • Up to 53% high transparency
  • 14 mm pitch with wide range of colour expression
  • LED Type: R, G, B 3in1 Color Package
More
Bring New Life to Transparent Space

Bring New Life to Transparent Space

* All images in this page are for illustrative purposes only and may differ from the actual product.

A NATURAL BLEND WITH SPACE

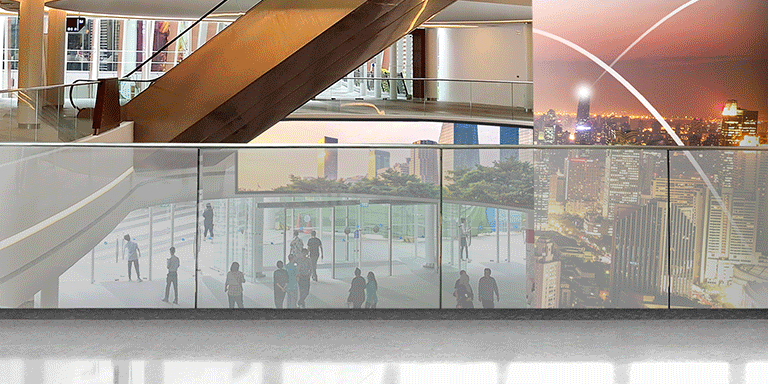

Superb Transparency

The LG Transparent LED film, which is a metal mesh type connecting each pixel with a thin metal mesh line, reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

Superb Transparency

Enhanced Brightness and Control
EYECATCHING CONTENT DISPLAY

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100cd/m²* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

* The examined brightness may differ from testing environments including a photometer.

Data Lines with Bypass Function

EYECATCHING CONTENT DISPLAY

Data Lines with Bypass Function

The 14mm transparent LED film consists of LED chips connected by series and additional bypass data lines. So even if an error occurs with an LED chip, it reduces its impact on the other chips placed in the same row. This newly added function helps you show text, images, and videos as clearly as possible.

Enhanced Brightness and Control

EASY SPACE INNOVATION

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

Outstanding Expandability and Flexibility
EASY SPACE INNOVATION

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
RELIABLE PRODUCT QUALITY

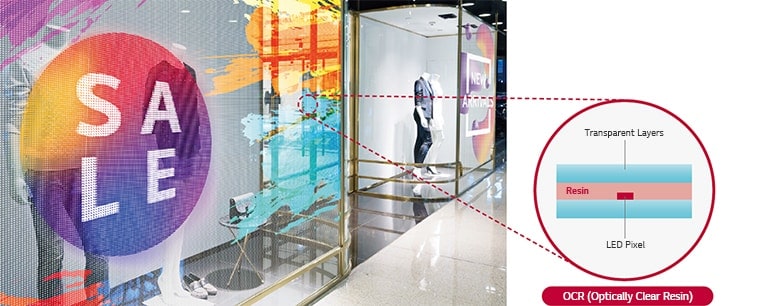

OCR (Optically Clear Resin) Direct Bonding

The LG Transparent LED film, which applied the OCR bonding method, protects LED pixels stably by fully filling the gap between transparent layers. Compared to OCA (Optically Clear Adhesive) method, which usually perforates the upper layer above each LED pixel to prevent uneven surface and scattered reflection, the LED film fully embraces and protects the pixels resulting in improved durability and flat surface*.

OCR (Optically Clear Resin) Direct Bonding

* This is based on the internal comparison test between OCR and OCA with perforations of the upper transparent layer under the condition of -10˚~ 45˚ temperature and 0 ~ 30% humidity.
webOS Smart Platform
SMART LED SIGNAGE

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

* webOS API will be provided to authorized SIs and developers.

Control Manager
SMART LED SIGNAGE

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.
SMART LED SIGNAGE

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

Real-time ConnectedCare Service

* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Print

All Spec

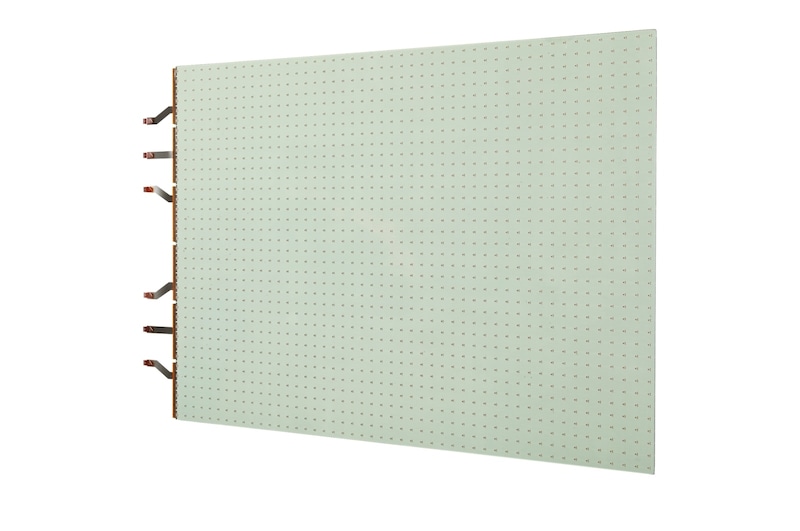

LED FILM(LAT140GT81)

  • LED Type

    R, G, B 3in1 Color Package (SMD2020)

  • Pixel Pitch(mm)

    13.7±0.2mm

  • Resolution

    48 x 36

  • Pixels per Panel

    1,728

  • Pixel Density (point/㎡)

    5,102

  • Brightness (cd/㎡)

    Typ.2,100nit

  • Contrast Ratio

    ≥ 100,000:1

  • Luminance Uniformity

    ≥ 70%

  • Viewing Angle (H x V)

    120 x 120

  • Life Time (Duration of Half Brightness in Hours)

    50,000 Hrs

  • Daily Usage

    24h / 7days

  • Warranty

    2 years

  • Transparency

    Typ 53%

  • Operating Temperature

    0℃ ~ 45℃ (Indoor Glass Installation Only)

  • Film Trimming

    Yes (Parallel to the Bezel Side Only)

  • Color Processing

    (9bit) 500/500/500 Level (R, G, B)

  • Colors

    125,000,000 Colors

  • Color Chromaticity

    Cx: 0.25±0.03, Cy : 0.34±0.03

  • Dimension (W x H x D)

    655 x 492 x 2.9mm(with front & back protection film)

  • Weight

    1kg

  • Power Consumption

    37W(Transparent panel 1EA + Common Bezel kit 2EA)

  • Accessory

    ESG, Regulation book, Warranty Card

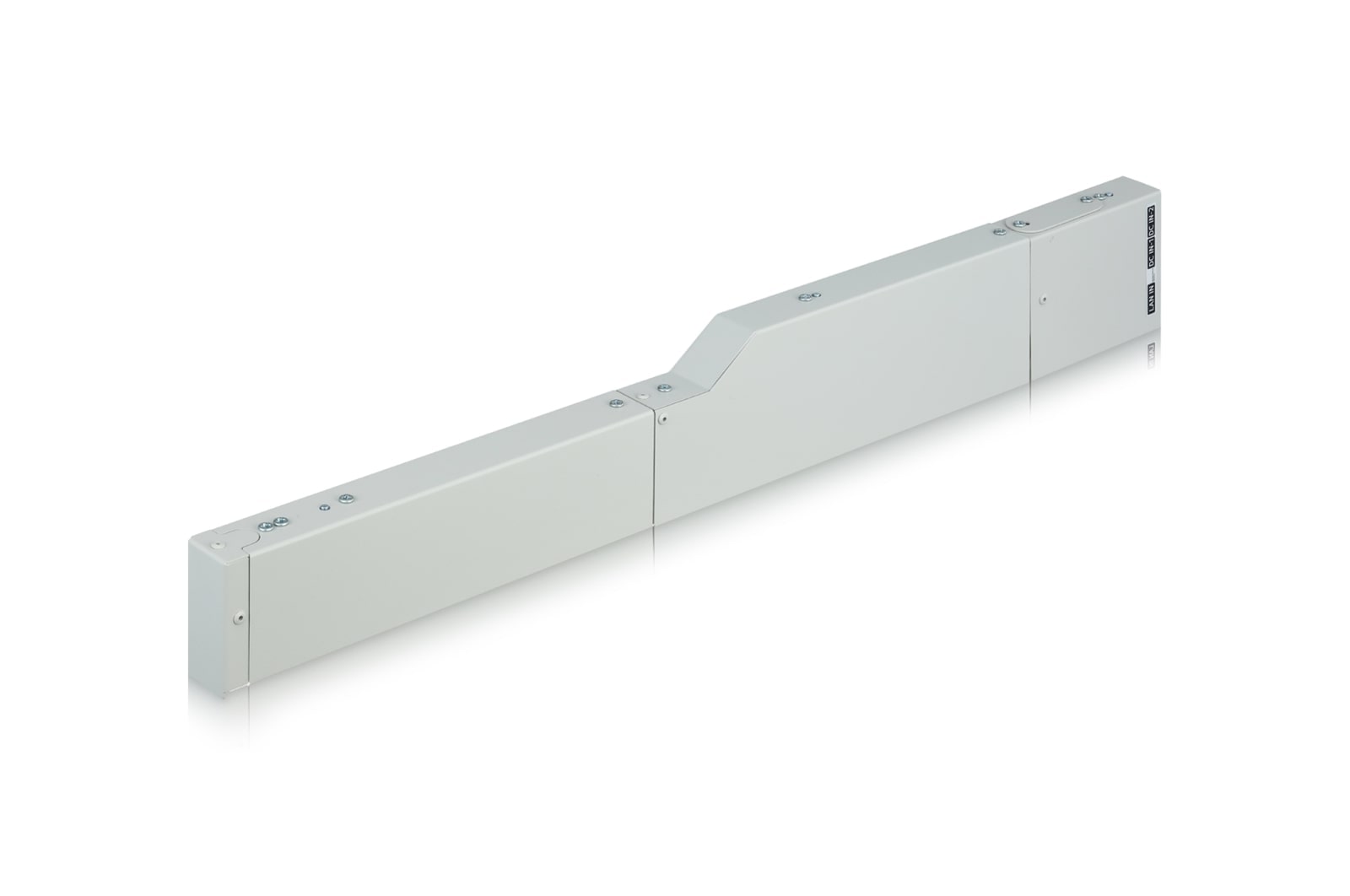

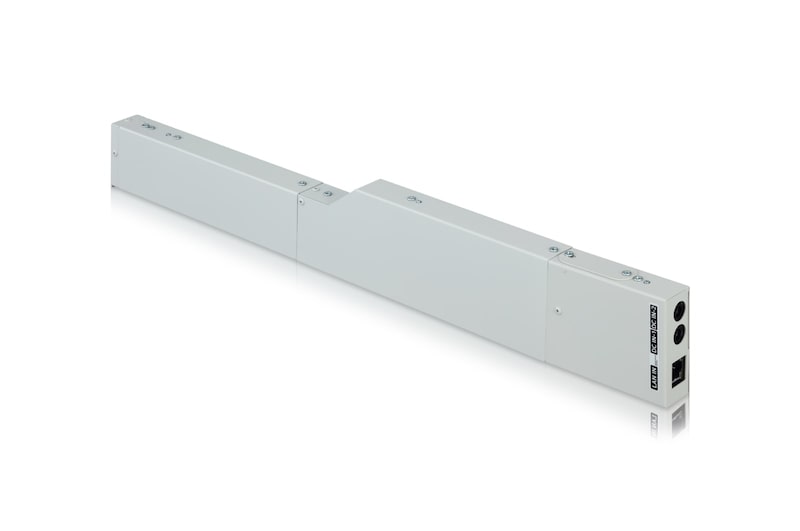

1ST BEZEL(ACC-14LATB1)

  • Dimension (W x H x D)

    69.4 x 492 x 25mm (Cover)

  • Weight

    0.4Kg

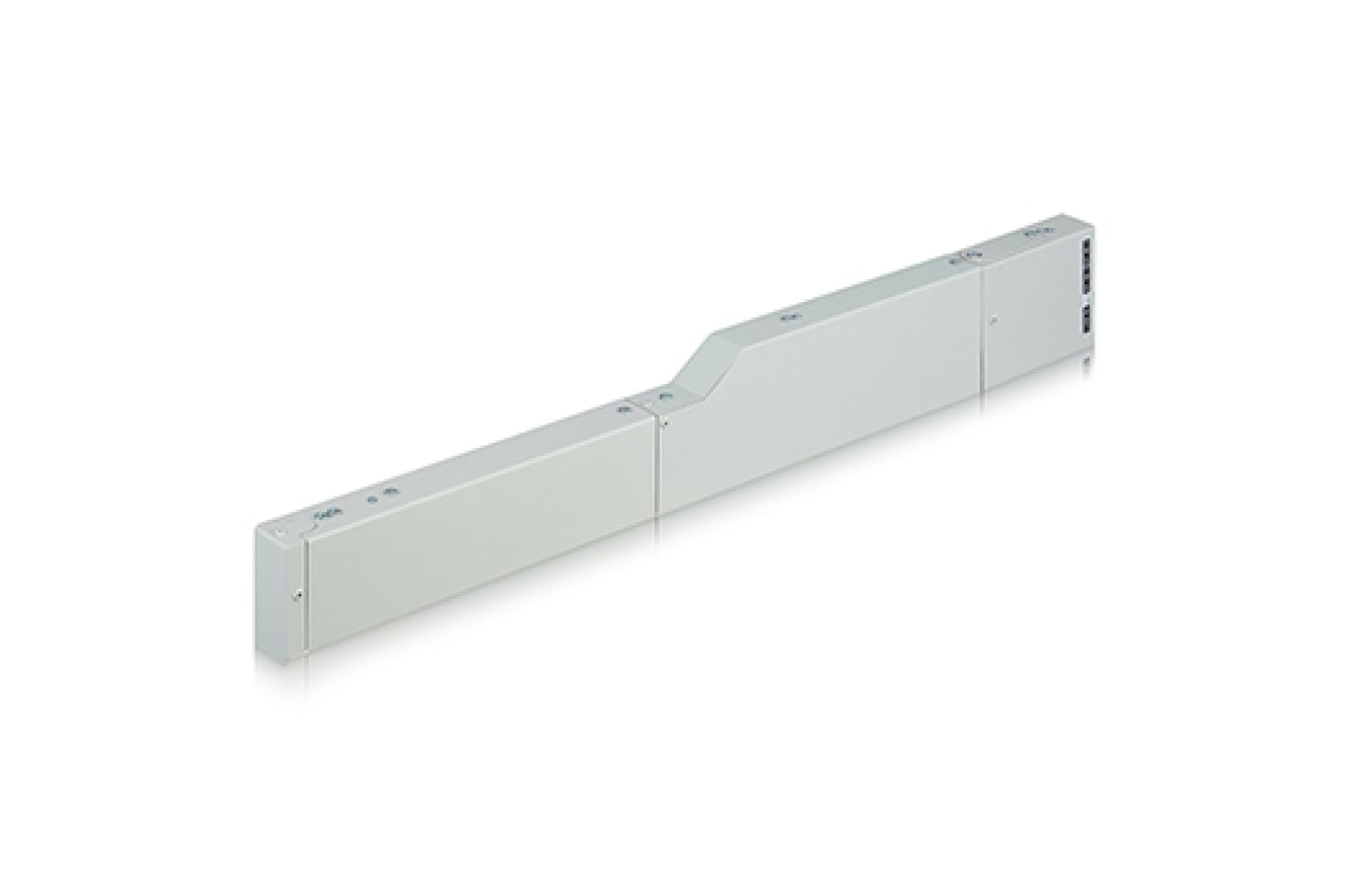

COMMON BEZEL(ACC-14LATB2)

  • Dimension (W x H x D)

    51.4 x 492 x 25mm (Cover)

  • Weight

    0.3Kg

UNIT CONTROLLER(LCLG140U)

  • Resolution

    960x540 (1/4 FHD)

  • Interface

    Input : LVDSOutput : RJ45 x4EA

  • Maximum Transmission Length

    100m (Cable : CAT5E, CAT6)

  • Dimension (W x H x D)

    293 x 188.7 x 37mm

  • Weight

    1.5Kg

  • Temperature Sensor

    Yes

  • Power Consumption

    20 W

SYSTEM CONTROLLER(LCLG002)

  • Video (Max. Input Resolution)

    DP : 1920x1080@60HzHDMI : 1920x1080@60HzDVI-D : 1920x1080@60Hz

  • Interface (Input)

    HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0,

  • Interface (Output)

    DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS

  • Dimension (W x H x D mm)

    293 x193.3 x 40.1mm

  • Weight (Head, Kg)

    1.6kg

  • Temperature Sensor

    O

  • Light Sensor

    O

  • Source Selection

    HDMI, DVI-D, DP

  • Power Consumption

    17W

  • CMS S/W

    Yes (2.9)

  • Signage365care

    Yes (2.7)

  • Accessory

    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card

POWER(ACC-LATP1)

  • Dimension (W x H x D)

    183 x 86 x 28mm

  • Weight

    769g

  • Input

    100~240V, 50~60Hz

  • Output

    19.5V/10.8A (210W)

  • Color

    White

  • DC output cable

    14AWG, 1.5m

  • Type

    L Type
