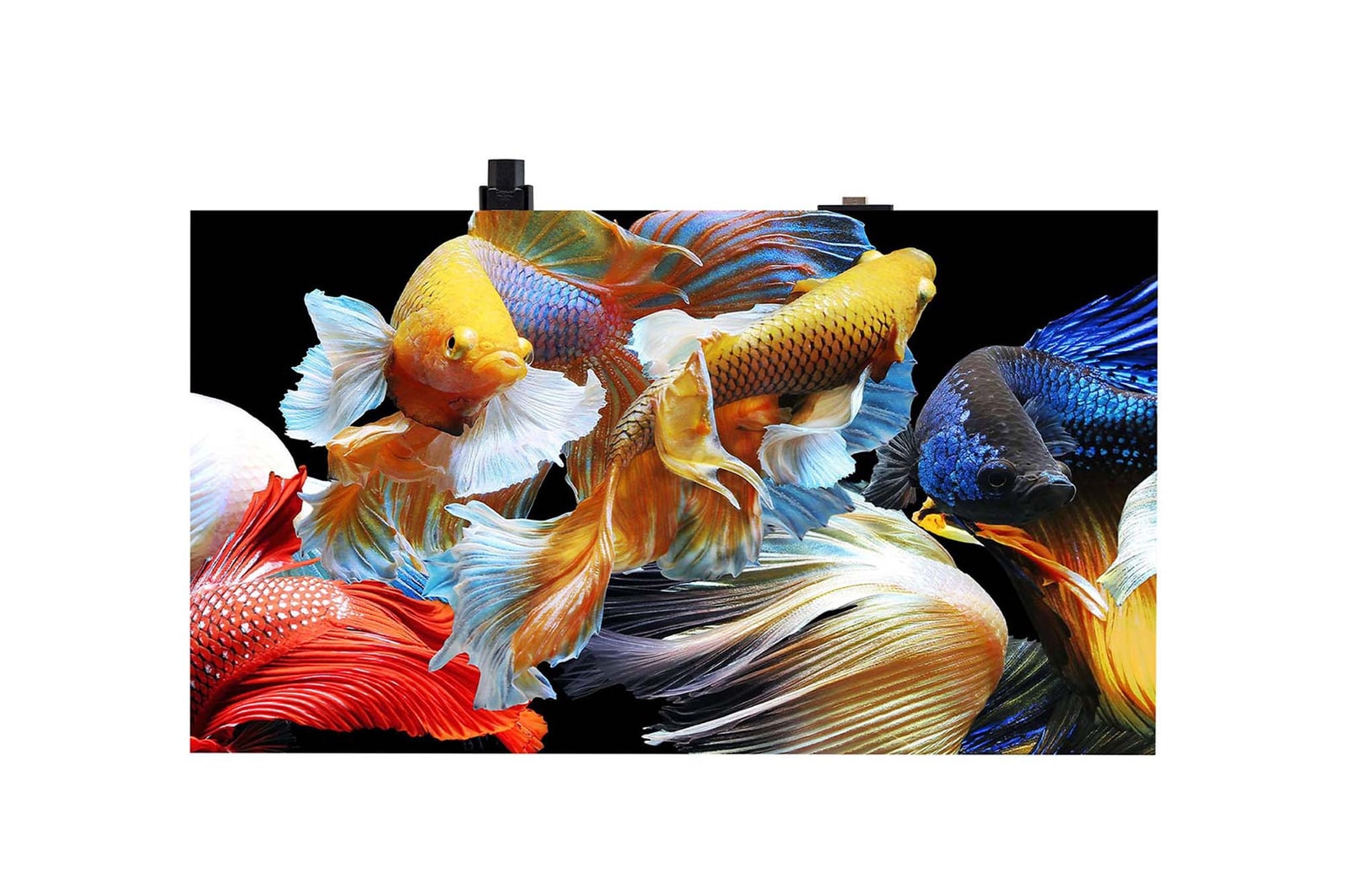

LG MAGNIT Micro LED
In a spacious lobby, a massive LG MAGNIT shows a vivid underwater scene with colorful fish swimming across the screen.
* All images in this web page are for illustrative purposes only.
LG MAGNIT’s revolutionary chip transfer technology, full black coating, and advanced surface treatment work in harmony to deliver exceptional black levels, vivid colors, and deep contrast. This synergy creates an immersive visual experience where even the subtlest shadow details emerge from the darkness, revealing the full depth of every scene.
A black sphere blends with wave-like vibrant colors, showcasing vivid tones and deep contrast.
* Based on LG's conventional LED Signage
Through meticulous LED chip selection and the narrow wavelength of these chips, LG MAGNIT delivers uniform and pure color expression across the entire screen. The gamut transfer technology also contributes to great color fidelity, making it ideal for environments that demand precise and lifelike visuals.
The flower and the graphic elements spreading around it are vividly depicted in a variety of colors.
LG MAGNIT offers outstanding color consistency, delivering rich and accurate hues from virtually any angle. Whether viewed head-on or from the side, the display maintains uniform color performance. This reliability means that viewers across a large space can enjoy consistent image quality.
The same scene is being displayed on multiple screens set up at different angles, and each screen shows the same exact scene with accurate and consistent colors and no angle distortion.
The deep black levels of LG MAGNIT contribute to an outstanding contrast ratio, a key factor in remarkable picture quality. The clear distinction between light and dark areas enhances every detail, making content more impactful.
The sun shining above the horizon is partly hidden by clouds, casting rays of light across the dark sky, while its reflection on the water delicately contrasts with the surrounding darkness.
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
The brilliant and colorful traditional Korean patterns are more vivid and delicate on the HDR On screen than on the HDR Off screen.
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
LG MAGNIT utilizes FLAT (Front Line Aligned Tiling) technology ensures precise alignment of LED module seams during production, minimizing front surface gaps and reducing black level variations between modules, even before the product leaves the factory.

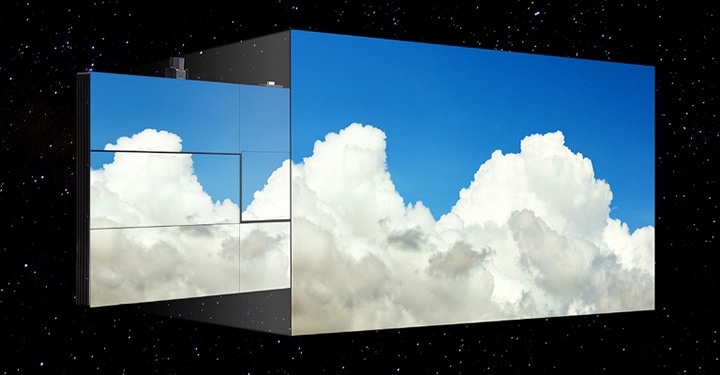

The LG MAGNIT screen, with minimal gaps between modules, shows the blue sky and puffy clouds without color deviation.
LG MAGNIT features a signal transmission design that eliminates the need for signal and power cables between cabinets. Only minimal cabling is required to connect the screen to its system controller and power source, resulting in a cleaner and more efficient installation.
LG MAGNIT’s signal transmission design allows cabinet connections without extra cabling, simplifying the rear structure of the screen.
In conventional LED displays, screen level adjustment is typically limited to the rear due to structural constraints. LG MAGNIT, however, enables adjustment from both the front and rear, offering greater installation flexibility and precision.
An installer is using a special tool to perform level adjustment from the front of the screen, with the difference before and after adjustment shown side by side.
As the Driver IC used in the LG MAGNIT has been improved, the errors that previously appeared as lines due to pixel defects have been enhanced to display as dots. This can deliver an improved viewing experience for customers and a better service experience for administrators.
A conventional LED display shows pixel defects appearing as lines, while the LMPB shows the same pixel defects improved as dots, with the two compared side by side.
Previously, the distance between LG MAGNIT and the controller was limited to just 100 meters, which often posed challenges in expansive environments like auditoriums and control rooms. Now, thanks to SFP+ compatibility on the controller, LG MAGNIT and the controller can be placed up to 10 kilometers apart, offering greater flexibility with fewer/reduced installation constraints.
An LMPB is installed in a large auditorium, and its controller, with a maximum separation distance of 10 km, can be placed separately from the display.
LG MAGNIT supports 120 Hz input and output, enabling high-speed content to be displayed with clarity and responsive performance. This capability helps realize the full potential of compatible content sources, delivering a premium viewing experience across various applications.
On the left, the conventional LED shows the high-speed race car as blurry with motion trails, but on the right, the LMPB screen with 120 Hz input and output renders its motion clear.
LED displays with a low refresh rate may have a distracting flickering effect when captured on camera. LG MAGNIT reduces this with an enhanced driver IC, achieving a visually high refresh rate without compromising picture quality.
A conventional LED display shows flickering when captured by a camera, while an LMPB shows reduced flicker and clearer image quality, with the two compared side by side.
Certification
Safety 62368-1,
EMC Class B
Controller
CEAC / SBAA
Frame Rate (Hz)
96 / 100 / 120
Heat Dissipation (BTU/h/Cabinet, Avg.)
119
Heat Dissipation (BTU/h/Cabinet, Max.)
205
Heat Dissipation (BTU/h/㎡, Max.)
1,009
Power Consumption (W/Cabinet, Avg.)
35
Power Consumption (W/Cabinet, Max.)
60
Power Consumption (W/㎡, Max.)
296
Power Supply (V)
100 to 240
Refresh Rate (Hz)
7,680(V)
Environment
RoHs
IP rating Front
IP50
IP rating Rear
IP20
LED Lifetime (Half brightness)
150,000
Operating Humidity
10~80%RH
Operating Temperature(℃)
0℃ to +40℃
Brightness Uniformity(%)
0.95
Brightness (After Calibration, nit)
Typ. 600 / Peak 1,200
Color Temperature (K)
3,200~9,300 / Default 7,300
Color Uniformity
±0.02Cx,Cy
Contrast Ratio
35,000:1 @10lux
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Cabinet material
Mold / PC+ABS-GF20%
Cabinet Dimensions (W x H x D, mm)
600x337.5x39.8
Cabinet Resolution (WxH)
480x270
Cabinet Surface Area (㎡)
0.2
Flatness of Cabinet (mm)
±0.5
Module Dimensions(WxH,mm)
300x112.5
Module Resolution (WxH)
240x90
No. of Modules per Cabinet (WxH)
2x3
Physical Pixel Density (pixels/㎡)
640,000
Pixel Configuration
Micro
Pixel Pitch (mm)
1.25
Service access
Front
Weight per Cabinet (kg/unit)
5.6
Weight per Module (kg)
0.19
Weight per Square Meter (kg/㎡)
27.7
