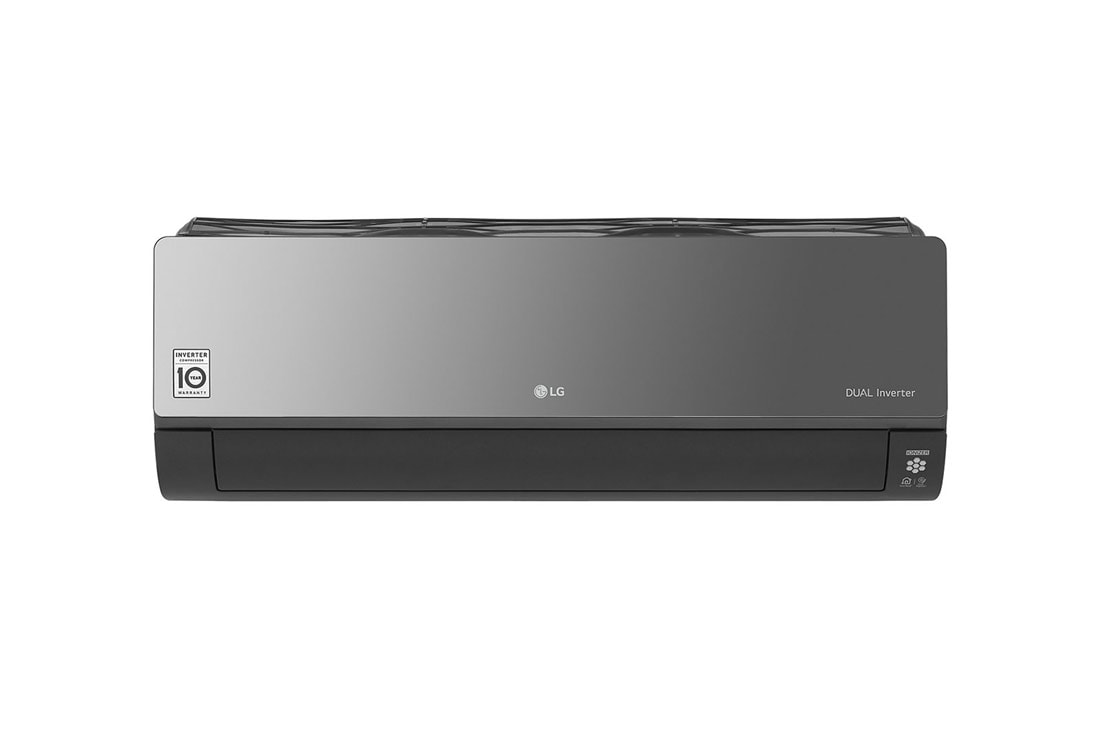

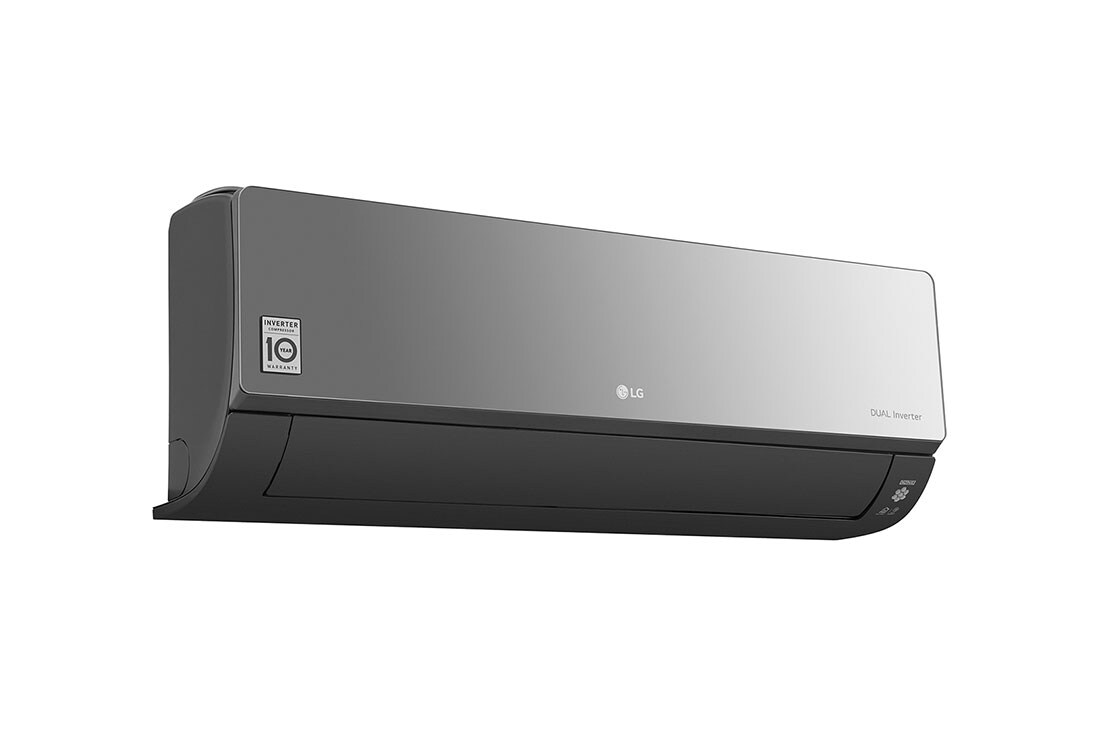

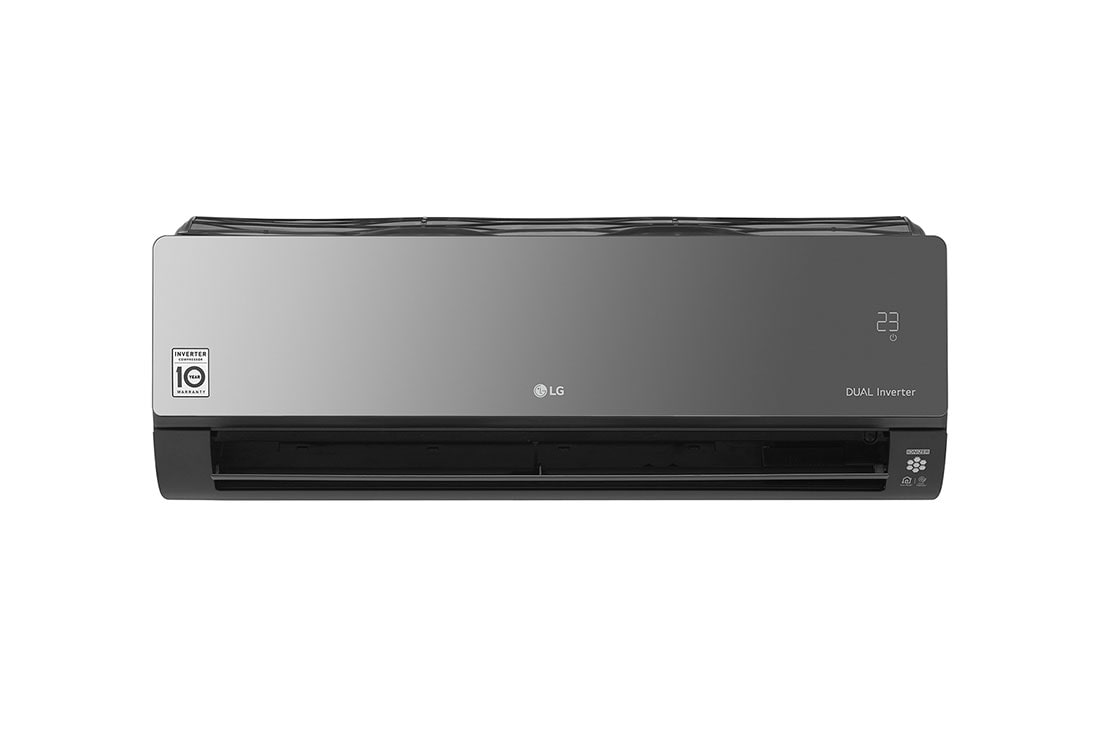

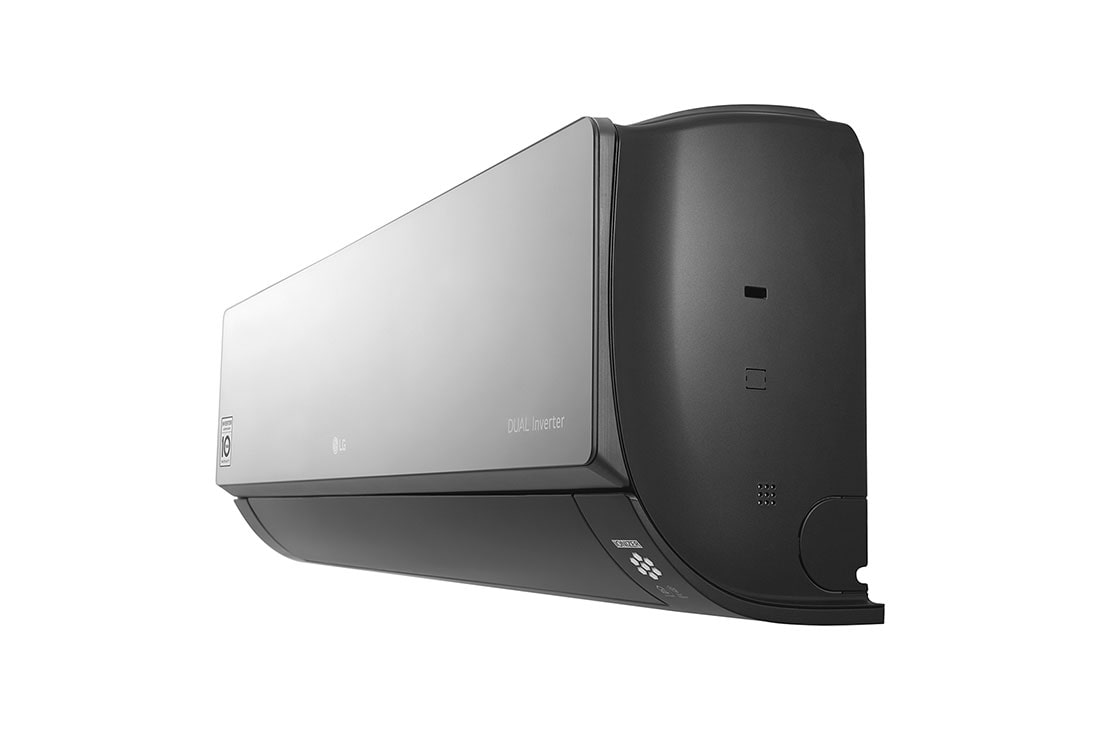

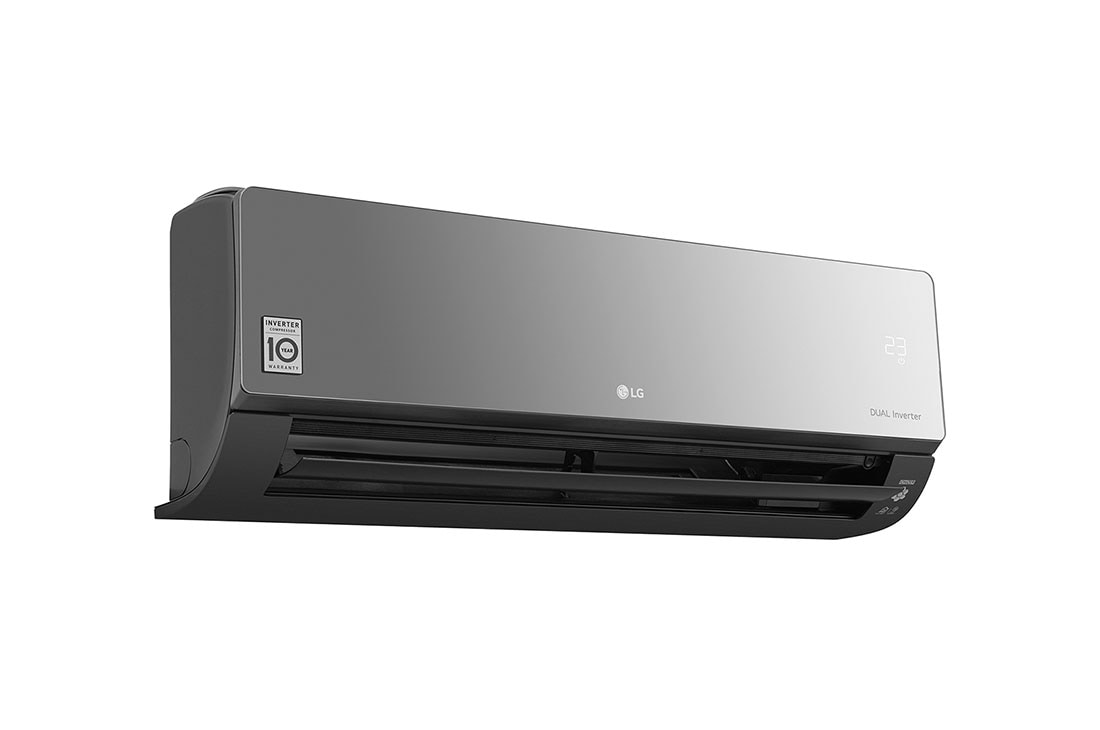

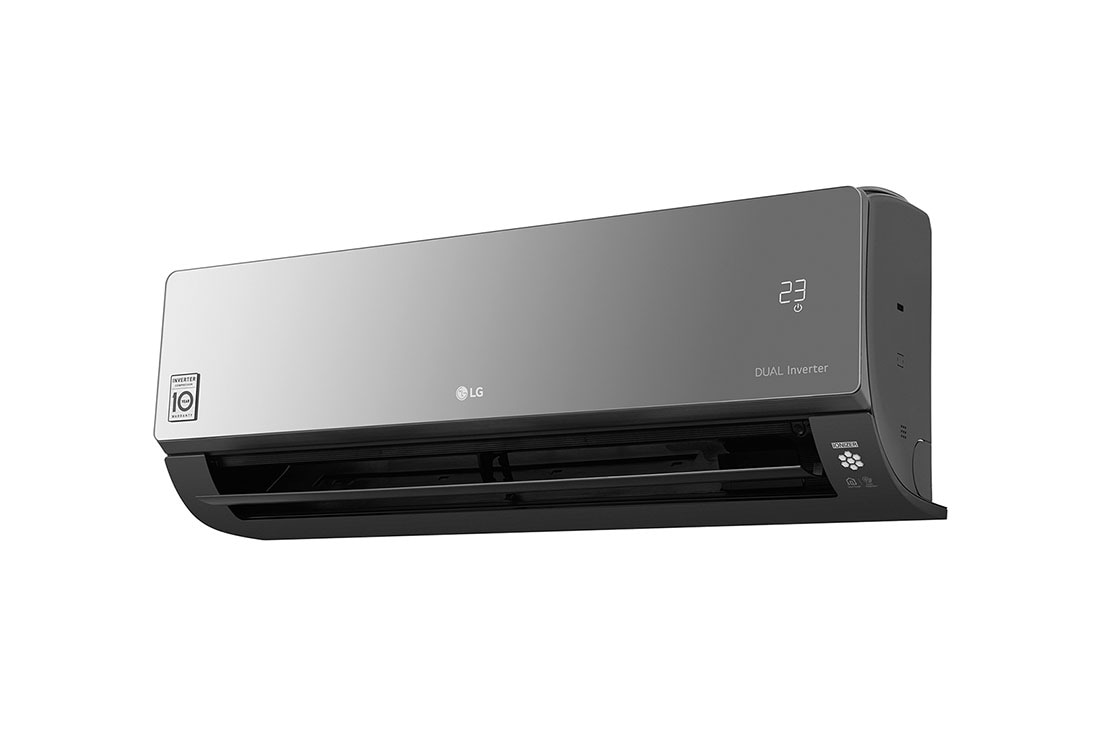

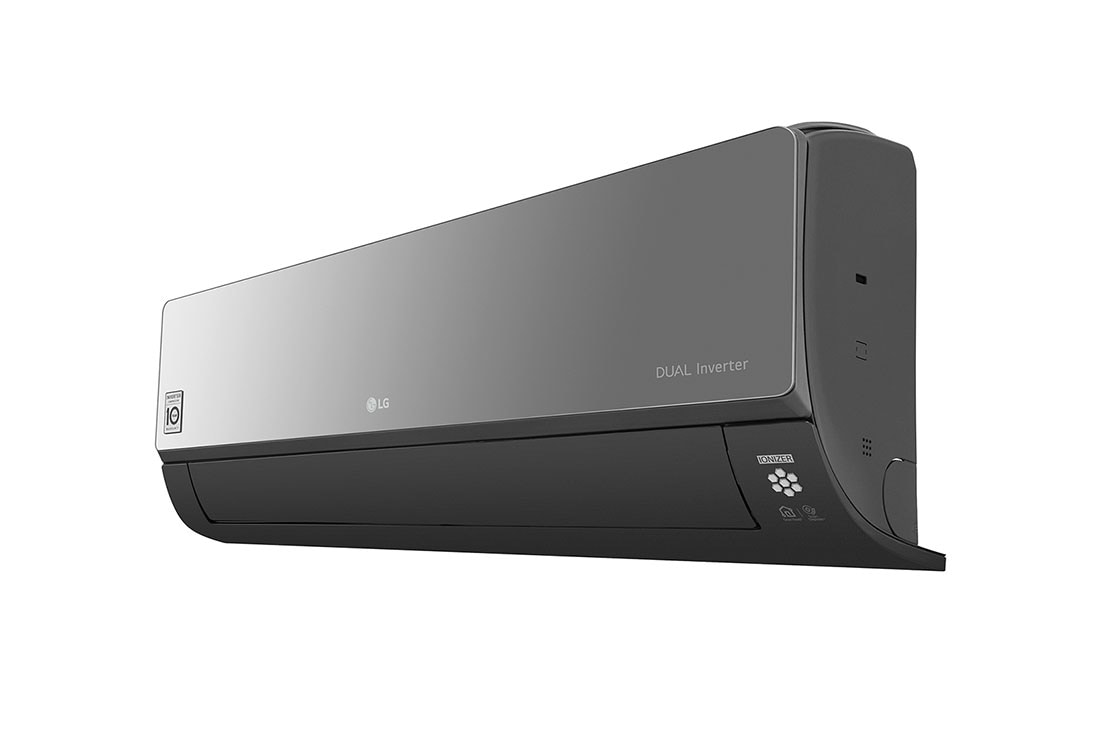

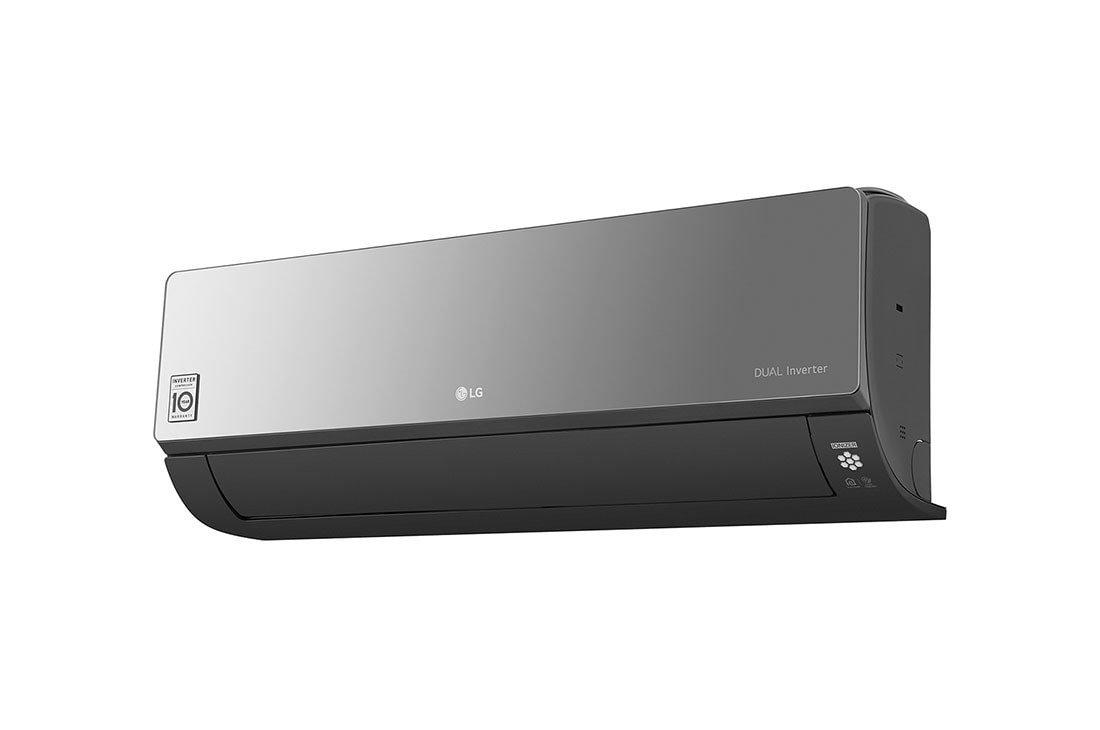

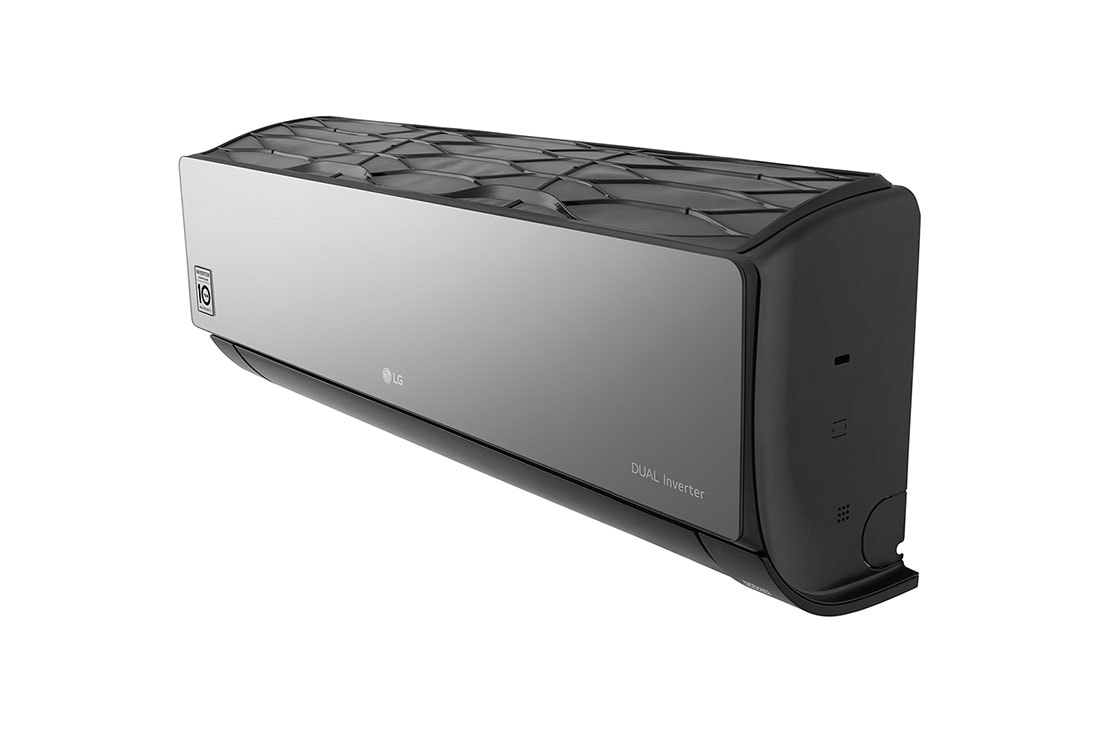

S4-W12JARPD component-copyModelName
ARTCOOL Inverter AC 12000 BTU, Energy Saving, Fast Cooling, Ampere Control
Write a review

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (S4-W12JARPD)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (S4-W12JARPD)
    $
    $
    LG Members Price
Total
ARTCOOL Inverter AC 12000 BTU, Energy Saving, Fast Cooling, Ampere Control
Where to Buy
The inner workings of the DUAL Inverter Compressor are visible through the almost invisible exterior. Nearby is the DUAL Inverter logo and two icons representing the fan and the compressor. The inner workings of the DUAL Inverter Compressor are visible through the almost invisible exterior. Nearby is the DUAL Inverter logo and two icons representing the fan and the compressor.
DUAL Inverter Compressor™

Efficient, Faster, Durable, Quieter

Powered by DUAL Inverter Compressor™ Technology.

10-Year Warranty

With a 10-year warranty on the compressor, it will keep performing at its best for longer.
*1 year parts and labor warranty, and additional 9 years extra warranty applicable on specific part only.
The TUV Rheinland logo.

Verified by TUV

LG inverter air conditioners(US-Q242K*) cools up to 40% more faster than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃).
A woman lounges on a sofa smiling as the air conditioner blows air above her. To the right of the woman is the Dual Inverter logo and an image of the Dual Dual Inverter. Further to the right is a bar graph. The bars go up indicating more money spent and then go down to show that the dual inverter saves customers money. A woman lounges on a sofa smiling as the air conditioner blows air above her. To the right of the woman is the Dual Inverter logo and an image of the Dual Dual Inverter. Further to the right is a bar graph. The bars go up indicating more money spent and then go down to show that the dual inverter saves customers money.

Save on Energy Bills and the Planet

Reduce your energy consumption and your electricity bill with more efficient cooling.
The TUV Rheinland logo.

Verified by TUV

LG inverter air conditioners(US-Q242K*) saves up to 70% more energy than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃), Testing Time (8 Hours).
A woman lounges on a couch in a living room with the LG air conditioner installed above her on the wall. Blue streams of air are on the image to indicate it is on and cooling the room. A woman lounges on a couch in a living room with the LG air conditioner installed above her on the wall. Blue streams of air are on the image to indicate it is on and cooling the room.

Good Work Goes Unnoticed

Don't get disturbed and sleep soundly with an air conditioner that makes less noise.
*According to LG internal test, LG DUAL Inverter air conditioner is less than 19dBA. (Model - V10API)
A play/pause button on the bottom indicates this is a video. A woman stretches back smiling on a couch. An LG air conditioner on the wall above her blows out air. Bubbles with plus and minus signs move through the air due to the Plastmaster Ionizer. There is a circle with a magnified view of the plus minus ion bubbles surrounding bacteria and deoderizing it. The Plasmaster Ionizer logo can be seen in the corner of the image. A play/pause button on the bottom indicates this is a video. A woman stretches back smiling on a couch. An LG air conditioner on the wall above her blows out air. Bubbles with plus and minus signs move through the air due to the Plastmaster Ionizer. There is a circle with a magnified view of the plus minus ion bubbles surrounding bacteria and deoderizing it. The Plasmaster Ionizer logo can be seen in the corner of the image.
Plasmaster™Ionizer+

Leaves Your Space Clean from Bacteria

Removes 99%* of adhering bacteria and deodorizes**.
The TUV Rheinland logo.

Verified by TUV

*The TÜV Rheinland test verified that the Plasmaster™Ionizer+ removed up to 99 percent of adhering bacteria (Staphylococcus aureus, Escherichia coli and Pseudomonas aeruginosa) in the test room of 30m.3 The model tested was SW09BAJWAN.
The Intertek logo.

Verified by Intertek

*Intertek verified that tobacco adhesive odor intensity (Toluene, Ammonia, Acetic acid) is reduced from 3.6 to under 1.5 after 60 minutes of operation in testing area of 8m3. The model tested was R24AWN. The efficiency in bacteria removal may differ in actual conditions.
The front view of the LG air conditioner with the exterior completely invisible so the inner workings of the machine can be seen. The machine is working and then a blue light, the auto cleaning mechanism, turns on and washes across the machine with a blue light. The AutoCleaning logo is in the upper right corner. The front view of the LG air conditioner with the exterior completely invisible so the inner workings of the machine can be seen. The machine is working and then a blue light, the auto cleaning mechanism, turns on and washes across the machine with a blue light. The AutoCleaning logo is in the upper right corner.
Auto Cleaning

An Internal Clean that's Automatic

Automatically dries any moisture inside the air conditioner to ensure it's always clean.

Smart Control, Smarter Life

Connect and Control from Anywhere

The LG ThinQ™ app allows you to easily connect with your air conditioner in a way you never could before. Start your air conditioner with just the tap of a button.

Three icons at the top indicate there are three images in a carousel. The second icon, labelled "Smart Alert", is red. A man sits on the floor looking at his phone with the oven in the background. On the left side of the screen is an image of the ThinQ app on a phone screen with the Wifi icon above it. Three icons at the top indicate there are three images in a carousel. The second icon, labelled "Smart Alert", is red. A man sits on the floor looking at his phone with the oven in the background. On the left side of the screen is an image of the ThinQ app on a phone screen with the Wifi icon above it.

Efficient Product Maintenance

The LG ThinQ™ app continuously monitors your air conditioner. Whether it’s everyday maintenance or something else, the app allows you to easily monitor energy usage.

Three icons at the top indicate there are three images in a carousel. The third icon, labelled "Monitoring", is red. There are two images: The left image shows a father and daughter eating in a kitchen. The right image shows a hand opening an oven with pans of muffins inside. In the center is the screen of a phone with the ThinQ app visible and the Wifi icon above it. Three icons at the top indicate there are three images in a carousel. The third icon, labelled "Monitoring", is red. There are two images: The left image shows a father and daughter eating in a kitchen. The right image shows a hand opening an oven with pans of muffins inside. In the center is the screen of a phone with the ThinQ app visible and the Wifi icon above it.
An LG air conditioner with the ARTCOOL mirrored glass exterior is seen hanging on a wall at an angle. The surface is reflecting a painting hanging on the wall next to it. The LG ARTCOOL logo can be seen in the corner of the image. An LG air conditioner with the ARTCOOL mirrored glass exterior is seen hanging on a wall at an angle. The surface is reflecting a painting hanging on the wall next to it. The LG ARTCOOL logo can be seen in the corner of the image.

Stylish ARTCOOL Design

Maintain your home aesthetic thanks to LG ARTCOOL's mirrored glass that reflects its surroundings.
An LG air conditioner is hanging at the top center of the image. Beneath it are two images, one image shows a hot beach scene and the other shows a snowy mountain scene. Air blows out of the air conditioner with cool blue air on the beach scene and warm red air across the snowy scene. An LG air conditioner is hanging at the top center of the image. Beneath it are two images, one image shows a hot beach scene and the other shows a snowy mountain scene. Air blows out of the air conditioner with cool blue air on the beach scene and warm red air across the snowy scene.

Fast, Powerful Cooling and Heating

Stay comfortable all year long, even in extreme climate, with our DUAL Inverter Compressor.
The LG air conditioner is installed on the wall and seen from the side angle. The top panel is flaoting above see the inner filters can be seen. A line from the pre-filter leads out to a magnified circle showing the dust caught in the pre-filter. The Pre-Filter logo is shown in the bottom right corner. The LG air conditioner is installed on the wall and seen from the side angle. The top panel is flaoting above see the inner filters can be seen. A line from the pre-filter leads out to a magnified circle showing the dust caught in the pre-filter. The Pre-Filter logo is shown in the bottom right corner.
Pre-Filter

Traps Big Dust from the Start

Traps big dust particles as the first line of defense.
The TUV Rheinland logo.

Verified by TUV

TUV has verified that the New model has 42% higher cooling performance 4 years later compared to the conventional model(Test condition: T3 condition, New model: I23TTB 14FPI* wide louver, Conventional model : I23TTB 18FPI louver). *FPI(Fin Per Inch) : Quantity of fins in a inch (1inch = 2.54cm)
  • Half of the LG air conditioner can be seen installed on the wall with the front door open indicating it's on. A circle is around the air quality lights of the machine and a magnified circle is extened out to show the green lights of the air quality panel and the numbers to show the precise air quality. The DUAL Inverter logo can be seen on the machine.

    Easy-to-Monitor Energy Consumption

    The display keeps you informed so you can easily monitor and reduce energy consumption*. *Energy consumption during A/C operation.

  • A family sits on a couch in a living room with the LG air conditioner installed above them. Blue lines of air are coming out indicating the machine is on. In the foreground is the front of the remote control showing the buttons and temperature.

    Control 4 Levels of Energy Consumption

    Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat. Ut wisi enim ad minim veniam, quis nostrud exerci tatio

  • The side view of the air conditioner can be seen on the wall. Two hands are reaching up, one holding a tool, showing the ease of installation.

    Quick and Easy Installation

    Enjoy cool air sooner with air conditioning that takes less time and effort to install.

  • A father and daughter sleep on a couch beneath an air conditioner that is blowing air out over them.

    A More Comfortable Sleeping Environment

    Experience the most comfortable sleeping environment with automatically adjusting functions*. *When the comfort sleep function is activated.

  • The LG fan that is outside of the house is shown with a dark lightning sky in the background. The LG Logo can be seen on the side of the engine.

    Safety Against Voltage Fluctuation

    No need to turn on the light to change mode of your air conditioner by applying GYRO sensor in the remote.

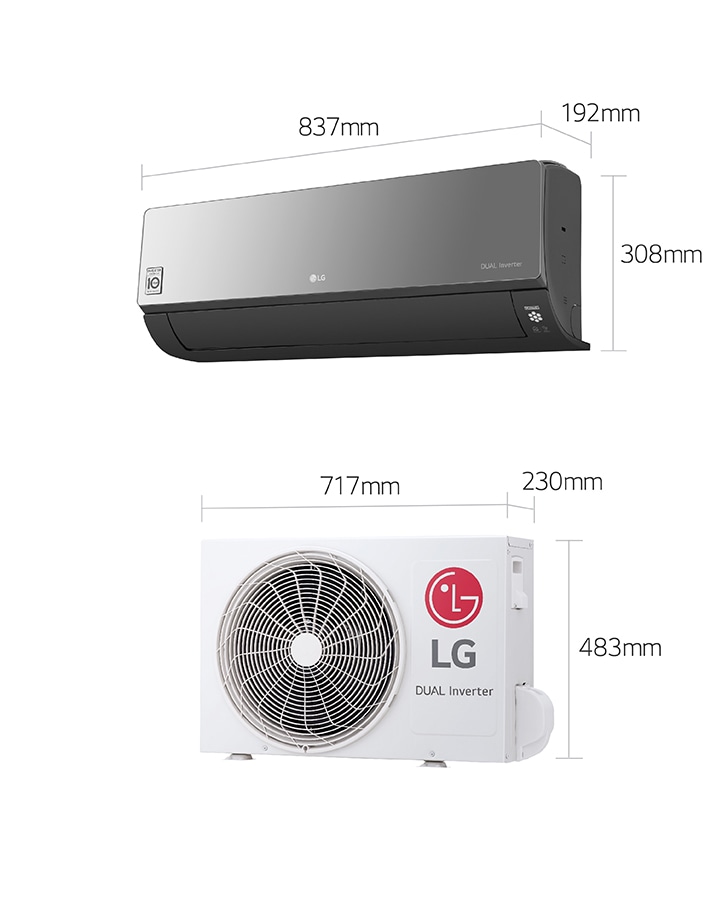

Dimensions
Summary
  • Capacity
    12000 BTU
  • Dimension
    837 x 308 x 192
  • MAIN TECHNOLOGY
    Energy Saving
  • ADDITIONAL BENEFIT
    Fast Cooling
BASIC SPECIFICATION
  • Capacity
    1 Ton
    WIFI
    Yes
  • Ionizer
    Yes
CAPACITY
  • Cooling-Min (kW)
    1.03
    Cooling-Rated (kW)
    3.52
  • Cooling-Max (kW)
    3.81
    Cooling-Min (Btu/h)
    3,500
  • Cooling-Rated (Btu/h)
    12,000
    Cooling-Max (Btu/h)
    13,000
  • Heating-Min (kW)
    1.03
    Heating-Rated (kW)
    3.52
  • Heating-Max (kW)
    3.99
    Heating-Min (Btu/h)
    3,500
  • Heating-Rated (Btu/h)
    12,000
    Heating-Max (Btu/h)
    13,600
POWER INPUT
  • Cooling-Min (W)
    158
    Cooling-Rated (W)
    1,095
  • Cooling-Max (W)
    1,280
    Cooling (T3)-Rated (W)
    0
  • Cooling (T3)-Max (W)
    0
    Heating-Min (W)
    158
  • Heating-Rated (W)
    975
    Heating-Max (W)
    1,300
RUNNING CURRENT
  • Cooling-Min (A)
    0.90
    Cooling-Rated (A)
    5.00
  • Cooling-Max (A)
    6.00
    Cooling (T3)-Rated (A)
    0.00
  • Cooling (T3)-Max (A)
    0.00
    Heating-Min (A)
    0.90
  • Heating-Rated (A)
    4.70
    Heating-Max (A)
    7.00
EER
  • EER(W/W)
    3.21
    EER ((Btu/h)/W)
    10.96
COP
  • COP (W/W)
    3.61
    COP (Btu/h)/W
    12.31
POWER SUPPLY
  • Power Supply (Ø , V , Hz)
    1Ø, 220-240V, 50Hz
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range (V)
    187 ~ 276
POWER FACTOR
  • Cooling (%)
    95.0
    Heating (%)
    95.0
MOISTURE REMOVAL
  • Moisture Removal (l/h)
    0.9
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L (㎥/min)
    12.5 / 8.7 / 7.5 / 4.2
    Air Flow Rate - Heating, Max / H / M / L (㎥/min)
    13.0/ 9 / 7 / 5.5
  • Sound Pressure Level - Cooling, Max / H / M / L / SL (dB(A))
    41 / 35 / 27 / 19
    Sound Pressure Level - Heating, Max / H / M / L (dB(A))
    41 / 35 / 30
  • Dimensions (W × H × D) - Net (mm)
    837 × 308 × 192
    Dimensions (W × H × D) - Shipping (mm)
    914 × 388 × 261
  • Weight - Net (kg)
    9.7
    Weight - Shipping (kg)
    12.0
  • Exterior Color Code
    Munsell 7.5PB 0.2/20 (RAL 9005)
OUTDOOR
  • Air Flow Rate - Max (㎥/min)
    27.0
    Fan Motor Speed - Cooling, Min ~ Max (rpm)
    230 ~ 850
  • Fan Motor Speed - Heating, Min ~ Max (rpm)
    230 ~ 850
    Sound Pressure Level - Cooling, Rated (dB(A))
    50
  • Sound Pressure Level - Heating, Rated (dB(A))
    52
    Dimensions (W × H × D) - Net (mm)
    717 × 483 × 230
  • Dimensions (W × H × D) - Shipping (mm)
    822 × 516 × 307
    Weight - Net (kg)
    25.8
  • Weight - Shipping (kg)
    30.1
    Max. Fuse Size (A)
    15
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling (℃ DB)
    18 ~ 48
  • Operation Range - Heating (℃ WB)
    -5 ~ 24
CIRCUIT BREAKER
  • Circuit Breaker (A)
    15
POWER SUPPLY CABLE
  • Power Supply Cable (No. × ㎟)
    3 × 1.0
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable (No. × ㎟)
    4 × 0.75
PIPING
  • Size - Liquid (mm)
    Ø 6.35
    Size - Gas (mm)
    Ø 9.52
  • Connections Method - Indoor / Outdoor
    Flared / Flared
DRAIN HOSE SIZE
  • Drain Hose Size - O.D, I.D (mm)
    28.0, 16.4
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max (m)
    3.6 / 5.0 / 15
    Piping Length - No Charge (m)
    5.0
  • Max. Elevation Difference (m)
    7
    Piping Connection Heat Insulation
    Both liquid and gas pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge (g)
    820
  • Additional Charge (g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    1.71
DEFROST METHOD
  • Defrost Method
    Reverse Cycle
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SJ / UA3
COMPRESSOR
  • Type
    Single Rotary
    Model
    GA092MCA
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx Nippon
  • Oil Charge
    310
    Manufacturer / Country of Origin
    LG Electronics / China
  • Compressor
    Dual Inverter Compressor
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output- W
    30
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output- W
    25
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IP23
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    21
  • Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (2)
    (Φ 7 x 2 x 15 x 21 x 616.8) x1
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (3)
    0
  • Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (4)
    0
    Evaporator - Corrosion Protection
    0
  • Condenser - Material, Tube / Fin
    Cu / Al
    Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    18
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (2)
    (Φ 7 x 2 x 22 x 18 x 667) x1
    Condenser - Corrosion Protection
    0
COMPLIANCE INFORMATION
