S4-W24KERP1

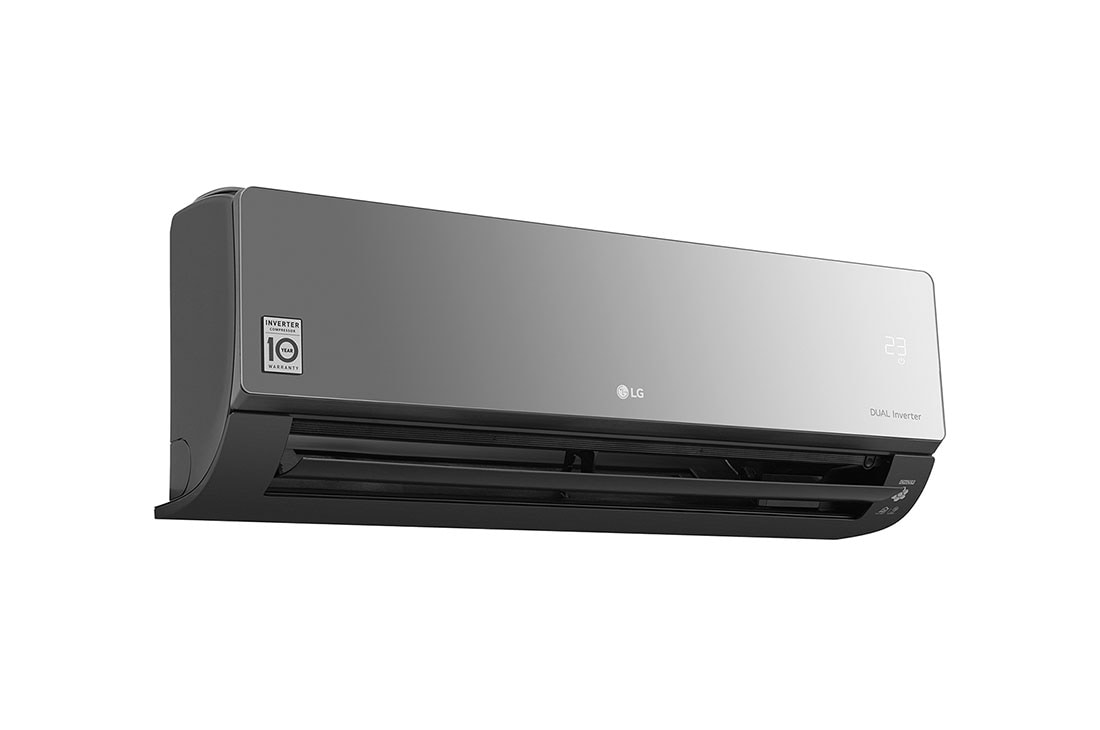

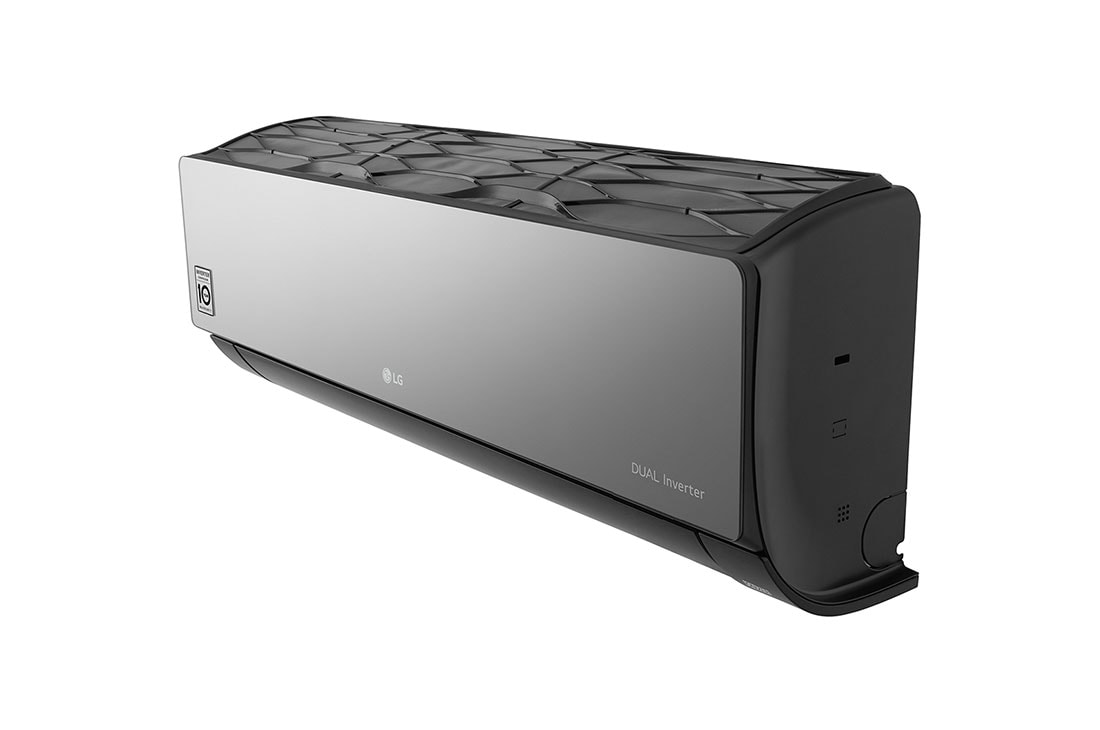

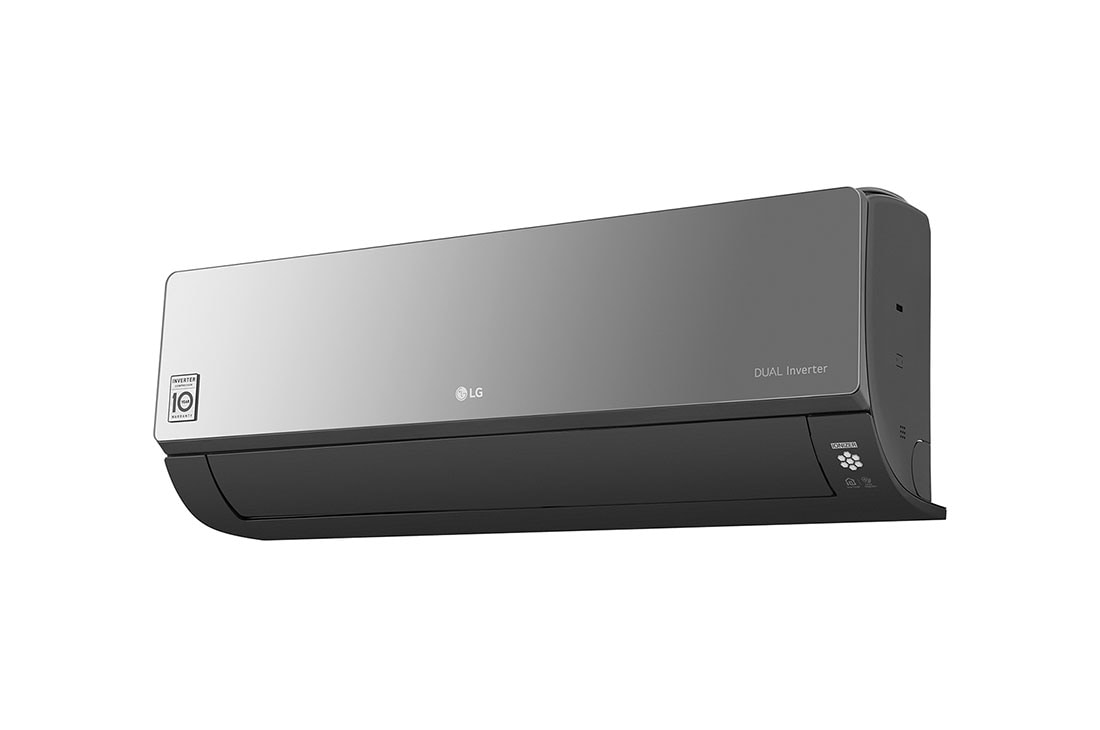

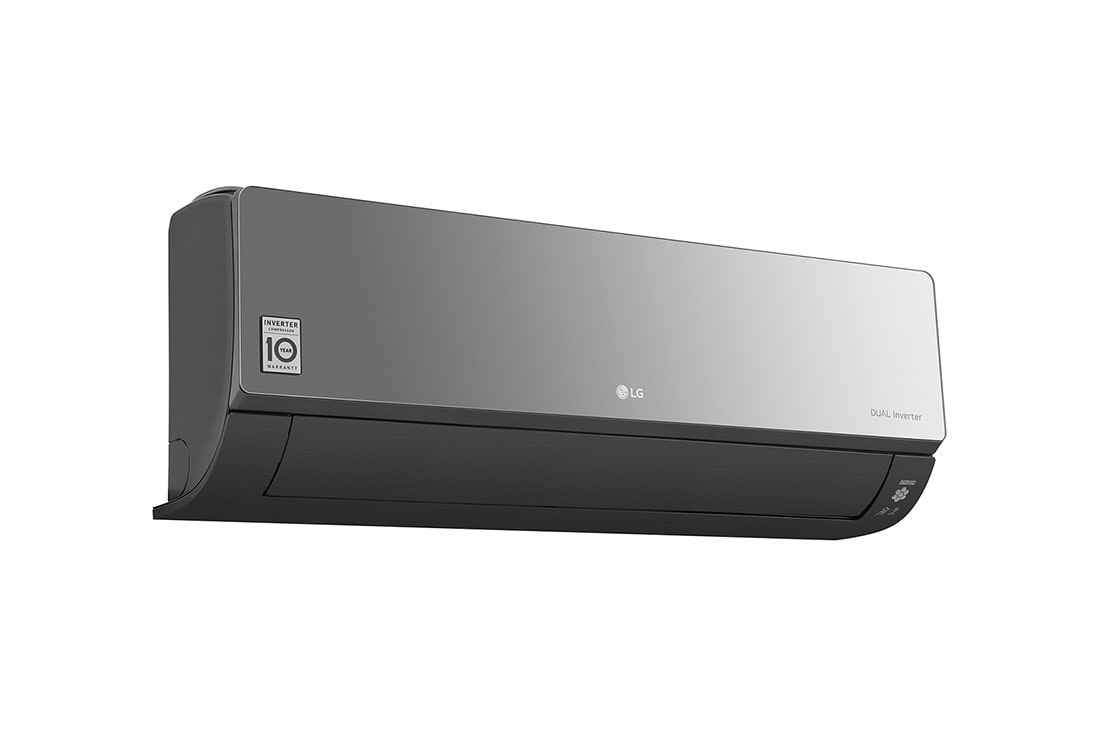

ARTCOOL Inverter AC 24000 BTU, Energy Saving, Fast Cooling, Wifi
  • Active Energy Control (%40 ,%60 ,%80)

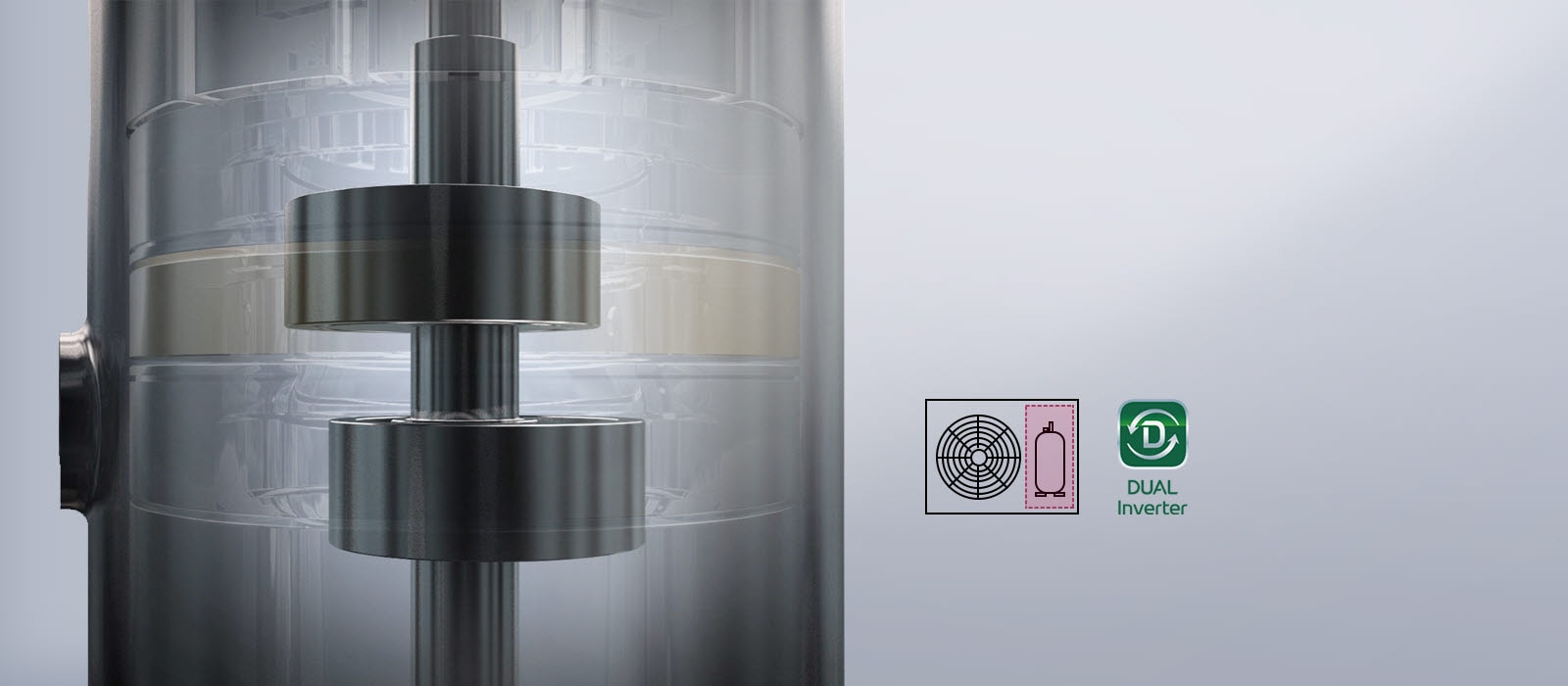

  • Dual Inverter Compressor™
  • Available in Lebanon
  • Plasmaster™ IonizerPLUS
  • Smart ThinQ™ (Wi-Fi)
  • Fast Cooling & Energy Saving

component-OBScountrySelectDesc

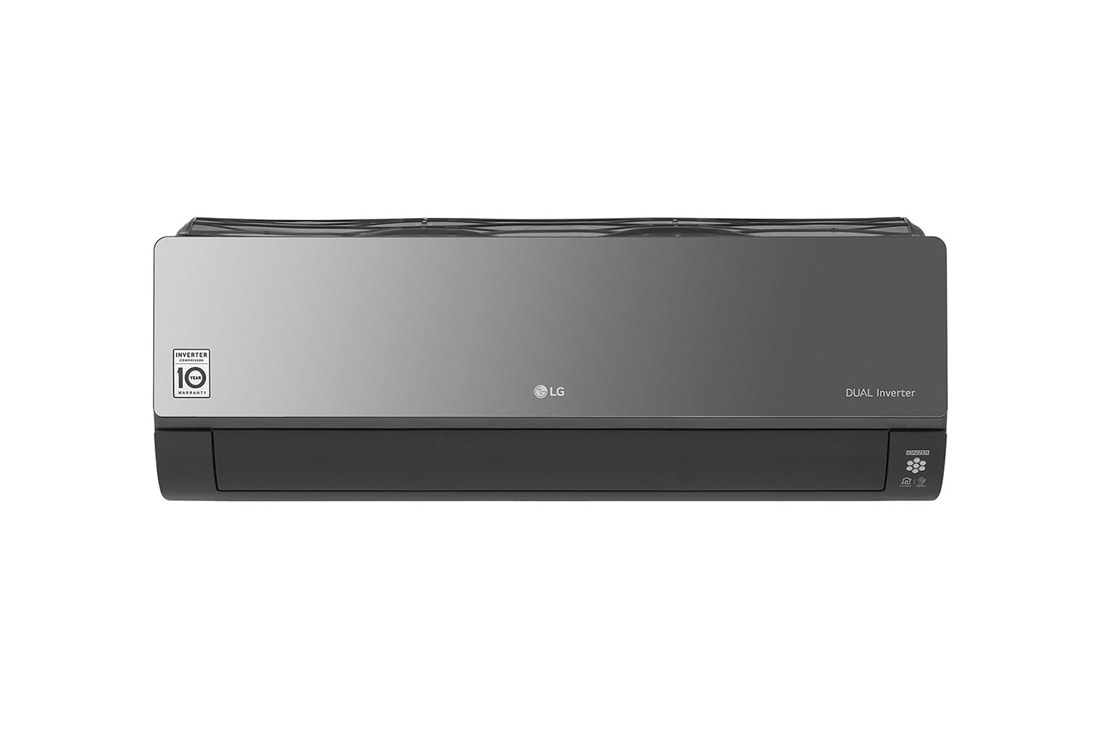

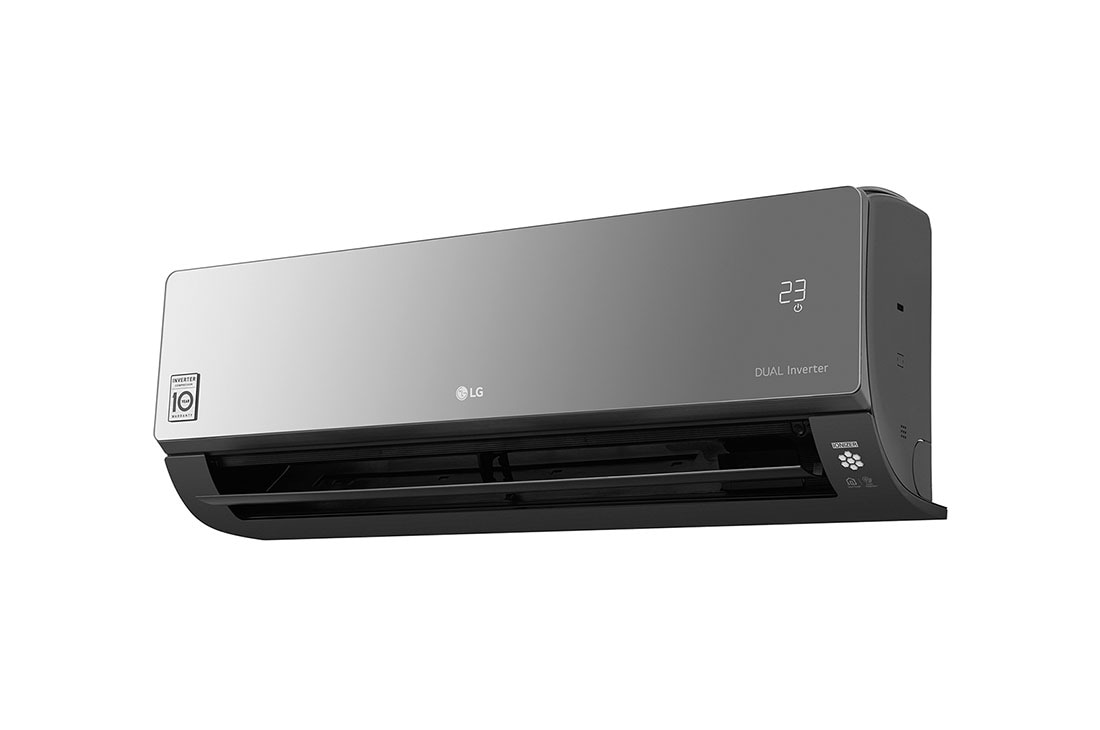

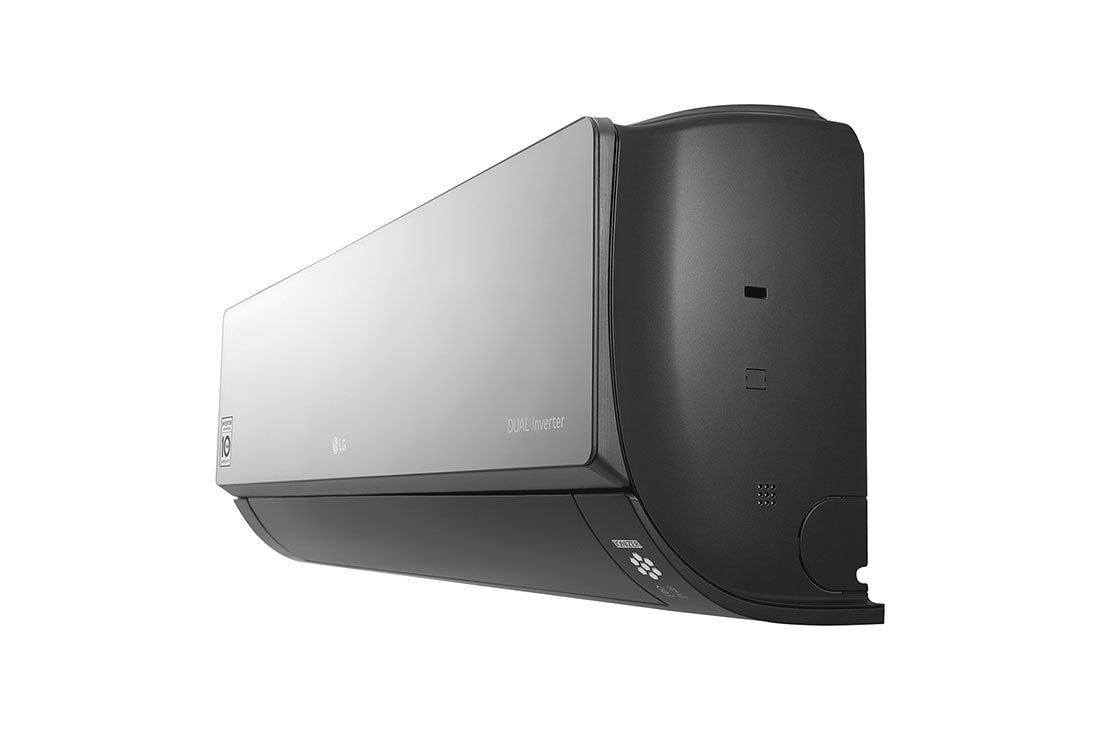

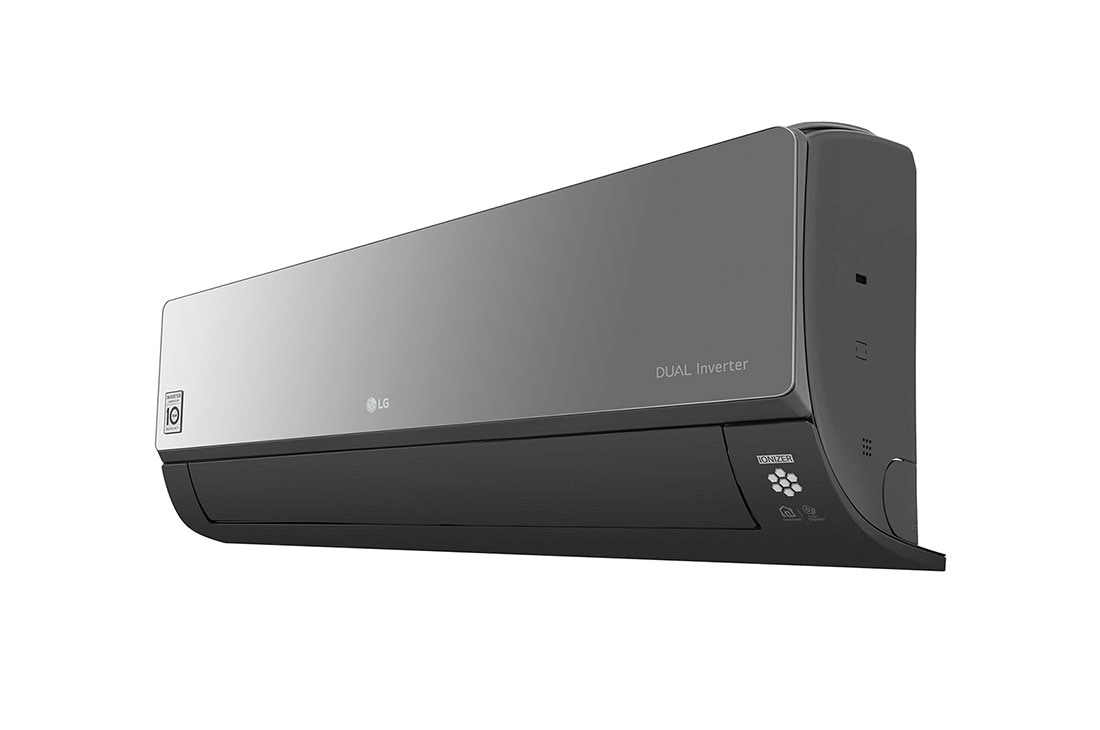

ARTCOOL Inverter AC 24000 BTU, Energy Saving, Fast Cooling, Wifi
It shows the carbon footprint certification label obtained for the wall-mounted split air conditioner of LG Electronics.

CARBON TRUST (UK)

The carbon footprint of this product has been measured and certified by the CarbonTrust

10-Year Warranty

With a 10-year warranty on the compressor, it will keep performing at its best for longer.
*1 year parts and labor warranty, and additional 9 years extra warranty applicable on specific part only.
The TUV Rheinland logo.

Verified by TUV

LG inverter air conditioners(US-Q242K*) cools up to 40% more faster than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃).
The TUV Rheinland logo.

Verified by TUV

LG inverter air conditioners(US-Q242K*) saves up to 70% more energy than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃), Testing Time (8 Hours).
*According to LG internal test, LG DUAL Inverter air conditioner is less than 19dBA. (Model - V10API)
The TUV Rheinland logo.

Verified by TUV

*The TÜV Rheinland test verified that the Plasmaster™Ionizer+ removed up to 99 percent of adhering bacteria (Staphylococcus aureus, Escherichia coli and Pseudomonas aeruginosa) in the test room of 30m.3 The model tested was SW09BAJWAN.
The Intertek logo.

Verified by Intertek

*Intertek verified that tobacco adhesive odor intensity (Toluene, Ammonia, Acetic acid) is reduced from 3.6 to under 1.5 after 60 minutes of operation in testing area of 8m3. The model tested was R24AWN. The efficiency in bacteria removal may differ in actual conditions.

Smart Control, Smarter Life

Connect and Control from Anywhere

The LG ThinQ™ app allows you to easily connect with your air conditioner in a way you never could before. Start your air conditioner with just the tap of a button.

Three icons at the top indicate there are three images in a carousel. The second icon, labelled "Smart Alert", is red. A man sits on the floor looking at his phone with the oven in the background. On the left side of the screen is an image of the ThinQ app on a phone screen with the Wifi icon above it. Three icons at the top indicate there are three images in a carousel. The second icon, labelled "Smart Alert", is red. A man sits on the floor looking at his phone with the oven in the background. On the left side of the screen is an image of the ThinQ app on a phone screen with the Wifi icon above it.

Efficient Product Maintenance

The LG ThinQ™ app continuously monitors your air conditioner. Whether it’s everyday maintenance or something else, the app allows you to easily monitor energy usage.

Three icons at the top indicate there are three images in a carousel. The third icon, labelled "Monitoring", is red. There are two images: The left image shows a father and daughter eating in a kitchen. The right image shows a hand opening an oven with pans of muffins inside. In the center is the screen of a phone with the ThinQ app visible and the Wifi icon above it. Three icons at the top indicate there are three images in a carousel. The third icon, labelled "Monitoring", is red. There are two images: The left image shows a father and daughter eating in a kitchen. The right image shows a hand opening an oven with pans of muffins inside. In the center is the screen of a phone with the ThinQ app visible and the Wifi icon above it.
The TUV Rheinland logo.

Verified by TUV

TUV has verified that the New model has 42% higher cooling performance 4 years later compared to the conventional model(Test condition: T3 condition, New model: I23TTB 14FPI* wide louver, Conventional model : I23TTB 18FPI louver). *FPI(Fin Per Inch) : Quantity of fins in a inch (1inch = 2.54cm)
  • Half of the LG air conditioner can be seen installed on the wall with the front door open indicating it's on. A circle is around the air quality lights of the machine and a magnified circle is extened out to show the green lights of the air quality panel and the numbers to show the precise air quality. The DUAL Inverter logo can be seen on the machine.

    Easy-to-Monitor Energy Consumption

    The display keeps you informed so you can easily monitor and reduce energy consumption*. *Energy consumption during A/C operation.

  • A family sits on a couch in a living room with the LG air conditioner installed above them. Blue lines of air are coming out indicating the machine is on. In the foreground is the front of the remote control showing the buttons and temperature.

    Control 4 Levels of Energy Consumption

    Control energy consumption with 4 levels based on your needs, whether alone or with family.

  • The side view of the air conditioner can be seen on the wall. Two hands are reaching up, one holding a tool, showing the ease of installation.

    Quick and Easy Installation

    Enjoy cool air sooner with air conditioning that takes less time and effort to install.

  • A father and daughter sleep on a couch beneath an air conditioner that is blowing air out over them.

    A More Comfortable Sleeping Environment

    Experience the most comfortable sleeping environment with automatically adjusting functions*. *When the comfort sleep function is activated.

  • The LG fan that is outside of the house is shown with a dark lightning sky in the background. The LG Logo can be seen on the side of the engine.

    Safety Against Voltage Fluctuation

    Enjoy a durable air conditioner with an ability to withstand voltage fluctuation*. *LG Internally tested "rated voltage ± 30%" fluctuation and it may vary depending by environment.

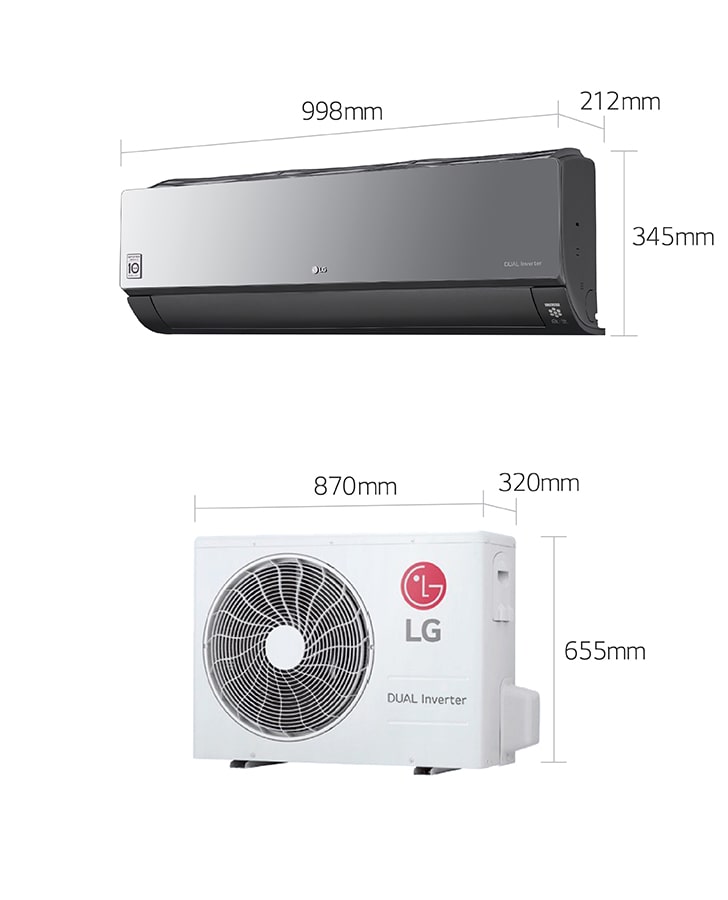

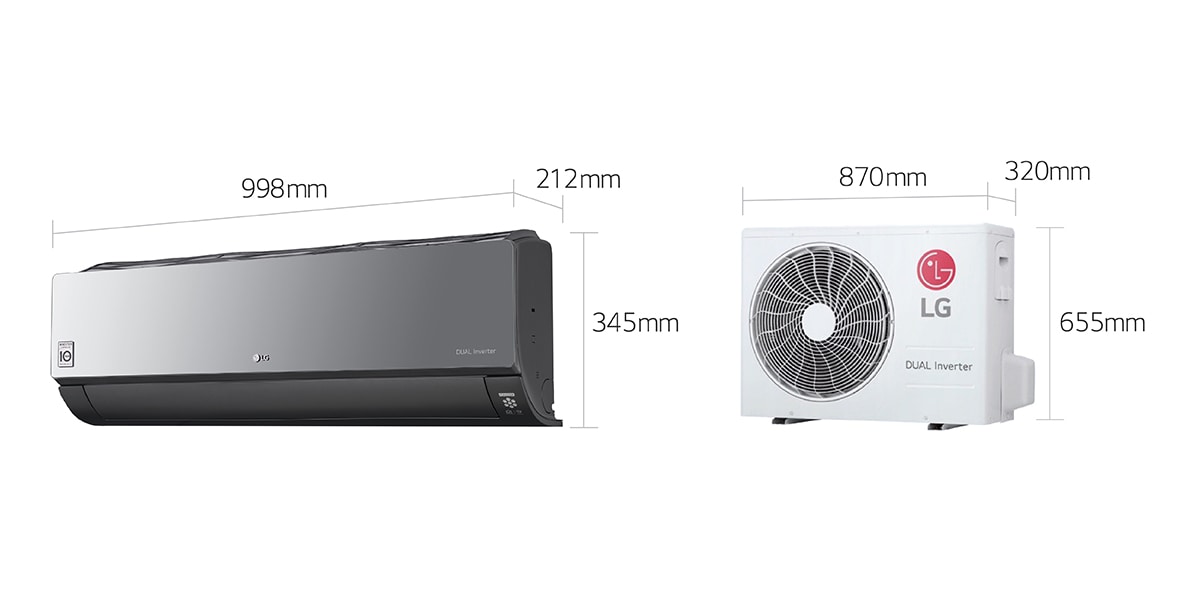

Dimensions

Summary

  • Capacity
    24000 BTU
  • Dimension
    998 x 345 x 212
  • MAIN TECHNOLOGY
    Energy Saving
  • ADDITIONAL BENEFIT
    Fast Cooling

CAPACITY

  • Cooling-Min (kW)
    1.26
    Cooling-Rated (kW)
    6.45
  • Cooling-Max (kW)
    7.18
    Cooling-Min (Btu/h)
    3,500
  • Cooling-Rated (Btu/h)
    22,000
    Cooling-Max (Btu/h)
    24,500
  • Heating-Min (kW)
    1.26
    Heating-Rated (kW)
    6.45
  • Heating-Max (kW)
    7.32
    Heating-Min (Btu/h)
    3,500
  • Heating-Rated (Btu/h)
    22,000
    Heating-Max (Btu/h)
    24,500

POWER INPUT

  • Cooling-Min (W)
    240
    Cooling-Rated (W)
    2,010
  • Cooling-Max (W)
    2,420
    Cooling (T3)-Rated (W)
    0
  • Cooling (T3)-Max (W)
    0
    Heating-Min (W)
    240
  • Heating-Rated (W)
    1,890
    Heating-Max (W)
    2,500

RUNNING CURRENT

  • Cooling-Min (A)
    1.14
    Cooling-Rated (A)
    9.60
  • Cooling-Max (A)
    11.46
    Cooling (T3)-Rated (A)
    0.00
  • Cooling (T3)-Max (A)
    0.00
    Heating-Min (A)
    1.14
  • Heating-Rated (A)
    9.10
    Heating-Max (A)
    11.84

EER

  • EER(W/W)
    3.21
    EER ((Btu/h)/W)
    10.95

COP

  • COP (W/W)
    3.41
    COP (Btu/h)/W
    11.64

POWER SUPPLY

  • Power Supply (Ø , V , Hz)
    1, 220~240, 50

AVAILABLE VOLTAGE RANGE

  • Available Voltage Range (V)
    187 ~ 276

POWER FACTOR

  • Cooling (%)
    95.0
    Heating (%)
    95.0

MOISTURE REMOVAL

  • Moisture Removal (l/h)
    2.0

INDOOR

  • Air Flow Rate - Cooling, Max / H / M / L (㎥/min)
    21 / 15 / 12 / 9
    Air Flow Rate - Heating, Max / H / M / L (㎥/min)
    21 / 16 / 13 / 9.5
  • Sound Pressure Level - Cooling, Max / H / M / L / SL (dB(A))
    55 / 47 / 42 / 37/ 31
    Sound Pressure Level - Heating, Max / H / M / L (dB(A))
    55 / 47 / 42 / 37
  • Dimensions (W × H × D) - Net (mm)
    998 × 345 × 212
    Dimensions (W × H × D) - Shipping (mm)
    1085 × 427 × 286
  • Weight - Net (kg)
    14.3
    Weight - Shipping (kg)
    17.3
  • Exterior Color Code
    Munsell 7.5PB 0.2/20 (RAL 9005)

OUTDOOR

  • Air Flow Rate - Max (㎥/min)
    50.0
    Fan Motor Speed - Cooling, Min ~ Max (rpm)
    190 ~ 800
  • Fan Motor Speed - Heating, Min ~ Max (rpm)
    190 ~ 840
    Sound Pressure Level - Cooling, Rated (dB(A))
    55
  • Sound Pressure Level - Heating, Rated (dB(A))
    57
    Dimensions (W × H × D) - Net (mm)
    870 × 655 × 320
  • Dimensions (W × H × D) - Shipping (mm)
    1002 × 708.6 × 422
    Weight - Net (kg)
    42.7
  • Weight - Shipping (kg)
    50.0
    Max. Fuse Size (A)
    20
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling (℃ DB)
    18 ~ 48
  • Operation Range - Heating (℃ WB)
    -5 ~ 24

CIRCUIT BREAKER

  • Circuit Breaker (A)
    20

POWER SUPPLY CABLE

  • Power Supply Cable (No. × ㎟)
    3 × 1.5

POWER SUPPLY TO UNIT

  • Power Supply to Unit
    Outdoor

POWER AND COMMUNICATION CABLE

  • Power and Communication Cable (No. × ㎟)
    4 × 0.75

PIPING

  • Size - Liquid (mm)
    Ø 6.35
    Size - Gas (mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared / Flared

DRAIN HOSE SIZE

  • Drain Hose Size - O.D, I.D (mm)
    28.0, 16.4

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min / Standard / Max (m)
    3.6 / 5.0 / 20
    Piping Length - No Charge (m)
    5.0
  • Max. Elevation Difference (m)
    10
    Piping Connection Heat Insulation
    Both liquid and gas pipes

REFRIGERANT

  • Type
    R410A
    Pre Charge (g)
    1400
  • Additional Charge (g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    2.92

DEFROST METHOD

  • Defrost Method
    Reverse Cycle

TOOL CODE (CHASSIS)

  • Indoor / Outdoor
    SK / UE

COMPRESSOR

  • Type
    Twin Rotary
    Model
    GAT156MAC
  • Motor Type
    BLDC
    Oil Type / Maker
    POE (RB68A) / Sun Oil or Jx Nippon
  • Oil Charge
    400
    Manufacturer / Country of Origin
    LG Electronics / China

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Output- W
    58

FAN(OUTDOOR)

  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output- W
    85.5
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IPX5

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    20 + 22
  • Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (2)
    (Φ 7 x 2 x 16 x 20 x 744) x 1
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (3)
    (Φ 5 x 1 x 4 x 22 x 744) x 2
  • Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (4)
    0
    Evaporator - Corrosion Protection
    0
  • Condenser - Material, Tube / Fin
    Cu / Al
    Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (1)
    18
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (2)
    (Φ 7 x 2 x 28 x 18 x 831.5) x1
    Condenser - Corrosion Protection
    0

COMPLIANCE INFORMATION
