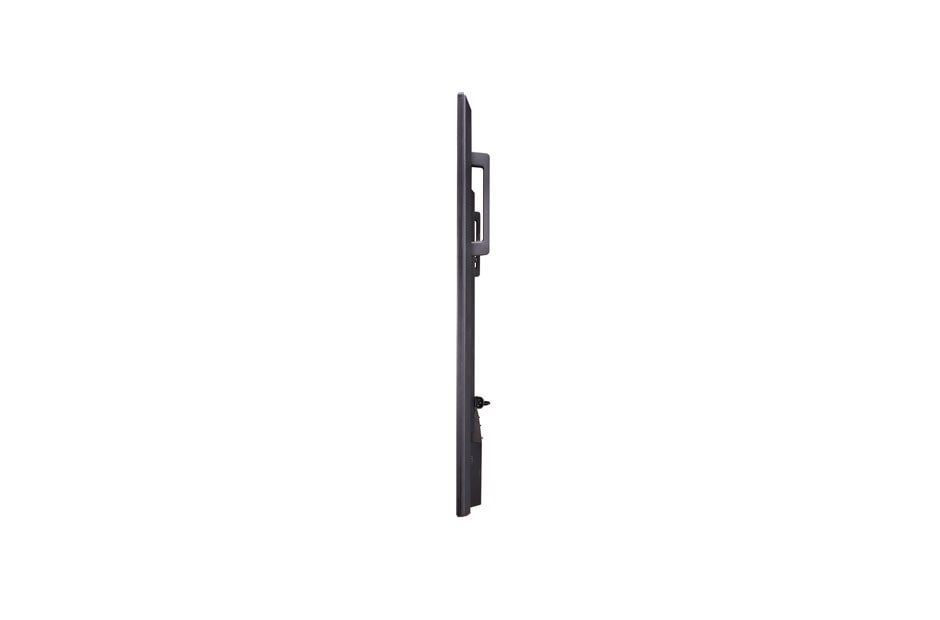

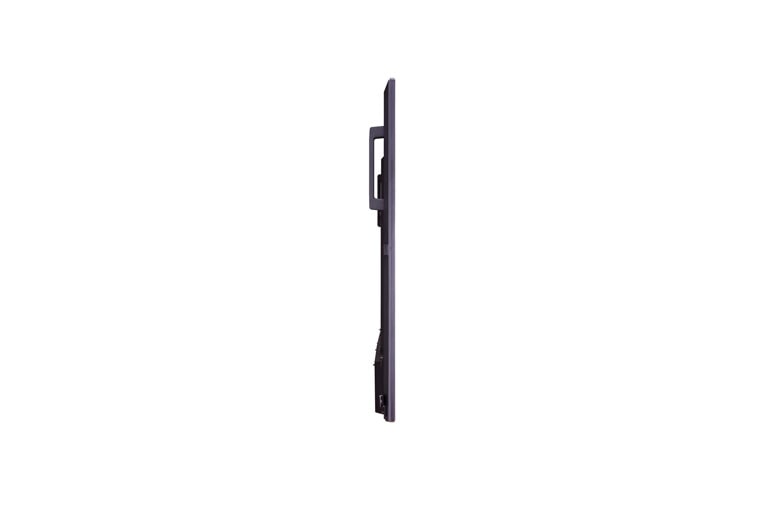

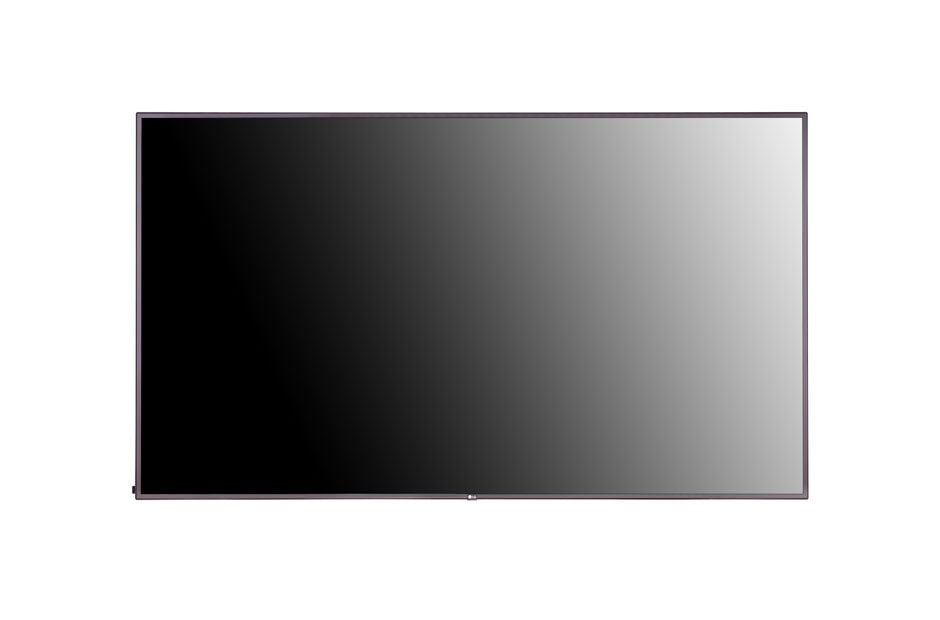

86UH5C
UH5C Series
  • Brightness : 500cd/m2
  • Bezel : 14.7mm Even Bezel

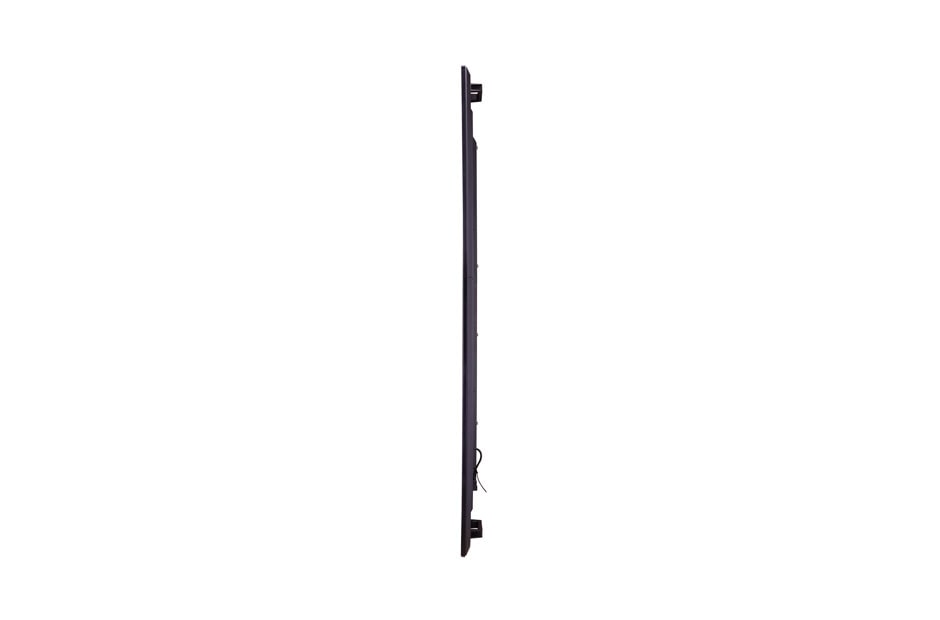

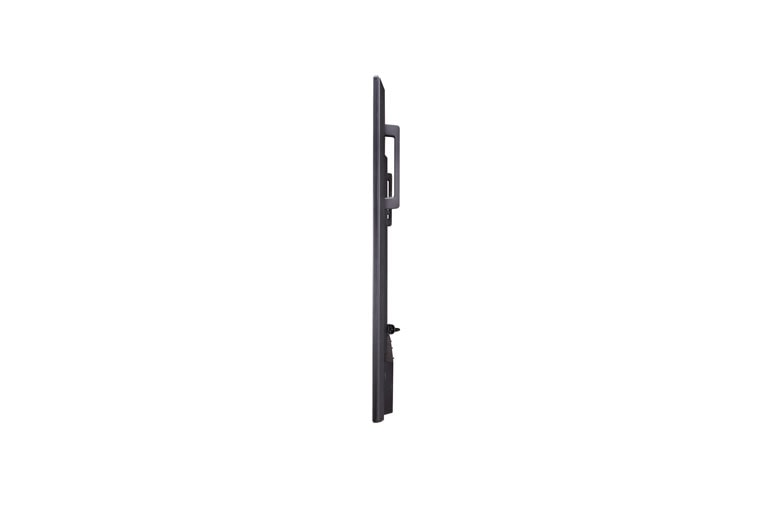

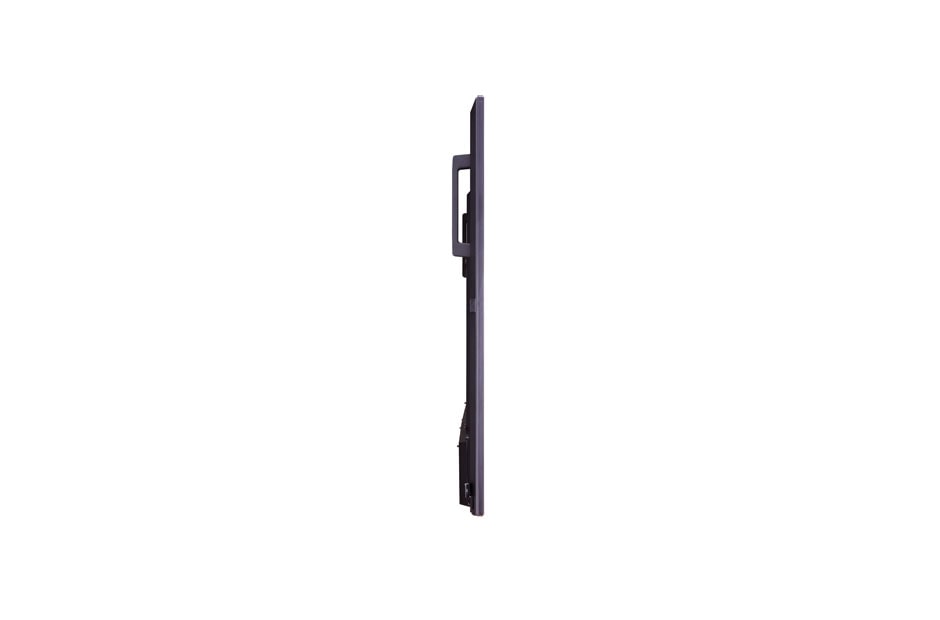

  • Depth : 60.6mm / without logo, handle
  • Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB
  • Pixel Sensor / SD Card / USB
UH5C Series

PANEL

  • Screen Size
    86"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness
    500cd/m²

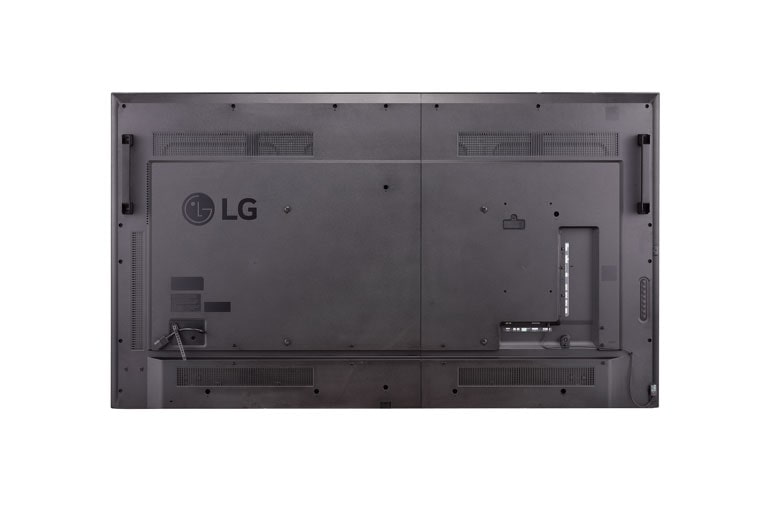

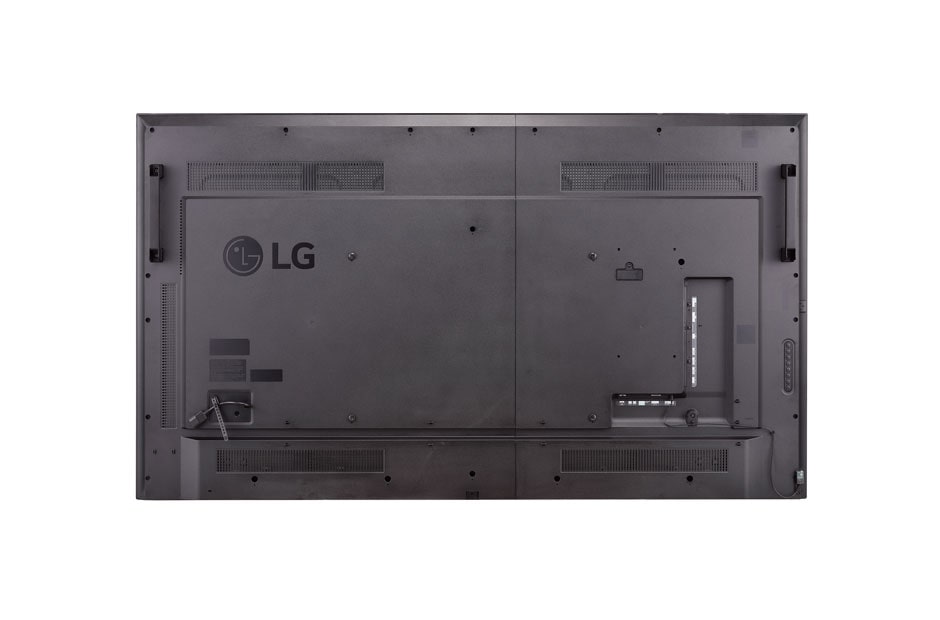

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

  • Bezel Width
    14.7mm
    Monitor Dimension (W x H x D)
    1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
  • Weight (Head)
    49kg

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    275W
    Smart Energy Saving
    193W

STANDARD (CERTIFICATION)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    No / No

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

ACCESSORY

  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100)
