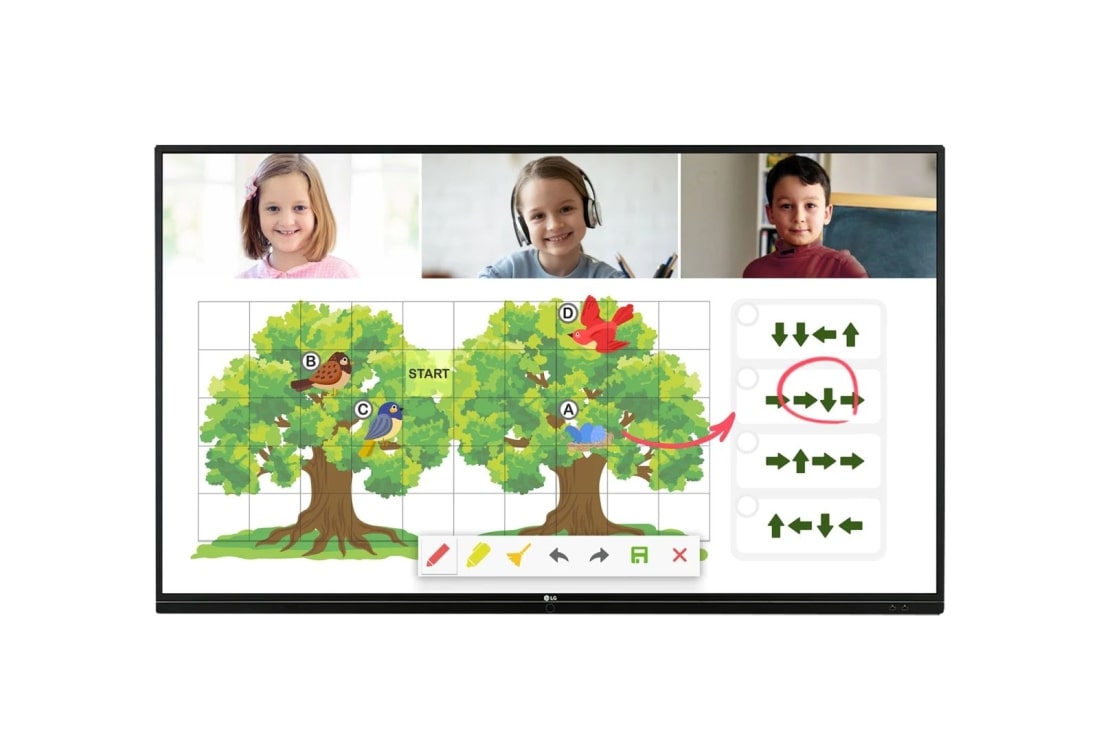

86TR3DJ-B
TR3DJ Series
  • Brightness : 350nit (w Glass, Typ.)
  • Multi Touch Point : 20 Points (Max.)
  • Interface : HDMI (3), RGB (1), Audio In (1), RS-232C In (1), RJ45 (1), USB 3.0 Type A (3), USB 2.0 Type A (3), Audio Out / Optical Output, Touch USB (2)

component-OBScountrySelectDesc

TR3DJ Series

True Interactivity
Bringing People Together

True Interactivity<br>Bringing People Together True Interactivity<br>Bringing People Together
* All images are for illustrative purposes only.

PANEL

  • Screen Size
    86"
    Panel Technology
    IPS
  • Aspect Ratio
    16 : 9
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness
    350nit (w Glass, Typ.)
    Contrast Ratio
    1,200:1
  • Viewing Angle (H x V)
    178 x 178
    Response Time
    8ms(G to G)
  • Life Time (Typ.)
    30,000 Hrs (Min.)
    Operation Hours (Hours / Day)
    16/7
  • Portrait / Landscape
    Landscape

CONNECTIVITY

  • (Input) Video / Audio
    HDMI (3), HDCP2.2/1.4
    (Input) External Control
    RS-232C In (1)
  • (Input) USB
    USB 3.0 Type A (3), USB 2.0 Type A (3)
    (Output) Video / Audio
    Audio Out / Optical Output

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    18.9/18.9/18.9/45.7 mm (T/R/L/B)
  • Weight (Head)
    67.45Kg
    Packed Weight
    86.6Kg
  • Monitor Dimension (W × H × D)
    1,957 × 1,160 × 87 mm
    Handle
    Yes
  • VESA™ Standard Mount Interface
    800 x 600

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    370W / 500W

STANDARD(CERTIFICATION)

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP
    Yes

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes (Slot)
    OPS Power Built In
    Yes

TOUCH

  • Available object size for touch
    Ø3 mm ↑
    Response Time
    60ms ↓ (Android)
    100ms ↓ (Windows)
  • Accuracy
    ±2mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-Glare)
    Protection Glass Transmission
    87%
  • Operating System Support
    Windows 7/8/10 / Windows XP / Linux / Mac / Android
    (Supports one point touch on Windows XP / Linux / Mac)
    Multi touch point
    20 Points (Max.)

SOUND

  • Speaker
    Yes (10W x 2)

ACCESSORY

  • Basic
    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
