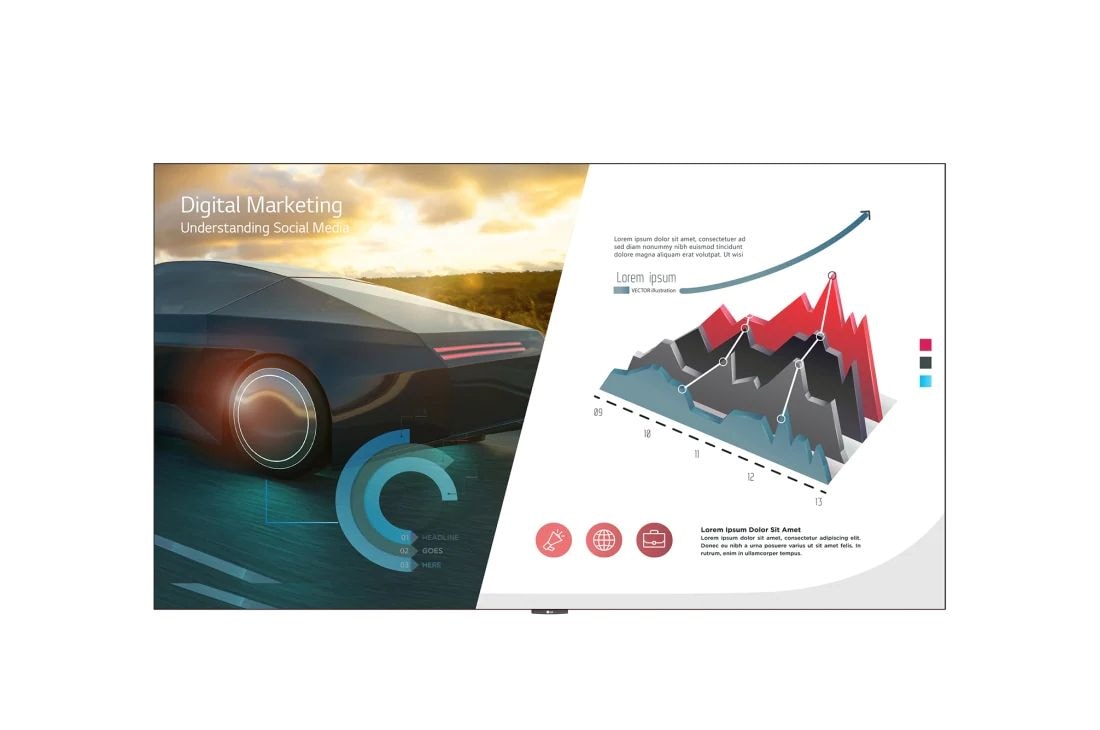

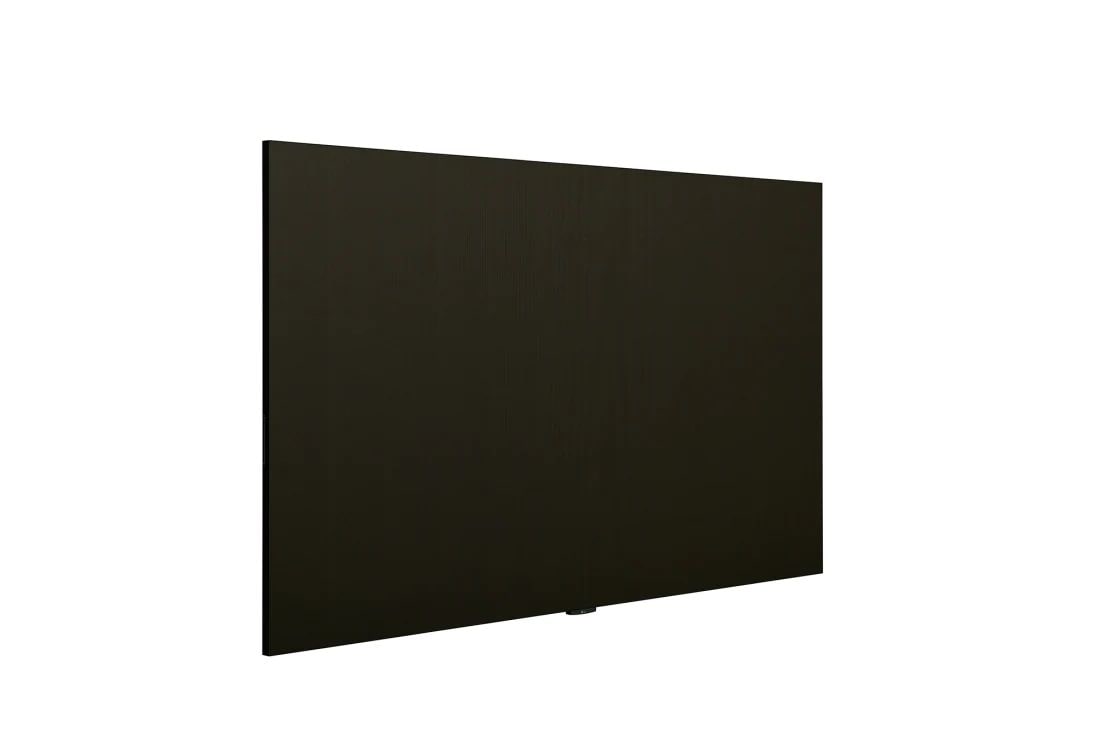

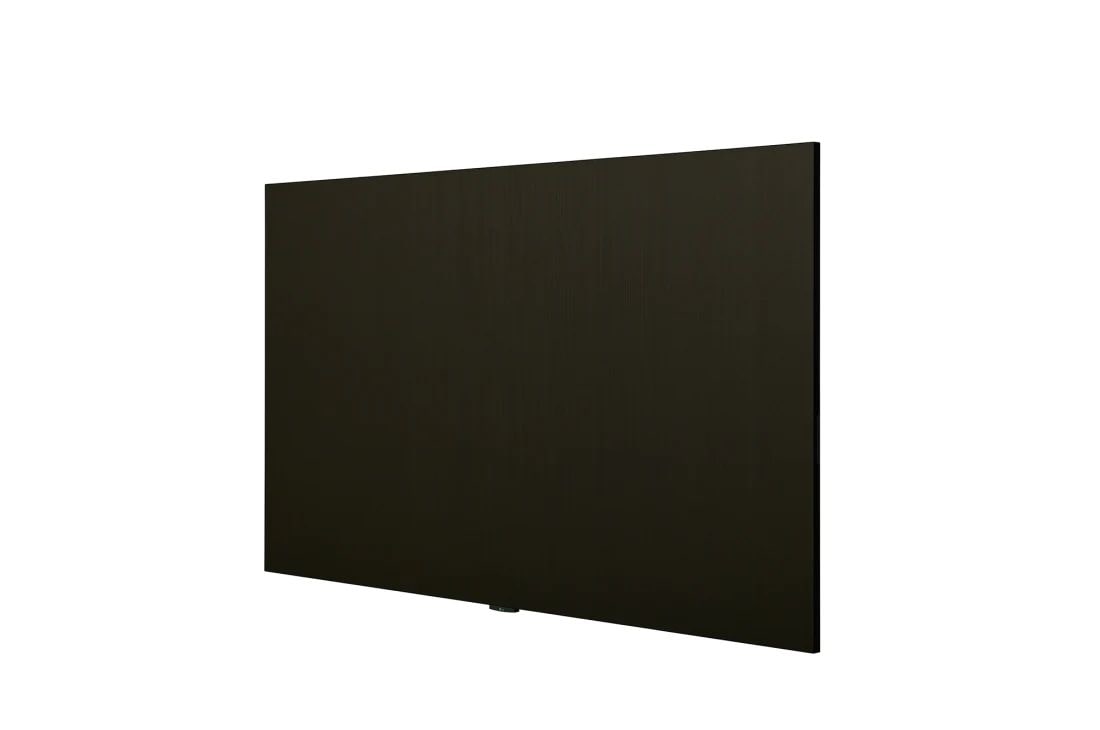

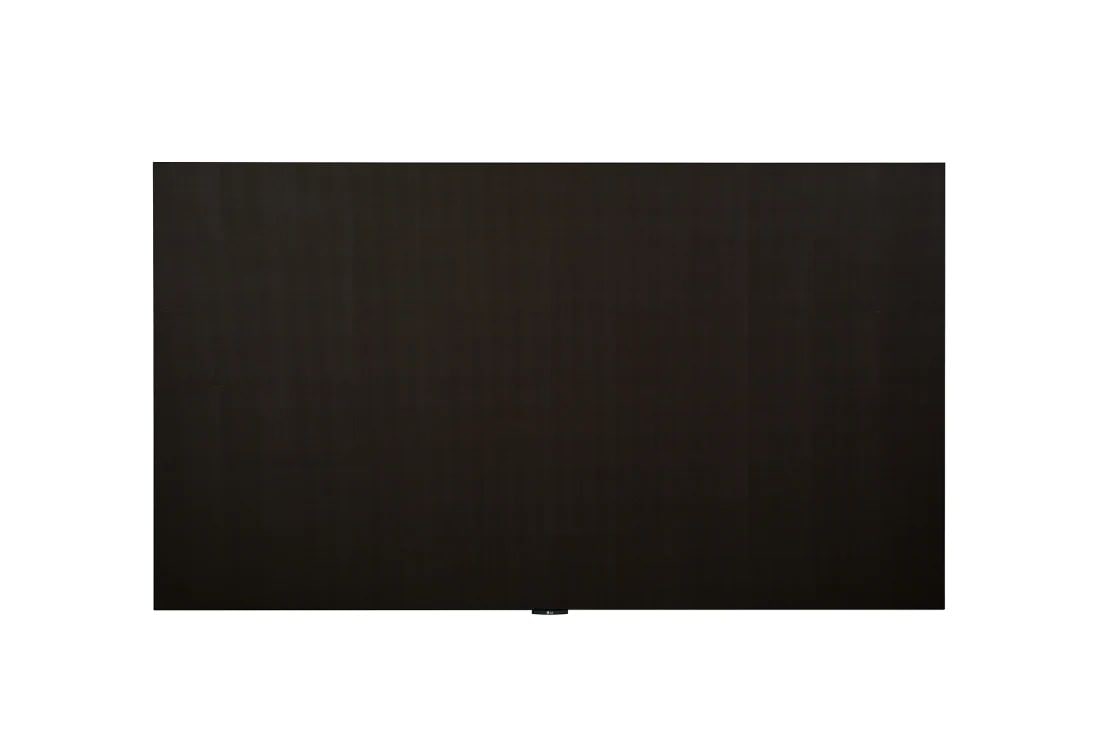

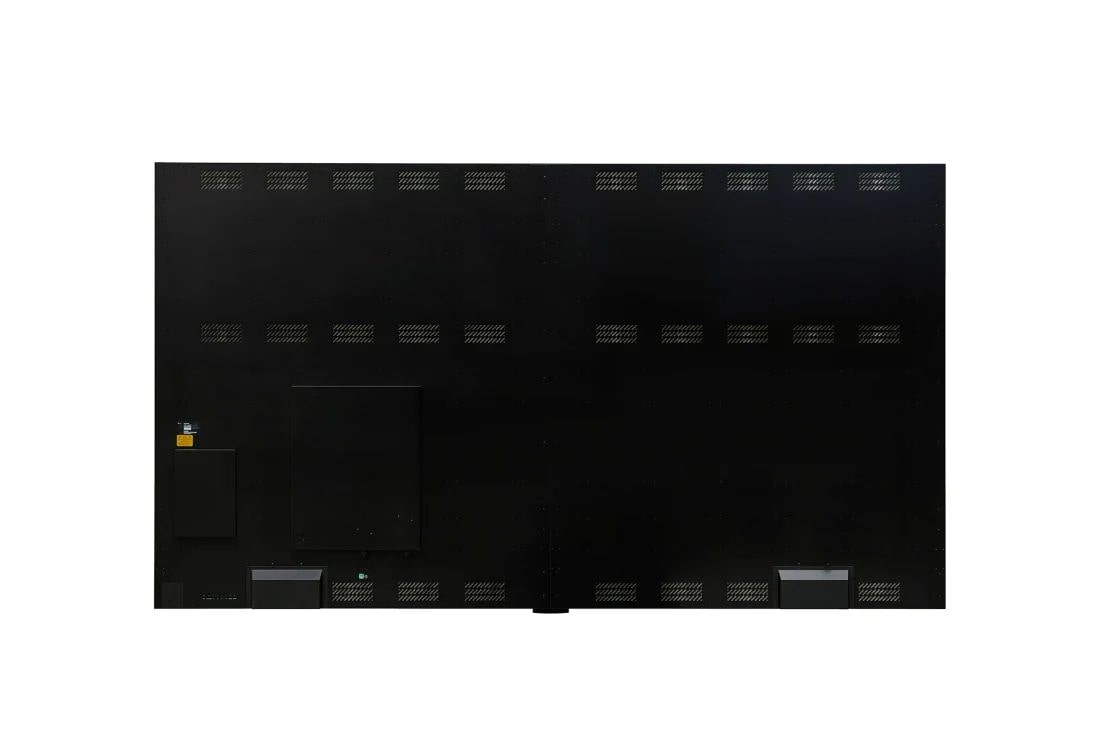

LAEC015-GN
All-in-one Smart Series
  • Pixel Pitch: 1.56 mm
  • Screen Size: 136" (Full HD)
  • Brightness: 500 nit
  • Embedded System Controller
  • Built-in Speaker
  • Dedicated Accessories : Wall Mount, Motorized Stand (Optional)

component-OBScountrySelectDesc

All-in-one Smart Series

LG LED All-in-One Smart Series

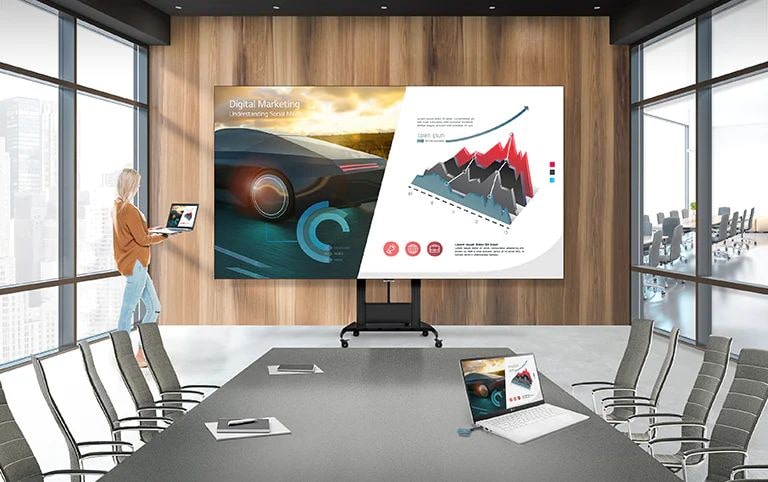

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share. The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
* All images in this web page are for illustrative purposes only and may differ from the actual product.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

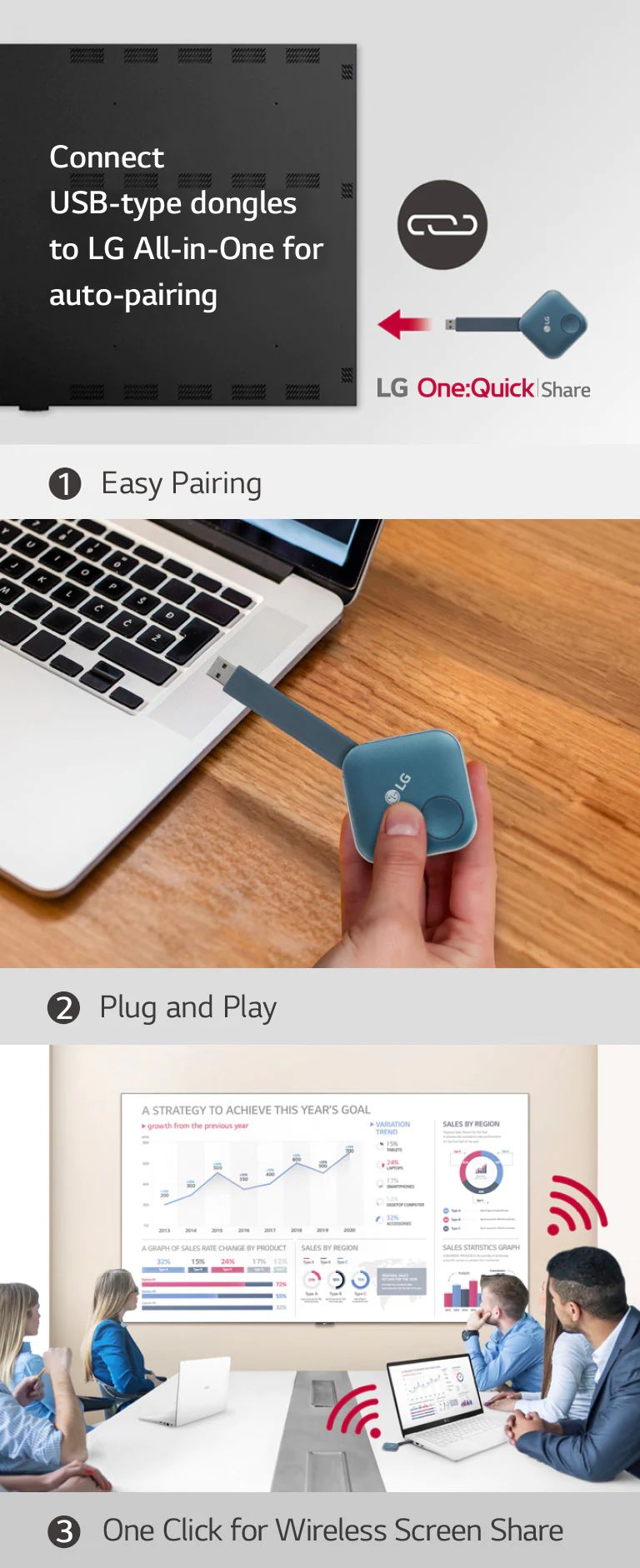

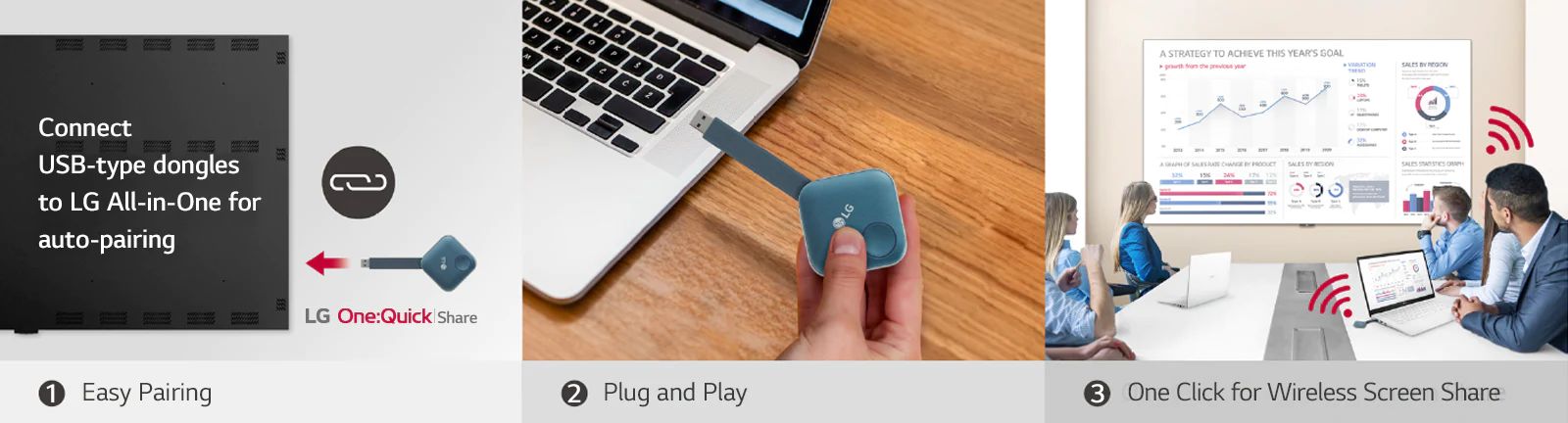

This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall. This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

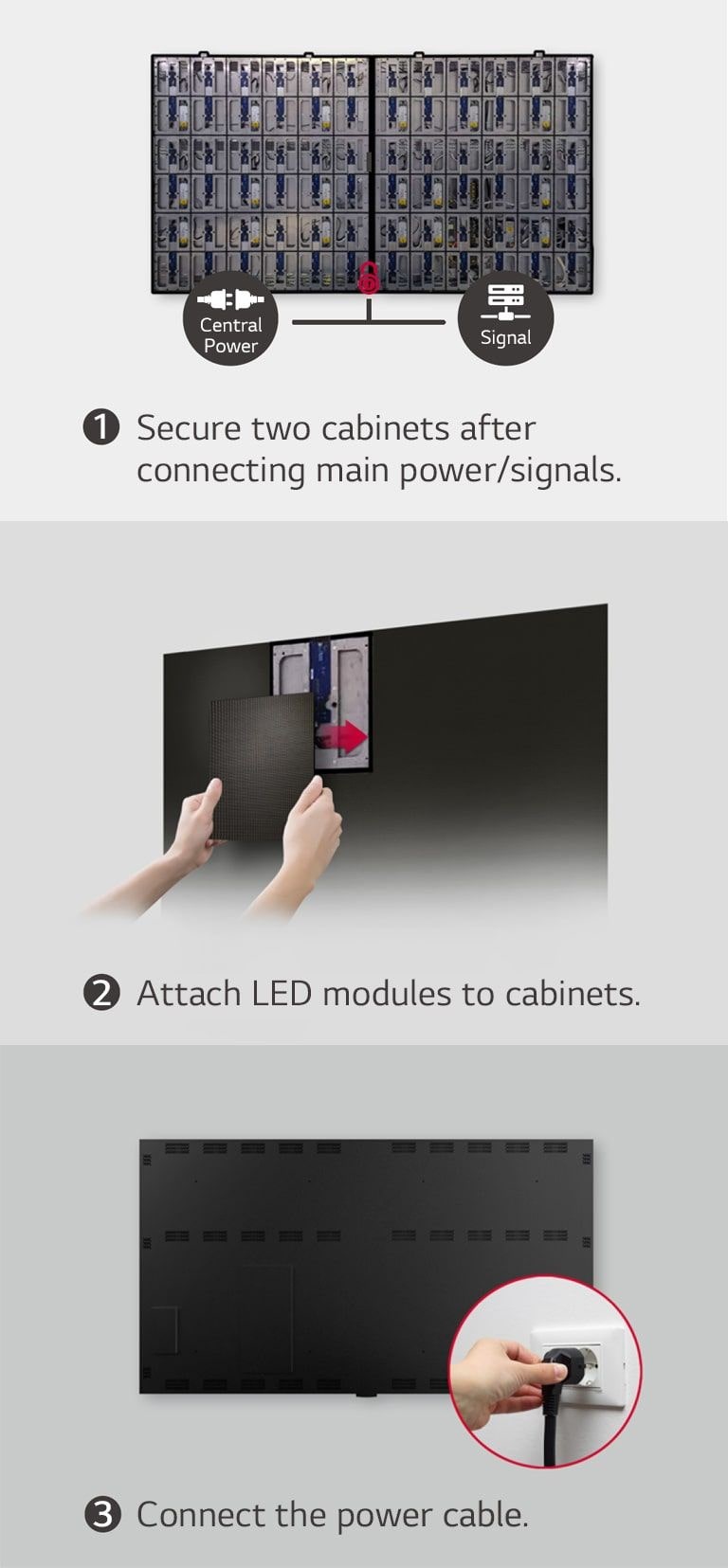

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

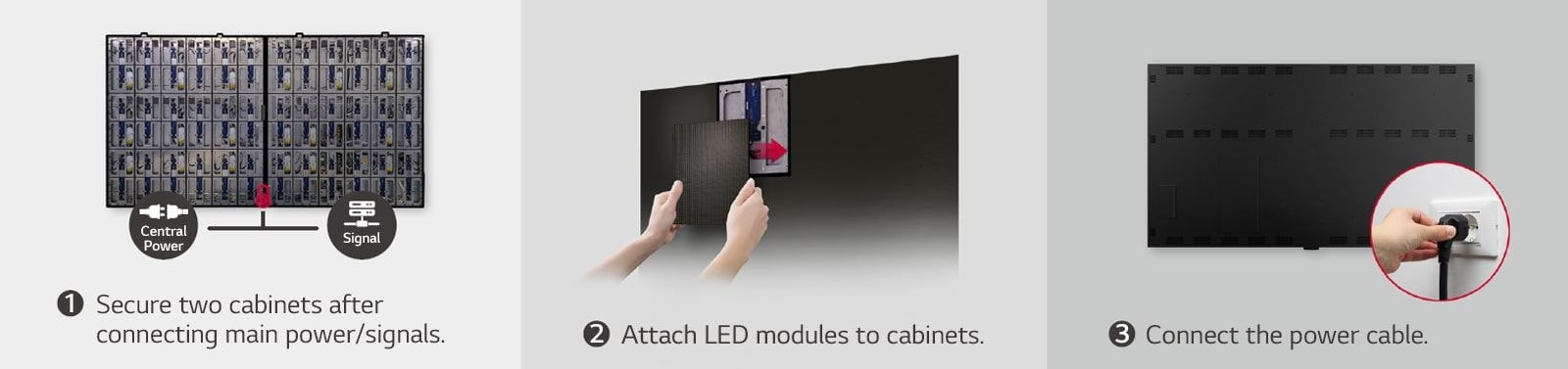

This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable. This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable.
* Fixing screws or installing wall mount / accessories is needed additionally.

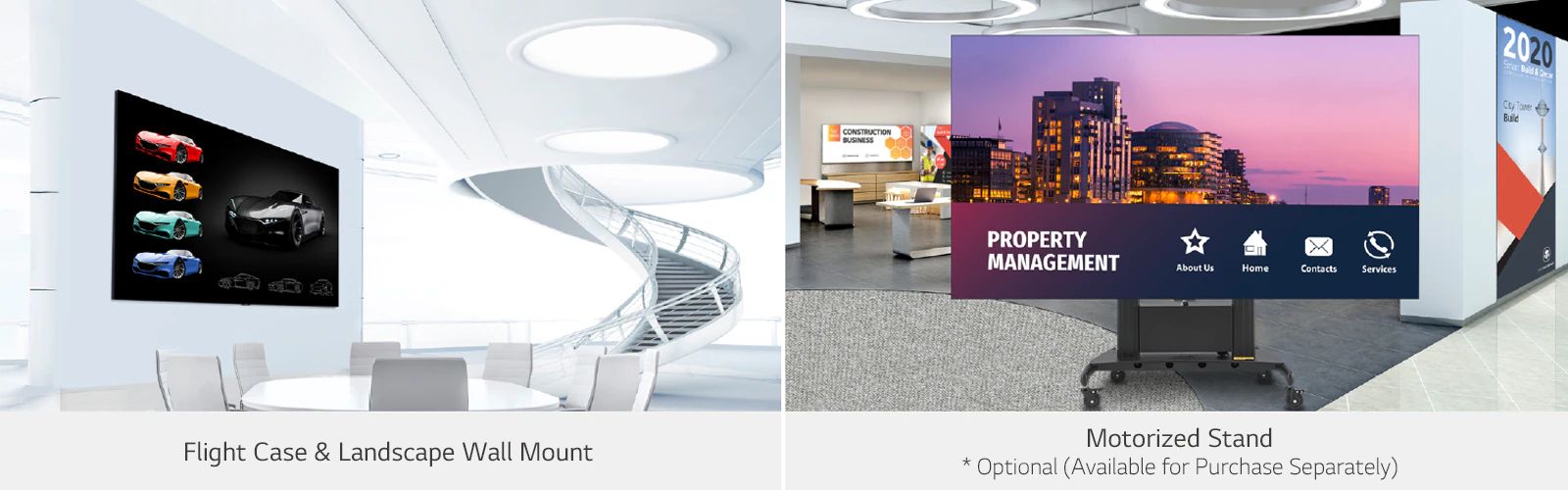

Dedicated Installation Accessories

The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.

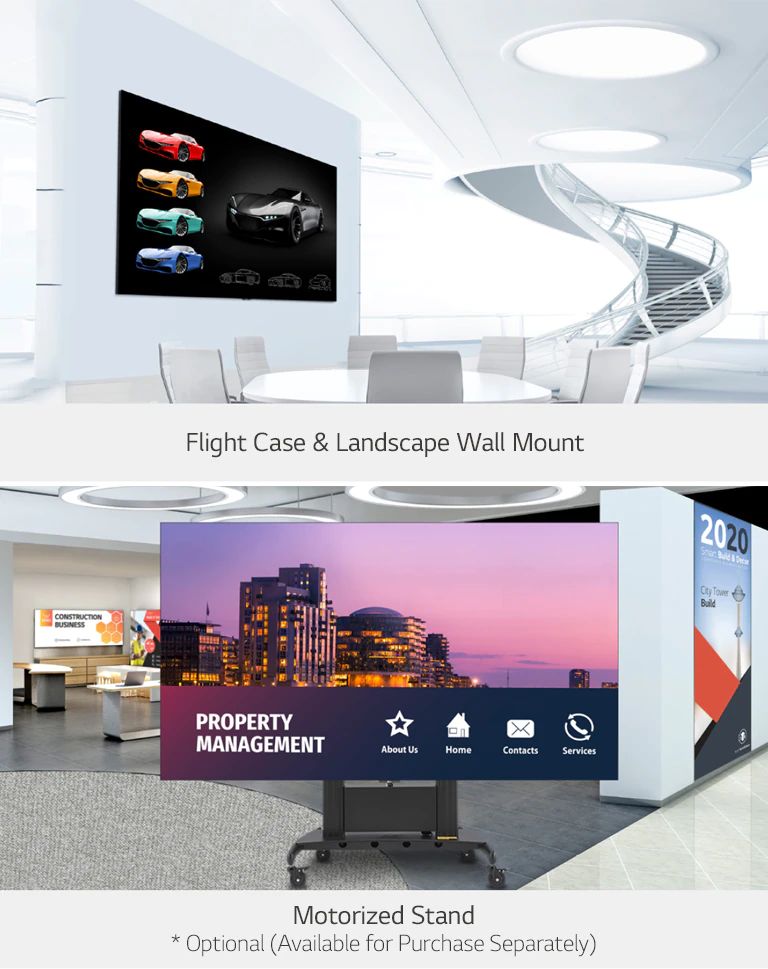

The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall. The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall.

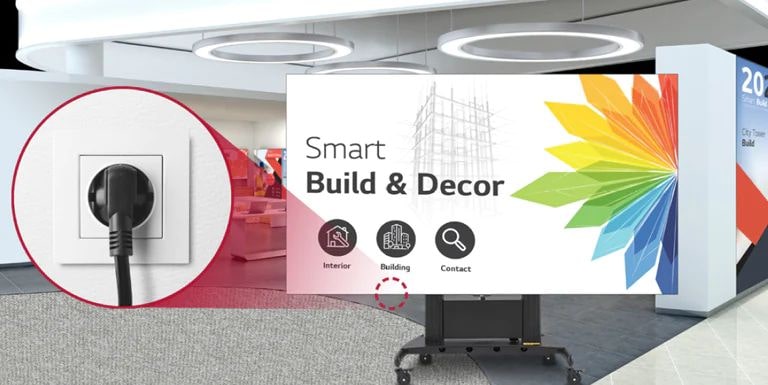

* Two AC cables are needed for 110V AC.
* The availability of LG ConnectedCare differs by region.

PHYSICAL PARAMETERS

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    1.5625
  • Screen Resolution
    1,920x1,080
    Module Dimensions(WxH,mm)
    250x281.25
  • No. of Modules per Screen (WxH)
    12x6 (Total 72)
    Screen Dimensions (W x H x D, mm, including bezel)
    3,004.6x1692.1x36.5 (Thickest 70)
  • Screen Surface Area (㎡)
    5.06
    Weight of the screen
    129
  • Physical Pixel Density (pixels/㎡)
    409,600
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Aluminum
    Service Access
    Front

OPTICAL SPECIFICATIONS

  • Min. Brightness (After Calibration)
    500
    Color Temperature
    7300K
  • Visual Viewing Angle (H x V)
    160° x 160°
    Brightness Uniformity
    98%
  • Color Uniformity
    ±0.015Cx,Cy
    Contrast Ratio
    3000:1
  • Processing Depth (bit)
    16

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/screen, Max.)
    2,000
    Power Consumption (W/screen, Avg.)
    800
  • Power Consumption (W/㎡, Max.)
    395
    Power Consumption (BTU/h/Screen, Max.)
    6,824
  • Power Consumption (BTU/h/Screen, Avg.)
    2,730
    Power Consumption (BTU/h/m², Max.)
    1,348
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    ≥2880

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0℃ to +40℃
  • Operating Humidity
    <90%RH(without condensation)
    IP rating Front
    IP30
  • IP rating Rear
    IP20

SPEAKER

  • Speaker
    Built-in(9W+9W)

CERTIFICATION

  • Certification
    CE,FCC,ETL,CB

ENVIRONMENT

  • Environment
    RoHS, REACH

CONTROLLER

  • Controller
    Embedded
