55EJ5C
Artistic Space Beyond Display
  • Brightness : 400 cd/m2
  • Bezel: 1.2 mm (Off bezel)

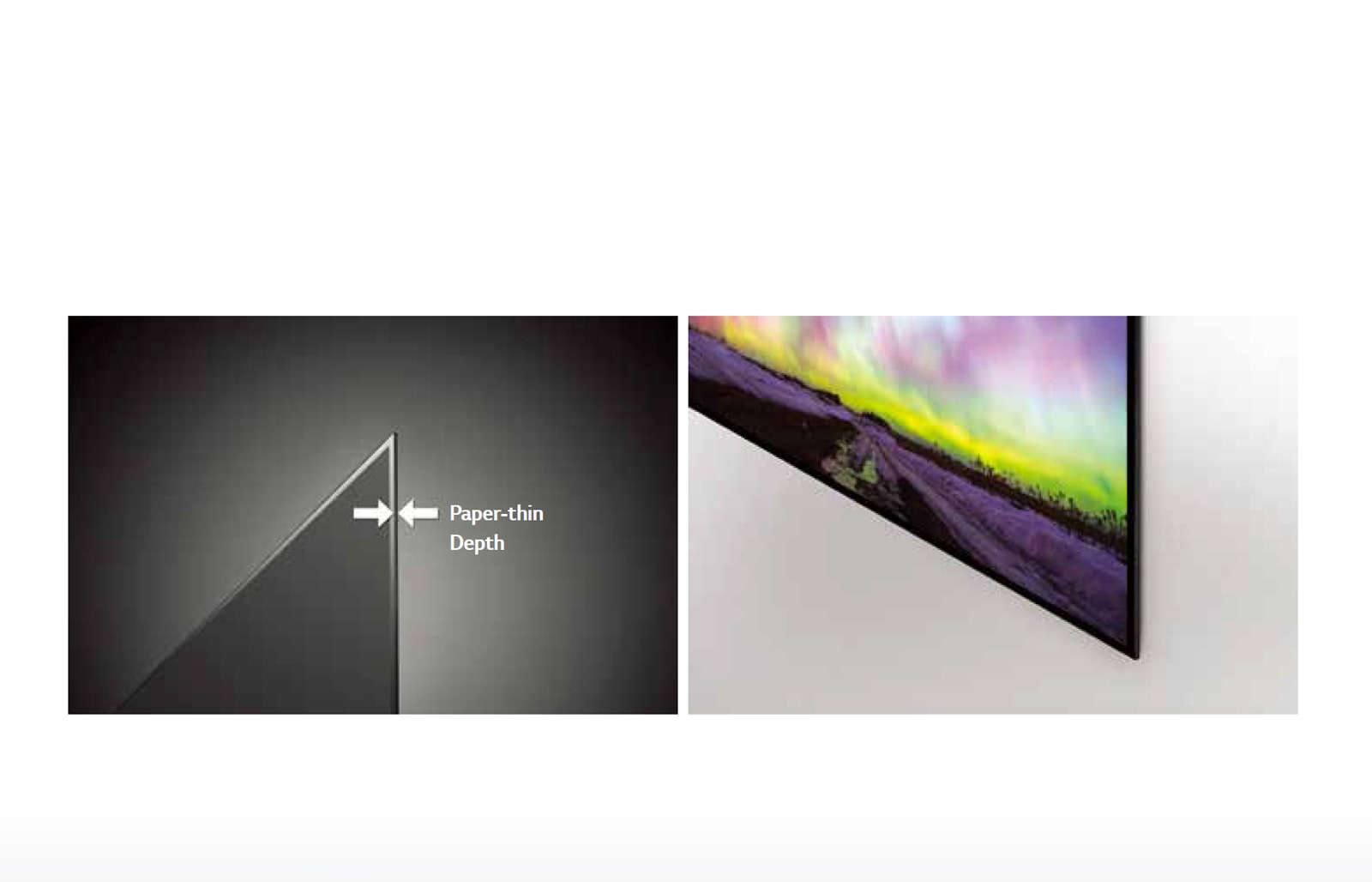

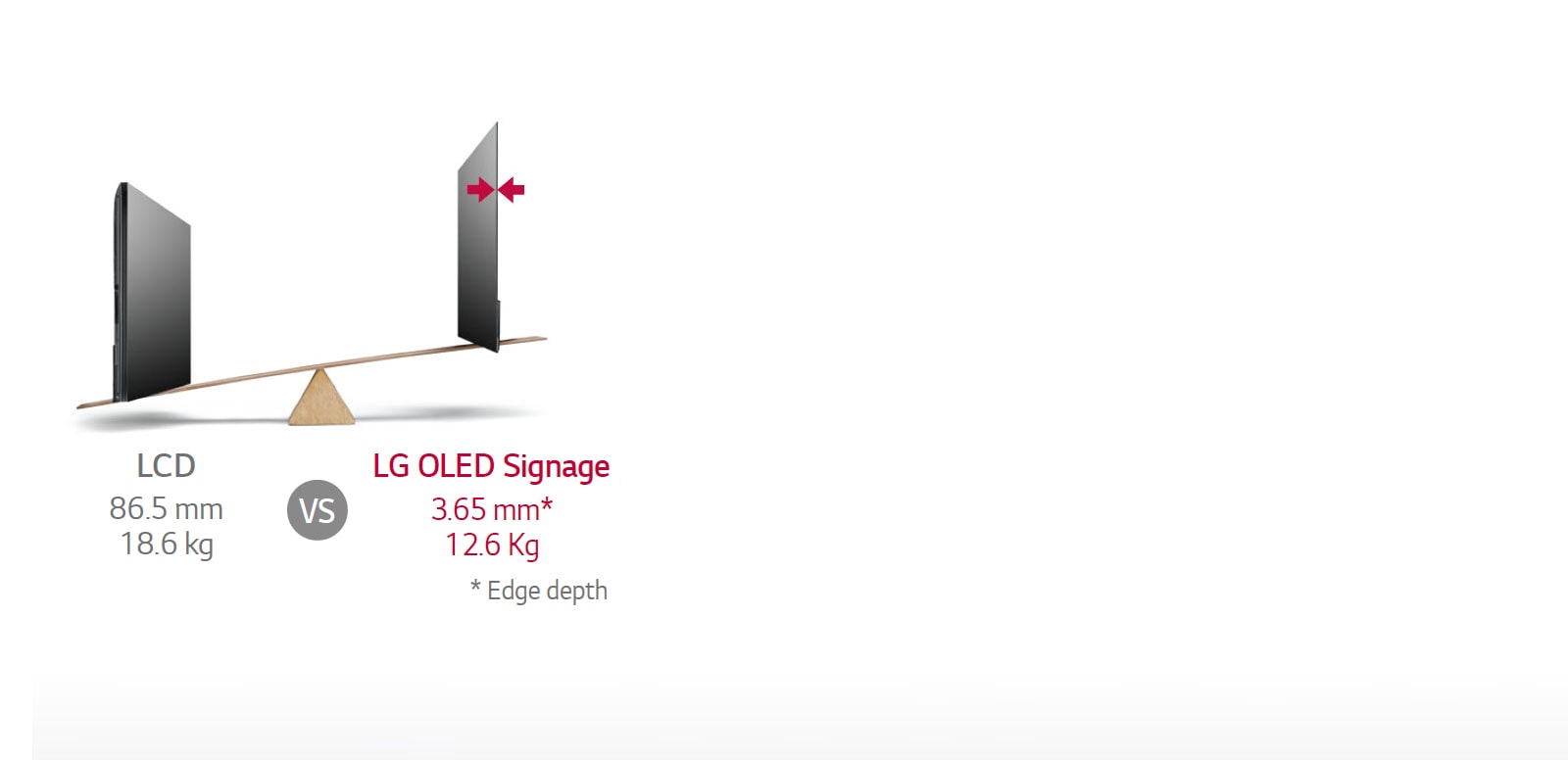

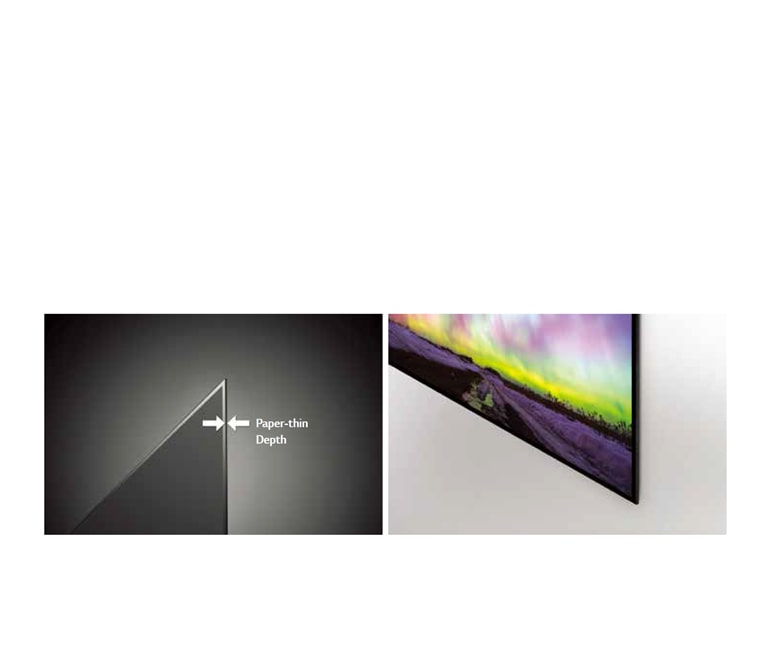

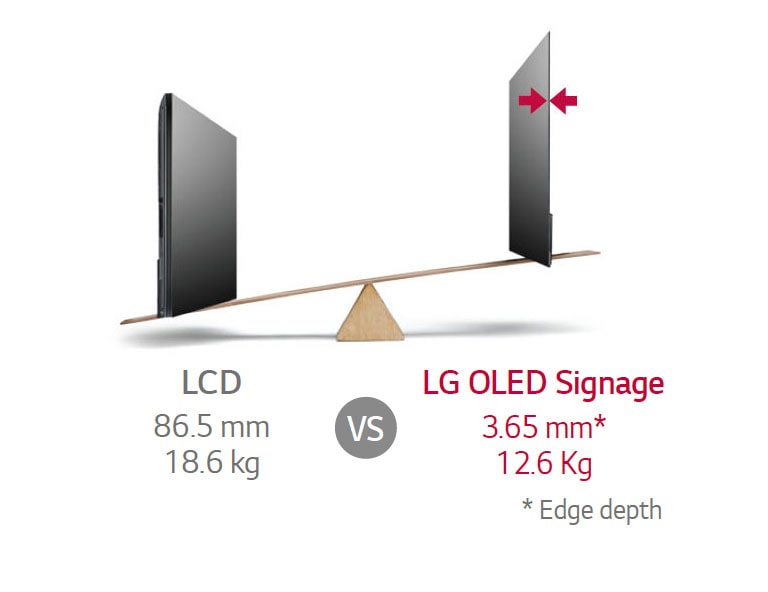

  • Depth: 3.65 mm (Module)
  • Interface: HDMI, DP, RS232C, RJ45, IR In, USB 3.0, USB 2.0
  • SuperSign W/Lite/C/N

component-OBScountrySelectDesc

Artistic Space Beyond Display
PANEL
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    100/400 cd/m2 (APL 100% / 25%) * Average picture level
CONNECTIVITY
  • Input
    HDMI, DP
    Output
    DP, Audio
  • External Control
    RS232C in/out, LAN in/out, IR Receiver, USB 2.0, USB 3.0
PHYSICAL SPECIFICATION
  • Bezel Width
    1.2, 1.2, 1.2, 1.2 mm (U, B, L, R *Offset bezel)
    Dimension (W x H x D)
    Head: 1,227 x 702.1 x 3.65 mm, Signage Box: 420 x 230 x 75 mm
  • Weight
    Head: 5.5 kg, Signage Box: 5.3 kg, Wall Bracket: 1.8 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    190 W
    DPM
    Less than 3 W
  • Power off
    Less than 0.5 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes / NA
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign OLED
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote controller (includes 2 batteries), Cable (connection between screen and signage box), Power cord, DP cable, RS-232C cable, RS-232C gender, LAN cable, IR receiver, Manual (ESG, EIG), Wall-mount plate (includes screws), Harness locking cover, Set install guide
    Optional
    Signage box bracket (U-Leg), FPC cable cover
