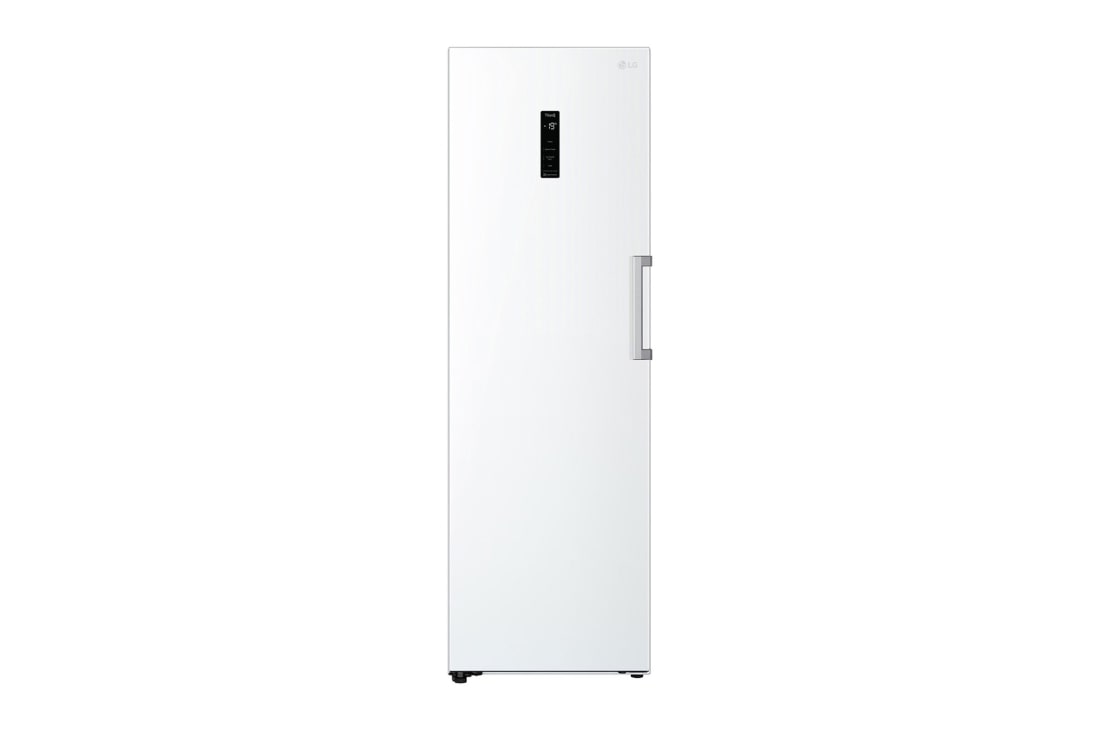

GC-B514EQFM component-copyModelName
324L Total No Frost Upright Freezer, Inverter Compressor
Write a review

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (GC-B514EQFM)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (GC-B514EQFM)
    $
    $
    LG Members Price
Total
324L Total No Frost Upright Freezer, Inverter Compressor
Where to Buy

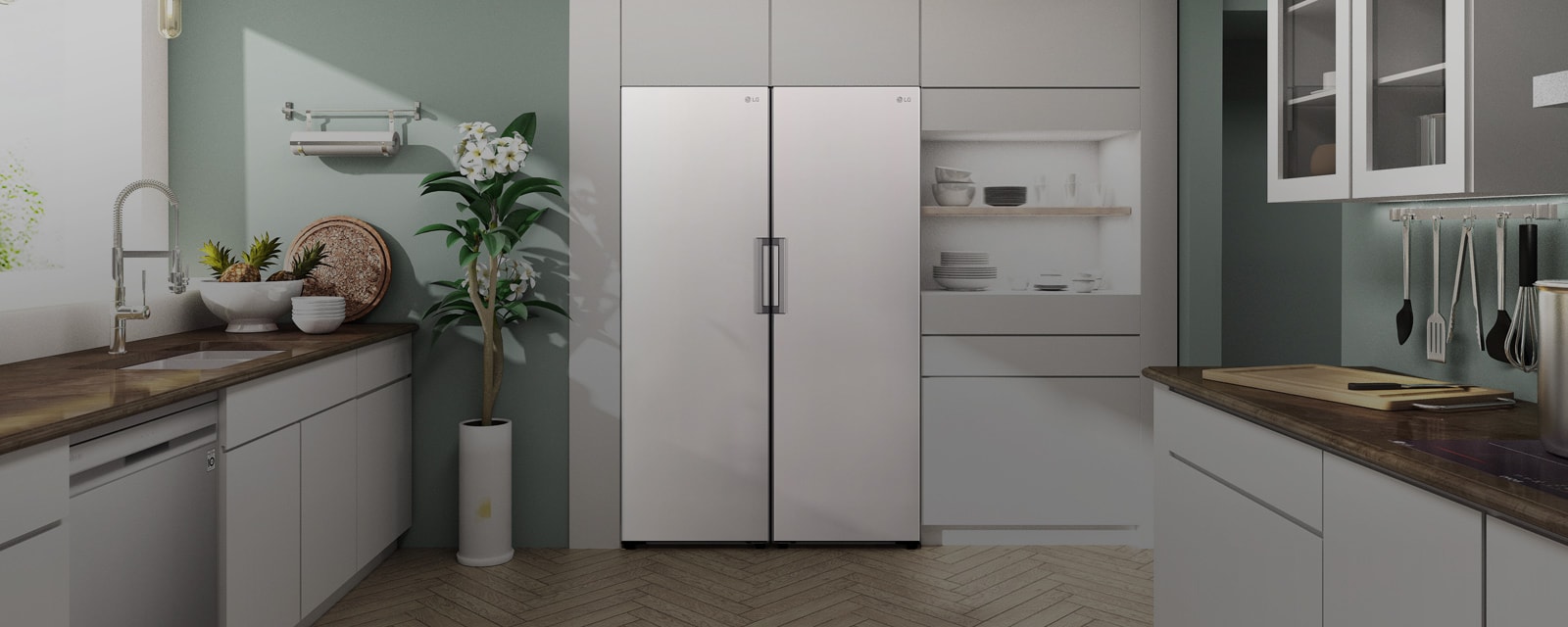

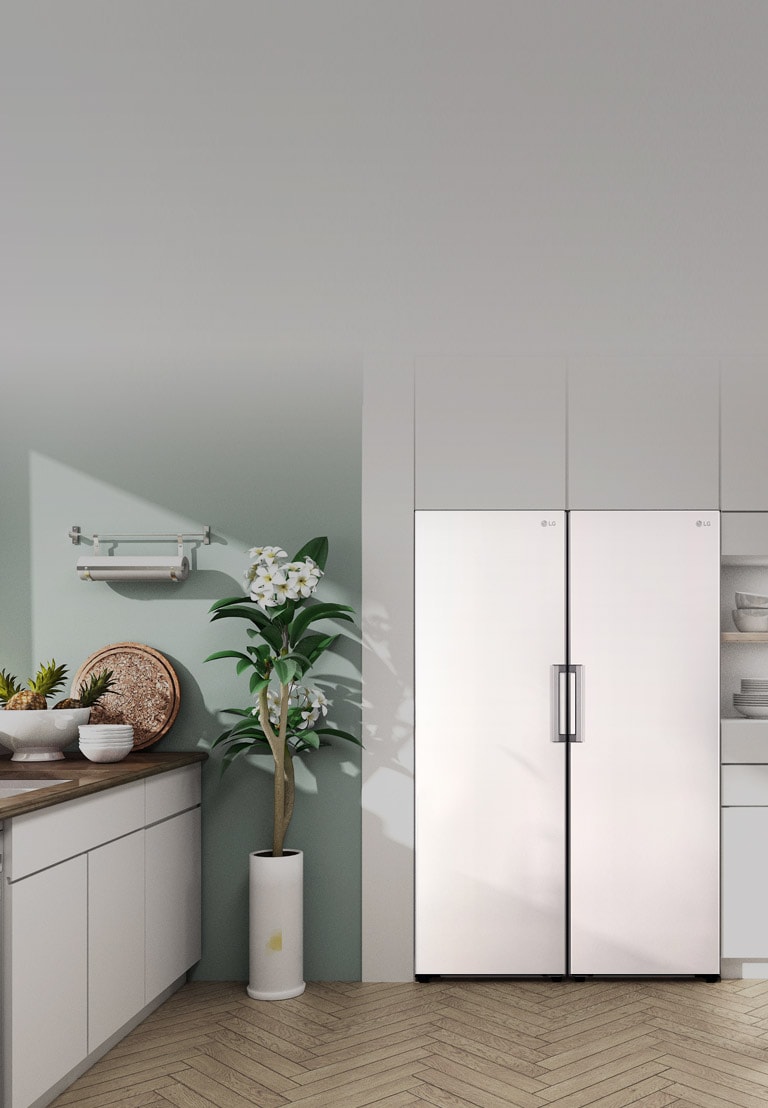

The front view of the refrigerator and freezer or shown fitting in seamlessly in a modern kitchen. The front view of the refrigerator and freezer or shown fitting in seamlessly in a modern kitchen.

Sealing in Freshness with a Seamless Design

Every inch of this new freezer is designed to bring elegance and enhanced function to your kitchen.

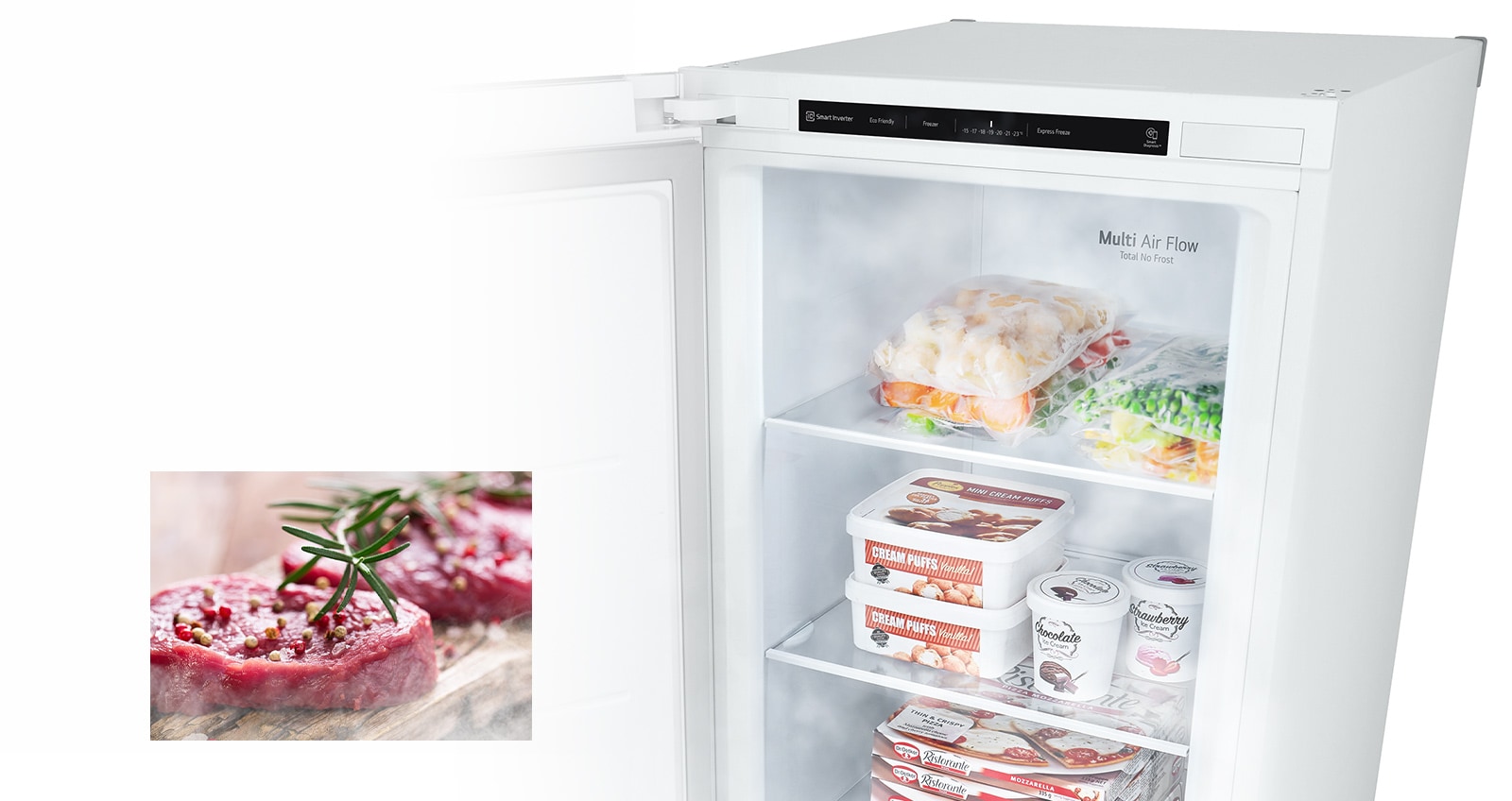

One image shows an open freezer filled with produce and cold air blowing throughout. The second image shows uncooked raw meat that has thawed and is ready to cook. One image shows an open freezer filled with produce and cold air blowing throughout. The second image shows uncooked raw meat that has thawed and is ready to cook.
Total No Frost

Fuss Less with Frostless Technology

LG's frost-free cooling system prevents frost build-up, saving you the hassle of manual defrosting.

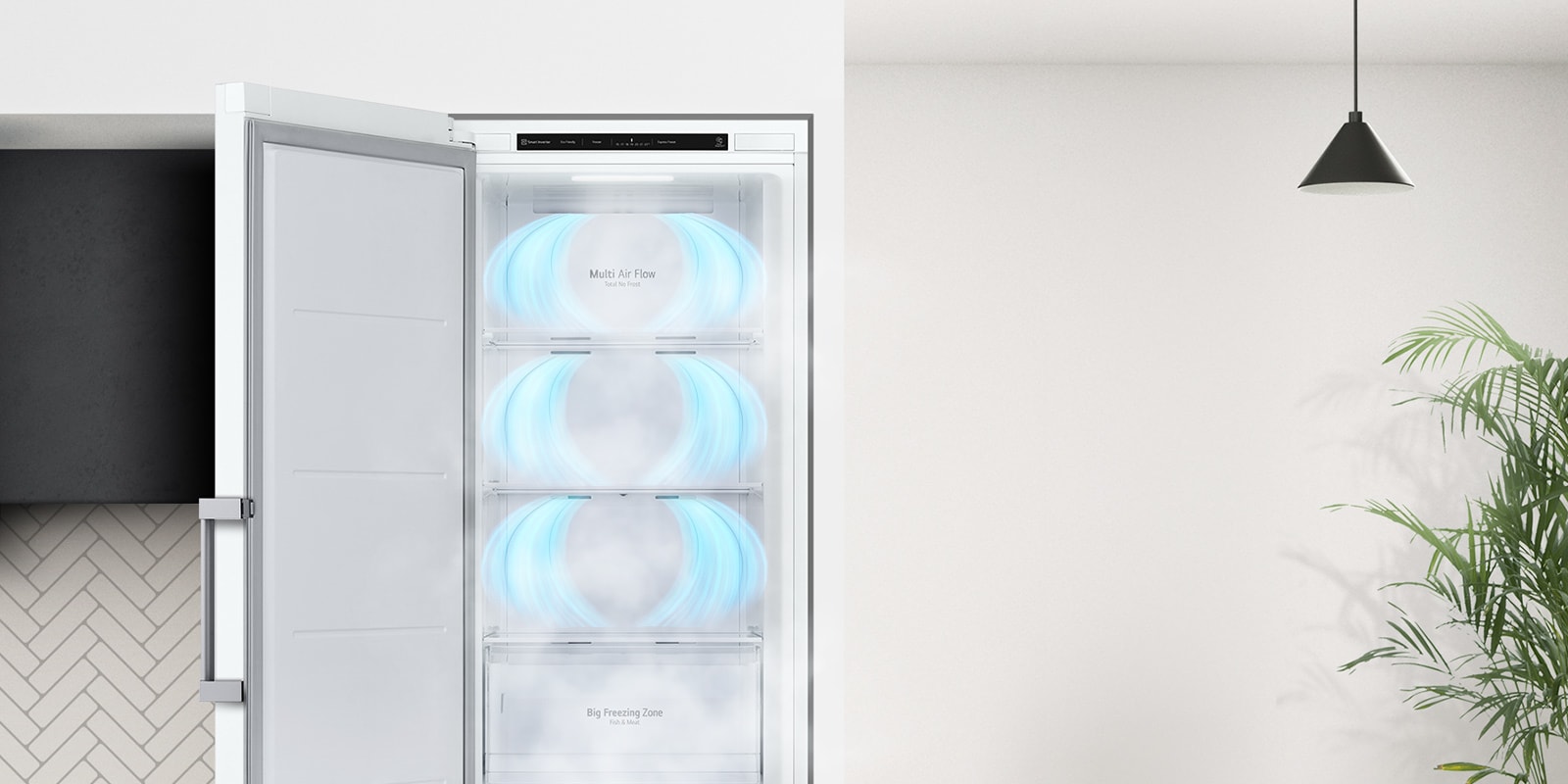

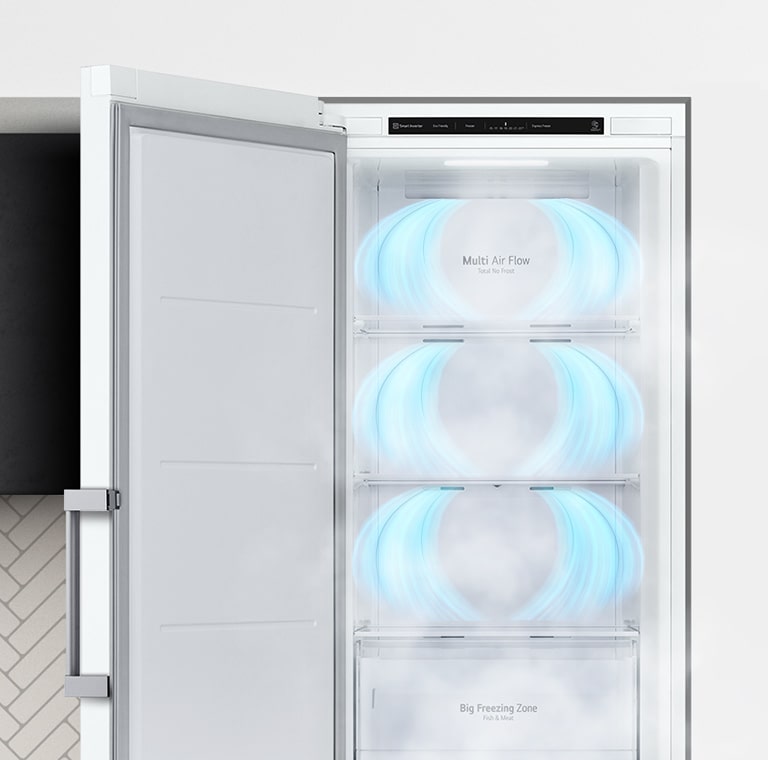

The freezer is shown with the door opening out. Blue air is blowing from the top of each section to completely surround the food that would be inside. The freezer is shown with the door opening out. Blue air is blowing from the top of each section to completely surround the food that would be inside.
Multi Air Flow

Freshness All Around

Cool air flows in every direction to surround your food with cool air to keep it at its freshest

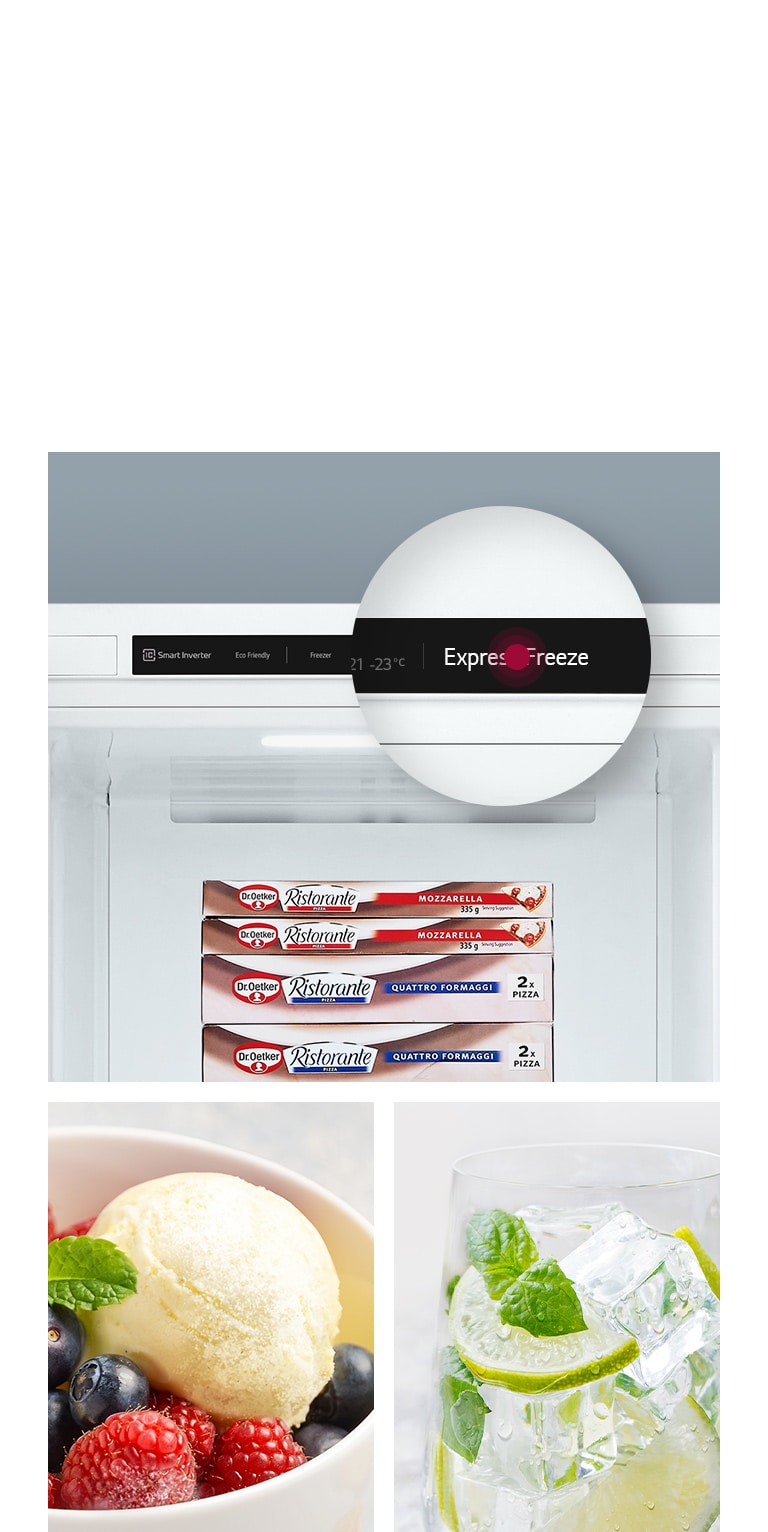

One image shows a bowl of icecream with a fruit topping. A second image shows the interior of the freezer stocked with ice cream and a magnification bubble showing the "Express Freeze" button. A third image shows a drink with a lot of ice. One image shows a bowl of icecream with a fruit topping. A second image shows the interior of the freezer stocked with ice cream and a magnification bubble showing the "Express Freeze" button. A third image shows a drink with a lot of ice.
Express Freeze

A Blast of Cool in an Instant

Don't let your new pint of ice cream melt. Hit Express Freeze for a powerful blast of icy cold air

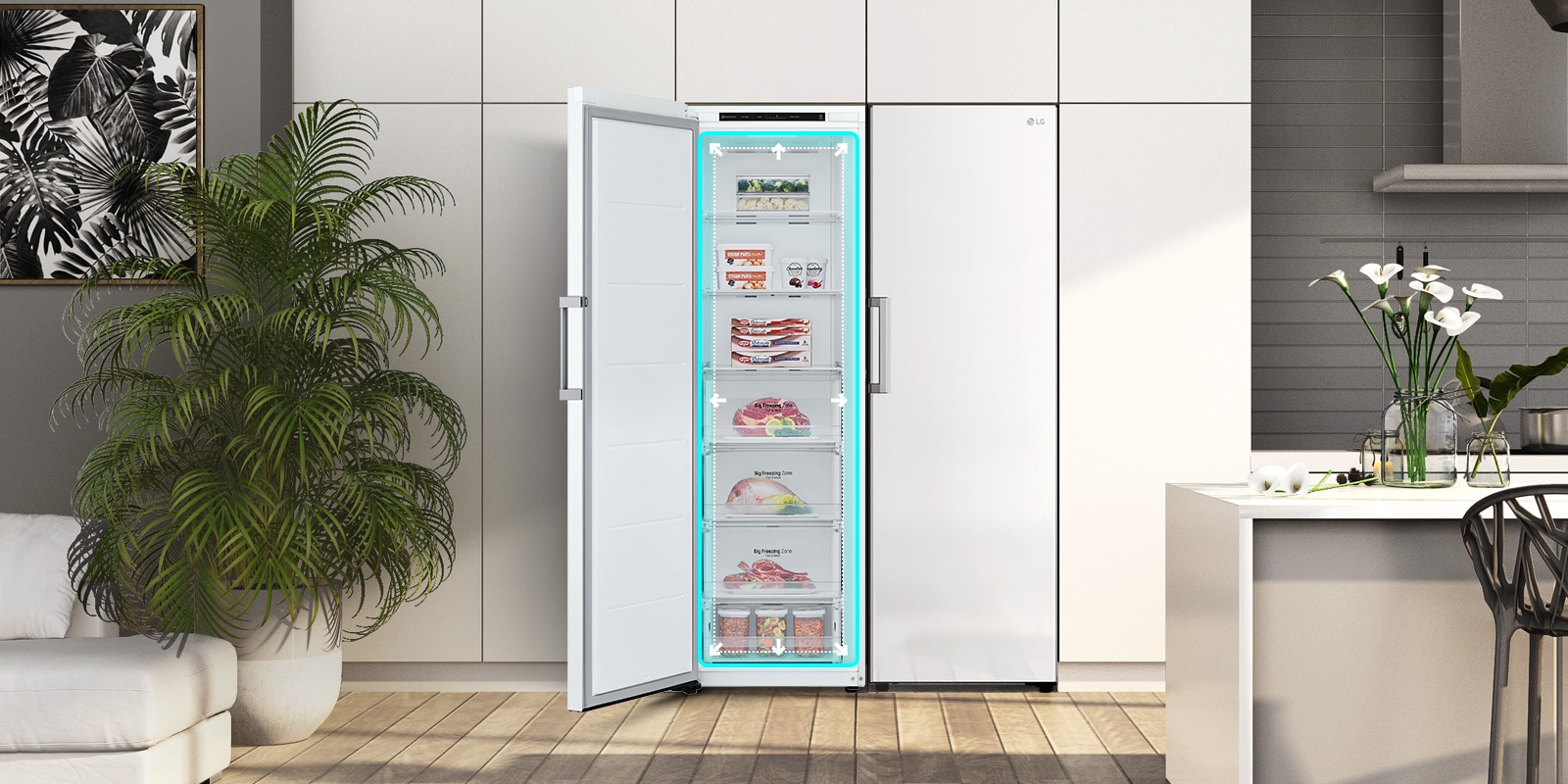

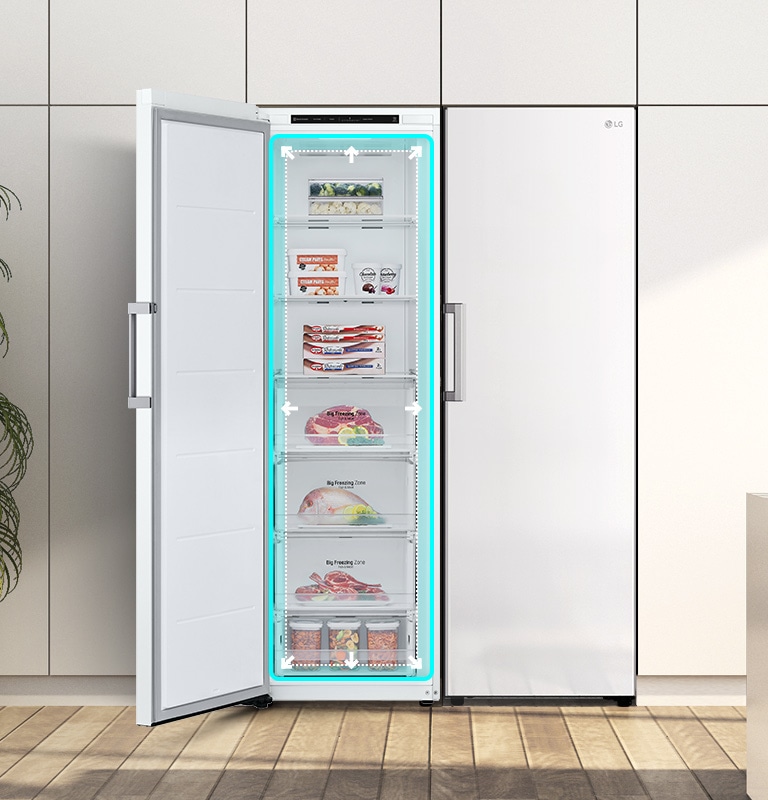

The freezer is shown from the front with the door open and a blue square and arrows pushing out highlighting the ample space inside. The freezer is shown from the front with the door open and a blue square and arrows pushing out highlighting the ample space inside.
Large Capacity

Store More with More Interior
Space

With the large capacity of 324L in the freezer, you'll
have ample room for all your favorite goodies.

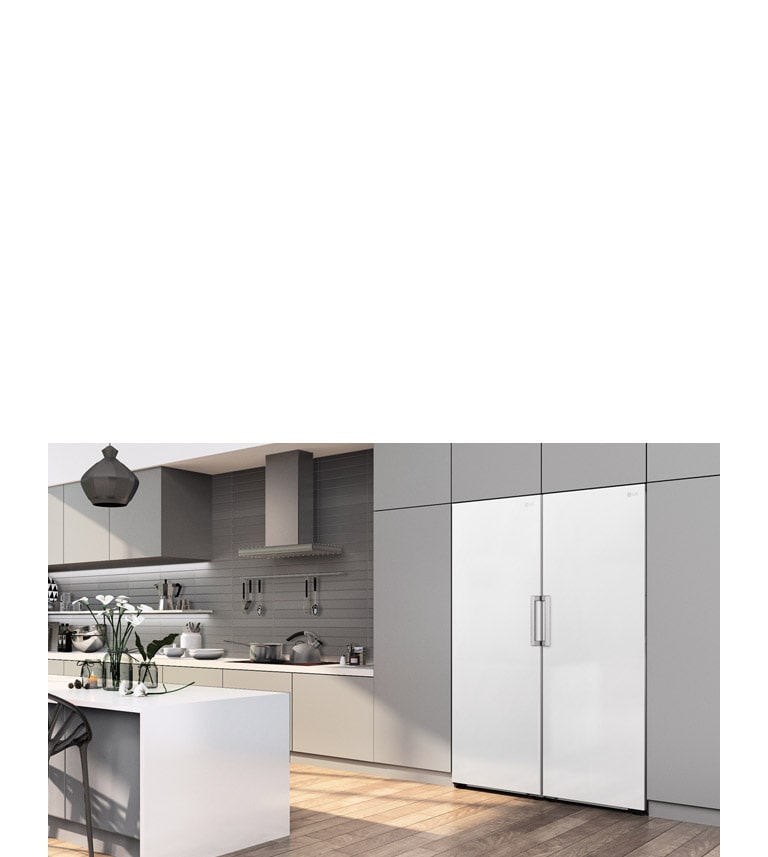

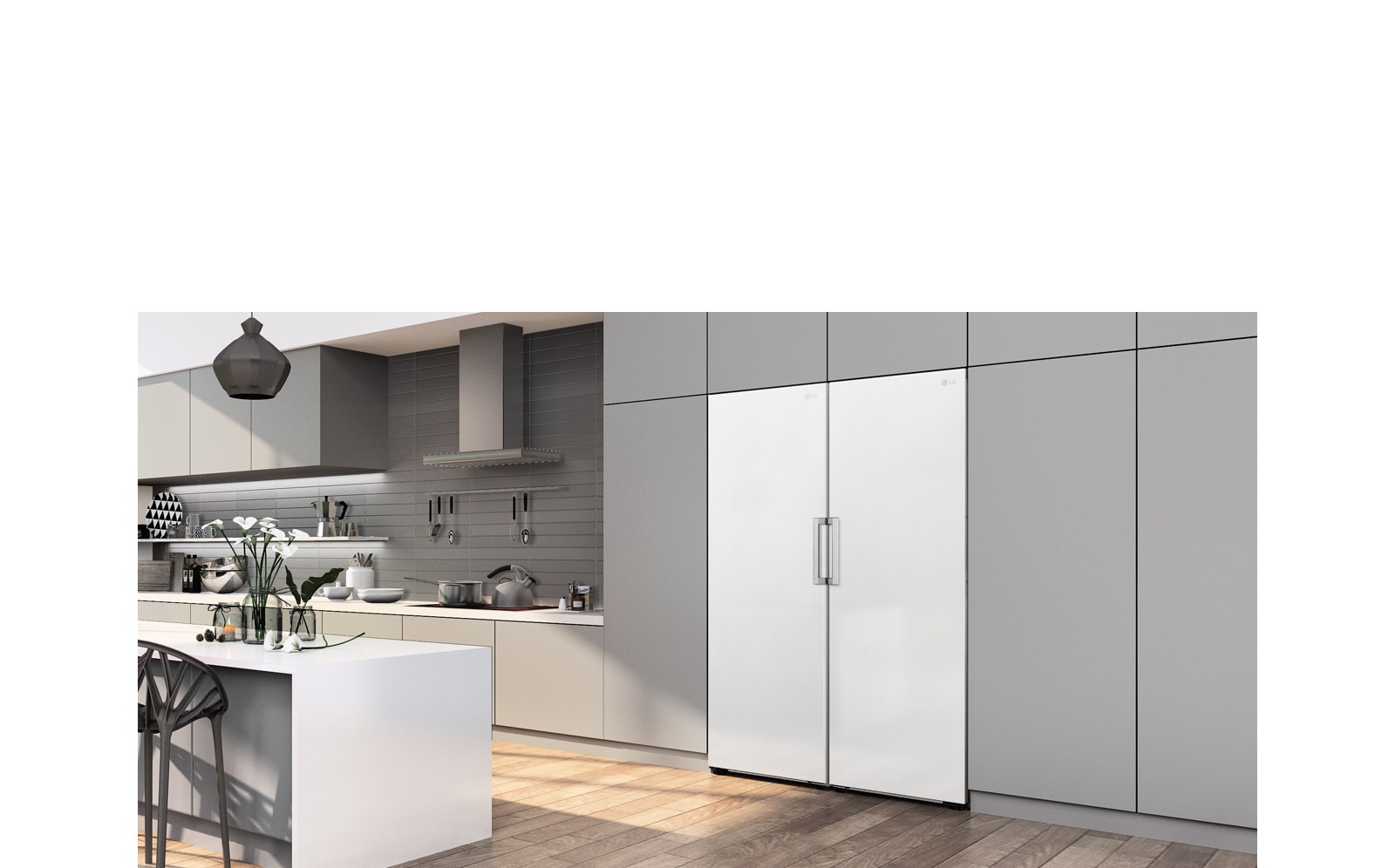

The freezer is shown at an angle seamlessly fitting in with the cabinets in a modern kitchen. The freezer is shown at an angle seamlessly fitting in with the cabinets in a modern kitchen.
Seamless Fit Design

Make Seamless, Built-in Design Easy

With its flat door and snug cabinet fit, this seamless design delivers a custom, built-in look.

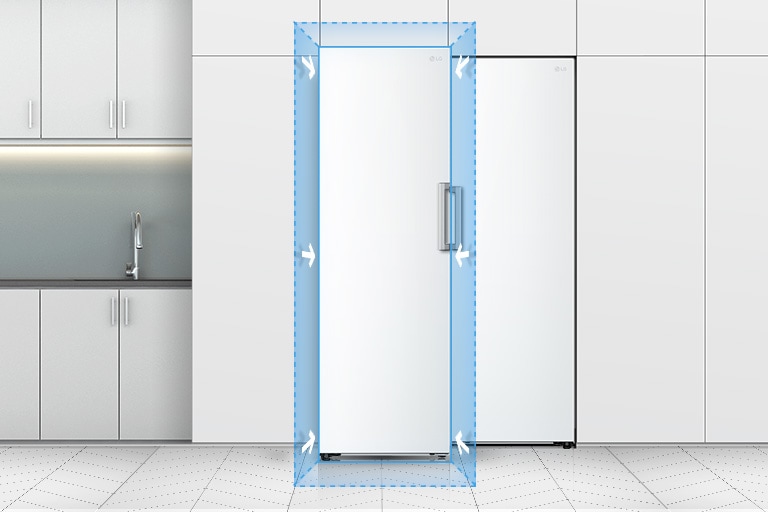

The front view of the freezer is shown in a kitchen. A blue 3D square and arrows pointing inward toward the door show how the freezer fits perfectly in a standard kitchen.

Clean Cabinet Fit for Clean Lines

The new design fits perfectly into standard kitchen cabinets for a clean, minimalist look.

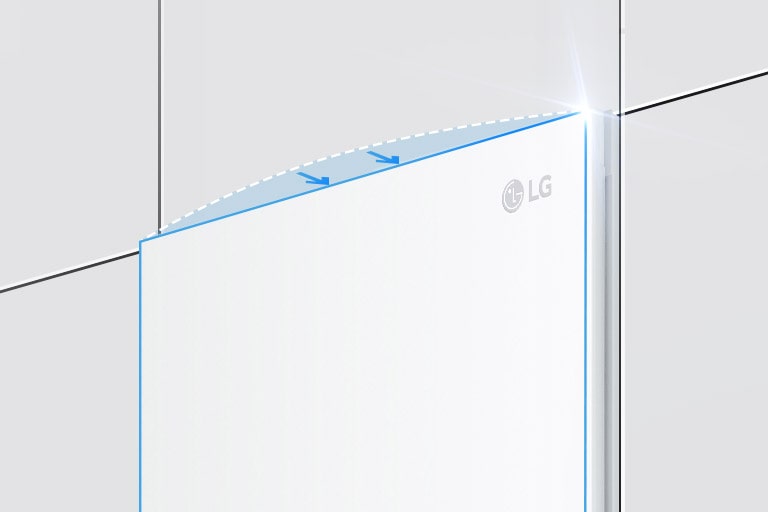

The top of the freezer is shown at an angle with two arrows pointing in toward the wall to indicate it is flush with the cabinets surrounding it.

A Flat Door to Inspired Décor

Achieve a high-end, built-in look with the ultra flat, ultra-flush door.

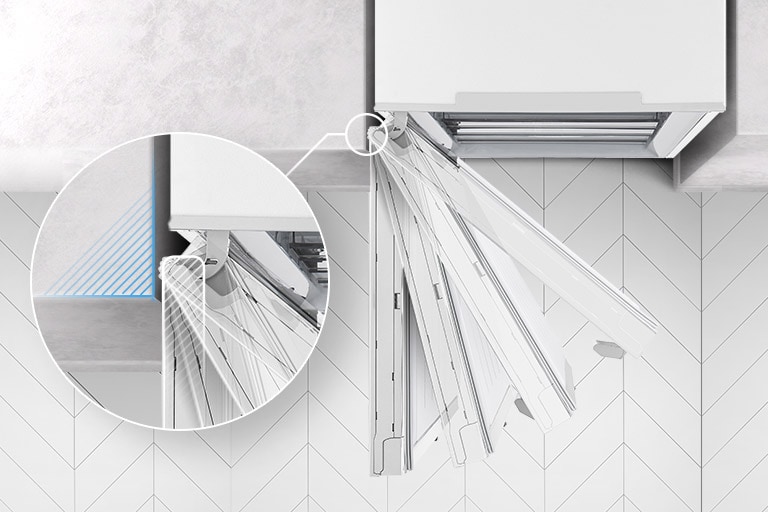

The freezer is shown from above with the door swinging out and stopped in four different places and a magnified inset of the hinges shows the hinge can be flush with the wall and never touch it when opening.

Zero Space Required

The Zero-Clearance hinge allows you to install right next to a wall for a completely built-in look.
The Smart Inverter Compressor 10 Year Warranty icon next to the Smart Inverter Compressor icon. The Smart Inverter Compressor 10 Year Warranty icon next to the Smart Inverter Compressor icon.
Smart Inverter Compressor™

Energy Efficient & Durable with a 10-Year Warranty

LG's Smart Inverter Compressor™ takes energy efficiency to the next level, saving your money & the planet. Plus, it is also backed by a 10-year warranty, for 10 years of peace of mind.
*Test is based on "KS C ISO 15502" Standard (Model : R-B601GM, R-B602GCWP)

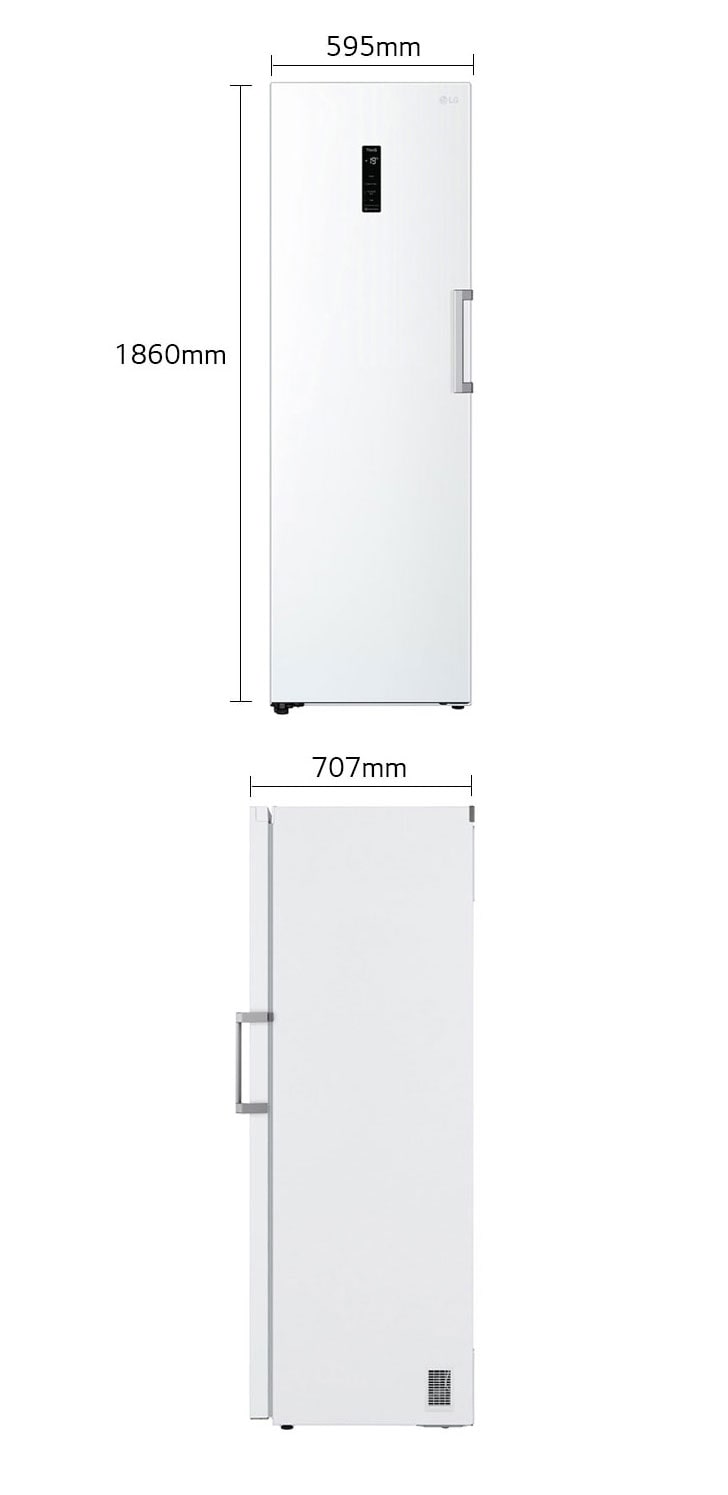

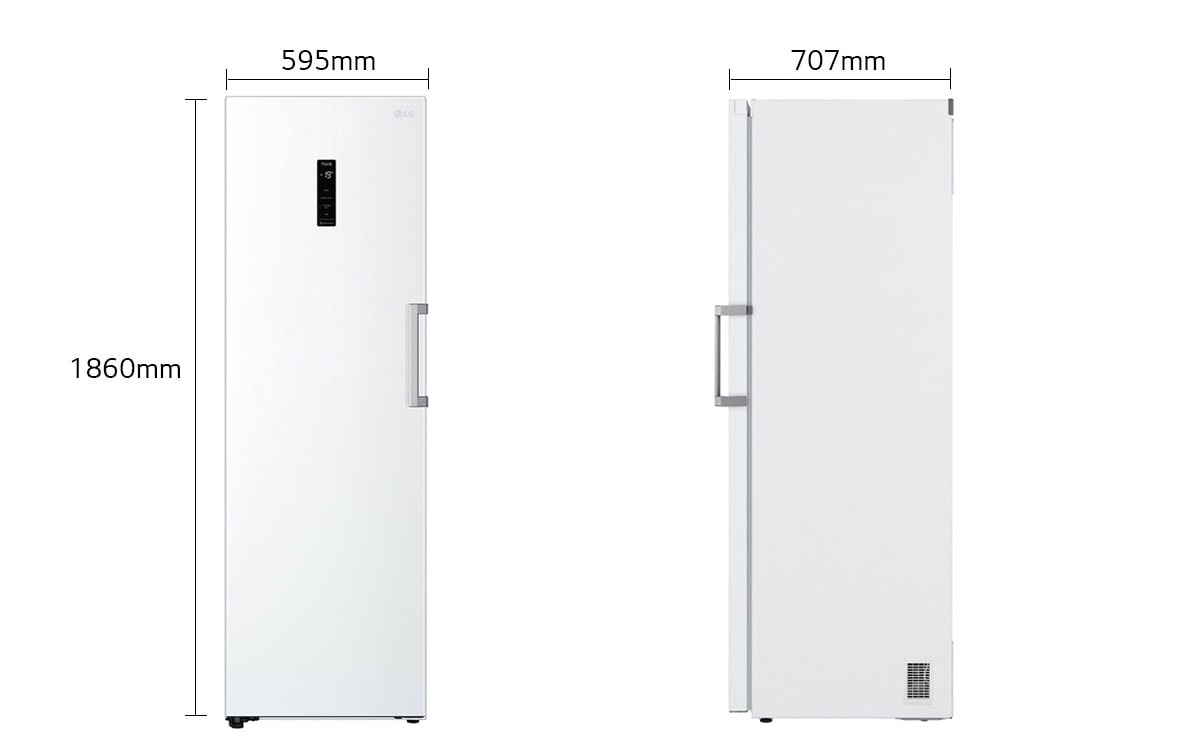

Dimensions
GC-B514EQFM GC-B514EQFM
Summary
  • CAPACITY
    324L
  • DIMENSION
    595x1860x707
  • MAIN TECHNOLOGY
    Multi Air Flow
  • ADDITIONAL BENEFIT
    Express Freeze
CAPACITY(ℓ)
  • ISO Gross - Total
    355
    ISO Gross - Refrigerator
    355
  • ISO Storage - Total
    324
    ISO Storage - Freezer
    324
WEIGHT(KG)
  • Net / Packing
    74/82
Dimension(mm)
  • Height (Net) - to Top of Hinge (A)
    1860
    Height (Net) - to Top of Case (B)
    1858
  • Depth (Net) - without door (C)
    600
    Depth (Net) - without handle (D)
    666
  • Depth (Net) - including door & handle (E)
    707
    Width (Net)
    595
  • Width x Height x Depth - Product
    595x1860x707
    Width x Height x Depth - Packing
    658x1932x766
GENERAL FEATURES
  • Temp. control - Digital Sensors (RT Sensor)
    Yes
    Temp. control - Express Cool / Freeze
    Yes
  • Temp. control - Door alarm
    Yes
    Temp. control - Eco Friendly
    Yes
  • Temp. control - Power on/off
    Yes
    Clean Top
    Yes
  • Smart DiagnosisTM
    Yes
    Cooling System
    No Frost
  • Multi-Air Flow
    Yes (White Flat)
    Sound Power(dB)
    38dB
  • Refrigerant
    R600a
    Inverter Compressor
    Yes (BMK110NAMV)
  • Finish (Door)
    White

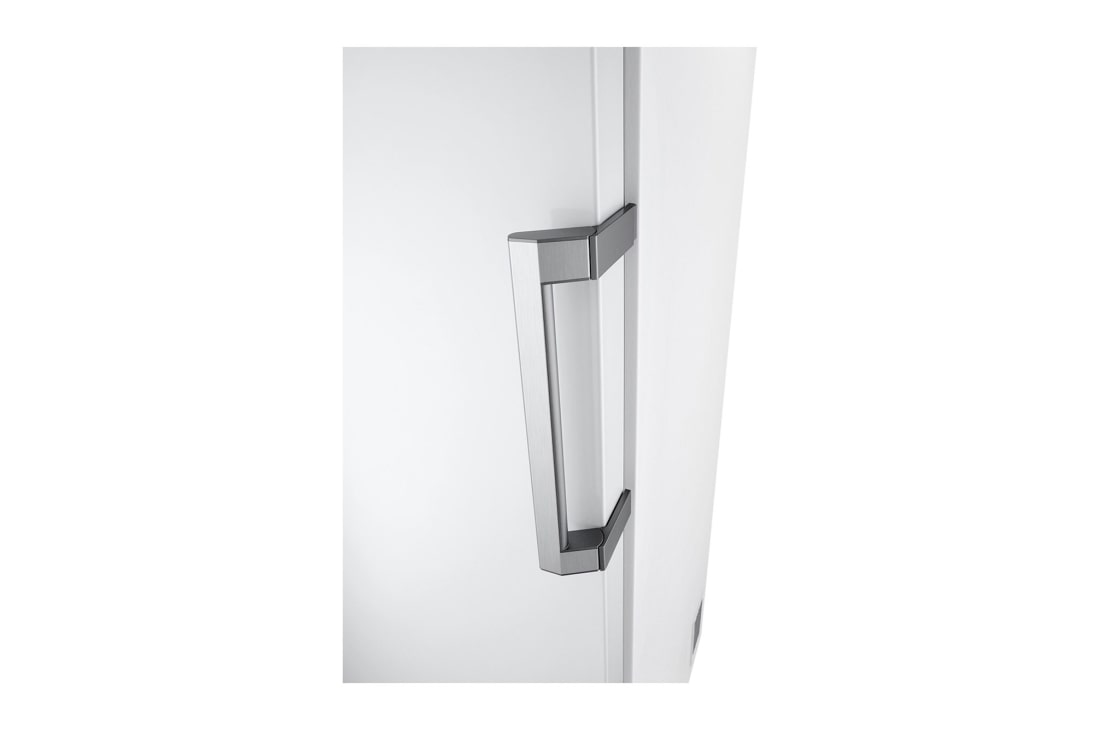

    Handle Type - Material
    Aluminum
  • Handle Type - Size
    Short
    Handle Type - Type
    Bar, Easy Open
  • Bio Shield (gasket)
    Yes
    Zero Clearance
    Yes
  • Reversible door
    Yes
FREEZER COMPARTMENT
  • Lamp
    Yes (LED)
    Ice maker - Twist - Moving Ice Maker
    Yes
  • Shelf - Tempered glass
    Yes (6)
    Drawer - Transparent
    Yes (4)
COMPLIANCE INFORMATION
