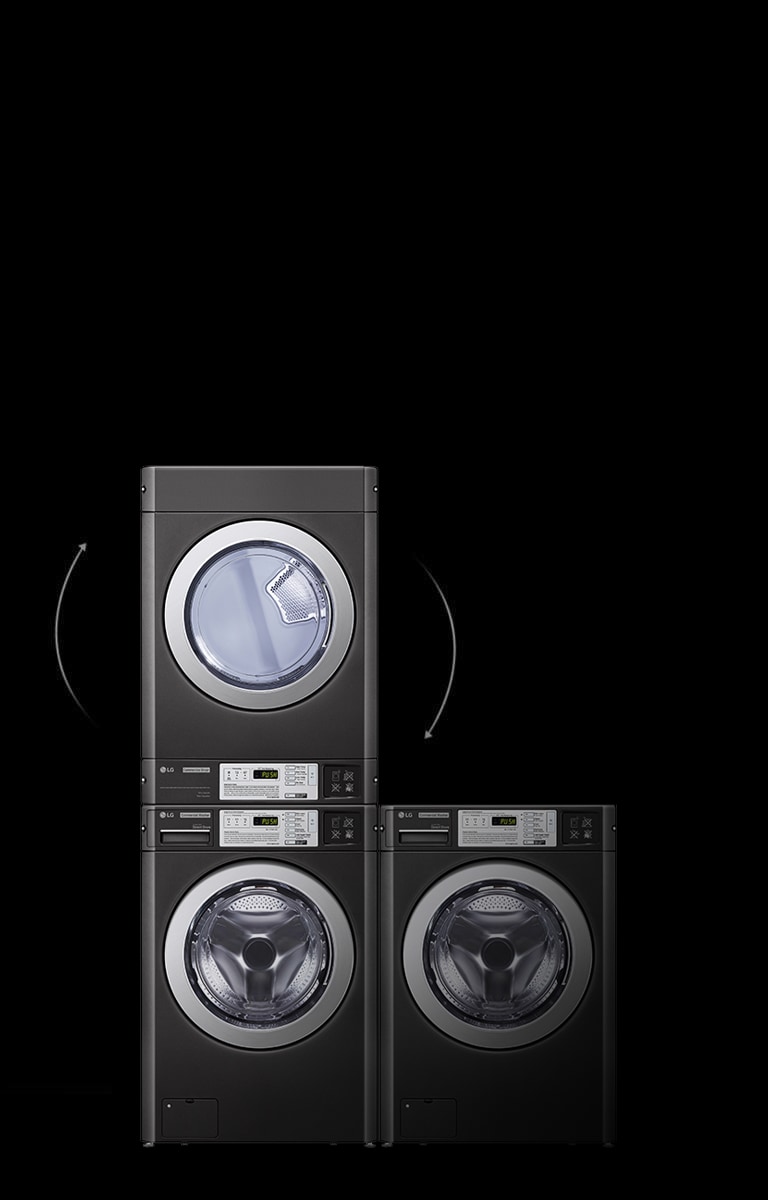

Building Blocks for Designing Your Space

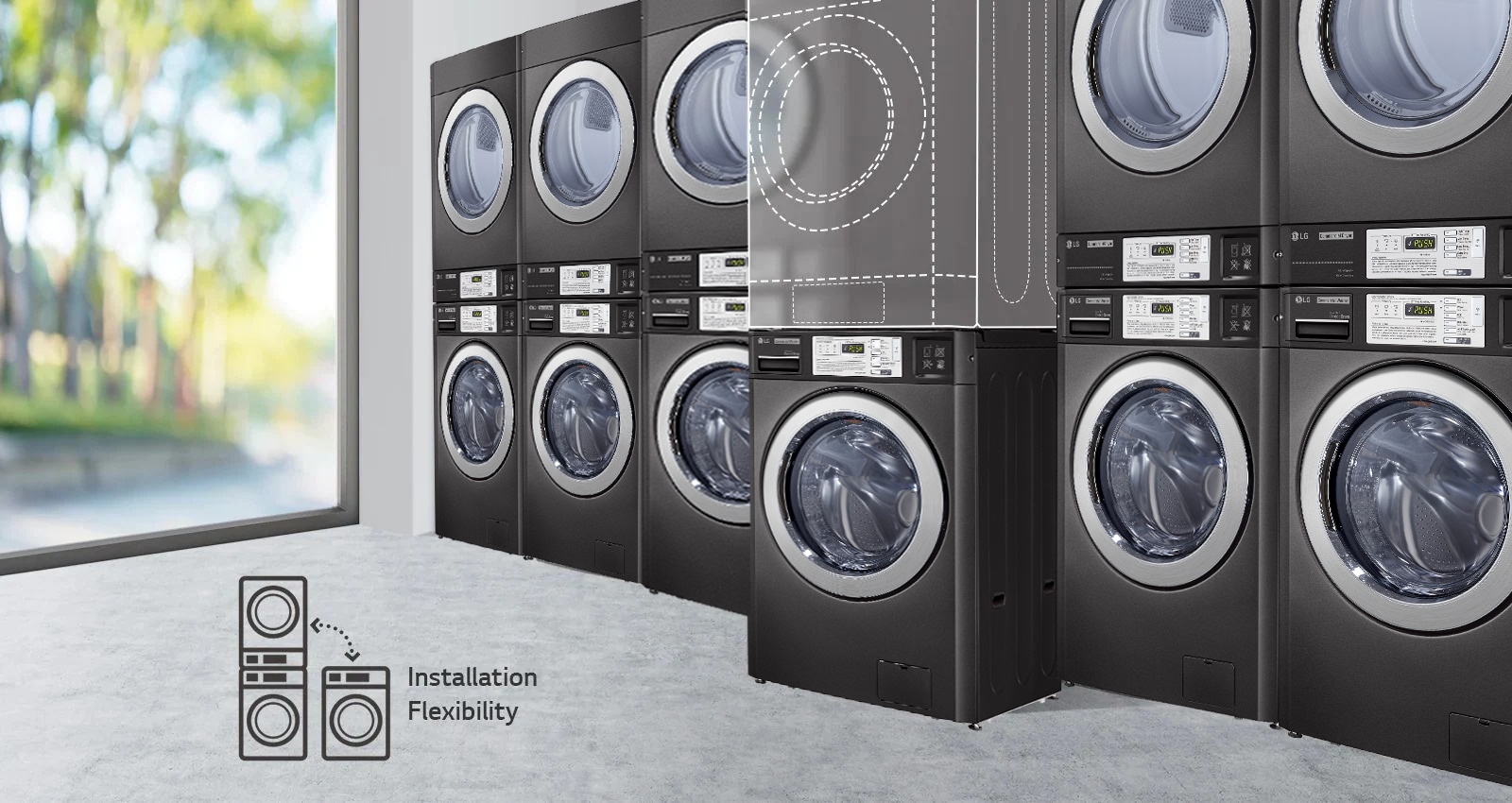

Flexible Installation
*Additional parts may be required for stacking/conversions.

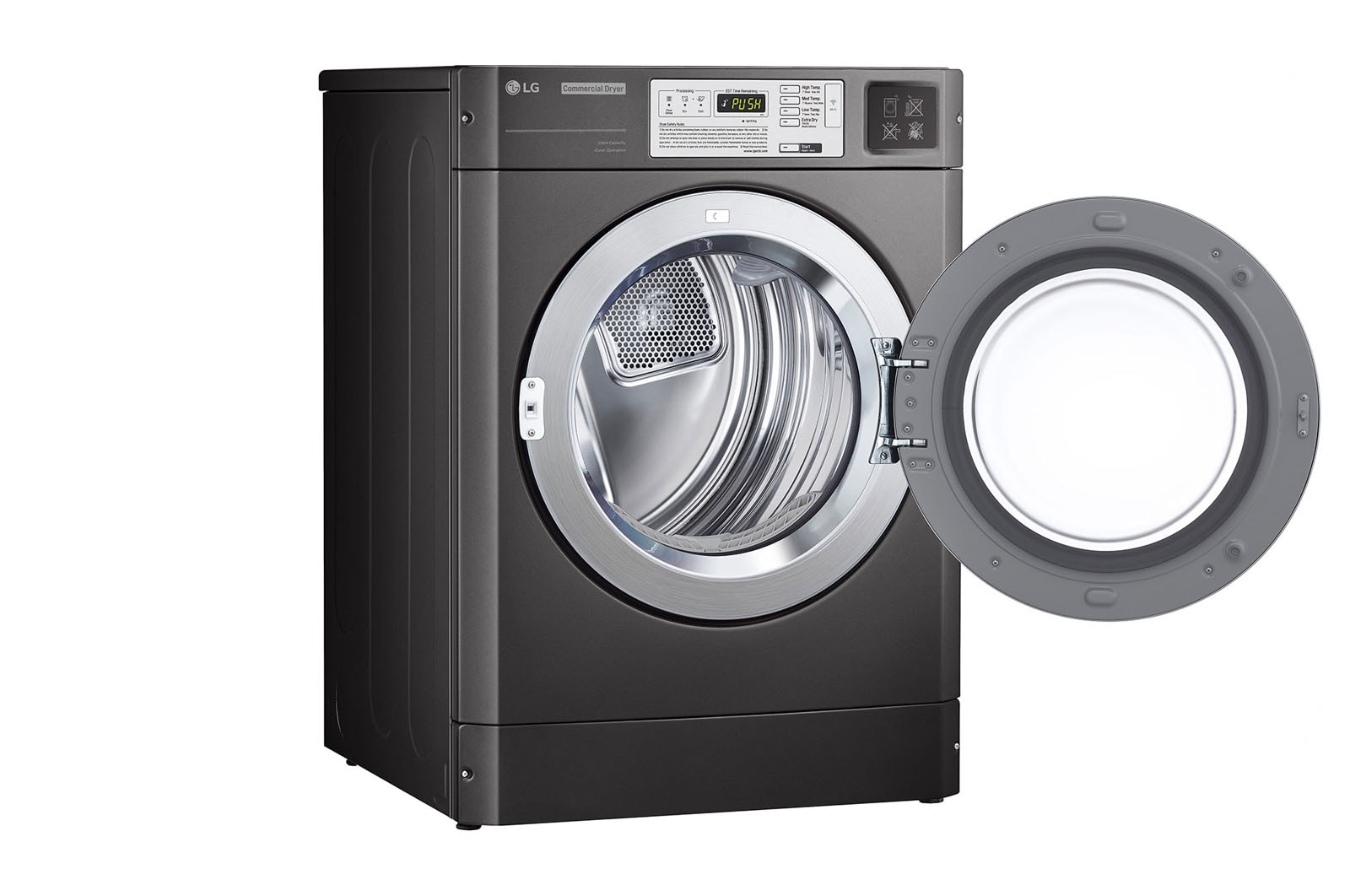

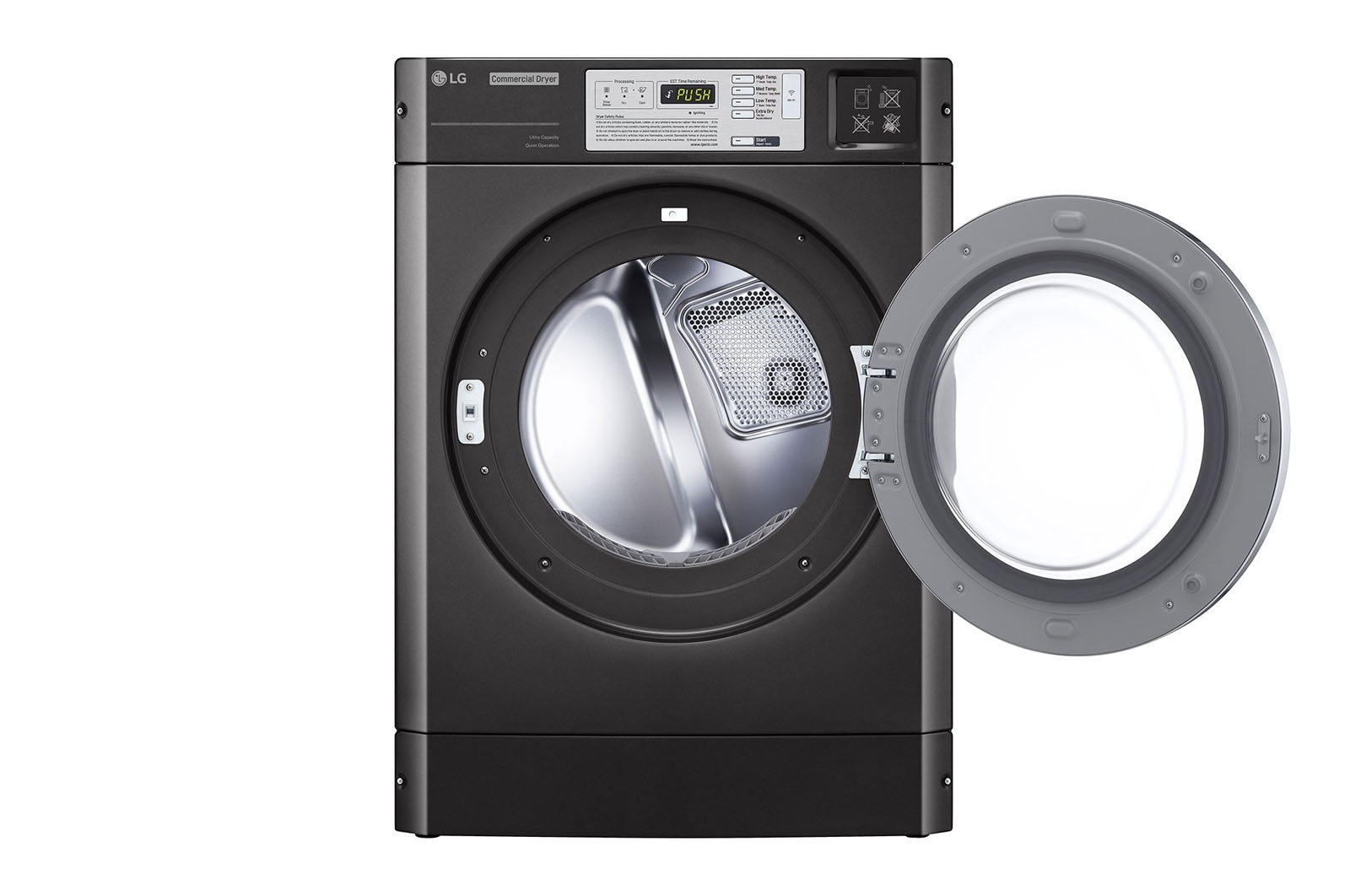

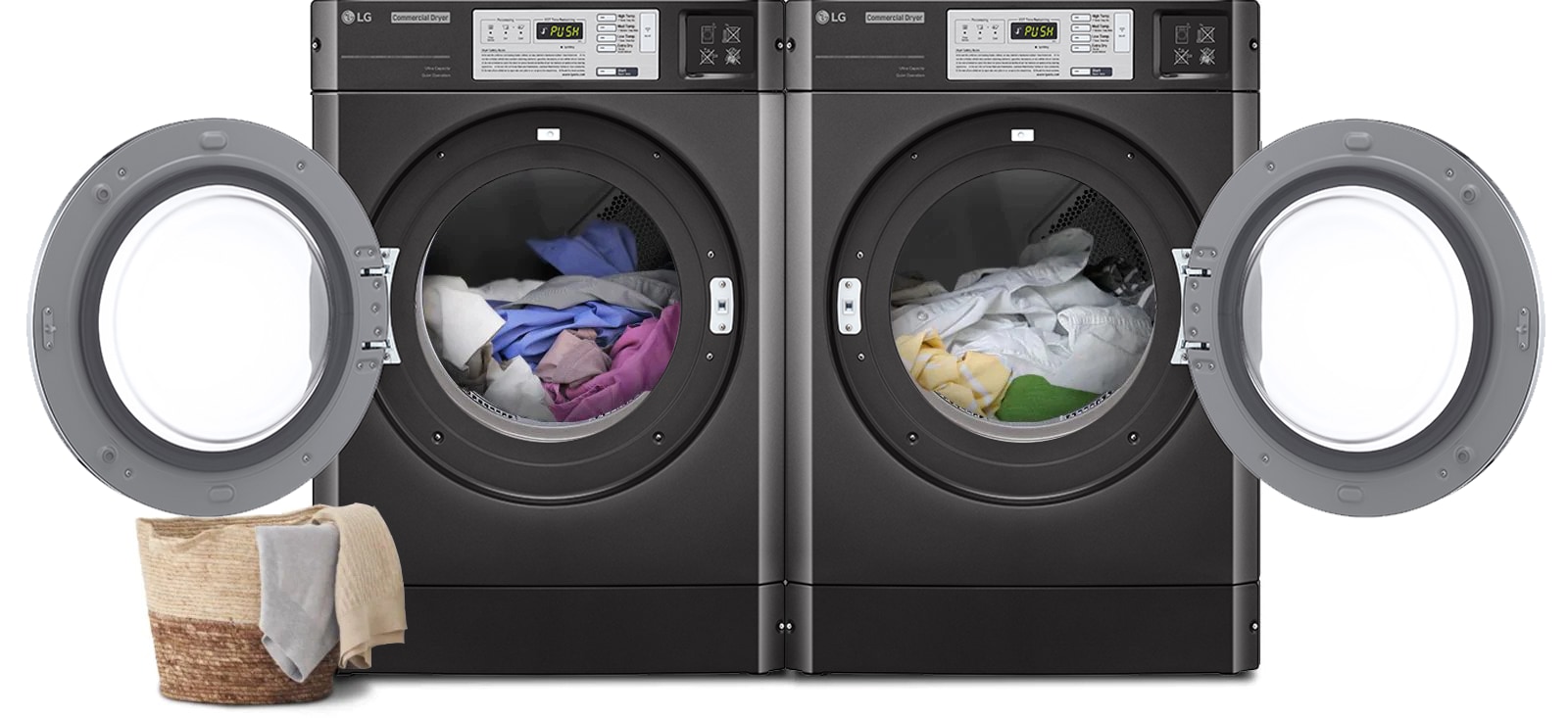

Easily Adaptive Door for Your Needs
Reversible door
*Reversible door is only available on dryers.
Easy & Fuss-free Repairs
Easy Front Repair
A Smarter Washing Machine
Smarter Convenience
*Wireless internet connection may be required for this function.
All Spec
CYLINDER
Drum Volume - cu.ft (l)
9.0 (254)
Diameter - in. (mm)
28.2 (716)
Depth - in. (mm)
24.2 (614)
DIMENSIONS
Product (WxHxD) - in
29 x 40.2 x 31.9
Product (WxHxD) - mm
737 x 1,022 x 810
With Door Open - in. (mm)
51.6 (1310)
Carton (WxHxD) - in
31.5 x 45.6 x 33.8
Carton (WxHxD) - mm
800 x 1158x 858
Weight (Product/Carton) - lb (kg)
150 (68.2) / 167 (75.8)
RATING⁰⁾
Electric Ratings-V/Hz/A
220/60/5
CONSUMPTION INDEX(PER CYCLE)⁰⁾
Electricity-kW
0.35
SYSTEM & CONTROL
Heating Type
LPG
Type of Drying
Ventilation
Air Flow - CFM
210
Gas Ratings⁰⁾-kW/BTU
7.4 / 25,000
Motor - kW
0.35
"Program Duratin inMinutes(Default)⁰⁾"-min
40
CONNECTIONS
Air Outlet Diameter - in. (mm)
4 (100)
Exhaust Airflow Diameter - in. (mm)
4 (100)
PROGRAMS
Program List
High TempMed TempLow TempExtra Dry
EXTERNAL FINISH

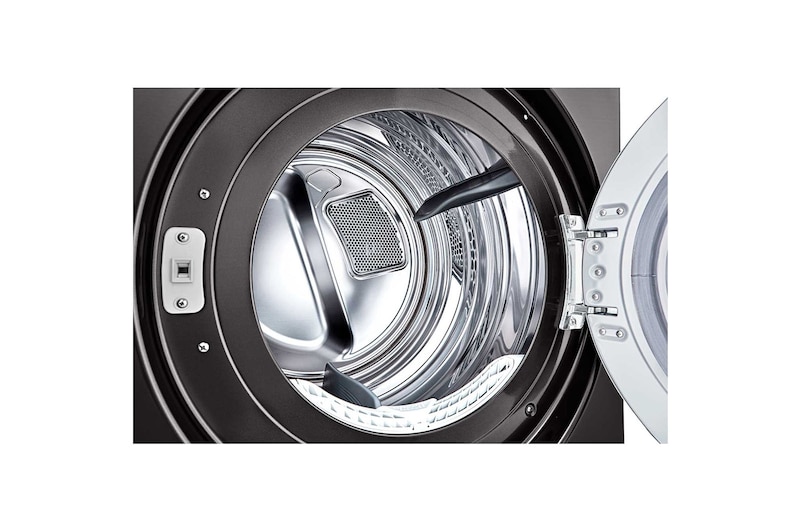

Drum
Stainless Steel
DISCLAIMER
Disclaimer
*Dimensions and weights are approximate.*Design, features, and specifications subject to change without notice.*Some models may not be available for sale in certain countries. *Model name may vary by country0) This specification is different by countries. For the most accurate information, please refer to service manual.1) Gas type depends on country sales model.
