Hydro Kit, High Temperature, 14kW

Hydro Kit, High Temperature, 14kW

ARNH04GK2A4

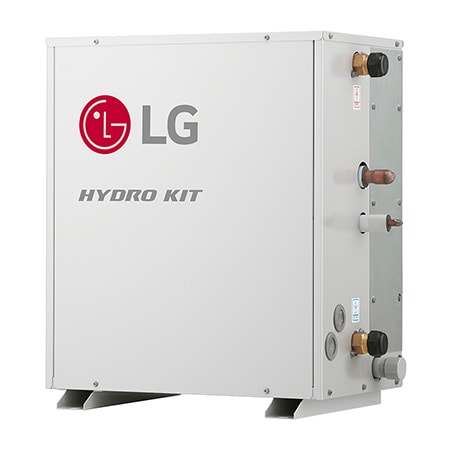

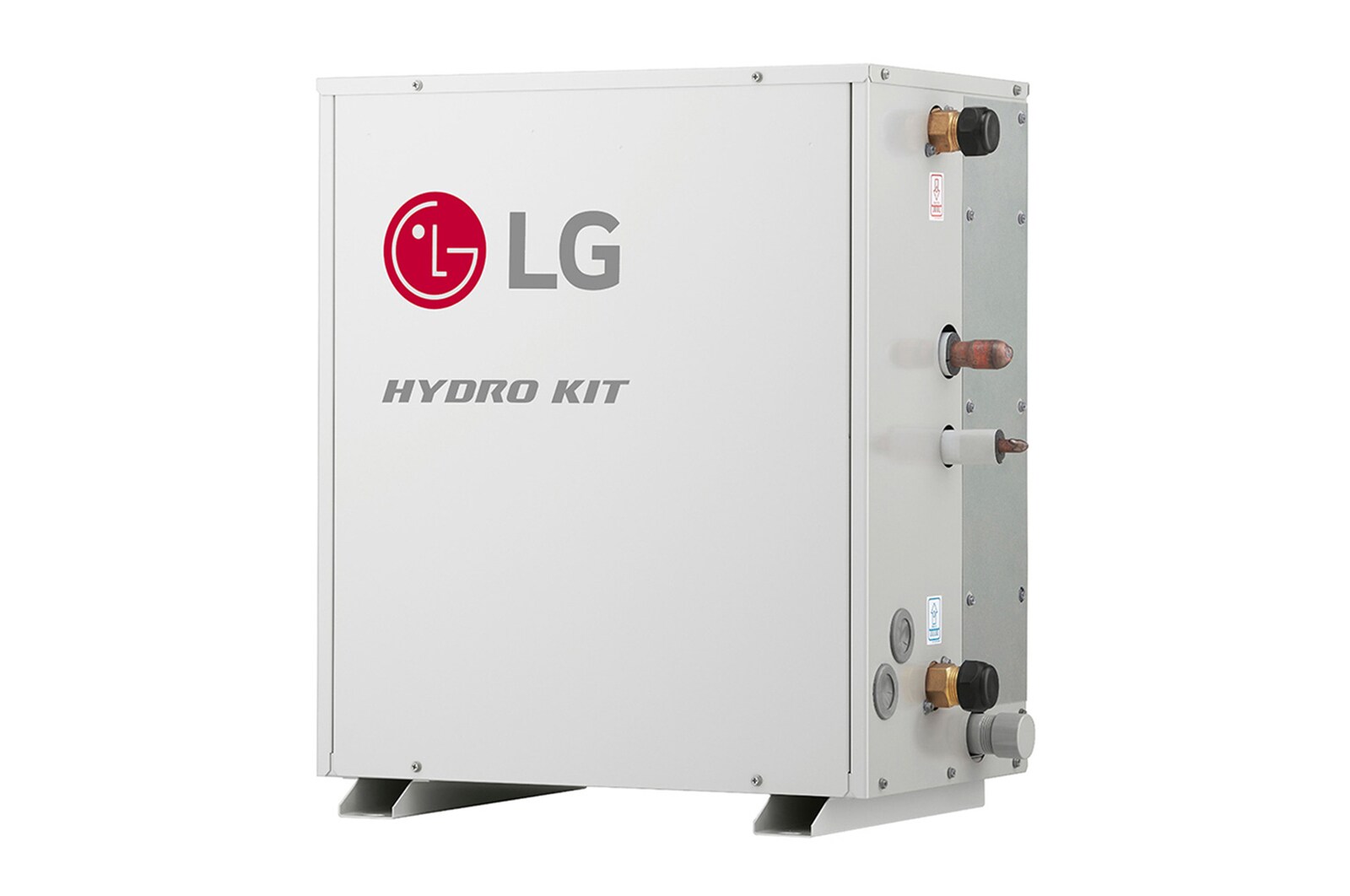

  • LG Hydro Kit ARNH04GK2A4 has a long rectangular parallelepiped shape and has several inlets on its side.
LG Hydro Kit ARNH04GK2A4 has a long rectangular parallelepiped shape and has several inlets on its side.

Key Features

  • Total Solution
  • Eco-conscious Solution
  • Various Applications

Integration Solution

Total solution provided with heat pump, air conditioning that is and domestic hot water supply.

Eco-Conscious Solution

Hydro Kit reduces CO2 emissions with its highly efficient solution.

Various Applications

Applicable to a variety of commercial facilities including hospitals, residences, and restaurants that need heating and domestic hot water supply.

Print

All Spec

POWER SUPPLY

  • Case 1 (V, Phase, Hz)

    220-230-240, 1, 50/60

  • Running Current by Voltage (Rated) (A)

    0.05-0.05-0.05

HEATING CAPACITY

  • Rated (kW)

    31.5

  • Rated (kcah/h)

    27100

  • Rated (Btu/h)

    107500

COOLING CAPACITY

  • Rated (kW)

    28

  • Rated (kcah/h)

    24100

  • Rated (Btu/h)

    95900

POWER INPUT(HEATING)

  • Rated (kW)

    0.01

  • Rated (W)

    10

POWER INPUT(COOLING)

  • Rated (kW)

    0.01

  • Rated (W)

    10

REFRIGERANT(REFRIGERANT TO WATER)

  • Type

    R410A / R32

  • Additional Charging amount (kg)

    1.60 / 1.32

  • Control Type

    Electric Expansion Valve

HEAT EXCHANGER(REFRIGERANT TO WATER)

  • Type

    Brazed Plate HEX

  • Quantity (EA)

    1

  • Number of Plate (Sheet)

    48

  • Rated Water Flow (ℓ / min)

    92

  • Head Loss (kPa)

    69

TEMPERATURE CONTROL

  • Temperature Control

    Microprocessor, Thermostat for cooling and heating

WATER TANK TEMPERATURE SENSOR

  • Type(Sensor Holder) (inch)

    Male PT 1/2

  • Length (m)

    12

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing / Thermal Insulation Material

    Foamed polystrene

SAFETY DEVICE

  • Safety Device

    Fuse

REFRIGERANT PIPING CONNECTION

  • Liquid (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ22.2 (7/8)

WATER CONNECTING PIPES

  • Inlet (inch)

    Male PT 1

  • Outlet (inch)

    Male PT 1

DRAIN PIPING CONNECTION

  • Drain Piping Connection

    Male PT 1

SOUND PRESSURE LEVEL

  • Cooling / Heating (dB(A))

    26

DIMENSIONS

  • Net(W x H x D) (mm)

    520 x 631 x 330

  • Shipping(W x H x D) (mm)

    677 x 687 x 418

WEIGHT

  • Net (kg)

    35.5

  • Shipping (kg)

    39.7

EXTERIOR

  • Material

    Painted Steel Plate

  • Color

    Morning Gray

  • RAL Code

    RAL 7038

CONNECTING CABLE

  • Communication Cable(VCTF-SB) (mm² × cores)

    1.0~1.5 x 2C

PRODUCT

  • Type

    Hydro Kit

PRODUCT INFORMATION

To access more technical documentation and resources, please visit the LG B2B partner portal.
