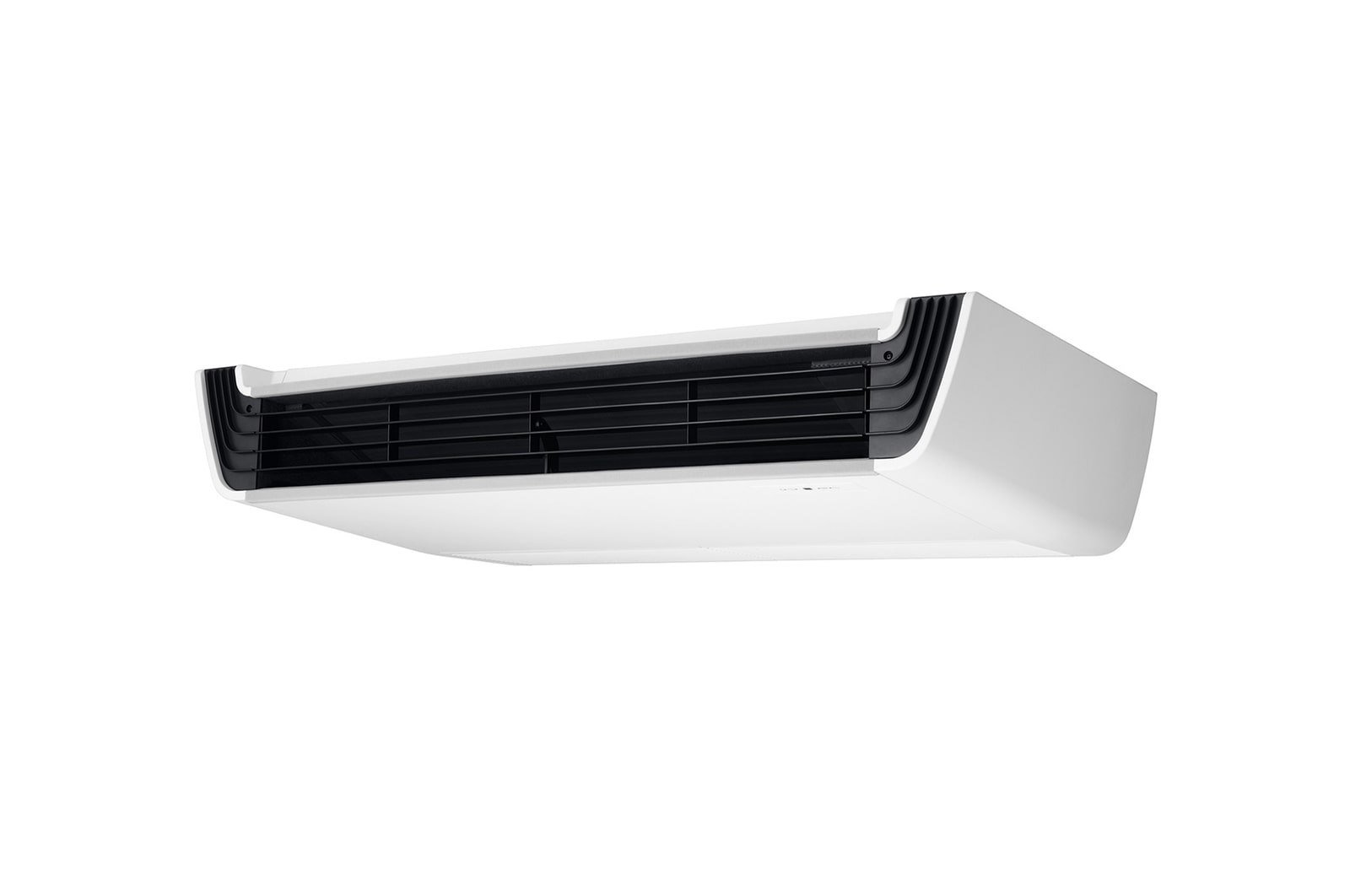

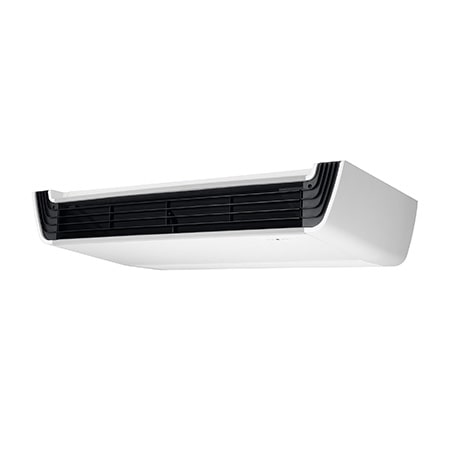

Ceiling Suspended, Indoor Unit, 18kBtu/h
Key Features
- Differentiated Design
- Powerful Cooling & Heating
- Air Flow Direction Control
Differentiated Design
iF Design Award-winning elegance of the Ceiling Suspended units comes with a stunning V-shaped design and black vane. It is appropriate for any commercial space.
Gallery
All Spec
POWER SUPPLY
-
Case 1
50/60 Hz 220-240 V~
-
Limit Range of Voltage(Case 1) (V)
220-240
COOLING CAPACITY
-
Nominal (kW)
5.60
-
Nominal (Btu/h)
19100
HEATING CAPACITY
-
Nominal (kW)
6.30
-
Nominal (Btu/h)
21500
POWER INPUT(INDOOR)
-
H/M/L (W)
23 / 20 / 17
RUNNING CURRENT(INDOOR)
-
H/M/L (A)
0.28 / 0.23 / 0.18
INDOOR FAN
-
Type
Cross Flow Fan
-
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
- / 13.5 / 12.5 / 12 .0
-
Air Flow Rate(Heating,(SH)/H/M/L) (m³/min)
13.5 / 12.5 / 12 .0
INDOOR FAN MOTOR
-
Type
BLDC
-
Drive
Direct
-
Output (W)
85.9
-
Output (No.)
1
HEAT EXCHANGER
-
Rows x Columns x FPI
3 × 18 × 18
-
No.
1
-
Face Area (m²)
0.32
DIMENSIONS
-
Net(W x H x D) (mm)
1200 x 235 x 690
WEIGHT
-
Net (kg)
29.0
-
Shipping (kg)
36.0
EXTERIOR
-
Color
Galvanized Steel Plate + Painting
TEMPERATURE CONTROL
-
Temperature Control
Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
-
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
PROTECTION DIVICE
-
Fuse
Fuse
REFRIGERANT
-
Type
R410A
-
Additional Charging amount (kg(each))
0.53
-
Control Type
EEV
DRAIN PIPE(USING DRAIN PUMP)
-
O.D / I.D (mm(inch))
Ø 25.0 / 16.0
CONNECTING PIPE
-
Liquid (mm(inch))
Φ6.35 (1/4)
-
Gas (mm(inch))
Φ12.7 (1/2)
PIPING CONNECTION TYPE
-
Liquid
Flare
-
Gas
Flare
SOUND PRESSURE LEVEL (INDOOR UNIT)
-
Cooling((SH)/H/M/L) (dB(A))
-/ 36 / 34 / 33
-
Heating((SH)/H/M/L) (dB(A))
36 / 34 / 33
MEASUREMENT STANDARD (PRESSURE LEVEL)
-
Measurement Standard (Pressure Level)
ISO 3745
SOUND POWER LEVEL (INDOOR UNIT)
-
Cooling((SH)/H/M/L) (dB(A))
-/ 61 / 59 / 56
-
Heating((SH)/H/M/L) (dB(A))
61 / 59 / 56
MEASUREMENT STANDARD (POWER LEVEL)
-
Measurement Standard (Power Level)
ISO 3741
CONNECTING CABLE
-
Communication Cable(VCTF-SB) (mm² × cores)
1.0 ~ 1.5 × 2C
ELECTRICAL CHARACTERISTIC
-
Minimium Circuit Amperes (MCA) (A)
1.21
-
Indoor Fan Motor_Full Load Amperes (FLA) (A)
0.97
PRODUCT
-
Type
Ceiling Suspended
-
