Ceiling Cassette, 4 Way Standard, Indoor Unit, 30kBtu/h

Features

Gallery

Specs

Support

Resource

Find a dealer

Ceiling Cassette, 4 Way Standard, Indoor Unit, 30kBtu/h

Ceiling Cassette, 4 Way Standard, Indoor Unit, 30kBtu/h

ARNU30GTPA4

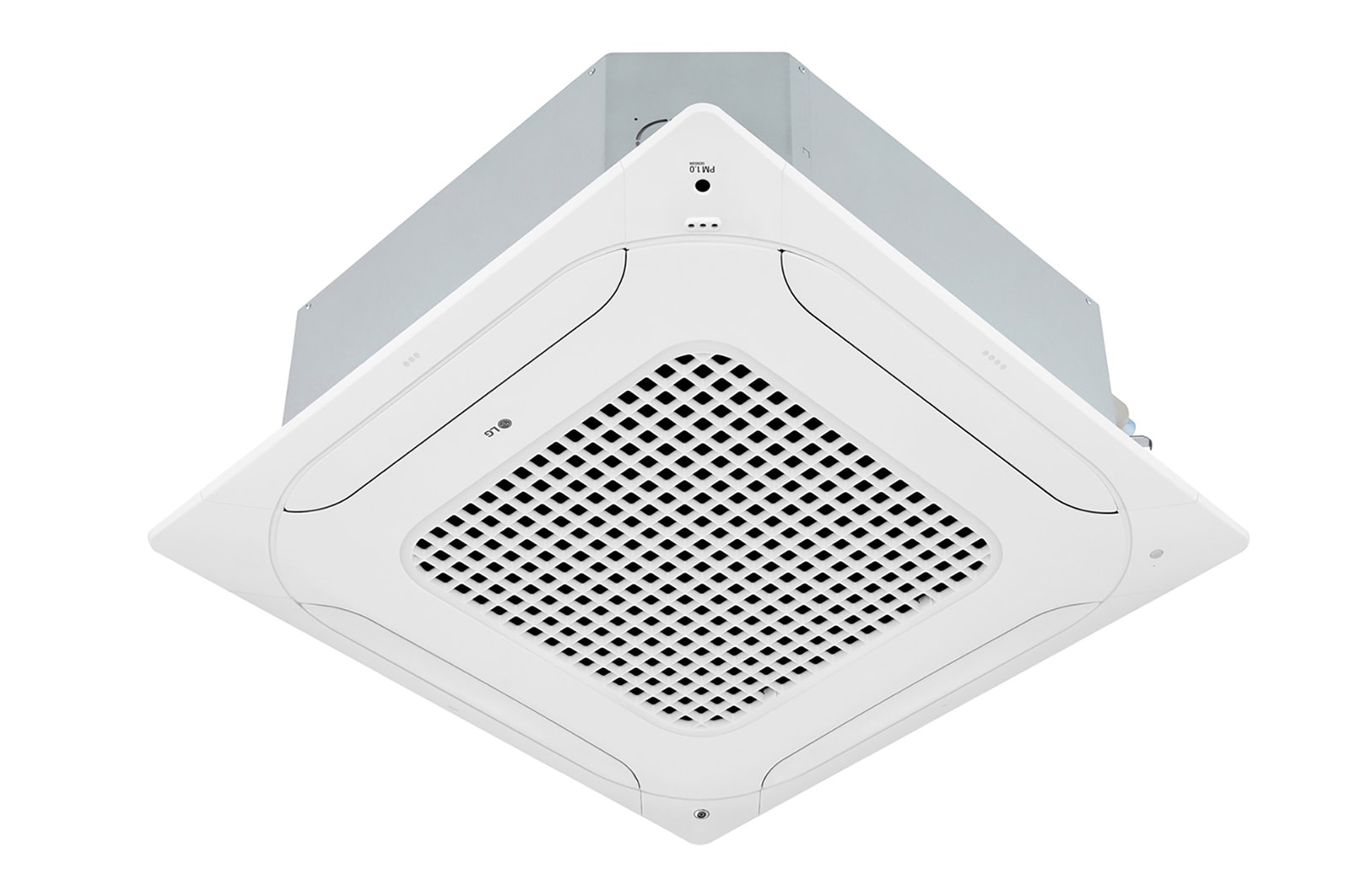

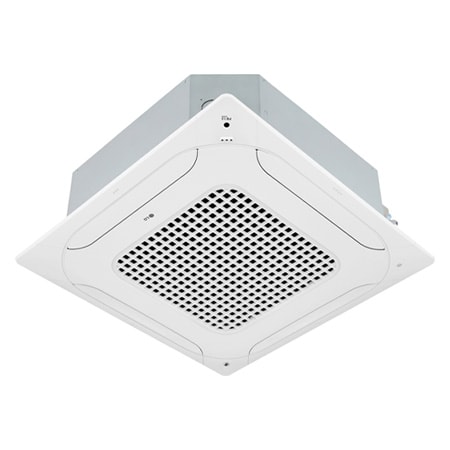

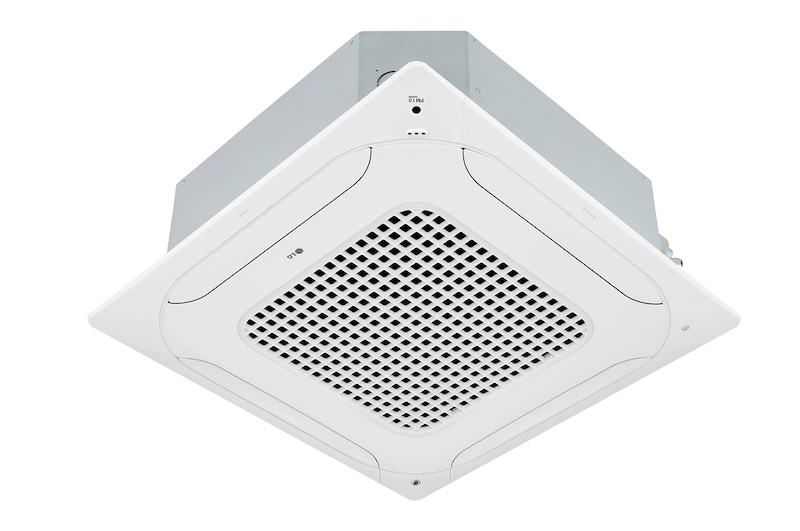

  • LG Ceiling Cassette ARNU30GTPA4 consists of a white top and bottom. At the bottom, there are fans in each of the four directions, so air can flow.
LG Ceiling Cassette ARNU30GTPA4 consists of a white top and bottom. At the bottom, there are fans in each of the four directions, so air can flow.

Key Features

  • 4 Way Air Flow with New Design
  • Convenient & Powerful 5-step Air Purification (Optional)
  • Human Detection Air Flow (Optional)

4 Way Air Flow

New dual vane 4-way cassette allows comfortable and convenient air flow. It operates 6 airflow modes including power mode, smart mode and refresh mode.

5-Step Air Purification (Optional)

A powerful air purification removes odor, germs, and invisible PM 1.0 fine dust. It is easy to manage air purification system with one-touch air purification filter.

Human Detection (Optional)

Human detection provides users with direct or indirect air flow preferences.

Print

All Spec

POWER SUPPLY

  • Case 1

    50 Hz 220-240 V~

  • Limit Range of Voltage(Case 1) (V)

    198~264

  • Case 2

    60 Hz 220 V~

  • Limit Range of Voltage(Case 2) (V)

    198~242

COOLING CAPACITY

  • Nominal (kW)

    9.00

  • Nominal (Btu/h)

    30 700

  • Sensible Heat (kW)

    6.50

  • Sensible Heat (Btu/h)

    22 179

HEATING CAPACITY

  • Nominal (kW)

    10.0

  • Nominal (Btu/h)

    34 100

POWER INPUT(INDOOR)

  • H/M/L (W)

    26 / 24 / 21

RUNNING CURRENT(INDOOR)

  • H/M/L (A)

    0.15 / 0.14 / 0.14

INDOOR FAN

  • Type

    Turbo Fan

  • Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)

    - / 24.3 / 22.8 / 19.5

  • Air Flow Rate(Heating,(SH)/H/M/L) (m³/min)

    - / 24.3 / 22.8 / 19.5

INDOOR FAN MOTOR

  • Type

    BLDC

  • Drive

    Direct

  • Output (W)

    30

HEAT EXCHANGER

  • Rows x Columns x FPI

    2 x 8 x 19

  • Face Area (m²)

    0.4

DIMENSIONS

  • Net(W x H x D) (mm)

    840 x 204 x 840

  • Shipping(W x H x D) (mm)

    922 x 276 x 917

WEIGHT

  • Net (kg)

    20.8

  • Shipping (kg)

    25.0

EXTERIOR

  • Color

    Morning Fog

  • RAL (Classic)

    RAL9001

AIR FILTER

  • Type

    Pre Filter

TEMPERATURE CONTROL

  • Temperature Control

    Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing / Thermal Insulation Material

    Foamed polystrene

PROTECTION DIVICE

  • Fuse

    O

REFRIGERANT

  • Type

    R410A / R32

  • Additional Charging amount (kg(each))

    0.32 / 0.26

  • Control Type

    EEV

DRAIN PIPE(USING DRAIN PUMP)

  • O.D / I.D (mm(inch))

    - / 25(1)

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

SOUND PRESSURE LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 40 / 36 / 33

  • Heating((SH)/H/M/L) (dB(A))

    - / 40 / 36 / 33

MEASUREMENT STANDARD (PRESSURE LEVEL)

  • Measurement Standard (Pressure Level)

    ISO 3745

SOUND POWER LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 58 / 57 / 54

  • Heating((SH)/H/M/L) (dB(A))

    - / 58 / 57 / 54

MEASUREMENT STANDARD (POWER LEVEL)

  • Measurement Standard (Power Level)

    ISO 9614

CONNECTING CABLE

  • Communication Cable(VCTF-SB) (mm² × cores)

    1.0~1.5 x 2C

ELECTRICAL CHARACTERISTIC

  • Minimium Circuit Amperes (MCA) (A)

    0.19

  • Indoor Fan Motor_Full Load Amperes (FLA) (A)

    0.15

PRODUCT

  • Type

    Ceiling Cassette

To access more technical documentation and resources, please visit the LG B2B partner portal.
