Case 1
50/60 Hz 220-240 V~
Limit Range of Voltage(Case 1) (V)
198 - 264
Nominal (kW)
10.60
Nominal (Btu/h)
36200
Nominal (kW)
11.9
Nominal (Btu/h)
40600
H/M/L (W)
84 / 77 / 66
H/M/L (A)
0.46/0.44/0.42
Type
Cross Flow Fan
Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)
-/27.0/24.0/20.0
Type
BLDC
Drive
Direct
Output (W)
125
Output (No.)
1
Rows x Columns x FPI
3 X 18 X 18
No.
1
Face Area (m²)
0.46
Net(W x H x D) (mm)
1600 x 235 x 690
Shipping(W x H x D) (mm)
1715 x 320 x 772
Net (kg)
37.0
Shipping (kg)
45.5
Temperature Control
Microprocessor, Thermostat for cooling and heating
Sound Absorbing / Thermal Insulation Material
Foamed polystrene
Fuse
Fuse
Type
R410A
Additional Charging amount (kg(each))
0.79
Control Type
EEV
O.D / I.D (mm(inch))
25.0 / 16.0
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Liquid
Flare
Gas
Flare
Cooling((SH)/H/M/L) (dB(A))
- / 48 / 46 / 44
Measurement Standard (Pressure Level)
ISO 3745
Cooling((SH)/H/M/L) (dB(A))
- /68 / 66 / 64
Measurement Standard (Power Level)
ISO 3741
Communication Cable(VCTF-SB) (mm² × cores)
1.0 ~ 1.5 × 2C
Minimium Circuit Amperes (MCA) (A)
1.21
Indoor Fan Motor_Full Load Amperes (FLA) (A)
0.97
Type

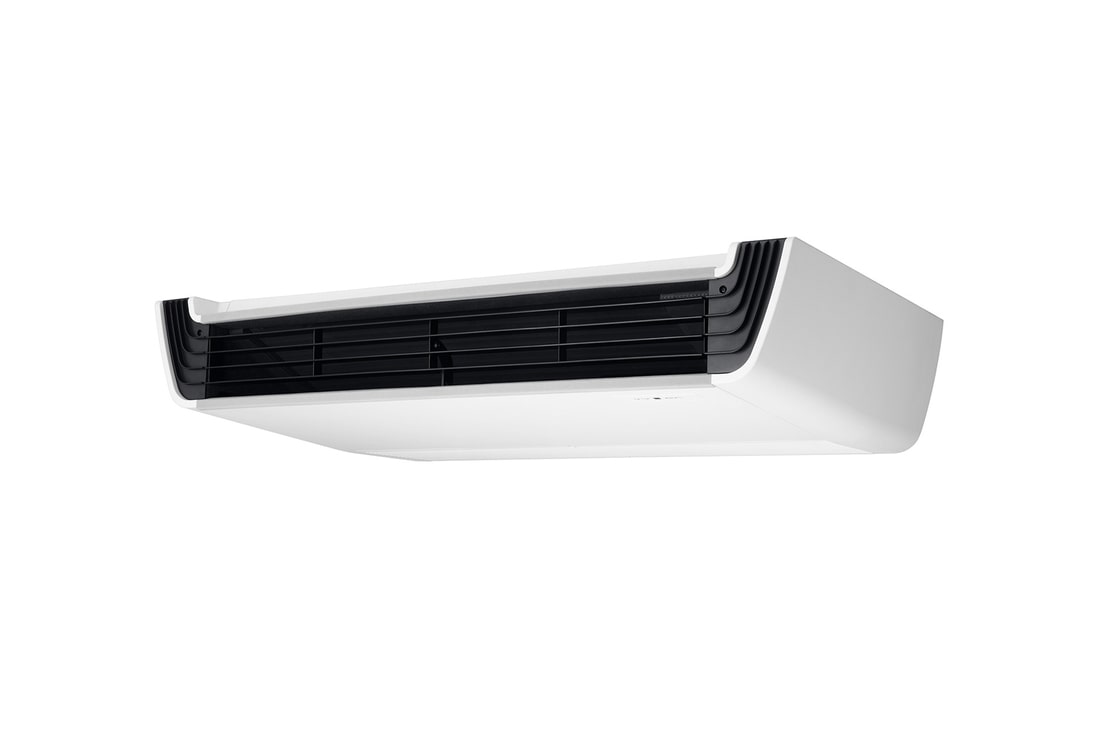

Ceiling Suspended
