Ceiling Cassette, 4 Way Dual Vane, Indoor Unit, 48kBtu/h

Ceiling Cassette, 4 Way Dual Vane, Indoor Unit, 48kBtu/h

ARNU48GTAB4

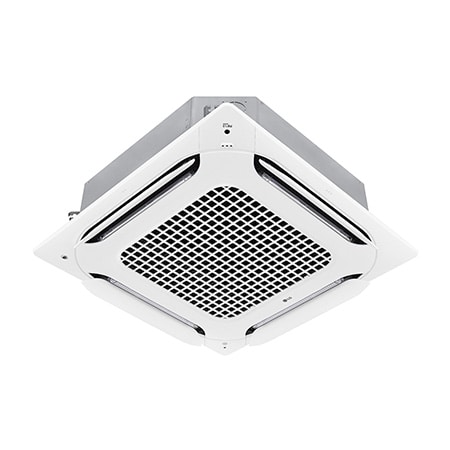

  • LG Dual Vane Cassette, Indoor Unit, ARNU48GTAB4 is a square shape, and air can extend in four ways.
LG Dual Vane Cassette, Indoor Unit, ARNU48GTAB4 is a square shape, and air can extend in four ways.

Key Features

  • 4 Way Air Flow with New Design
  • Convenient & Powerful 5-step Air Purification (Optional)
  • Human Detection Air Flow (Optional)

4 Way Air Flow

New dual vane 4-way cassette allows comfortable and convenient air flow. It operates 6 airflow modes including power mode, smart mode and refresh mode.

5-Step Air Purification (Optional)

A powerful air purification removes odor, germs, and invisible PM 1.0 fine dust. It is easy to manage air purification system with one-touch air purification filter.

Human Detection (Optional)

Human detection provides users with direct or indirect air flow preferences.

Print

All Spec

POWER SUPPLY

  • Case 1

    50/60 Hz 220-240 V~

  • Limit Range of Voltage(Case 1) (V)

    198 ~ 264

  • Case 2

    50/60 Hz 220-240 V~

COOLING CAPACITY

  • Nominal (kW)

    14.10

  • Nominal (Btu/h)

    48100

  • Sensible Heat (Btu/h)

    34804

HEATING CAPACITY

  • Nominal (kW)

    15.9

  • Nominal (Btu/h)

    54200

POWER INPUT(INDOOR)

  • H/M/L (W)

    110 / 76 / 61

RUNNING CURRENT(INDOOR)

  • H/M/L (A)

    0.95 / 0.69 / 0.56

INDOOR FAN

  • Type

    3D Turbo Fan

  • Air Flow Rate(H/M/L) (m³/min)

    34 / 30 / 28

INDOOR FAN MOTOR

  • Type

    Brushless DC

  • Drive

    Direct

  • Output (W)

    135

  • Output (No.)

    1

HEAT EXCHANGER

  • Rows x Columns x FPI

    3 x 12 x 21

  • No.

    1

  • Face Area (m²)

    0.50

DIMENSIONS

  • Net(W x H x D) (mm)

    840 x 288 x 840

  • Shipping(W x H x D) (mm)

    922 x 360 x 917

WEIGHT

  • Net (kg)

    27

  • Shipping (kg)

    31.5

EXTERIOR

  • Color

    White

AIR FILTER

  • Type

    Long life filter

TEMPERATURE CONTROL

  • Temperature Control

    Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing / Thermal Insulation Material

    Foamed polystrene

REFRIGERANT

  • Type

    R410A/R32

  • Additional Charging amount (kg(each))

    0.49 / 0.41

  • Control Type

    EEV

DRAIN PIPE(USING DRAIN PUMP)

  • O.D / I.D (mm(inch))

    32 / 25

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

PIPING CONNECTION TYPE

  • Liquid

    Flare

  • Gas

    Flare

SOUND PRESSURE LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 48 / 44 / 42

  • Heating((SH)/H/M/L) (dB(A))

    - / 48 / 44 / 42

SOUND POWER LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 58 / 54 / 53

  • Heating((SH)/H/M/L) (dB(A))

    - / 58 / 54 / 53

CONNECTING CABLE

  • Communication Cable(VCTF-SB) (mm² × cores)

    1.0~1.5 x 2

ELECTRICAL CHARACTERISTIC

  • Minimium Circuit Amperes (MCA) (A)

    2.29

  • Indoor Fan Motor_Full Load Amperes (FLA) (A)

    1.83

PRODUCT

  • Type

    Dual Vane

PRODUCT INFORMATION

To access more technical documentation and resources, please visit the LG B2B partner portal.
