Ceiling Cassette, 4 Way Standard, Indoor Unit, 48kBtu/h

Features

Gallery

Specs

Support

Resource

Find a dealer

Ceiling Cassette, 4 Way Standard, Indoor Unit, 48kBtu/h

Ceiling Cassette, 4 Way Standard, Indoor Unit, 48kBtu/h

ARNU48GTMA4

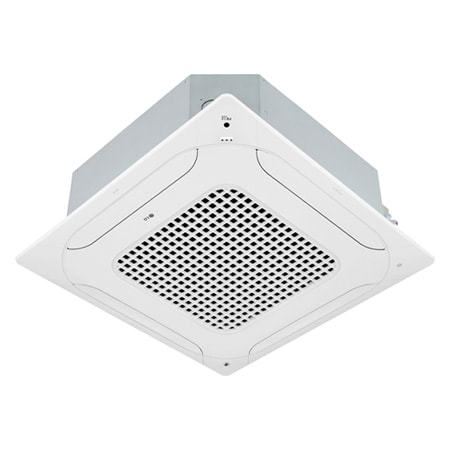

  • LG Ceiling Cassette ARNU48GTMA4 consists of a white top and bottom. At the bottom, there are fans in each of the four directions, so air can flow.
LG Ceiling Cassette ARNU48GTMA4 consists of a white top and bottom. At the bottom, there are fans in each of the four directions, so air can flow.

Key Features

  • 4 Way Air Flow with New Design
  • Convenient & Powerful 5-step Air Purification (Optional)
  • Human Detection Air Flow (Optional)

4 Way Air Flow

New dual vane 4-way cassette allows comfortable and convenient air flow. It operates 6 airflow modes including power mode, smart mode and refresh mode.

5-Step Air Purification (Optional)

A powerful air purification removes odor, germs, and invisible PM 1.0 fine dust. It is easy to manage air purification system with one-touch air purification filter.

Human Detection (Optional)

Human detection provides users with direct or indirect air flow preferences.

Print

All Spec

POWER SUPPLY

  • Case 1

    50 Hz 220-240 V~

  • Limit Range of Voltage(Case 1) (V)

    198~264

  • Case 2

    60 Hz 220 V~

  • Limit Range of Voltage(Case 2) (V)

    198~242

COOLING CAPACITY

  • Nominal (kW)

    14.10

  • Nominal (Btu/h)

    48 100

  • Sensible Heat (kW)

    10.2

  • Sensible Heat (Btu/h)

    34 804

COOLING/HEATING CAPACITY

  • Rated (W)

    15.9

POWER INPUT(INDOOR)

  • H/M/L (W)

    89 / 84 / 78

RUNNING CURRENT(INDOOR)

  • H/M/L (A)

    0.51 / 0.48 / 0.46

INDOOR FAN

  • Type

    Turbo Fan

  • Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)

    - / 31 / 29 / 27

  • Air Flow Rate(Heating,(SH)/H/M/L) (m³/min)

    - / 31 / 29 / 27

INDOOR FAN MOTOR

  • Type

    BLDC

  • Drive

    Direct

  • Output (W)

    135

HEAT EXCHANGER

  • Rows x Columns x FPI

    2 x 12 x 19

  • Face Area (m²)

    0.57

DIMENSIONS

  • Net(W x H x D) (mm)

    840 x 288 x 840

  • Shipping(W x H x D) (mm)

    922 x 360 x 917

WEIGHT

  • Net (kg)

    25.6

  • Shipping (kg)

    30.2

EXTERIOR

  • Color

    Morning Fog

  • RAL (Classic)

    RAL 9001

AIR FILTER

  • Type

    Pre Filter

TEMPERATURE CONTROL

  • Temperature Control

    Microprocessor, Thermostat for cooling and heating

SOUND ABSORBING THERMAL INSULATION MATERIAL

  • Sound Absorbing / Thermal Insulation Material

    Foamed polystrene

PROTECTION DIVICE

  • Fuse

    O

REFRIGERANT

  • Type

    R410A / R32

  • Additional Charging amount (kg(each))

    0.49 / 0.41

  • Control Type

    EEV

DRAIN PIPE(USING DRAIN PUMP)

  • O.D / I.D (mm(inch))

    - / 25(1)

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

PIPING CONNECTION TYPE

  • Liquid

    Flare

  • Gas

    Flare

SOUND PRESSURE LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 46 / 43 / 41

  • Heating((SH)/H/M/L) (dB(A))

    - / 46 / 43 / 41

MEASUREMENT STANDARD (PRESSURE LEVEL)

  • Measurement Standard (Pressure Level)

    ISO 3745

SOUND POWER LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 60 / 56 / 55

  • Heating((SH)/H/M/L) (dB(A))

    - / 60 / 56 / 55

MEASUREMENT STANDARD (POWER LEVEL)

  • Measurement Standard (Power Level)

    ISO 9614

CONNECTING CABLE

  • Communication Cable(VCTF-SB) (mm² × cores)

    1.0~1.5 x 2C

ELECTRICAL CHARACTERISTIC

  • Minimium Circuit Amperes (MCA) (A)

    0.71

  • Indoor Fan Motor_Full Load Amperes (FLA) (A)

    0.56

PRODUCT

  • Type

    Ceiling Cassette

To access more technical documentation and resources, please visit the LG B2B partner portal.
