MULTI V 5 PRO, Cooling Only, Outdoor Unit, 20HP, R410A

MULTI V 5 PRO, Cooling Only, Outdoor Unit, 20HP, R410A

MULTI V 5 PRO, Cooling Only, Outdoor Unit, 20HP, R410A

ARUV201LLS5

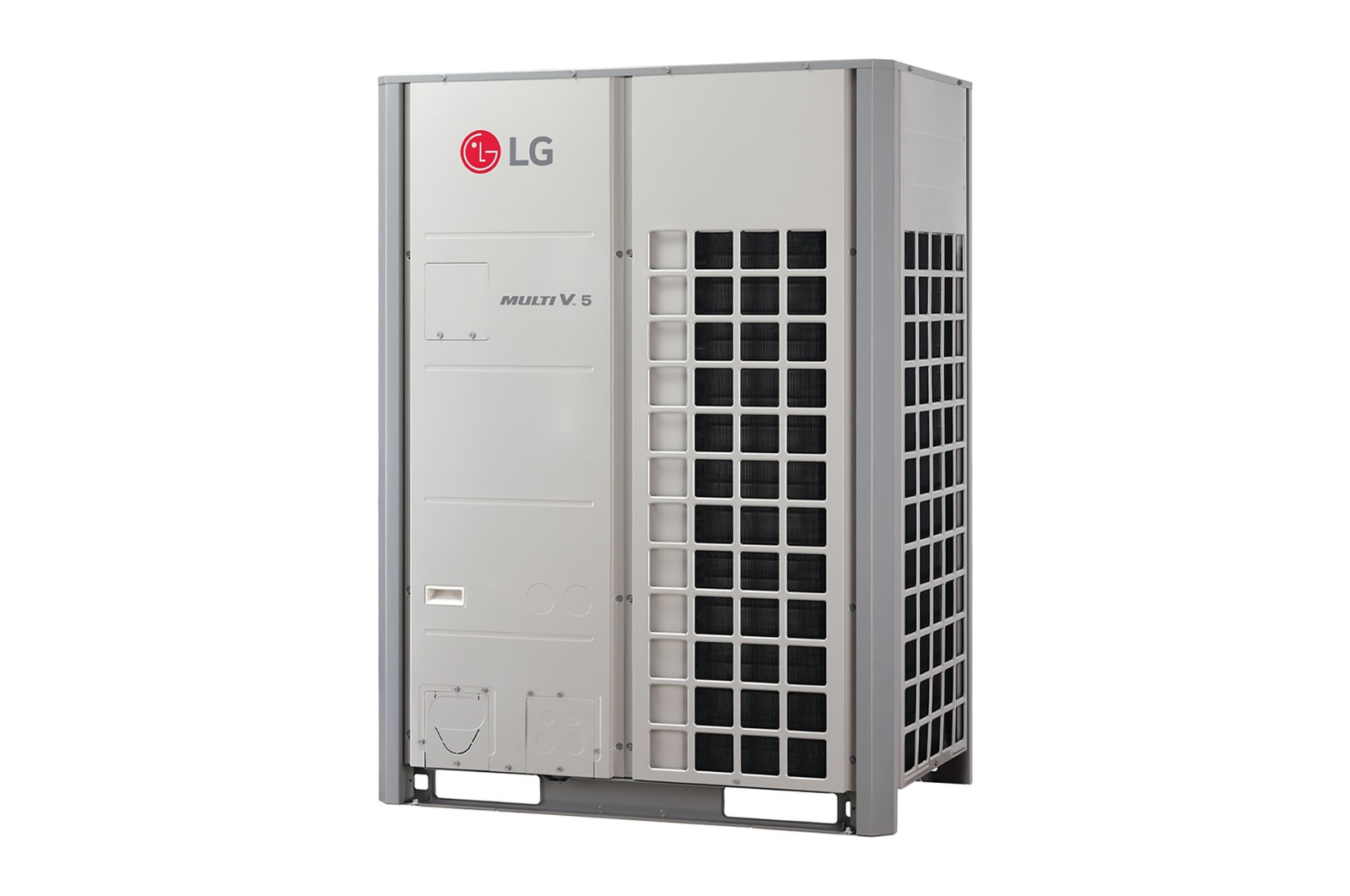

LG MULTI V 5 ARUV201LLS5 outdoor unit, 20HP, square-shaped ducts on the front and right side of the unit.
LG MULTI V 5 ARUV201LLS5 outdoor unit, 20HP, square-shaped ducts on the front and right side of the unit.

Key Features

  • Reliable Inverter Compressor
  • Dual Sensing Smart Load Control
  • Corrosion Resistance

High Reliability

MULTI V 5 PRO is equipped with the 5th generation inverter compressor. It reduces vibration and bearing loads, and increases bearing performance in oil-free operation.

Dual Sensing Control

Dual Sensing Control senses both humidity and temperature. Also, it controls temperature and amount of air according to the surrounding environment for economical and comfortable operation.

Corrosion Resistance

LG’s exclusive “Black Fin” heat exchanger brings durability and long-lasting performance. This coating offers strong protection from various corrosive external substances.

Print

All Spec

POWER SUPPLY

  • Case 1 (V, Phase, Hz)

    50/60 Hz 380-415 V 3N~

  • Limit Range of Voltage(Case 1) (V)

    342 - 456

  • Case 2 (V, Phase, Hz)

    60 Hz 380 V 3N~

  • Limit Range of Voltage(Case 2) (V)

    342 - 418

COOLING CAPACITY

  • Rated (kW)

    56

  • Rated (Btu/h)

    191100

POWER INPUT(COOLING)

  • Rated (kW)

    14.10

EFFICIENCY

  • EER(Rated) (W/W)

    3.97

POWER FACTOR(COOLING/HEATING)

  • Rated

    0.93 / -

OUTDOOR FAN

  • Type

    Propeller fan

  • Air Flow Rate(High) (m³/min x No.)

    320 x 1

  • Discharge direction(Side / Top)

    Top

OUTDOOR FAN MOTOR

  • Type

    BLDC

  • Drive

    DC INVERTER

  • Output (W x No.)

    900 × 2

COMPRESSOR

  • Type

    Hermetically Sealed Scroll

  • Piston Displacement (cm³/rev)

    87.6

  • Number of Revolution (rev./min)

    3600

  • Motor Output (W x No.)

    7,500 x 1

  • Starting Method

    Inverter

  • Oil Type

    FW68L(PVE)

HEAT EXCHANGER

  • Type

    Fin & Tube

  • No.

    1

  • Fin Type

    Wide Louver Plus

DIMENSIONS

  • Net(W x H x D) (mm)

    1240 x 1690 x 760

  • Shipping(W x H x D) (mm)

    - x - x -

WEIGHT

  • Net (kg)

    221

  • Shipping (kg)

    233

EXTERIOR

  • Color

    Morning Gray / Dawn Gray

  • RAL (Classic)

    RAL 7038 / RAL 7037

PROTECTION DEVICE

  • High Pressure Prevention

    High pressure sensor / High pressure switch

  • Discharge Tempreature Control

    O

  • Compressor/Fan Protection

    Over-heat protection / Fan driver overload protector

  • Inverter Protection

    Over-heat protection / Over-current protection

REFRIGERANT

  • Type

    R410A

  • Precharged Amount (kg)

    7.5

  • GWP(Global Warming Potential)

    2087.5

  • t-CO₂ eq.

    15.656

  • Control Type

    Electronic Expansion Valve

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ15.88 (5/8)

  • Gas (mm(inch))

    Φ28.58 (1-1/8)

PIPING CONNECTION TYPE

  • Liquid

    Brazing

  • Gas

    Brazing

SOUND PRESSURE LEVEL (OUTDOOR UNIT)

  • Cooling / Heating (dB(A))

    63 / -

MEASUREMENT STANDARD (PRESSURE LEVEL)

  • Measurement Standard (Pressure Level)

    ISO 3745

SOUND POWER LEVEL (OUTDOOR UNIT)

  • Cooling / Heating (dB(A))

    86 / -

MEASUREMENT STANDARD (POWER LEVEL)

  • Measurement Standard (Power Level)

    ISO 9614

CONNECTING CABLE

  • Communication Cable(VCTF-SB) (mm² × cores)

    1.0 ~1.5 X 2C

ELECTRICAL CHARACTERISTIC

  • Minimium Circuit Amperes (MCA) (A)

    35.5

  • Maximum Fuse Amperes (MFA) (A)

    40

  • Total Over Current Amperes (TOCA) (A)

    39.0

  • Comp_Maximum Starting Current (MSC) (A)

    7.5

  • Comp_Rated Load Amperes (Cooling) (A)

    20.5

  • Outdoor Fan Motor_Full Load Amperes (FLA) (A)

    2.5

CONNECTABLE INDOOR UNITS NUMBER

  • Max. (Conditional) (EA)

    32(50)
