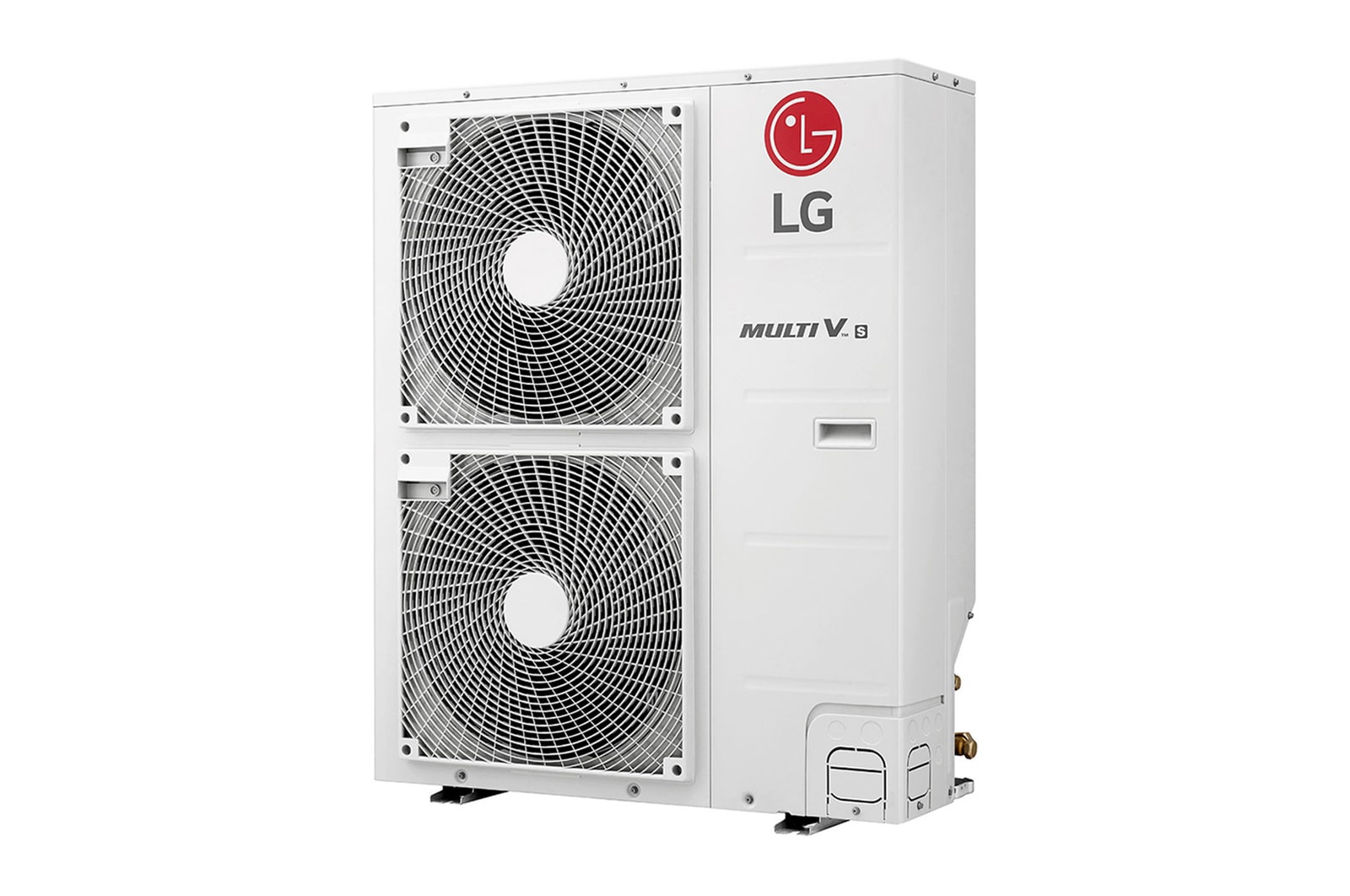

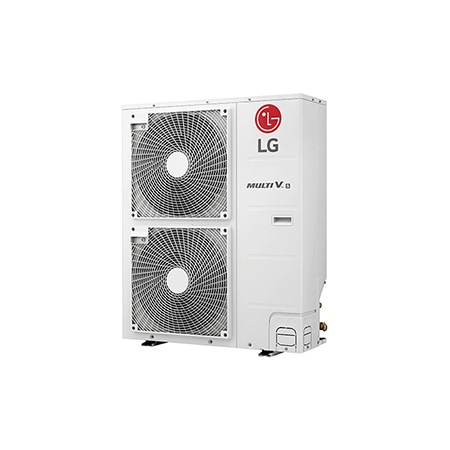

MULTI V S, Heatpump, 3 Phases, Outdoor Unit, 8HP, R410A
Key Features
Increased piping length allows for flexible design and installation. A cooling system can be implemented more flexibly in a shop, office, reducing work time and providing efficient design.
Dual Sensing Control senses both humidity and temperature. Also, it controls temperature and amount of air according to the surrounding environment for economical and comfortable operation.
It senses and controls pressure directly using a sensor for faster and more precise response to load variation. The desired temperature can be reached up to 14% faster with pressure control.*
* Results may vary depending on the environment.
Case 1 (V, Phase, Hz)
50 Hz 380-415 V 3N~
Case 2 (V, Phase, Hz)
380 V 3N~ 60 Hz
Rated (kW)
22.4
Rated (Btu/h)
76400
Rated (kW)
25.2
Rated (Btu/h)
86000
Rated (kW)
5.89
EER(Rated) (W/W)
4.06
COP(Rated) (W/W)
4.47
Rated
0.93/0.93
Type
Propeller fan
Air Flow Rate(High) (m³/min x No.)
140
Discharge direction(Side / Top)
Side
Drive
DC INVERTER
Output (W x No.)
124 x 2
Type
Hermetically Sealed Scroll
Motor Output (W x No.)
4,200 x 1
Oil Type
FVC68D(PVE)
Fin Type
Wide Louver Plus
Net(W x H x D) (mm)
950 × 1,380 × 330
Net (kg)
115
High Pressure Prevention
High pressure sensor / High pressure switch
Compressor/Fan Protection
Over-heat protection / Over-current protection
Inverter Protection
Over-heat protection / Over-current protection
Type
R410A
Precharged Amount (kg)
3.5
Control Type
Electronic Expansion Valve
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ19.05 (3/4)
Cooling / Heating (dB(A))
57/57
Cooling / Heating (dB(A))
69/69
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5 x 2
Max. (Conditional) (EA)
13
