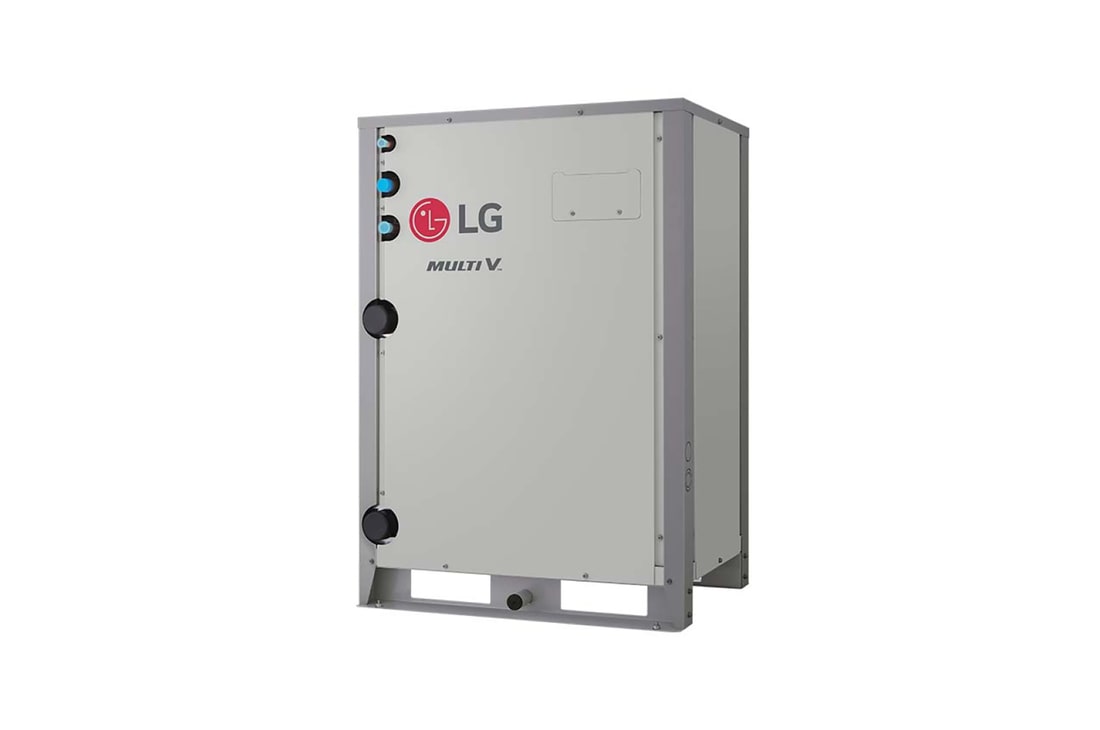

LG MULTI V WATER 5, Water Heat Recovery, 20HP is rectangular and has several inlets on the left side of the front.

MULTI V WATER 5, Water Heat Recovery, Outdoor Unit, 20HP, R410A

ARWM200LAS5

Key Features

Flexible Installation & Space Efficient
MULTI V WATER 5 System for Geothermal Applications
Economical, Highly Efficient System

All Spec

POWER SUPPLY

Case 1 (V, Phase, Hz): 50 Hz 380-415 V 3N~

Limit Range of Voltage(Case 1) (V): 342 ~ 456

Case 2 (V, Phase, Hz): 60 Hz 380 V 3N~

Limit Range of Voltage(Case 2) (V): 342 ~ 418

Running Current by Voltage (Cooling,Rated) (A): 17.46 - 16.59 - 15.99

Running Current by Voltage (Heating,Rated) (A): 18.05 - 17.15 - 16.53

COOLING CAPACITY

Rated (kW): 56

Rated (Btu/h): 191100

HEATING CAPACITY

Rated (kW): 63

Rated (Btu/h): 215000

POWER INPUT(COOLING)

Rated (kW): 10.69

POWER INPUT(HEATING)

Rated (kW): 11.05

EFFICIENCY

EER(Rated) (W/W): 5.24

COP(Rated) (W/W): 5.7

POWER FACTOR(COOLING/HEATING)

Rated: 0.93/0.93

COMPRESSOR

Type: Hermetically Sealed Scroll

Piston Displacement (cm³/rev): 62.1

Number of Revolution (rev./min): 3600

Motor Output (W x No.): 5300 x 1

Starting Method: Direct On Line

Oil Type: FW68D(PVE)

HEAT EXCHANGER

Type: Stainless Steel Plate

Maximum Pressure Resistance (kg/cm²): 45

RATED WATER FLOW ( LPM )

Rated Water Flow ( LPM ): 192

RANGE OF WATER FLOW

Min.~Max. (LPM): 96.0 - 240.0

HEAD LOSS ( KPA )

Head loss ( kPa ): 29.9

DIMENSIONS

Net(W x H x D) (mm): 772 x 1120 x 547

Shipping(W x H x D) (mm): 820 x 1245 x 645

WEIGHT

Net (kg): 158 x 1

Shipping (kg): 166 x 1

EXTERIOR

Color: Morning Gray / Dawn Gray

RAL (Classic): RAL 7038 / RAL 7037

PROTECTION DEVICE

High Pressure Prevention: High pressure sensor / High pressure switch

Discharge Tempreature Control: Over-heat protection

Inverter Protection: Over-heat protection / Over-current
protection

REFRIGERANT

Type: R410A

Precharged Amount (kg): 4.5

GWP(Global Warming Potential): 2,087.5

t-CO₂ eq.: 9.394

Control Type: Electronic expansion valve

CONNECTING PIPE

Liquid (mm(inch)): Φ15.88 (5/8)

Gas (mm(inch)): Φ28.58 (1-1/8)

Low Pressure Gas (Heat Recovery) (mm(inch)): Φ28.58 (1-1/8)

High Pressure Gas (Heat Recovery) (mm(inch)): Φ22.2 (7/8)

PIPING CONNECTION TYPE

Liquid: Brazing

Gas: Brazing

Low Pressure Gas (Heat Recovery): Brazing

High Pressure Gas (Heat Recovery): Brazing

WATER CONNECTING PIPES

Inlet (mm): PT 40 (Internal Thread)

Outlet (mm): PT 40 (Internal Thread)

Drain Outlet (mm): PT 20 (External Thread)

SOUND PRESSURE LEVEL (OUTDOOR UNIT)

Cooling / Heating (dB(A)): 55 / 56

MEASUREMENT STANDARD (PRESSURE LEVEL)

Measurement Standard (Pressure Level): ISO 3741

SOUND POWER LEVEL (OUTDOOR UNIT)

Cooling / Heating (dB(A)): 67 / 68

CONNECTING CABLE

Communication Cable(VCTF-SB) (mm² × cores): 1.0 ~ 1.5 × 2C

ELECTRICAL CHARACTERISTIC

Minimium Circuit Amperes (MCA) (A): 32

Maximum Fuse Amperes (MFA) (A): 35

Total Over Current Amperes (TOCA) (A): 33

Comp_Rated Load Amperes (Cooling) (A): 17.2

Comp_Rated Load Amperes (Heating) (A): 18.05

CONNECTABLE INDOOR UNITS NUMBER

Max. (Conditional) (EA): 32(50)

ALLOWABLE TOTAL INDOOR UNIT CONNECTED CAPACITY RATIO

Min. / Max. (Conditional) (%): 50~130(200)
