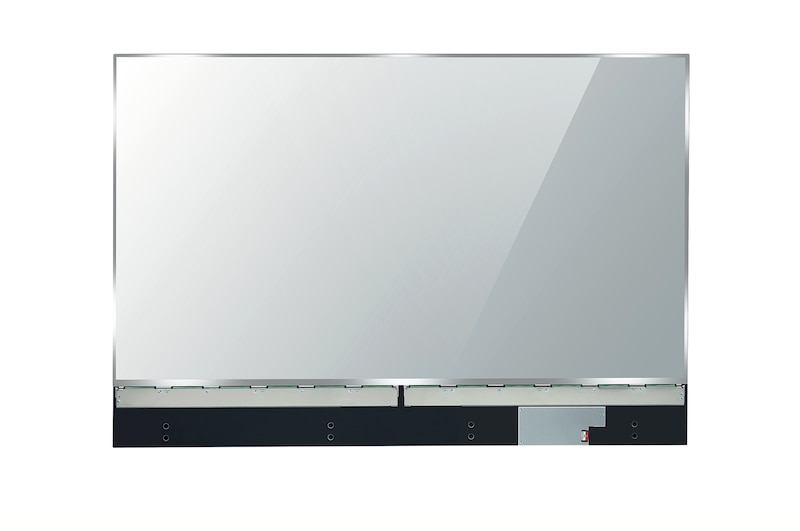

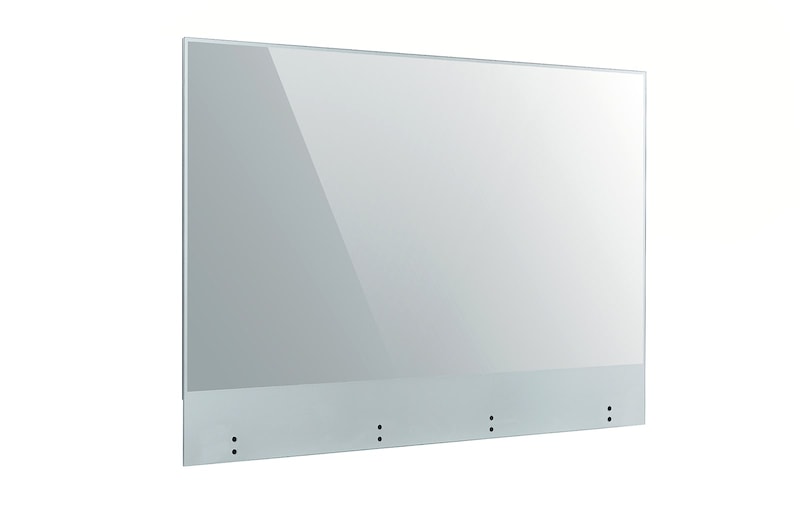

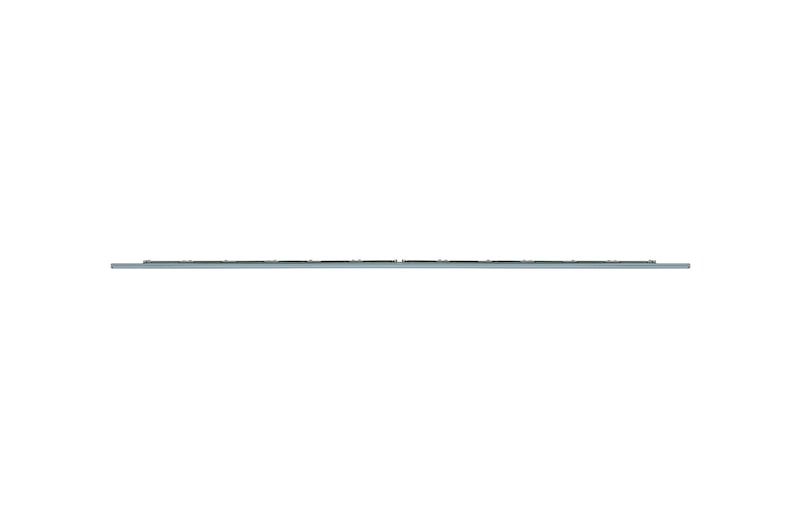

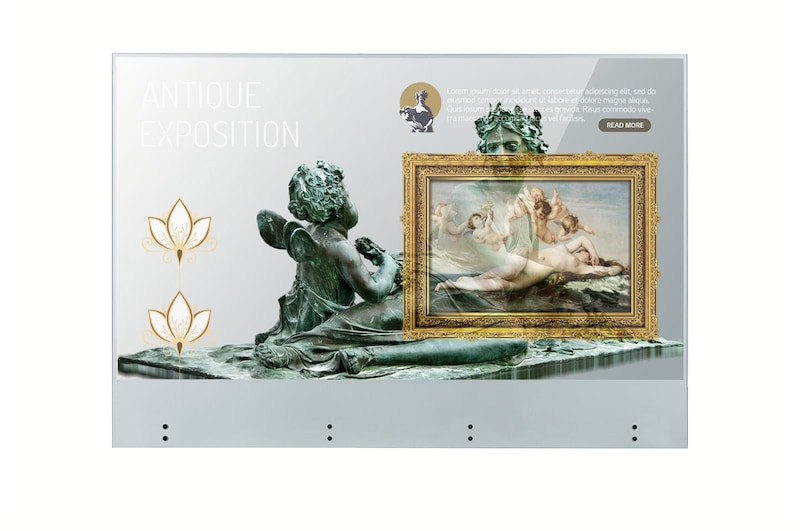

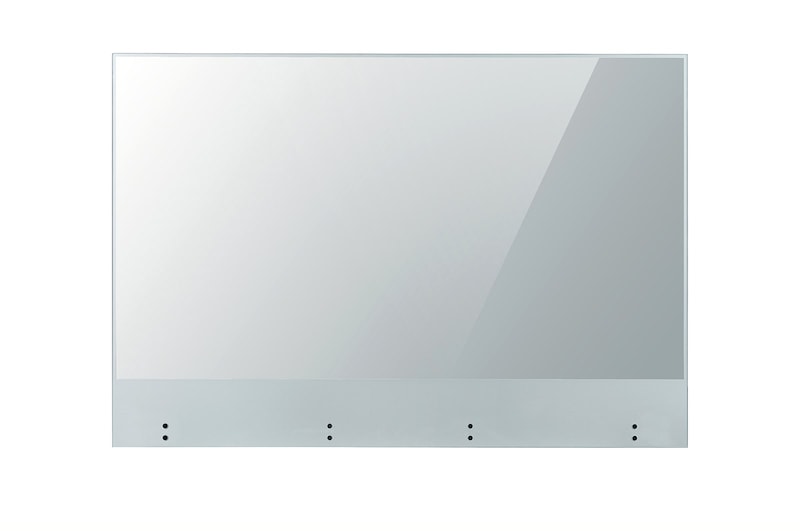

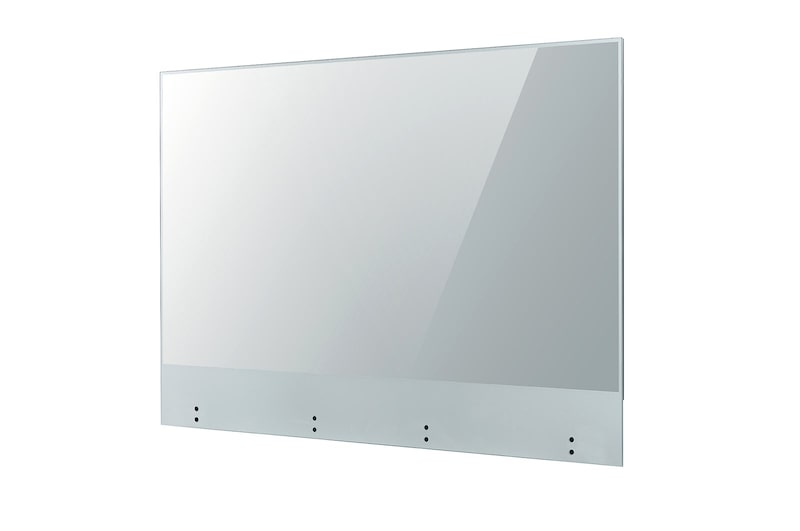

Transparent OLED Touch Signage

55EW5TK-A

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
Transparency(Typ.) : 33% (Set)
Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
P-Cap Touch, Tempered Front Glass (3T)

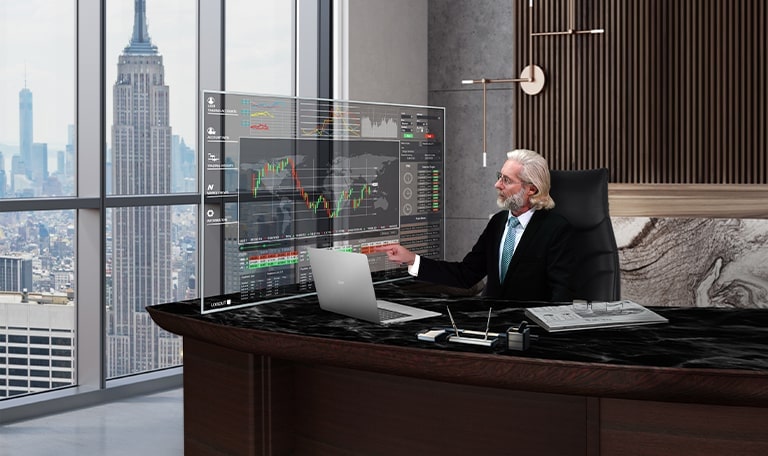

A man is doing his job by looking at the data displayed on the Transparent OLED screen.

* All images in this web page are for illustrative purposes only.

A New Level of
See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.
Not only that, it can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.

LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

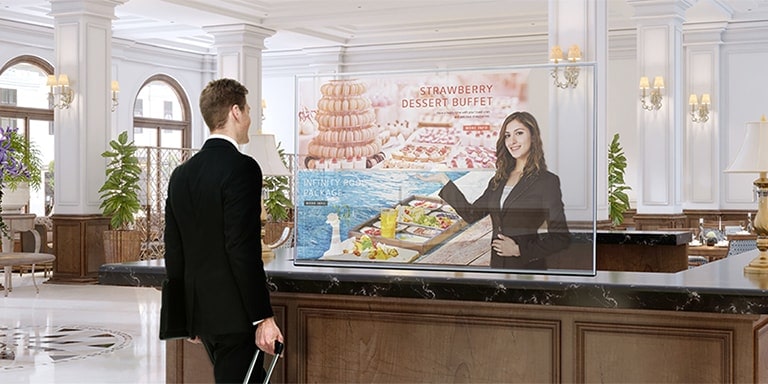

A man is getting information through the Transparent OLED screen showing photos of the dessert menu.

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips with no lag.

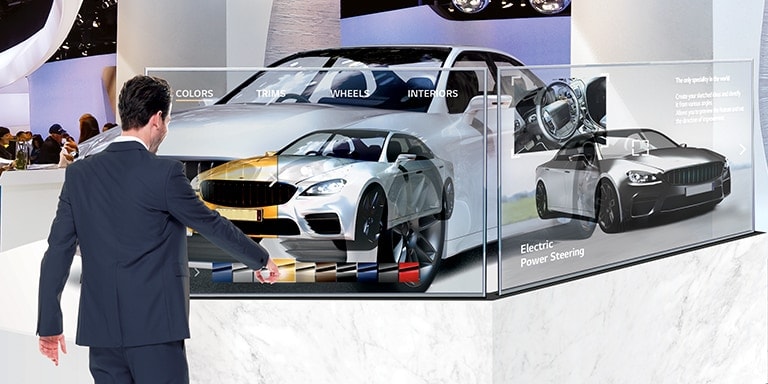

In a car exhibition hall, a man is changing the car’s color on the screen by touching the Transparent OLED Signage screen installed in front of the car.

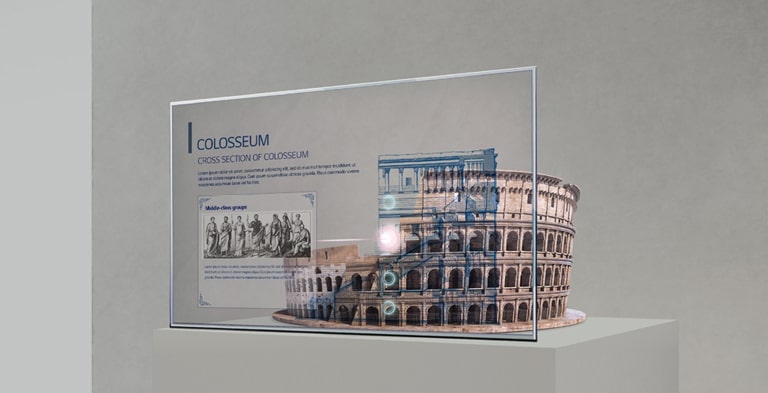

Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model.

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

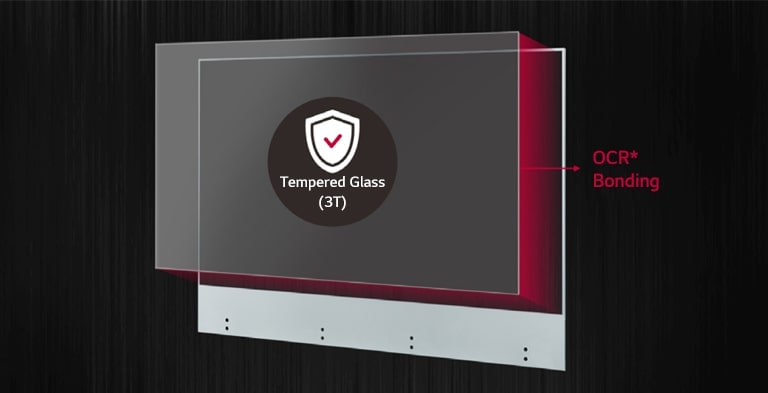

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* * Optically Clear Resin

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

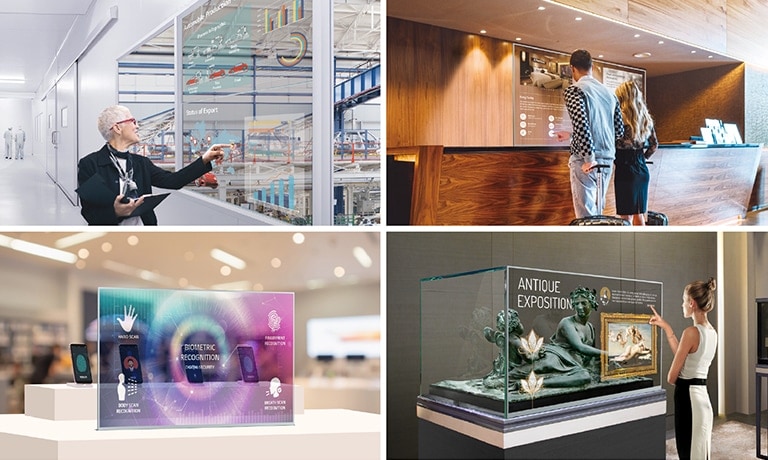

A woman is checking content with a Transparent OLED Signage installed next to the window.

* Installation accessories are not supplied by LG.

All Spec

CONNECTIVITY

USB In
USB2.0 Type A (2ea)
HDMI In
YES (1ea)
HDMI In (HDCP Ver.)
1.4
HDMI Out
NO
IR In
YES
IR Out
YES (Sharing RS232C Out)
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
YES
RS232C In
YES
RS232C Out
YES
Touch USB
USB2.0 Type B (1ea)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.)
3.5mm

PANEL

Screen Size (Inch)
55
Panel Technology
OLED
Back Light Type
OLED
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
120Hz
Brightness
150/400nit (APL 100%/25%, without Glass)
Contrast Ratio
150,000:1
Dynamic CR
NO
Color Gamut
BT709 120%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
1ms (G to G), 8ms (MPRT)
Surface Treatment (Haze)
Haze 3% (SET)
Life time
30,000Hrs (Typ.)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portait / Landscape
YES / YES
Transparency
33% (SET)
QWP (Quarter Wave Plate)
N/A

MECHANICAL SPECIFICATION

Bezel Color
Matt Silver
Bezel Width
T/R/L/B : 7.9/7.9/7.9/144.5mm
Weight (Head)
12.9Kg (Head) 3.4Kg (Signage Box)
Weight (Head+Stand)
N/A
Packed Weight
24.5Kg
Monitor Dimensions (W x H x D)
1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1345 x 945 x 207mm
Handle
NO
VESA Standard Mount Interface
N/A

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea
Optional
NO

PROTECTION GLASS

Thickness
3mm
Degree of Protection
N/A
Tempered / Chemical strengthening
Chemical strengthening
Anti-Reflective
YES
Infrared - Resistance (IR)
N/A
Shatter-Proof
YES

CERTIFICATION

EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES / NO
Safety
CB / NRTL

CONNECTIVITY

Audio In
NO
Audio Out
YES

FEATURE - HARDWARE

Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Power Indicator
NO

CONNECTIVITY

DP In
YES (HDCP 1.3)
Daisy Chain
NO
DP Out
YES
DVI-D In
NO
External Speaker Out
NO

DEDICATED FEATURE - TOUCH

Available Object Size for Touch
Ø12 mm ↑
Interface
USB2.0
Multi Touch Point
Max. 10 Points
Operating System Support
Windows 8.1, Windows 10
Protection Glass Thickness
3mm (Anti-Reflective / Anti-Finger print)
Protection Glass Transmission
84% (Typ.)
Response Time ('Paint' app on Windows 10 PC)
120ms ↓

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor
NO
Auto Brightness Sensor
NO
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
16GB
Local Key Operation
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
NO
RS232C Sync
NO
Local Network Sync
NO
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
NO
Screen Rotation
YES
External Input Rotation
NO
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
NO
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
NO
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
84W (IEC 62087)
Max.
300W
BTU (British Thermal Unit)
955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)
Smart Energy Saving (70%)
N/A
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
NO

OPS COMPATIBILITY

OPS Type compatible
N/A
OPS Power Built-in
N/A

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
SuperSign Cloud
NO
Promota
NO
Mobile CMS
YES
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
