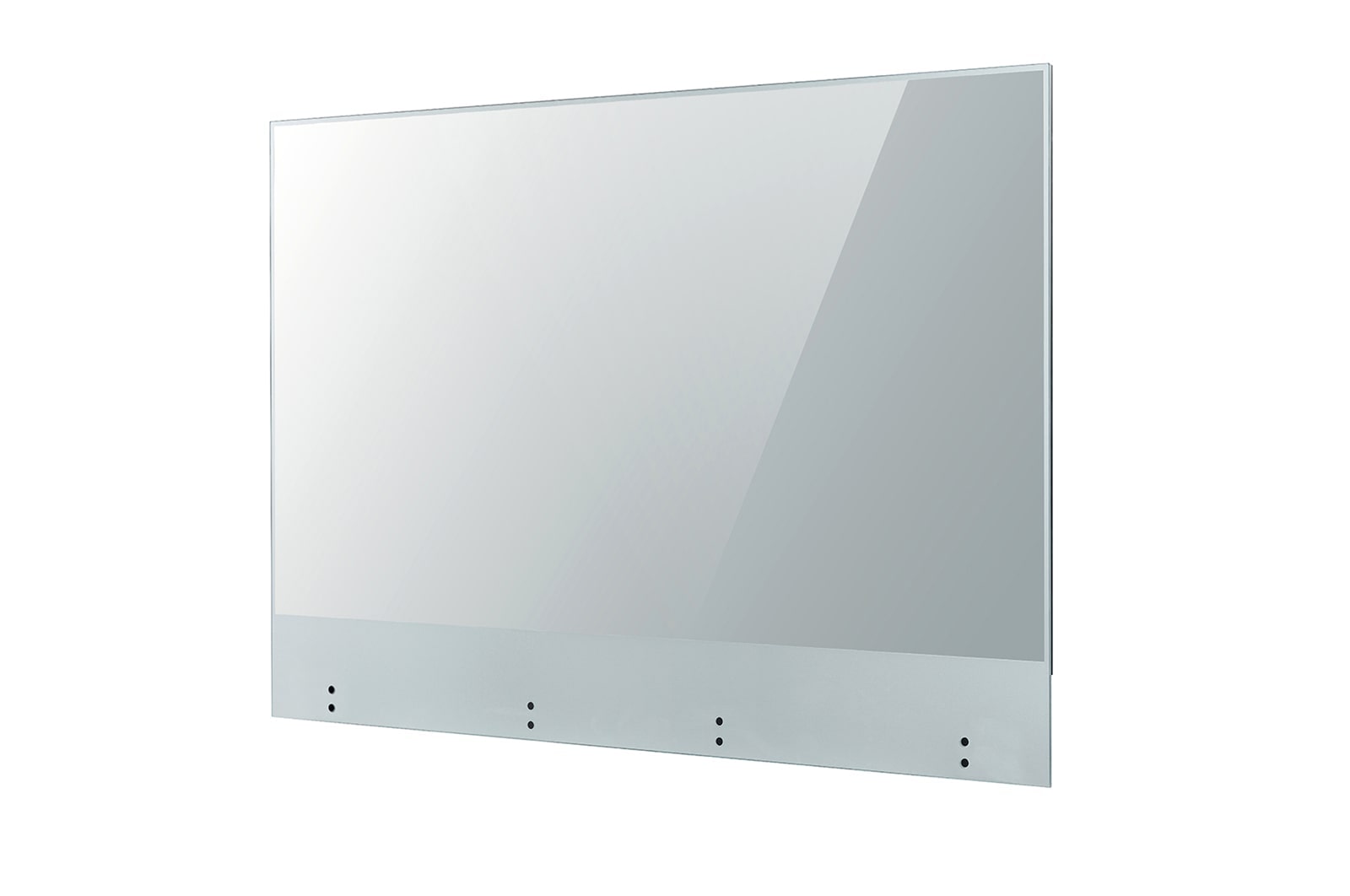

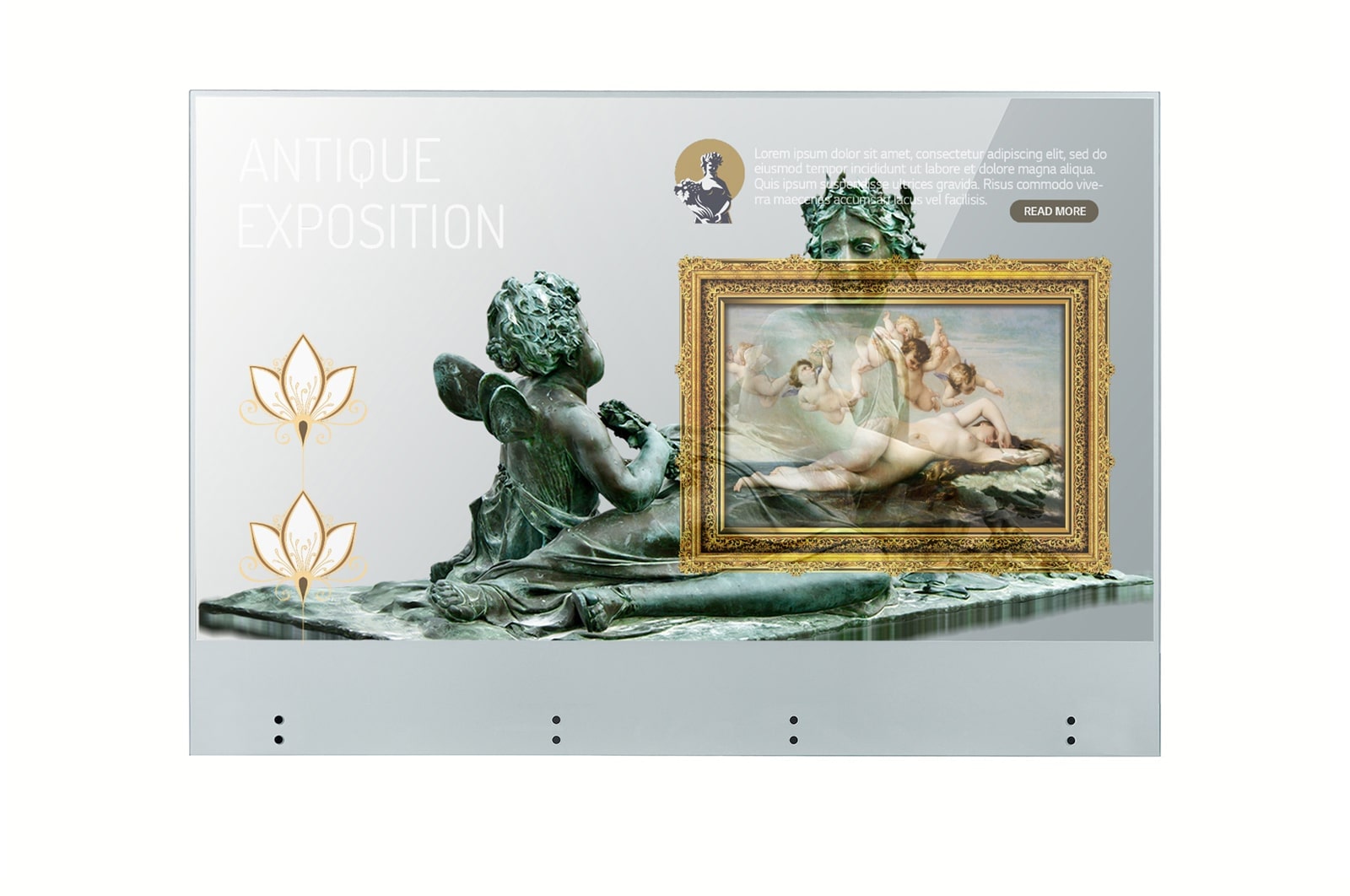

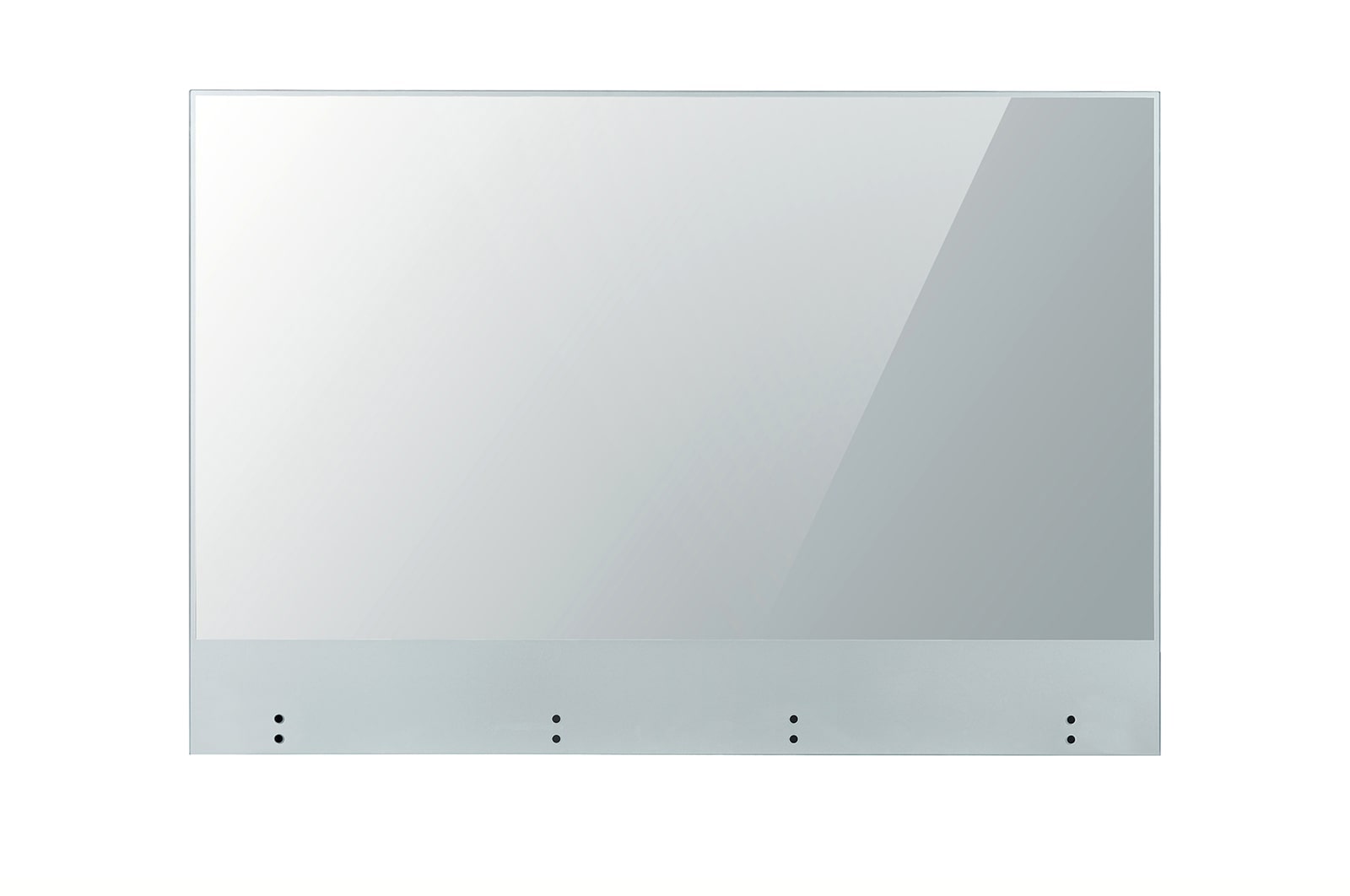

Transparent OLED Touch Signage - 55EW5TK-A

Transparent OLED Touch Signage

55EW5TK-A

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
Transparency(Typ.) : 33% (Set)
Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
P-Cap Touch, Tempered Front Glass (3T)

All Spec

PANEL

Screen Size (Inch): 55

Panel Technology: OLED

Back Light Type: OLED

Aspect Ratio: 16:9

Native Resolution: 1920 x 1080 (FHD)

Refresh Rate: 120Hz

Brightness: 150/400nit (APL 100%/25%, without Glass)

Contrast Ratio: 150,000:1

Dynamic CR: NO

Color Gamut: BT709 120%

Viewing Angle (H x V): 178º x 178º

Color Depth (Number of Colors): 1.07 Billion colors

Response Time: 1ms (G to G), 8ms (MPRT)

Surface Treatment (Haze): Haze 3% (SET)

Life time: 30,000Hrs (Typ.)

Operation Hours (Hours/Day): 18/7 (Moving Content Only)

Portait / Landscape: YES / YES

Transparency: 33% (SET)

QWP (Quarter Wave Plate): N/A

CONNECTIVITY

USB In: USB2.0 Type A (2ea)

HDMI In: YES (1ea)

HDMI In (HDCP Ver.): 1.4

HDMI Out: NO

IR In: YES

IR Out: YES (Sharing RS232C Out)

RGB In: NO

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: YES

RS232C In: YES

RS232C Out: YES

Touch USB: USB2.0 Type B (1ea)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): 3.5mm

MECHANICAL SPECIFICATION

Bezel Color: Matt Silver

Bezel Width: T/R/L/B : 7.9/7.9/7.9/144.5mm

Weight (Head): 12.9Kg (Head) 3.4Kg (Signage Box)

Weight (Head+Stand): N/A

Packed Weight: 24.5Kg

Monitor Dimensions (W x H x D): 1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)

Monitor Dimension with Stand (W x H x D): N/A

Carton Dimensions (W x H x D): 1345 x 945 x 207mm

Handle: NO

VESA Standard Mount Interface: N/A

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea

Optional: NO

PROTECTION GLASS

Thickness: 3mm

Degree of Protection: N/A

Tempered / Chemical strengthening: Chemical strengthening

Anti-Reflective: YES

Infrared - Resistance (IR): N/A

Shatter-Proof: YES

CERTIFICATION

EMC: FCC Class "A" / CE / KC

ePEAT(US only): NO

ERP / Energy Star: YES / NO

Safety: CB / NRTL

CONNECTIVITY

Audio In: NO

Audio Out: YES

FEATURE - HARDWARE

Wi-Fi/BT (Built-in): NO

Temperature Sensor: YES

Pixel Sensor: NO

Proximity Sensor: NO

Power Indicator: NO

CONNECTIVITY

DP In: YES (HDCP 1.3)

Daisy Chain: NO

DP Out: YES

DVI-D In: NO

External Speaker Out: NO

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: Ø12 mm ↑

Interface: USB2.0

Multi Touch Point: Max. 10 Points

Operating System Support: Windows 8.1, Windows 10

Protection Glass Thickness: 3mm (Anti-Reflective / Anti-Finger print)

Protection Glass Transmission: 84% (Typ.)

Response Time ('Paint' app on Windows 10 PC): 120ms ↓

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 80 %

Operation Temperature: 0 °C to 40 °C

FEATURE - HARDWARE

Acceleration(Gyro) Sensor: NO

Auto Brightness Sensor: NO

BLU Sensor: NO

Current Sensor: NO

FAN (Built-in): NO

Humidity Sensor: NO

Internal Memory (eMMC): 16GB

Local Key Operation: NO

FEATURE - SOFTWARE

OS Ver. (webOS): webOS 4.0

Local Contents Scheduling: YES

Group Manager: YES

USB Plug & Play: YES

Fail over: YES

Booting Logo Image: NO

No Signal Image: NO

RS232C Sync: NO

Local Network Sync: NO

Backlight Sync: NO

PIP: NO

PBP: NO

Screen Share: NO

Video Tag: YES (4 Video Tag)

Play via URL: NO

Screen Rotation: YES

External Input Rotation: NO

Gapless Playback: YES

Tile Mode Setting: NO

Setting Data Cloning: YES

SNMP: YES

ISM Method: YES

Auto Set ID: YES

Status Mailing: YES

Control Manager: YES

Cisco Certification: NO

Crestron Connected: YES

Smart Energy Saving: NO

PM mode: YES

Wake on LAN: YES

Network Ready: NO

Beacon: NO

HDMI-CEC: YES

SI Server Setting: YES

webRTC: NO

Pro:Idiom: YES

Brightness Compensation: NO

W/B Setting by Grey scale: NO

Scan Inversion: NO

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

POWER CONSUMPTION

Typ.: 84W (IEC 62087)

Max.: 300W

BTU (British Thermal Unit): 955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)

Smart Energy Saving (70%): N/A

DPM: 0.5W

Power off: 0.5W

SOUND

Speaker (Built-in): NO

OPS COMPATIBILITY

OPS Type compatible: N/A

OPS Power Built-in: N/A

SOFTWARE COMPATIBILITY

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: NO

SuperSign Cloud: NO

Promota: NO

Mobile CMS: YES

Connected Care: YES

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

SPECIAL FEATURE

Overlay Touch Compatibility: N/A

Smart Calibration: N/A

Tilt (Face up): N/A

Tilt (Face down): N/A

IP Rating: N/A

Conformal Coating (Power Board): N/A

Power Protection: N/A

Direct Sunlight: N/A
