Fine-pitch Essential Series

Fine-pitch Essential Series

LSBB012-GD
  • front view with inscreen
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD
  • LG Fine-pitch Essential Series, LSBB012-GD

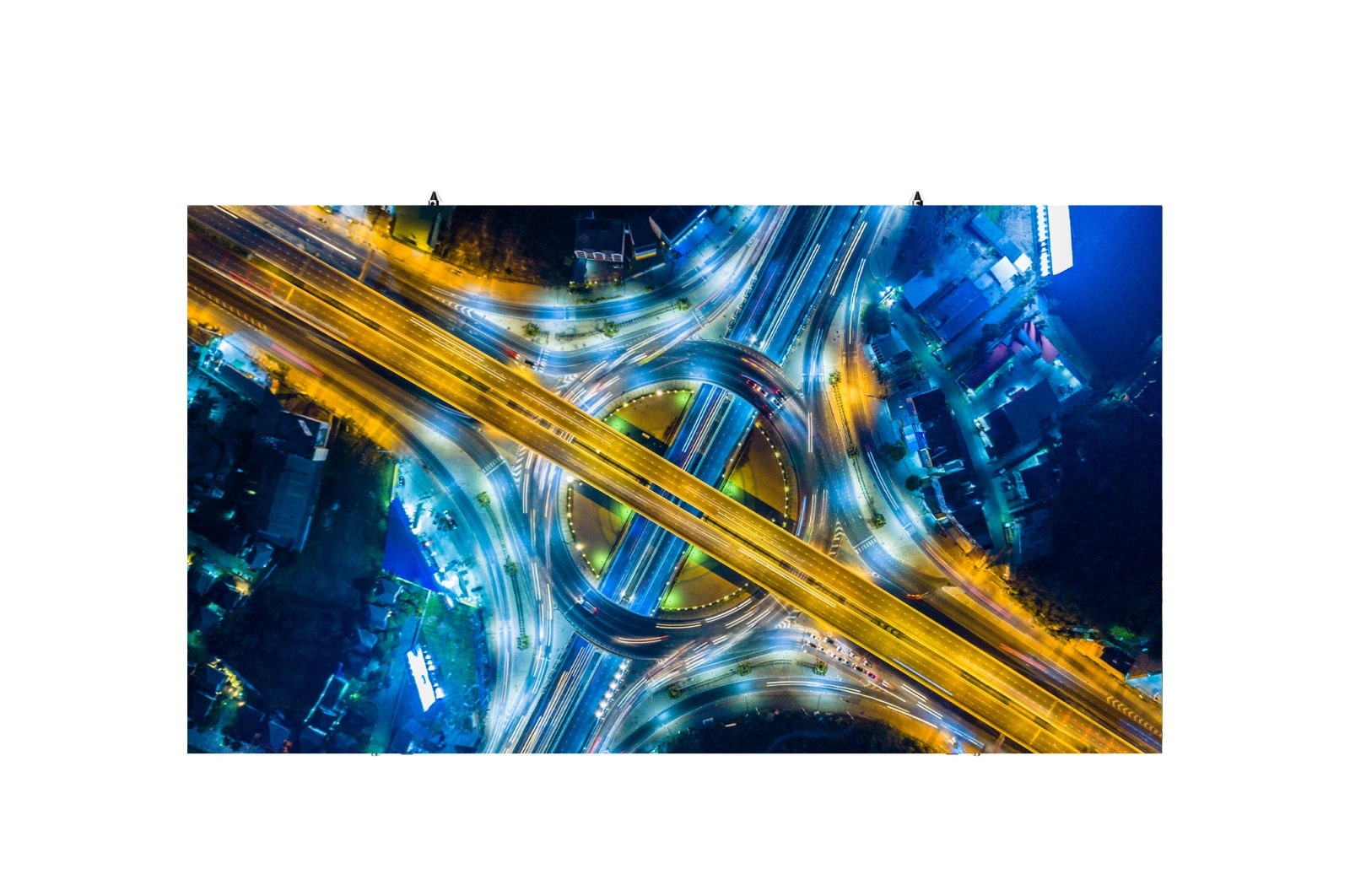

front view with inscreen
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD
LG Fine-pitch Essential Series, LSBB012-GD

Key Features

  • Pixel Pitch: 1.25 mm
  • Brightness: 600 nit
  • Status Indicator of Signal Detection
  • Front Serviceability
  • Easy-handling Lightweight Cabinet
  • Compatibility with LG Software Solutions
More

Fine-pitch Essential Series

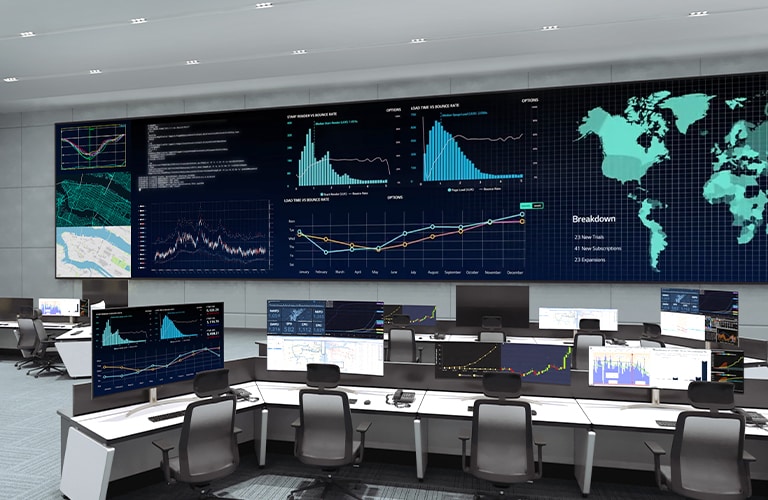

Monitors the graphs on the LED screens installed on the wall of the control room.

* All images in this web page are for illustrative purposes only.

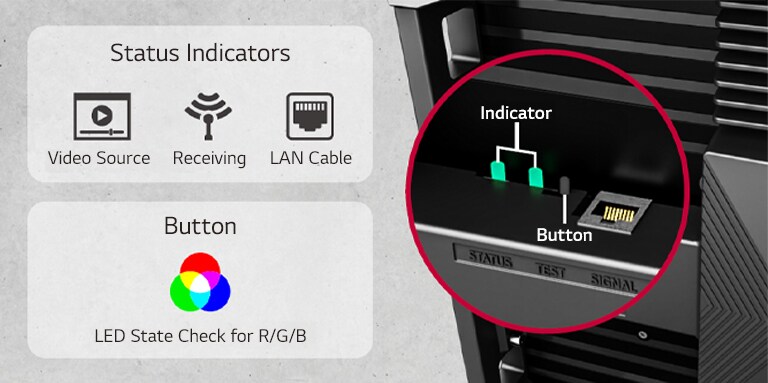

Shows Status Indicators and a button for the LED State Check.

Status Indicator of Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

* Visit LSBB user manual for more details of the status indicators and button.

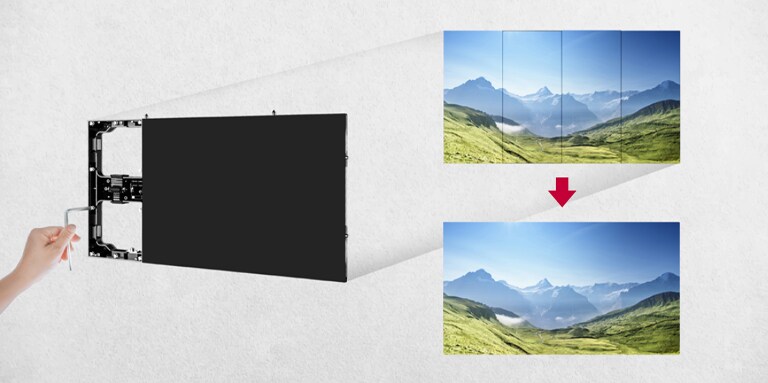

Controlling the X/Y/Z 6-axis between panels with a uniform tool.

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

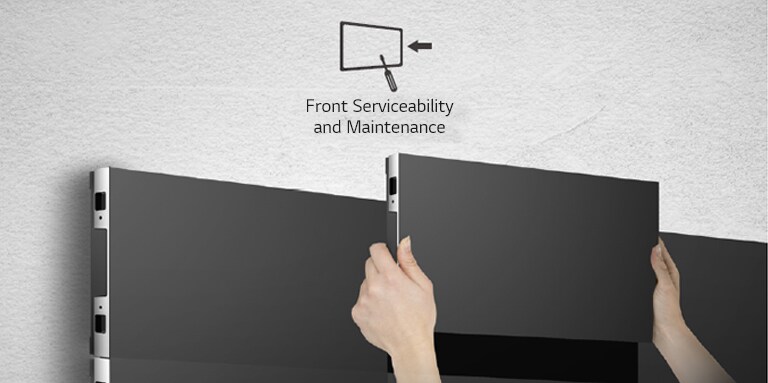

LSBB series is demonstrating its convenient installation from the front side.

Front Serviceability

The product offers front access, freeing customers from needing rear access space.
Shows that the cabinet is light with a balloon.

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

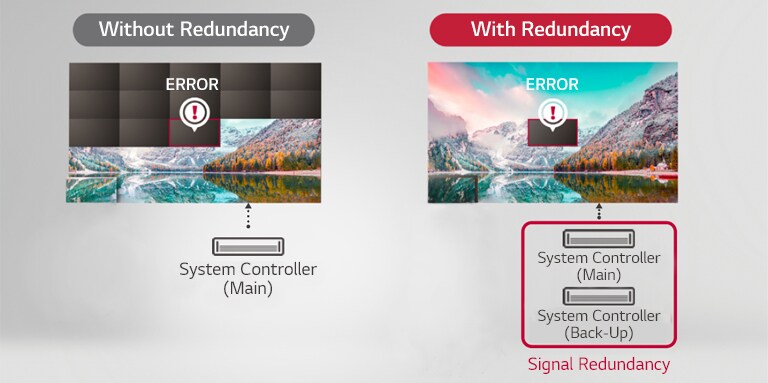

In the case of “Without Redundancy” even more than the error is blacked out, but in the case of “With Redundancy” only the error is blacked out and displayed.

Signal Redundancy

With an additional controller, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy).

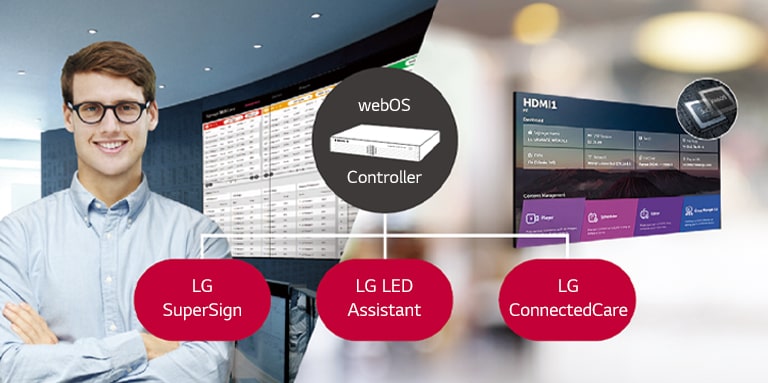

"The LG employee is remotely monitoring the LSBB series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBB series to be compatible with LG software solutions."

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Print

All Spec

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    1.250

  • Module Resolution (W × H)

    120 × 270

  • Module Dimensions (W × H, mm)

    150 × 337.5

  • Weight per Module (kg)

    0.50

  • No. of Modules per Cabinet (W × H)

    4 × 1

  • Cabinet Resolution (W × H)

    480 × 270

  • Cabinet Dimensions (W × H × D, mm)

    600 × 337.5 × 56

  • Cabinet Surface Area (m²)

    0.203

  • Weight per Cabinet (kg/Cabinet)

    6.0

  • Weight per Square Meter (kg/m²)

    30.0

  • Physical Pixel Density (pixels/m²)

    640,000

  • Flatness of Cabinet (mm)

    0.5

  • Cabinet Material

    Die Casting Aluminum

  • Service Access

    Front

OPTICAL SPECIFICATIONS

  • Max. Brightness (After Calibration)

    600

  • Color Temperature (K)

    3,200-9,300

  • Visual Viewing Angle (H × V)

    160 × 140

  • Brightness Uniformity

    97%

  • Color Uniformity

    ±0.003 Cx,Cy

  • Contrast Ratio (Typ.)

    5,000 : 1

  • Processing Depth (bit)

    16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    120

  • Power Consumption (W/Cabinet, Avg.)

    40

  • Power Consumption (W/m², Max.)

    600

  • Power Consumption (BTU/Cabinet, Max.)

    409

  • Power Consumption (BTU/Cabinet, Avg.)

    136

  • Power Consumption (BTU/m², Max.)

    2,047

  • Power Supply (V)

    AC 100-240 V (50-60 Hz)

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • Lifetime (Half brightness)

    100,000

  • Operating Temperature (°C)

    -20 to +40

  • Operating Humidity

    10-80% RH

  • IP Rating Front / Rear

    IP5X / IP5X

SERIES

  • Series

    LSBB

To access more technical documentation and resources, please visit the LG B2B partner portal.
