AB-Q18GHLT0

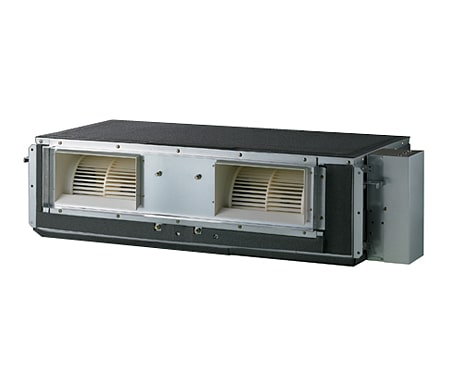

LG Ceiling Concealed Duct Air Conditioner - Inverter (5.3 Kw)
  • Inverter Technology
  • Energy Savings
  • Fast Cooling
  • Low Noise Level
  • Wide Operation Range up to 54°C
  • E.S.P. (External Static Pressure) Control

component-OBScountrySelectDesc

LG Ceiling Concealed Duct Air Conditioner - Inverter (5.3 Kw)

LG Commercial Air Conditioner Introduction

Super Energy Saving

Super Energy Saving Super Energy Saving

Extreme Durability

Extreme Durability Extreme Durability

Smart Cooling

Smart Cooling Smart Cooling

Additional Benefits

Additional Benefits Additional Benefits

PRODUCT INFORMATION

  • Product Type
    Ceiling Concealed Duct
    Inverter Technology
    Yes
  • Fast Cooling
    Yes
    Super Energy Saving
    Yes
  • Indoor Unit Noise Level (H/M/L)
    37 / 35 / 33 dB(A)
    Refrigerant Type
    R410A
  • Operation Range
    Up to 54°C
    E.S.P
    Yes
  • Two Thermistors Control
    Yes
    Energy saving (zero power consumption, standby mode)
    Yes

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1/220~240/50
    Cooling Capacity
    5.3 Kw
  • Power Input
    1.6 kW
    EER
    11.6 Btu/h/W
  • COP
    3.4 W/W

INDOOR UNIT

  • Running Current
    1.0 A
    Air Flow Rate (H/M/L)
    16.5 / 14.5 / 13.0 CMM
  • External Static Pressure
    8 mmAq
    Dehumidification Rate
    2.1 l/h
  • Body Dimensions (W x H x D)
    880 × 260 × 450 mm
    Net Weight
    25.0 kg

OUTDOOR UNIT

  • Running Current
    6.7 A
    Compressor Type
    Twin Rotary
  • Sound Level (H)
    48 dB(A)
    Dimensions (W x H x D)
    870 × 655 × 320 mm
  • Net Weight
    44 kg
    Piping Connections (Liquid)
    Ø 9.52 mm
  • Piping Connections (gas)
    Ø 15.88 mm
    Drain (Outdoor / Indoor)
    Ø 32 mm / 25 mm
  • Max. Piping Length (Main Piping)
    30 m
    Max. Elevation Difference (Indoor-Outdoor)
    15 m

WHERE TO INSTALL

  • Residences
    Yes
    Shops
    Yes
  • Restaurants
    Yes
    Offices
    Yes
  • Hospitals
    Yes
    Hotels
    Yes
