AB-Q48GRLT0

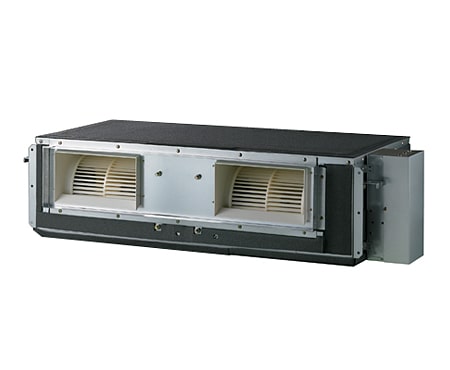

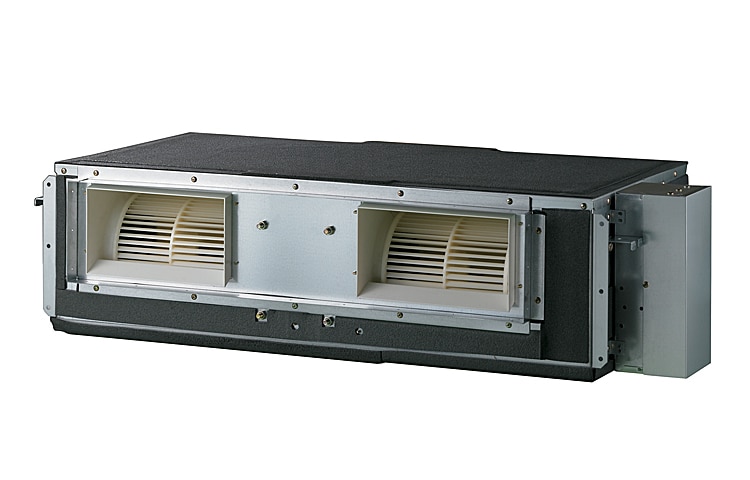

LG Ceiling Concealed Duct Air Conditioner - Inverter (13.5 Kw)

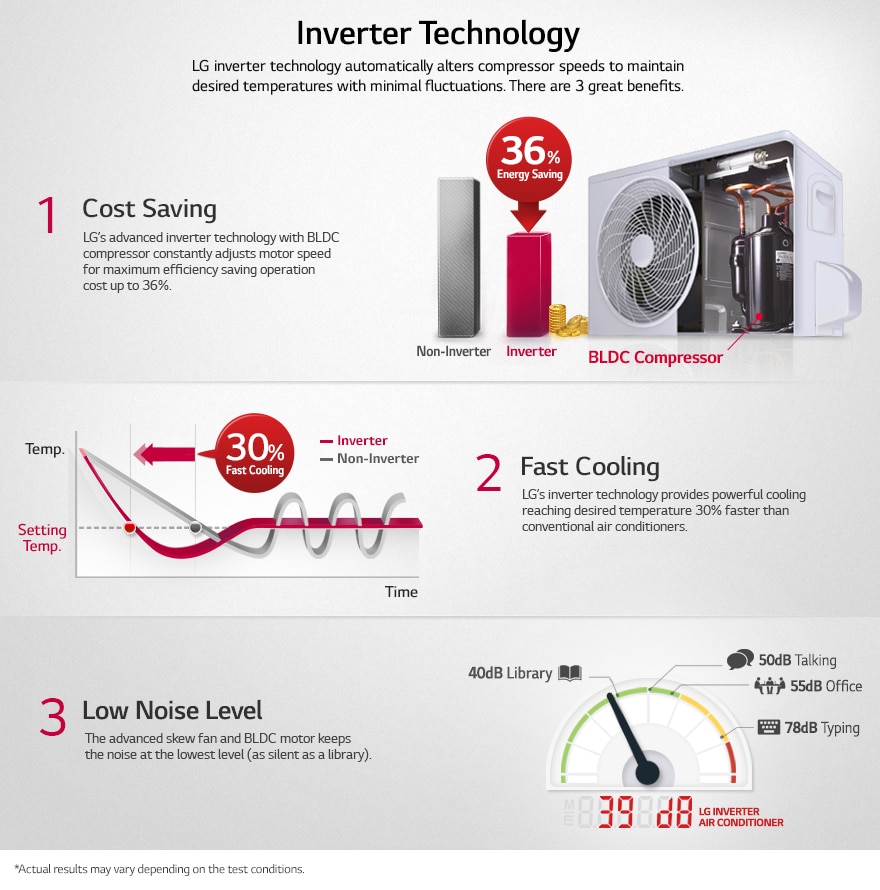

  • Inverter Technology
  • Energy Savings
  • Fast Cooling
  • Low Noise Level
  • Wide Operation Range up to 54°C
  • E.S.P. (External Static Pressure) Control
LG Ceiling Concealed Duct Air Conditioner - Inverter (13.5 Kw)
MSRP AED

LG Commercial Air Conditioner Introduction

Super Energy Saving

Super Energy Saving Super Energy Saving

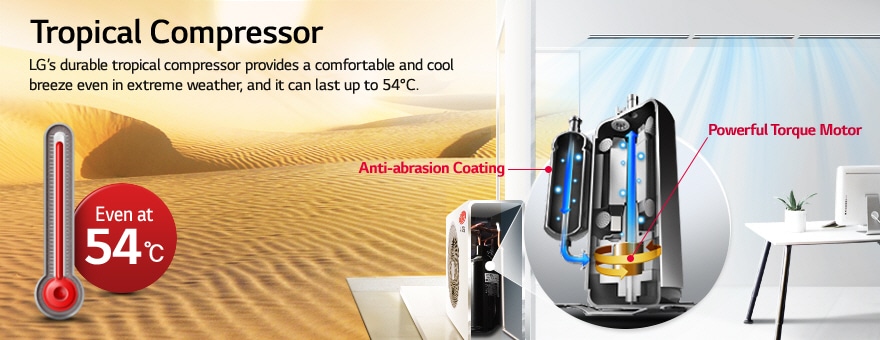

Extreme Durability

Extreme Durability Extreme Durability

Smart Cooling

Smart Cooling Smart Cooling

Additional Benefits

Additional Benefits Additional Benefits

PRODUCT INFORMATION

  • Product Type
    Ceiling Concealed Duct
    Inverter Technology
    Yes
  • Fast Cooling
    Yes
    Super Energy Saving
    Yes
  • Indoor Unit Noise Level (H/M/L)
    44 / 42 / 40 dB(A)
    Refrigerant Type
    R410A
  • Operation Range
    Up to 54°C
    E.S.P
    Yes
  • Two Thermistors Control
    Yes
    Energy saving (zero power consumption, standby mode)
    Yes

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1/220~240/50
    Cooling Capacity
    13.5 Kw
  • Power Input
    4.0 kW
    EER
    11.6 Btu/h/W
  • COP
    3.4 W/W

INDOOR UNIT

  • Running Current
    2.3 A
    Air Flow Rate (H/M/L)
    40.0 / 35.0 / 30.0 CMM
  • External Static Pressure
    10 mmAq
    Dehumidification Rate
    3.6 l/h
  • Body Dimensions (W x H x D)
    1,230 × 380 × 590 mm
    Net Weight
    52 kg

OUTDOOR UNIT

  • Running Current
    17.2 A
    Compressor Type
    Twin Rotary
  • Sound Level (H)
    55 dB(A)
    Dimensions (W x H x D)
    950 × 1,380 × 330 mm
  • Net Weight
    92 kg
    Piping Connections (Liquid)
    Ø 9.52 mm
  • Piping Connections (gas)
    Ø 19.05 mm
    Drain (Outdoor / Indoor)
    Ø 32 mm / 25 mm
  • Max. Piping Length (Main Piping)
    50 m
    Max. Elevation Difference (Indoor-Outdoor)
    30 m

WHERE TO INSTALL

  • Residences
    Yes
    Shops
    Yes
  • Restaurants
    Yes
    Offices
    Yes
  • Hospitals
    Yes
    Hotels
    Yes
