AT-Q30GNLT0

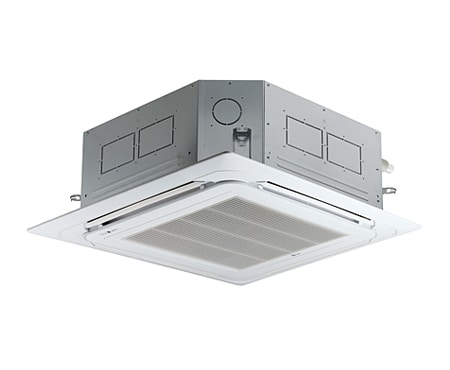

LG Ceiling Cassette Air Conditioner - Inverter (8.2 Kw)
  • Inverter Technology
  • Energy Savings
  • Fast Cooling
  • Low Noise Level
  • Wide Operation Range up to 54°C
  • High Ceiling Mode

component-OBScountrySelectDesc

LG Ceiling Cassette Air Conditioner - Inverter (8.2 Kw)

LG Commercial Air Conditioner Introduction

Super Energy Saving

Super Energy Saving Super Energy Saving

Extreme Durability

Extreme Durability Extreme Durability

Powerful Cooling

Powerful Cooling Powerful Cooling

Additional Benefits

Additional Benefits Additional Benefits

PRODUCT INFORMATION

  • Product Type
    Ceiling Cassette
    Inverter Technology
    Yes
  • Fast Cooling
    Yes
    Super Energy Saving
    Yes
  • Indoor Unit Noise Level (H/M/L)
    40 / 38 / 36 dB(A)
    Refrigerant Type
    R410A
  • Operation Range
    Up to 54°C
    High Ceiling Mode
    Yes
  • Clean Air Filteration
    Yes
    Independent Vane Operation
    Yes

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1/220~240/50
    Cooling Capacity
    8.2 Kw
  • Power Input
    2.4 kW
    EER
    11.6 Btu/h/W
  • COP
    3.4 W/W

INDOOR UNIT

  • Running Current
    0.6 A
    Air Flow Rate (H/M/L)
    23.0 / 21.0 / 19.0 CMM
  • Dehumidification Rate
    2.5 l/h
    Body Dimensions (W x H x D)
    840 × 246 × 840 mm
  • Panel Dimensions (W x H x D)
    950 × 25 × 950 mm
    Net Weight
    22.3 kg

OUTDOOR UNIT

  • Running Current
    10.5 A
    Compressor Type
    Twin Rotary
  • Sound Level (H)
    48 dB(A)
    Dimensions (W x H x D)
    950 × 834 × 330 mm
  • Net Weight
    65 kg
    Piping Connections (Liquid)
    Ø 9.52 mm
  • Piping Connections (gas)
    Ø 15.88 mm
    Drain (Outdoor / Indoor)
    Ø 32 mm / 25 mm
  • Max. Piping Length (Main Piping)
    50 m
    Max. Elevation Difference (Indoor-Outdoor)
    30 m

WHERE TO INSTALL

  • Residences
    Yes
    Shops
    Yes
  • Restaurants
    Yes
    Offices
    Yes
  • Hospitals
    Yes
    Hotels
    Yes
