AV-Q24GKLT0

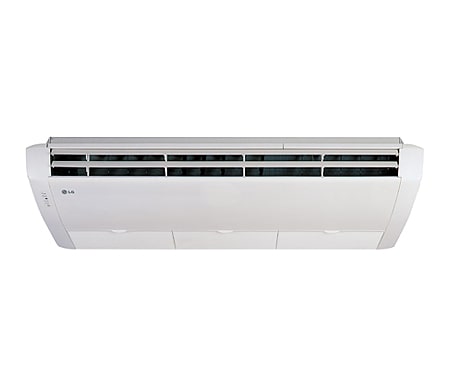

LG Ceiling Suspended Air Conditioner - Inverter (7.0 Kw)
  • Inverter
  • Energy Savings
  • Fast / Power Cooling
  • Low Noise Level
  • Wide Operation Range up to 54°C
  • Independent Vane Operation

component-OBScountrySelectDesc

LG Ceiling Suspended Air Conditioner - Inverter (7.0 Kw)

LG Commercial Air Conditioner Introduction

Super Energy Saving

Super Energy Saving Super Energy Saving

Extreme Durability

Extreme Durability Extreme Durability

3D Windblast

3D Windblast 3D Windblast

Additional Benefits

Additional Benefits Additional Benefits

PRODUCT INFORMATION

  • Product Type
    Ceiling Suspended
    Inverter Technology
    Yes
  • Fast Cooling
    Yes
    Super Energy Saving
    Yes
  • Indoor Unit Noise Level (H/M/L)
    46 / 43 / 41 dB(A)
    Refrigerant Type
    R410A
  • Operation Range
    Up to 54°C
    Clean Air Filteration
    Yes
  • Air flow direction control
    Yes

GENERAL SPECIFICATIONS

  • Power Supply (ø / V / Hz)
    1/220~240/50
    Cooling Capacity
    7.0 Kw
  • Power Input
    2.1 kW
    EER
    11.6 Btu/h/W
  • COP
    3.4 W/W

INDOOR UNIT

  • Running Current
    0.7 A
    Air Flow Rate (H/M/L)
    21.4 / 19.8 / 18.2 CMM
  • Dehumidification Rate
    2.7 l/h
    Body Dimensions (W x H x D)
    1,350 × 650 × 220 mm
  • Net Weight
    29.0 kg

OUTDOOR UNIT

  • Running Current
    9.0 A
    Compressor Type
    Twin Rotary
  • Sound Level (H)
    50 dB(A)
    Dimensions (W x H x D)
    870 × 655 × 320 mm
  • Net Weight
    44 kg
    Piping Connections (Liquid)
    Ø 9.52 mm
  • Piping Connections (gas)
    Ø 15.88 mm
    Drain (Outdoor / Indoor)
    Ø 32 mm / 25 mm
  • Max. Piping Length (Main Piping)
    50 m
    Max. Elevation Difference (Indoor-Outdoor)
    30 m

WHERE TO INSTALL

  • Residences
    No
    Shops
    Yes
  • Restaurants
    No
    Offices
    No
  • Hospitals
    Yes
    Hotels
    Yes
