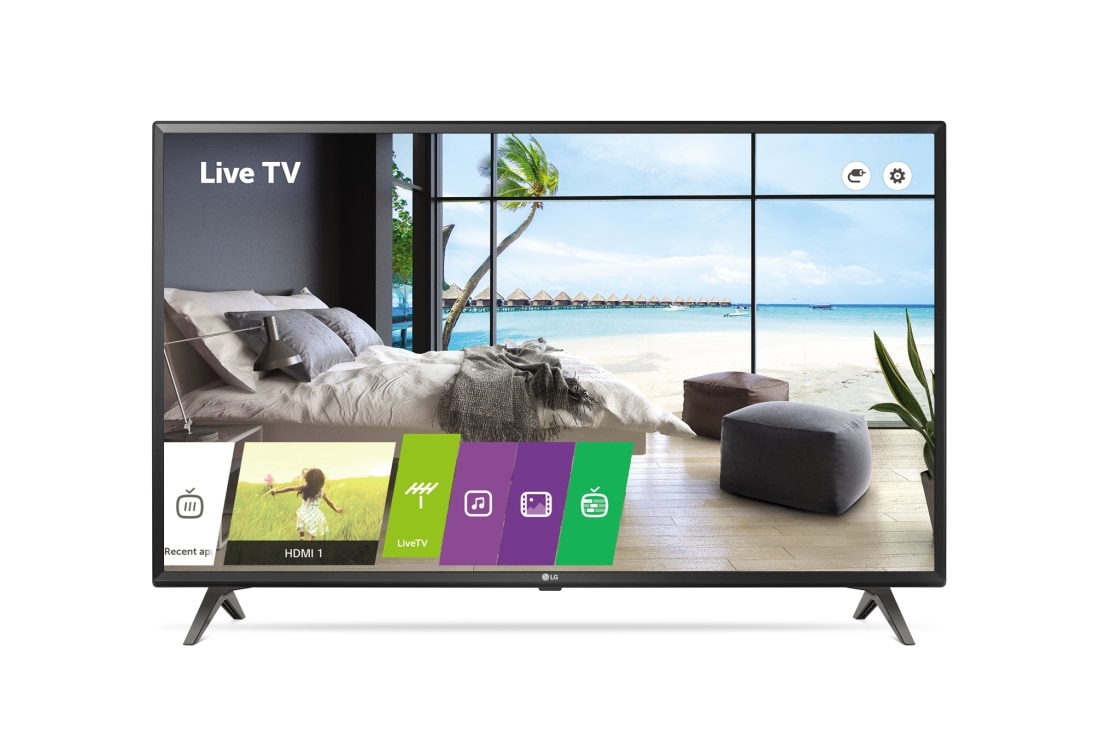

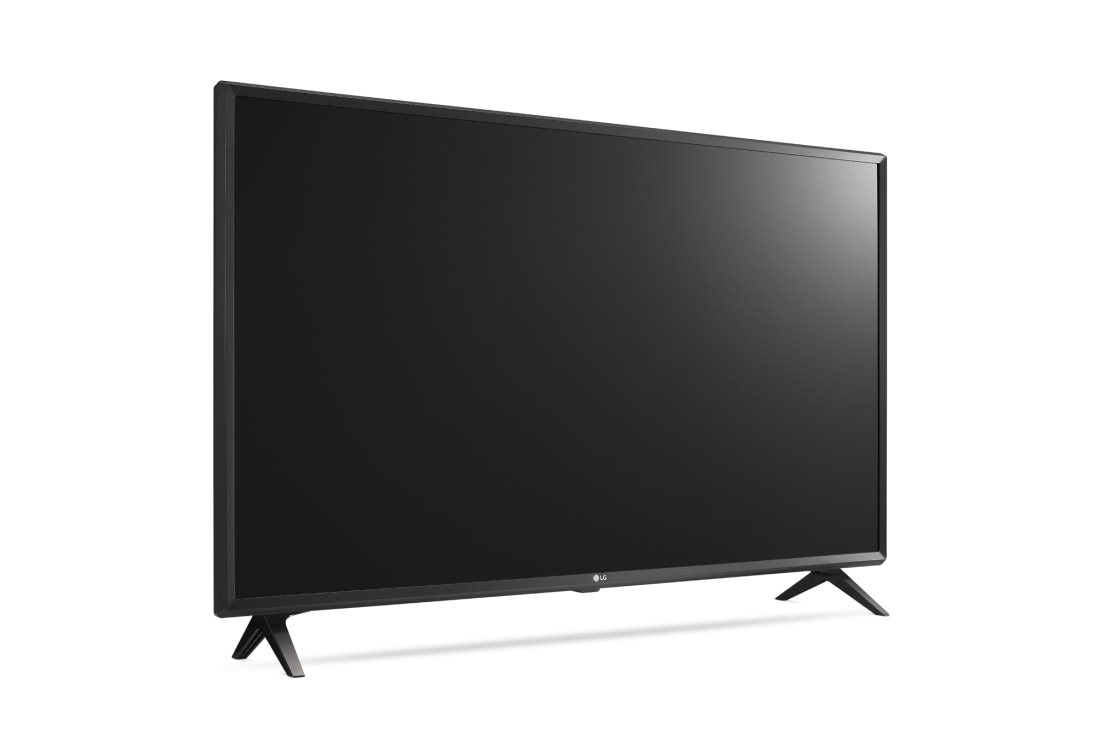

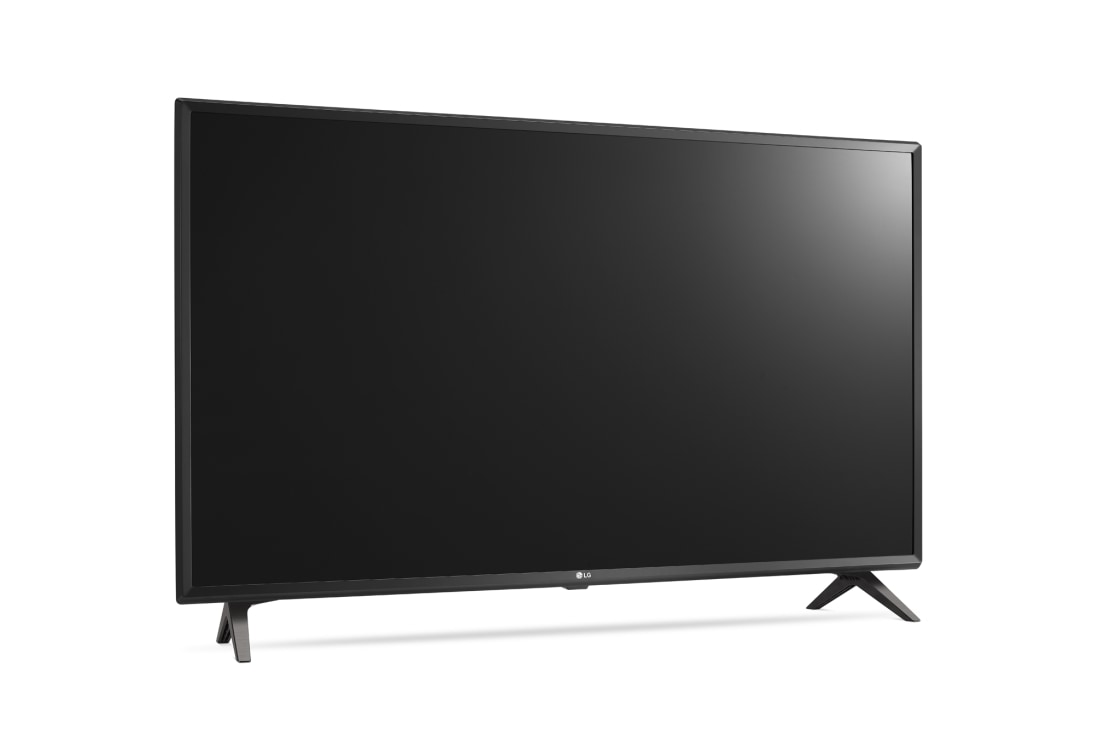

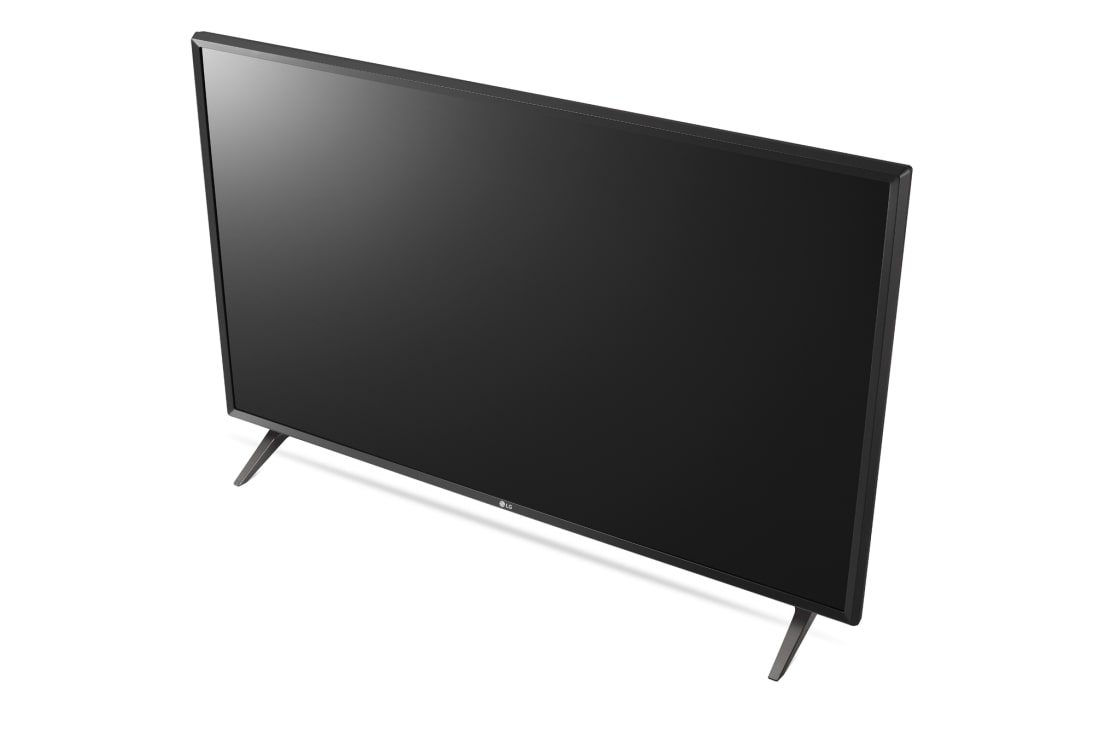

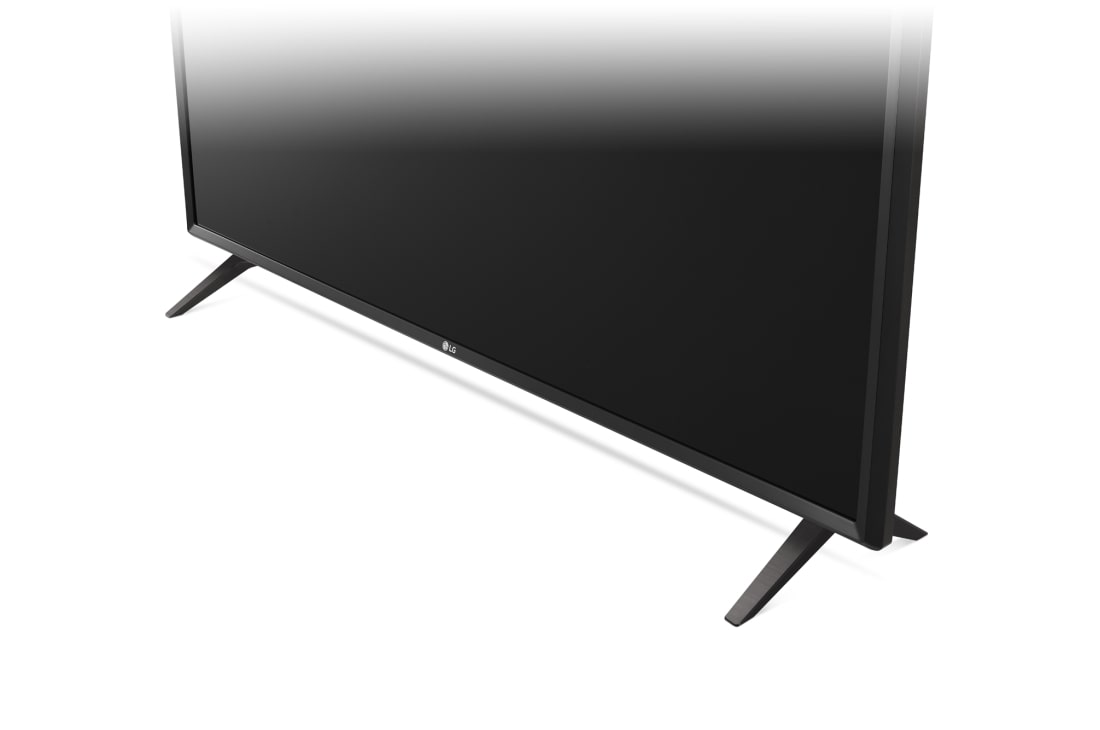

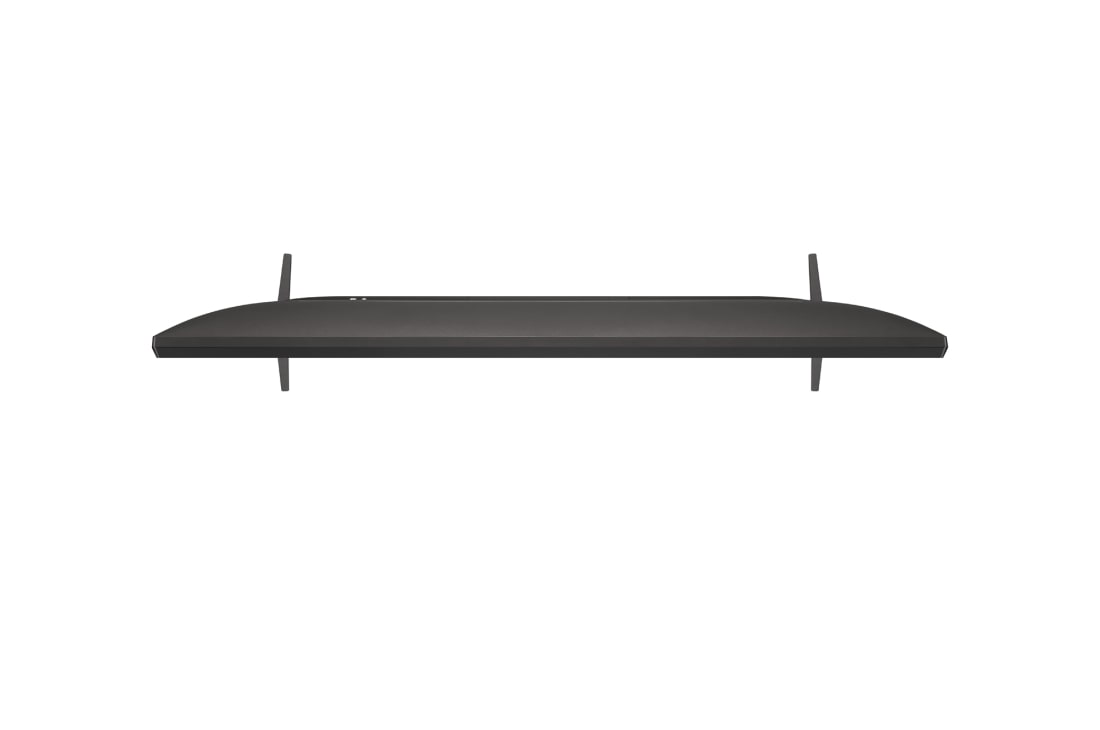

43UU660H
UU660H Series

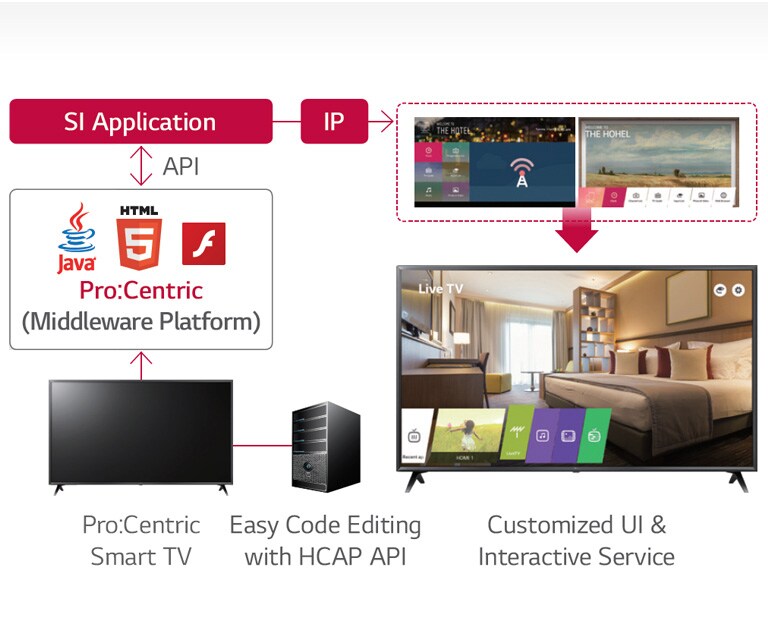

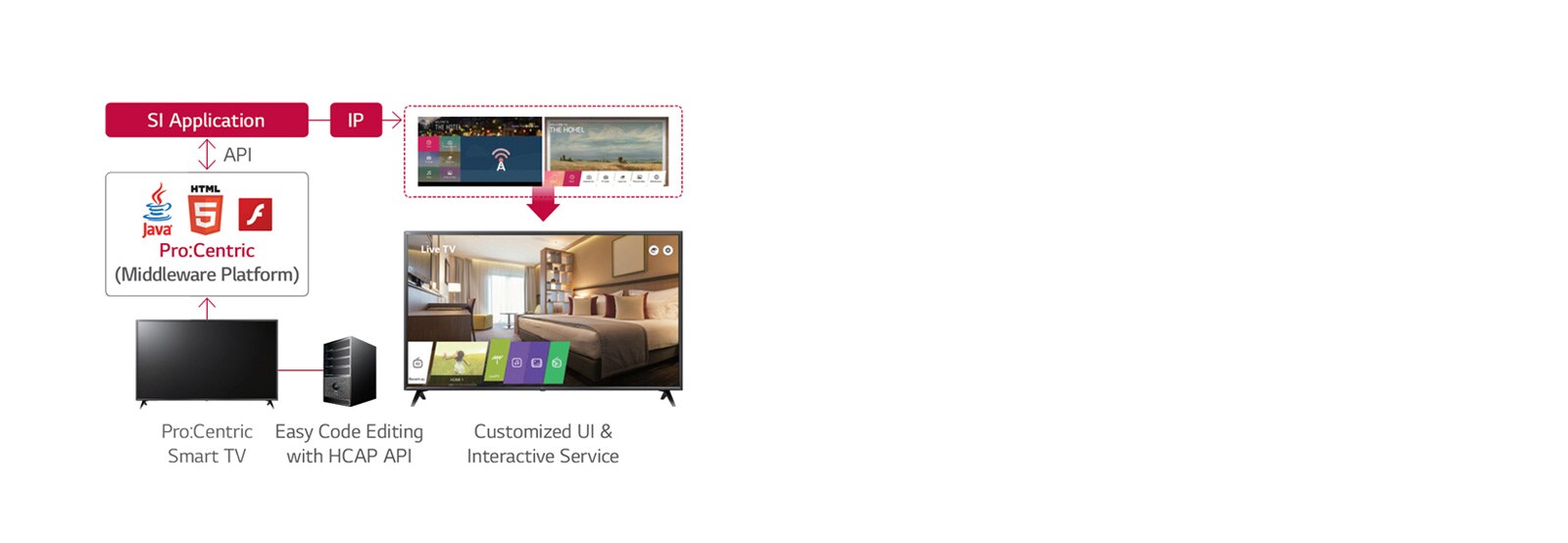

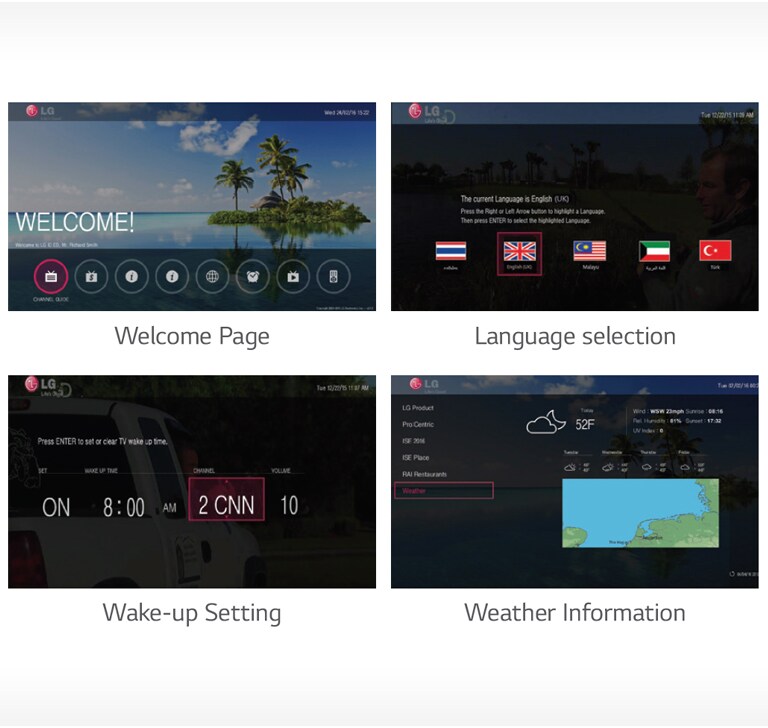

  • Pro:Centric Hotel Management Solution
  • TV Link Interactive
  • EzManager

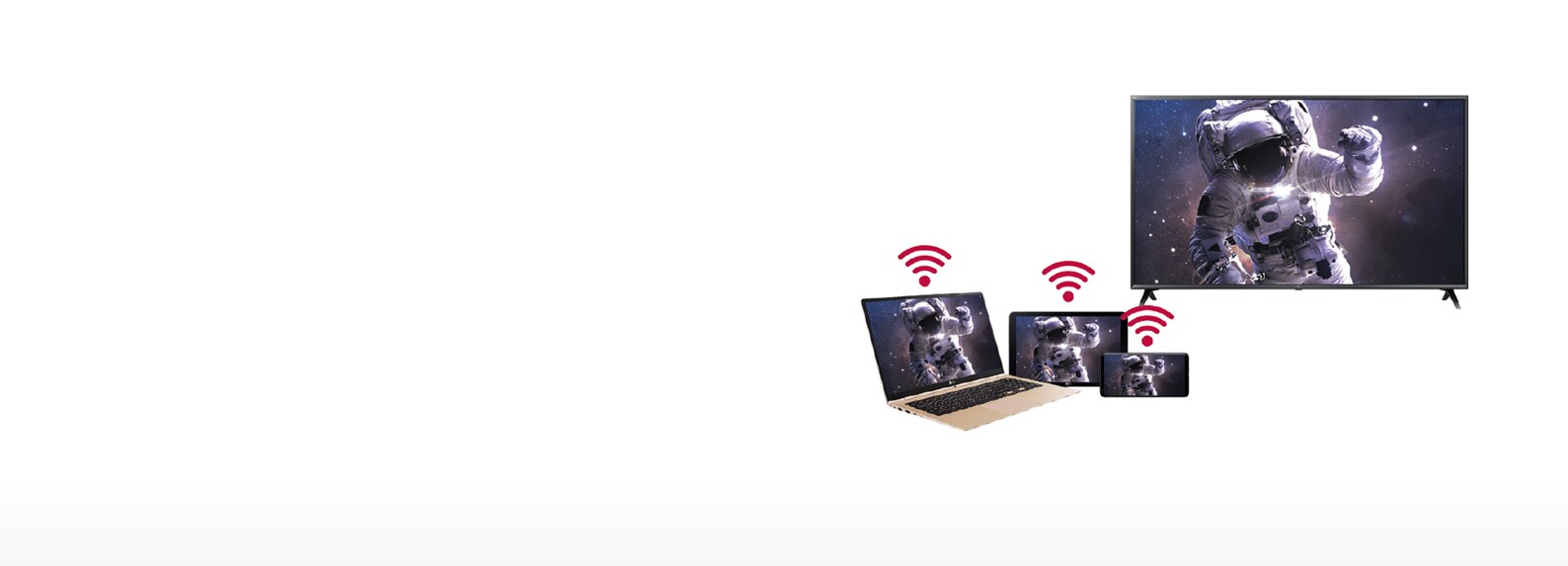

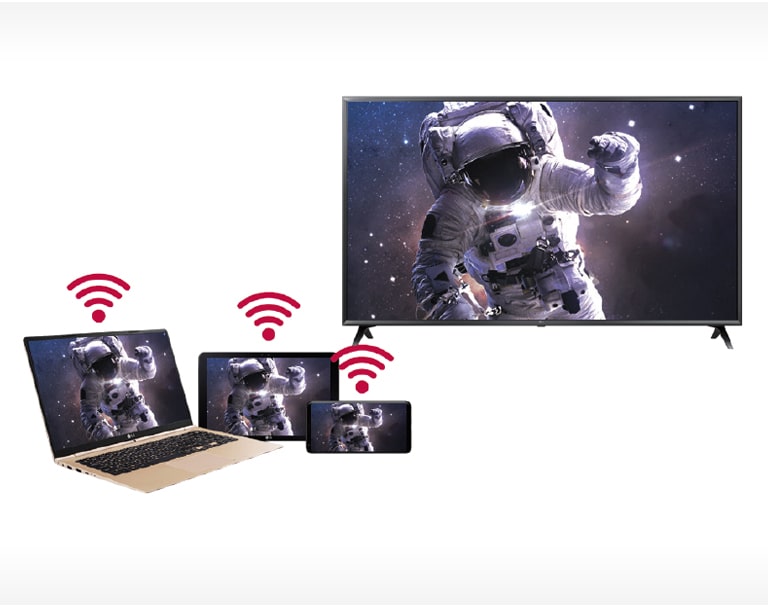

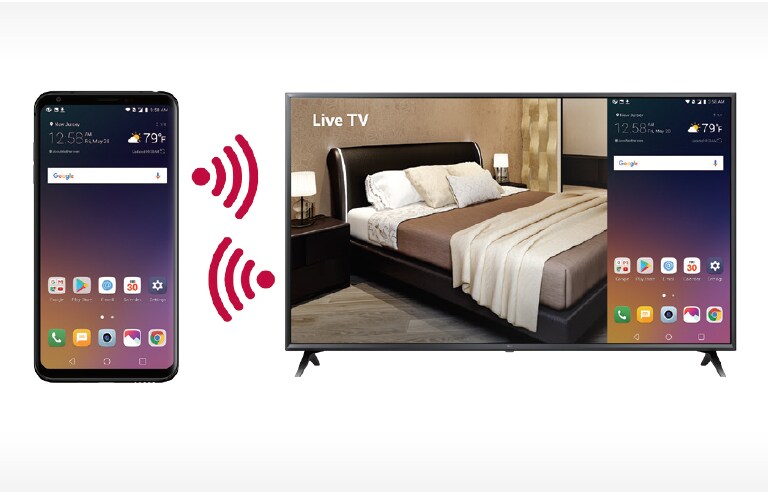

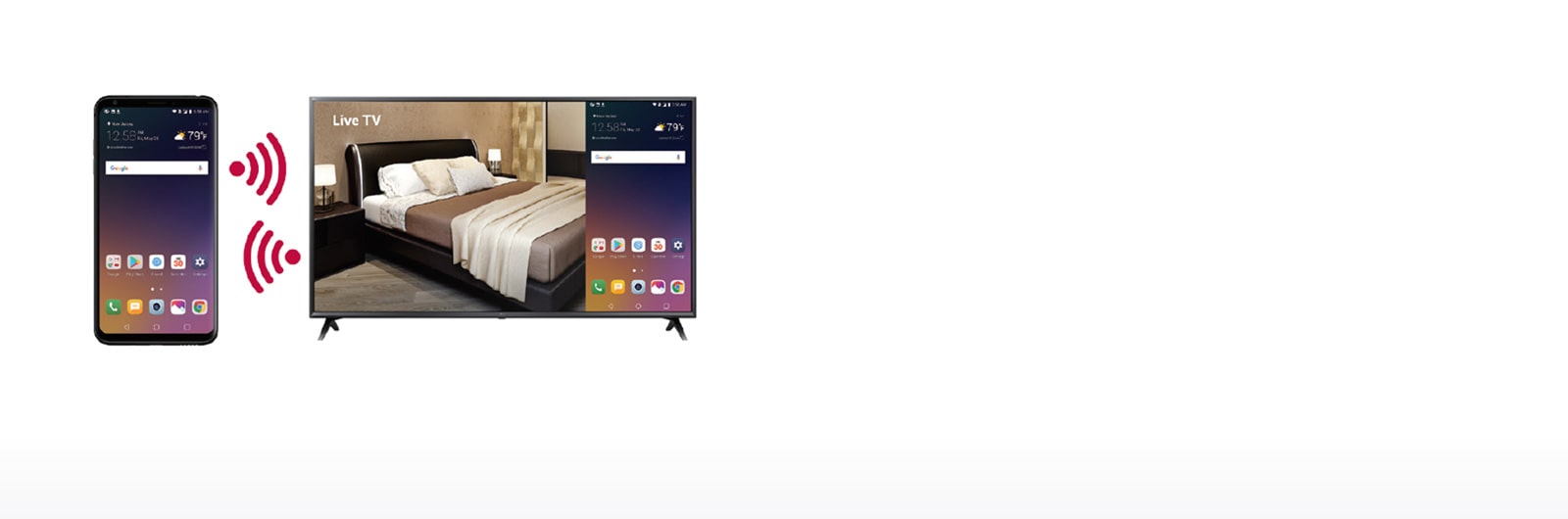

  • SmartShare/ScreenShareNew
UU660H Series
MSRP AED
*Customized UI may be little different.
*Actual UI may be litter different
*Actual In-screen image may be little different.
*Actual In-screen image may be little different.
*All pictures shown below are for illustration purpose only (for a better understanding).
Actual device and screen may differ.
*Contents have to be uploaded by Hotel

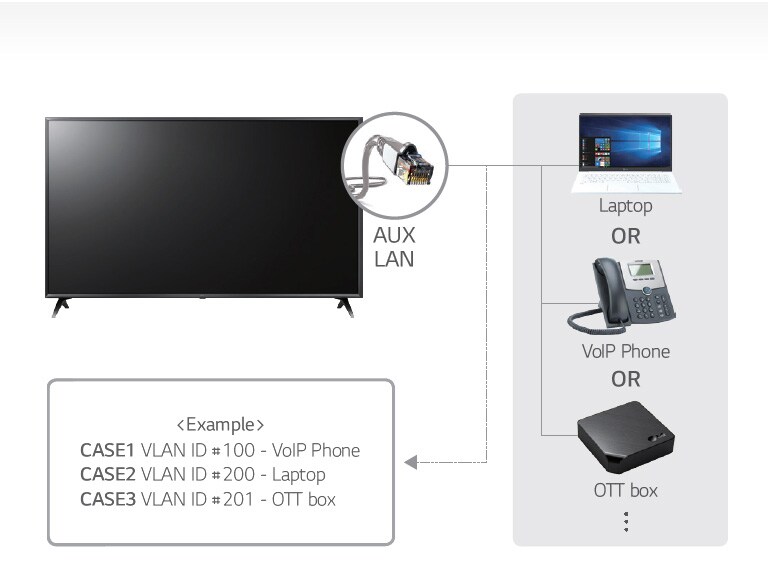

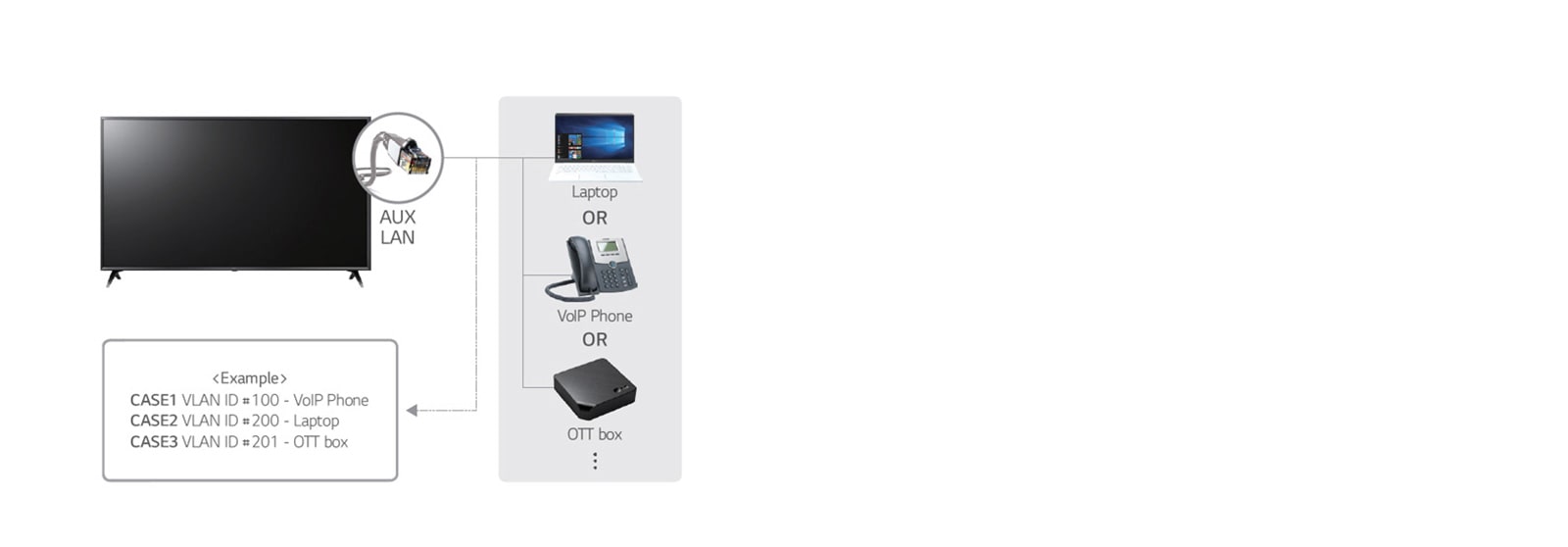

*AUX LAN(LAN out) ID: Set a VLAN ID to be assigned to external devices connected to the LAN out oprt. (a AUX LAN is used for assigning a VLAN ID)
*VLAN ID : Created separate Virtual LAN group with ID (tagging).
*TV native Control.

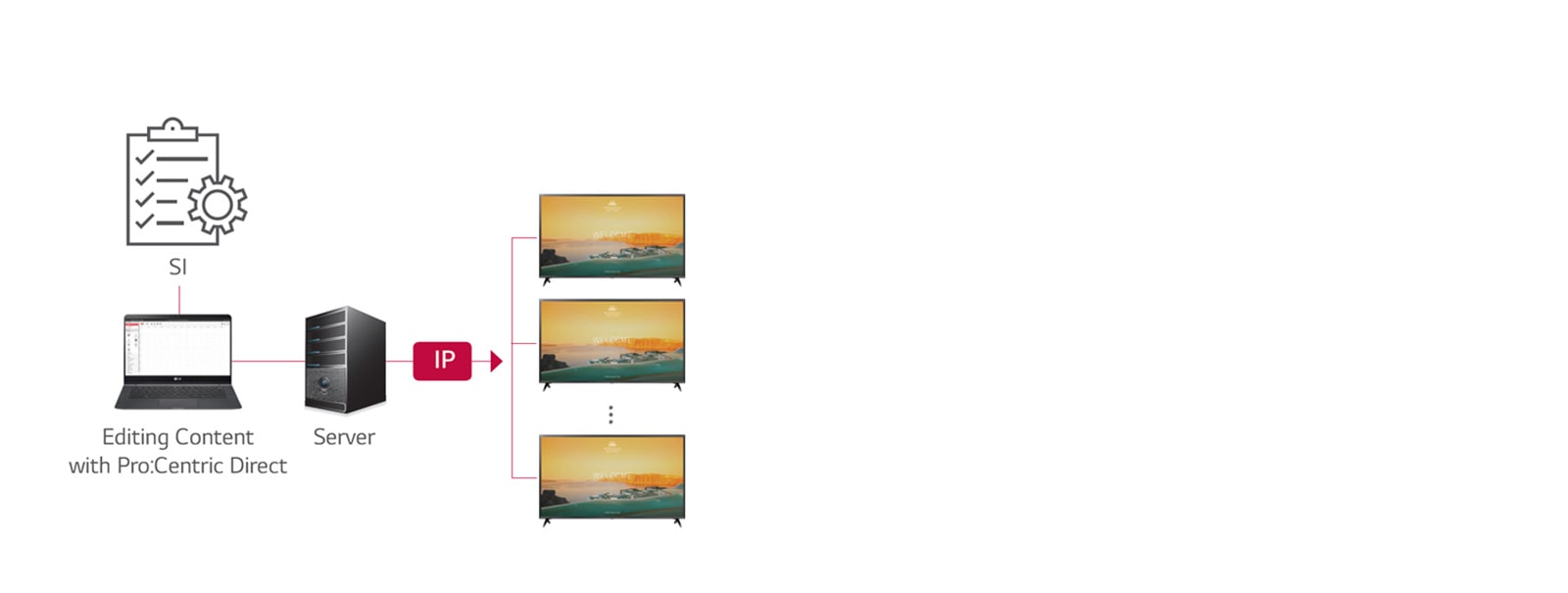

*Server Based control.
*Magic Motion Remote is required(sold separately).

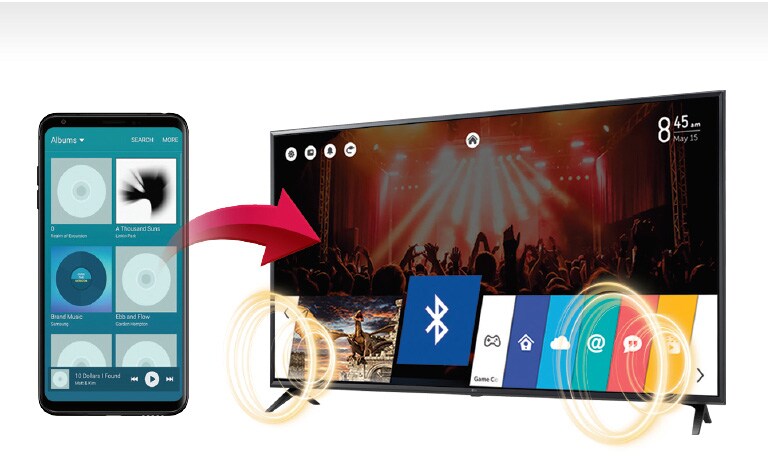

*Support devices for Bluetooth Sound Sync : Android (above v4.4 KitKat) / iOS based Mobile Device.

PANEL

  • Screen Size
    43"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    400

BROADCASTING SYSTEM

  • Analog
    • (PAL/SECAM)
    Digital

VIDEO

  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
    Clear Voice
    • (Clear VoiceⅢ)

HOSPITALITY SOLUTION

  • Solution Type

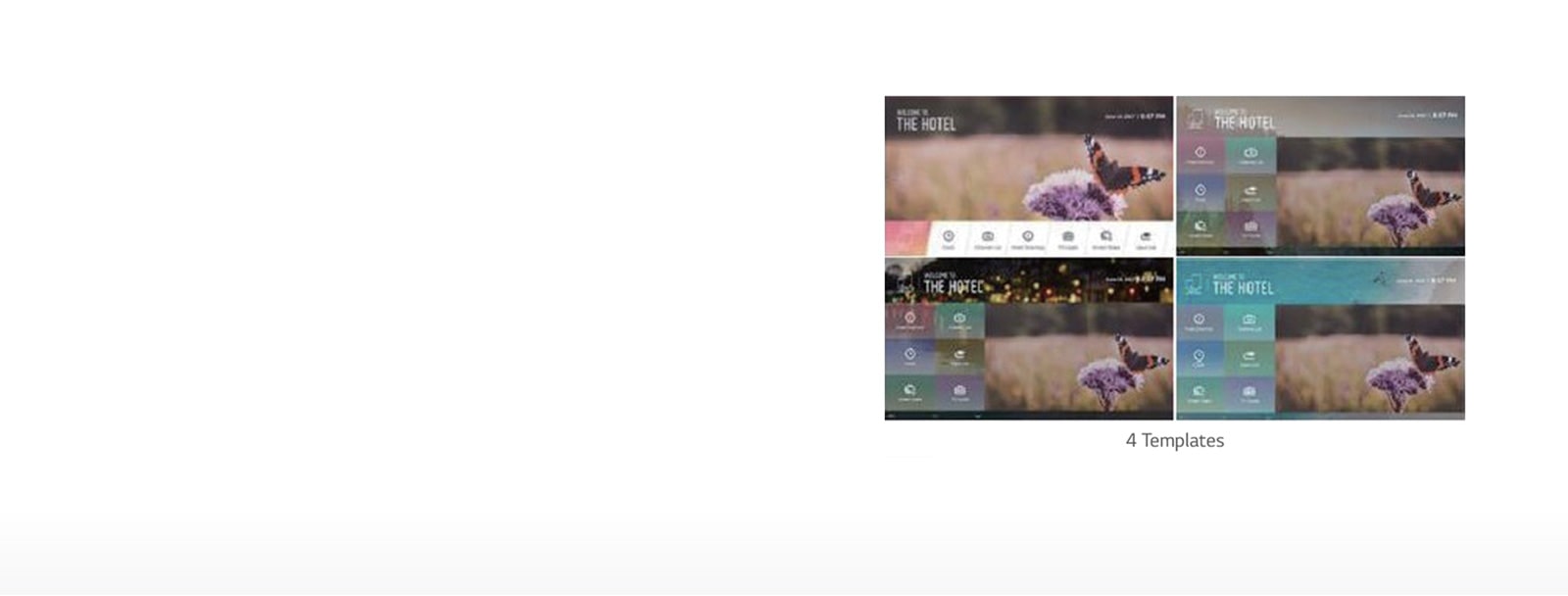

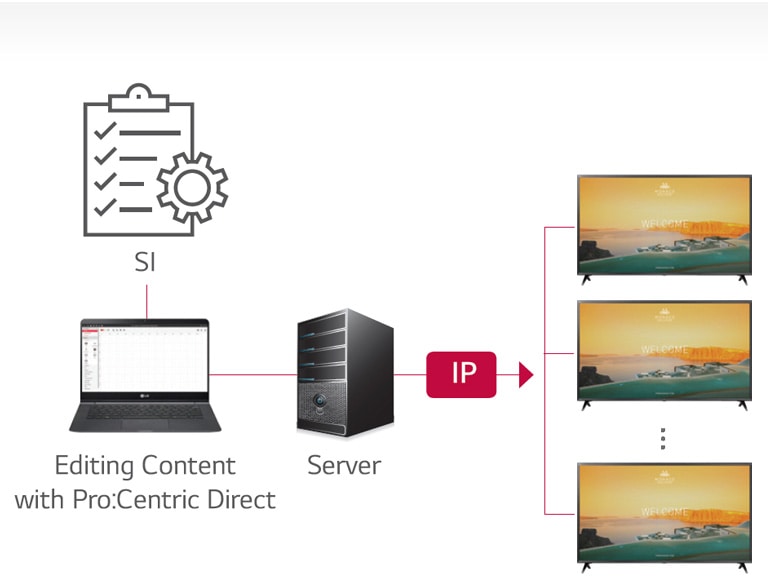

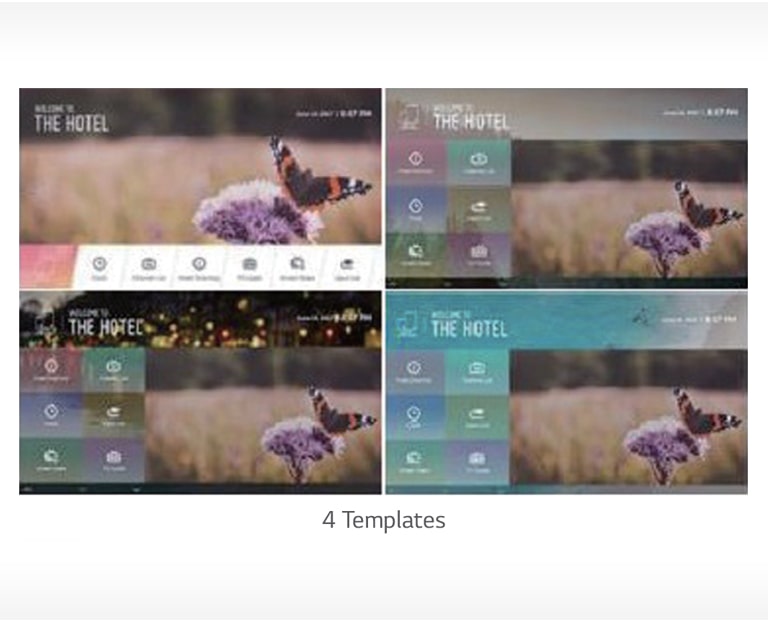

    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP & RF)
  • RF (1/2Tuner)
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5
  • Pro:Centric Application
    PCA 3.7
    DRM
    Pro:Idiom (S/W Type)

FEATURE

  • Hospitality

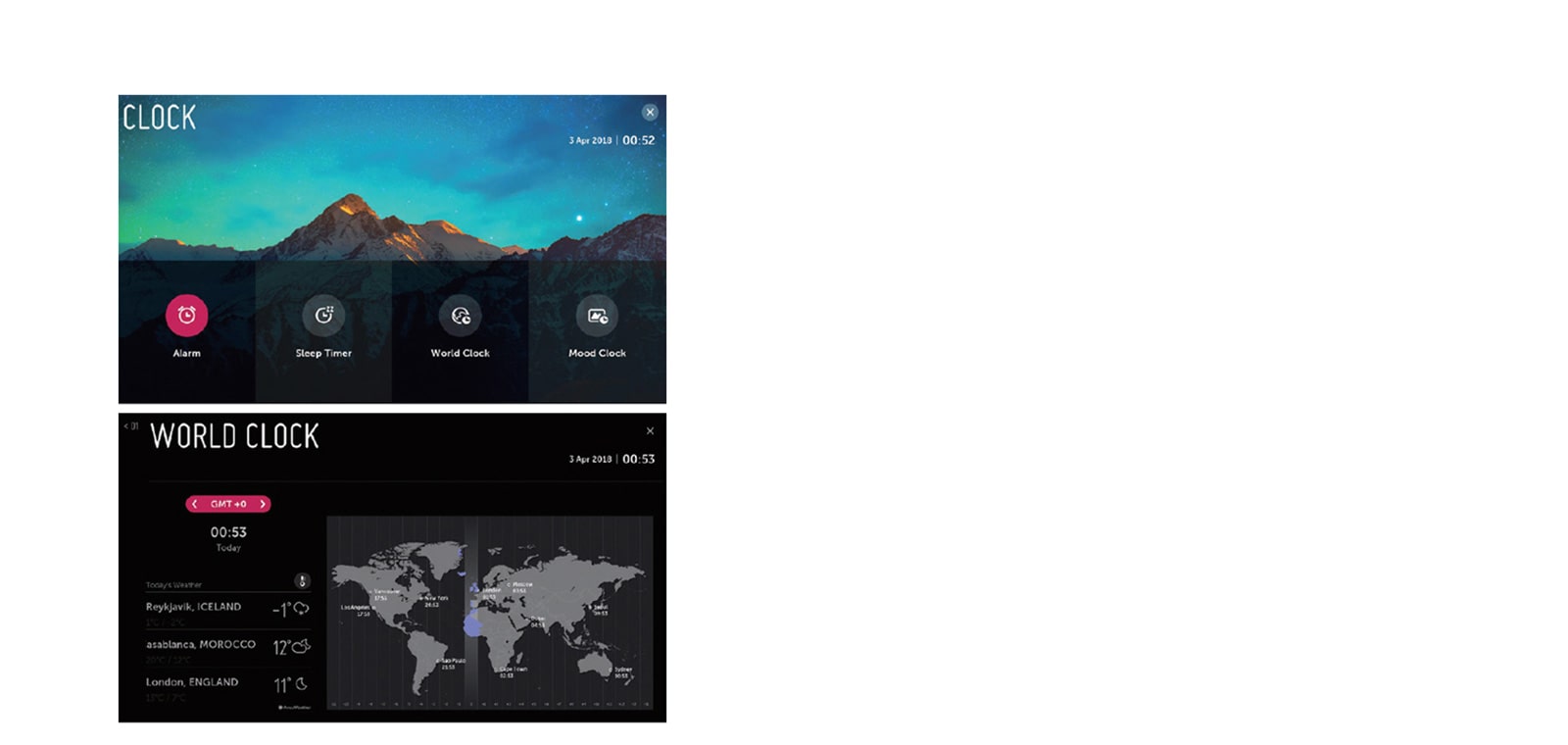

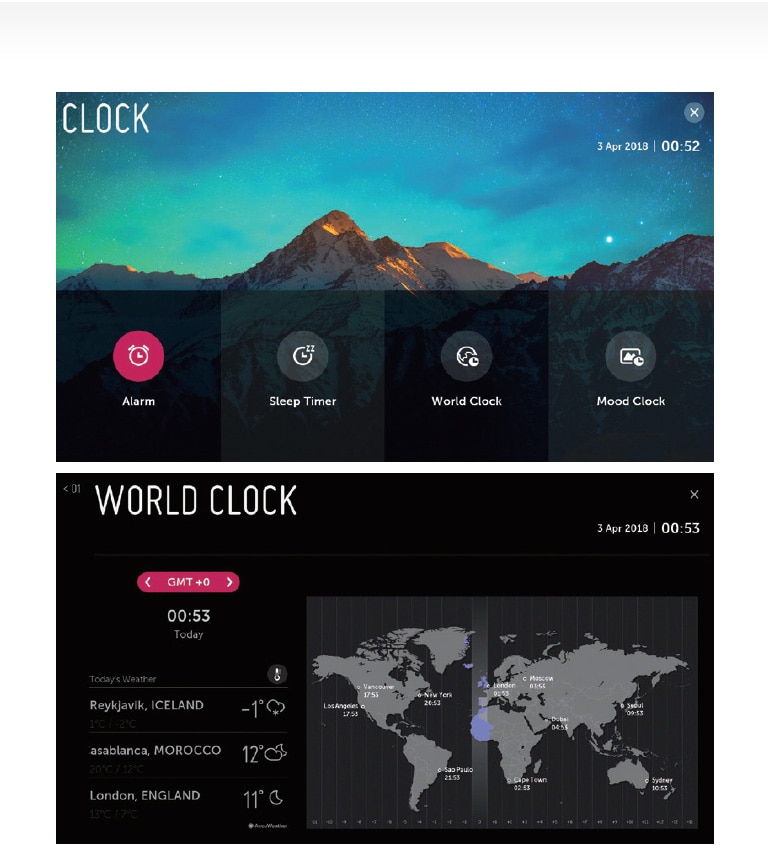

    Hotel Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant On, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock / Alarm), 360 Viewer, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care

JACK INTERFACE

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot

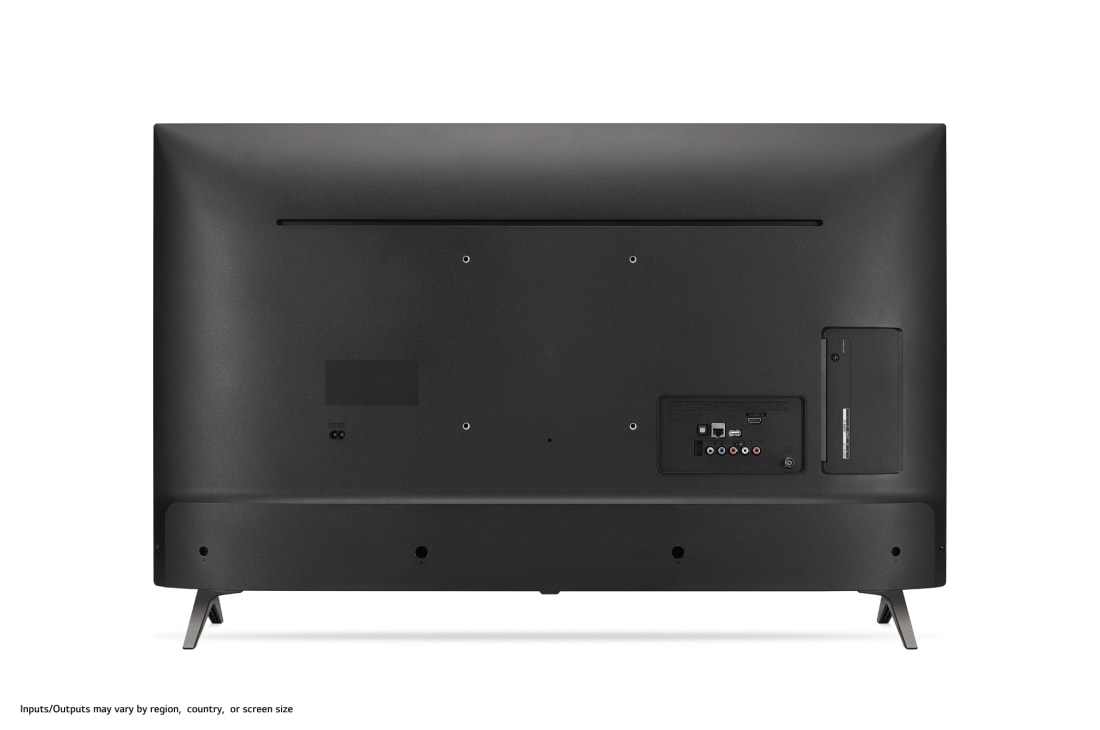

    Set Rear
    RF In (2), AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out, HDMI/HDCP Input, RS232C (Control & Service), Headphone Out, Clock Interface, RJ45, External Speaker Out (2)

MECHANIC

  • VESA Compatible
    200 x 200
    W x H x D / Weight (with stand)
    977 x 695 x 216 / 8.4kg
  • W x H x D / Weight (without stand)
    977 x 575 x 71.7 (SPK: 80.8) / 8.3kg
    W x H x D / Weight (Packing)
    1,060 x 660 x 152 / 10.5kg

POWER (UNIT : WATTS)

  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    116.4
  • Typical
    91.2
    Energy saving (Min / Med / Max)
    72.96 / 50.16 / 27.36
  • Stand-by
    0.5W↓

GENERAL

  • Region
    Middle East & Africa
