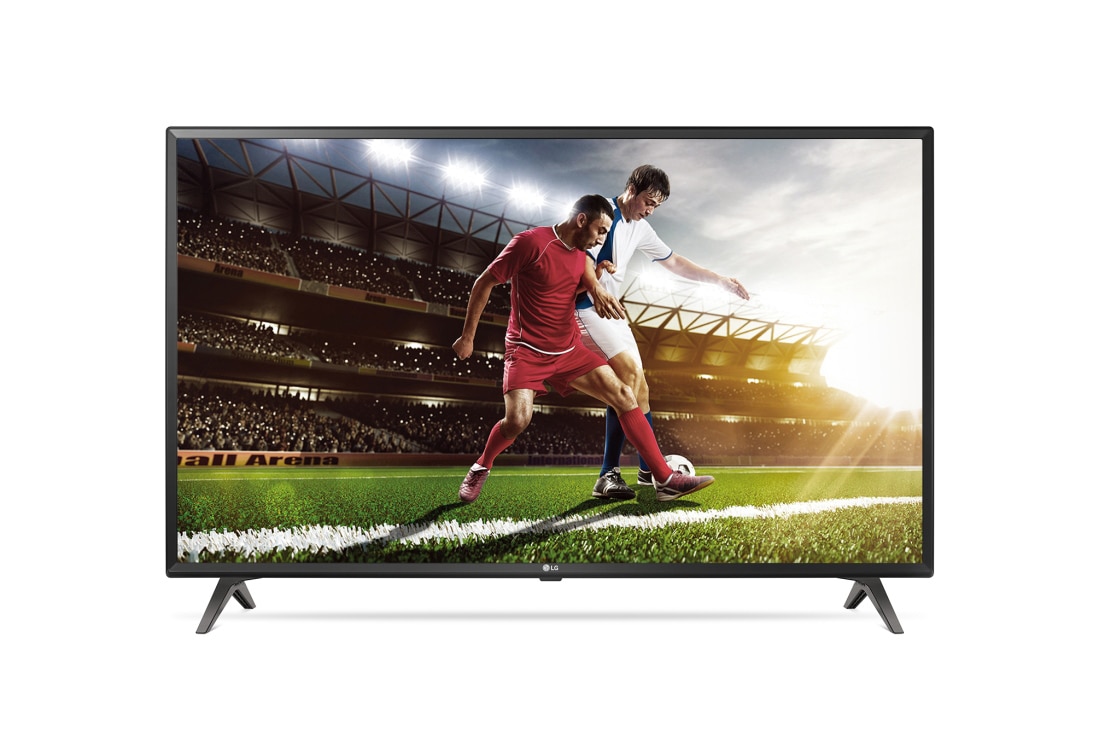

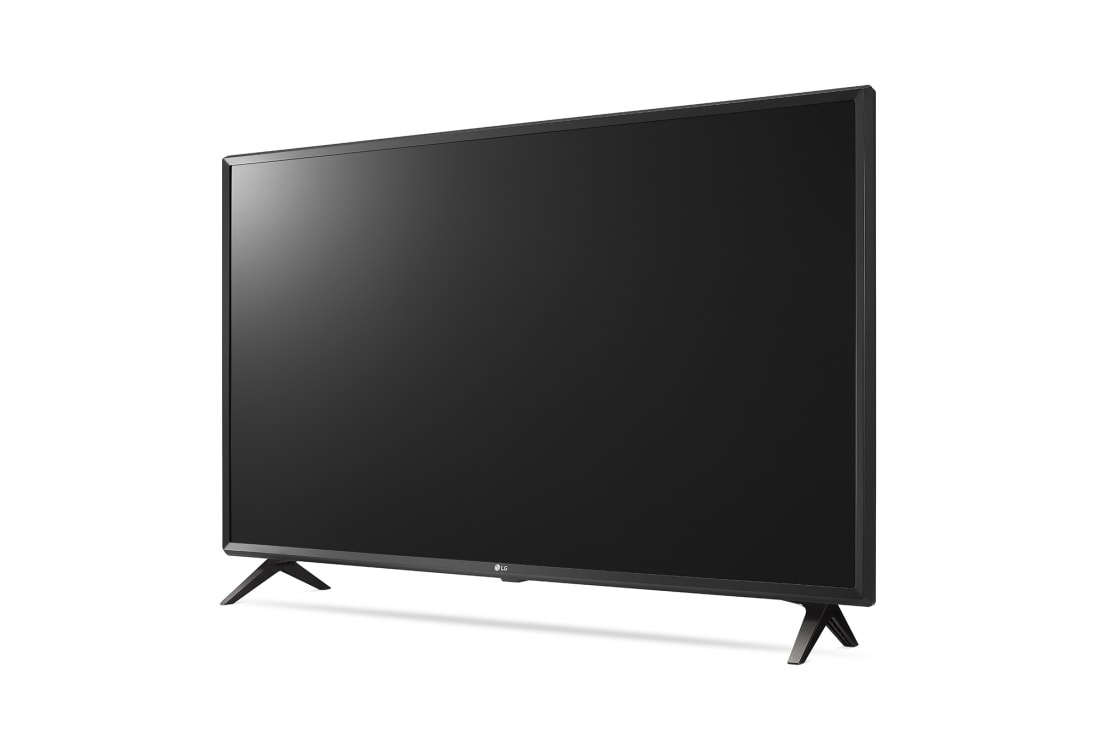

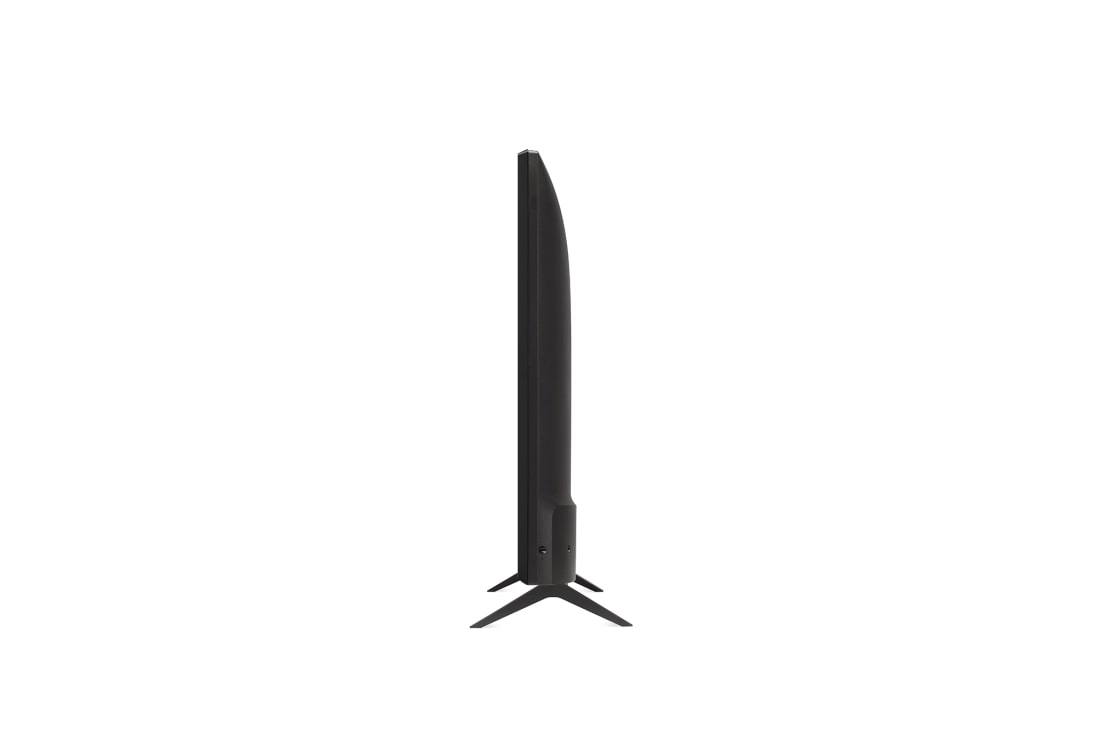

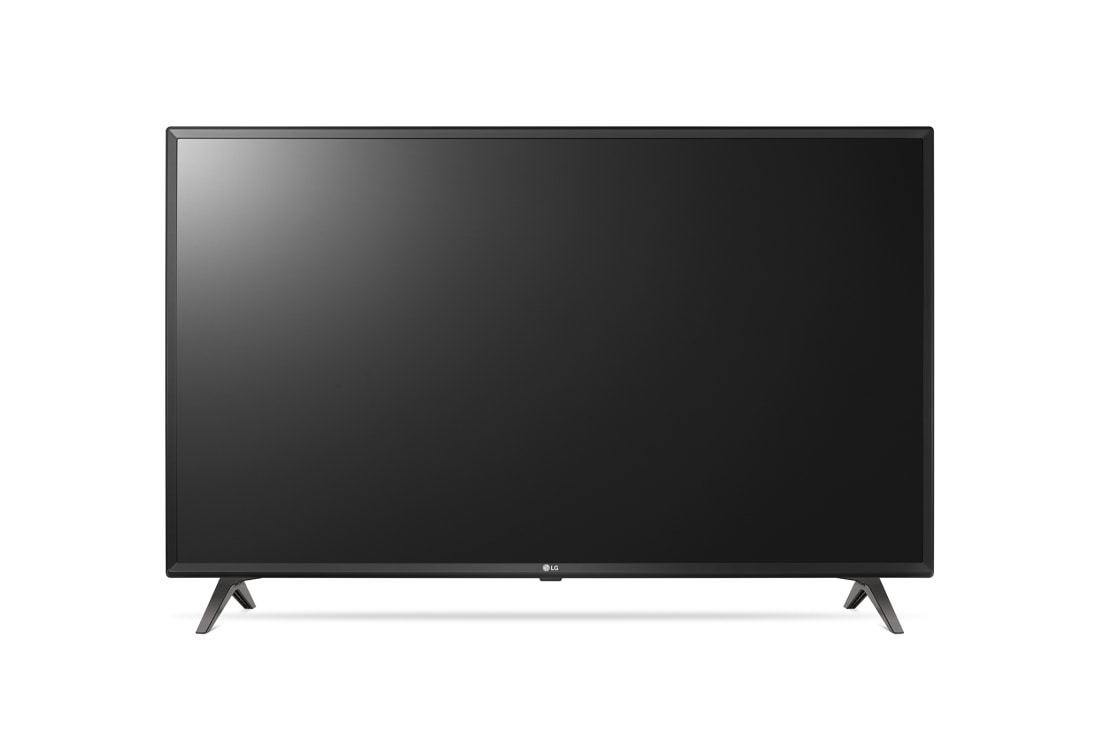

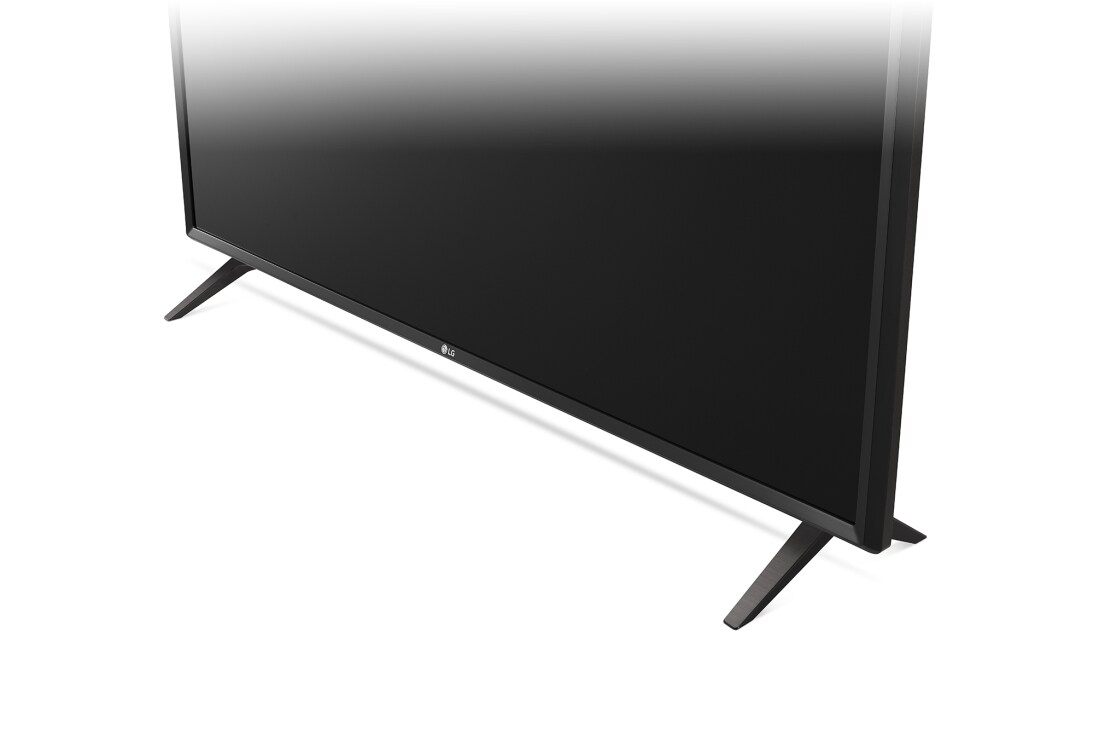

49UU640C
UU640C Series
  • Content Management/Group Management
  • SuperSign Control
  • SNMP
  • Wake-up On Lan
  • Crestron Connected® (Network Based Control)
UU640C Series
MSRP AED
*The scenes are simulated for illustrative purposes. Actual GUI may differ from the accompanying images.
**All displays must be connected to the same network.
*SuperSign Control: Free version (Good at - Operating small and medium-sized signage displays).
*SuperSign Control+: Advanced and Paid version (Good at - Operating large-scale signage displays).
*See more for SuperSign Control+ at LG.com/B2B.
  • Easy Maintenance

    Easy Maintenance1 Easy Maintenance2
  • Real-Time Remote Monitoring

    In case of malfunctions or errors, real-timeremote care is available. When an error occurs, a notification can be sent through the SNMP(Simple Network Management Protocol)protocol.

  • Power & Network in One Line

    WOL(Wake-on-LAN) enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

*It is a network based control system.
*Available AV control systems may differ by regions.

PANEL

  • Screen Size
    49"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    500

BROADCASTING SYSTEM

  • Analog
    • (PAL/SECAM)
    Digital

VIDEO

  • XD Engine
    Aspect Ratio
    • 6 modes (16:9, Original, Full Wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

FEATURE

  • Hospitality
    Hotel Mode, Lock Mode (Limited), One Channel Map, Welcome Screen, Insert Image, External Speaker Out, RJP Interface, RJP Compatibility, Time Scheduler, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Crestron ConnectedⓇ (Network Based Control), DPM, Embedded Content Manager/Group Manager, RTC, NTP Sync Timer

JACK INTERFACE

  • Set Side
    HDMI In 2.0 (2), USB 2.0, CI Slot

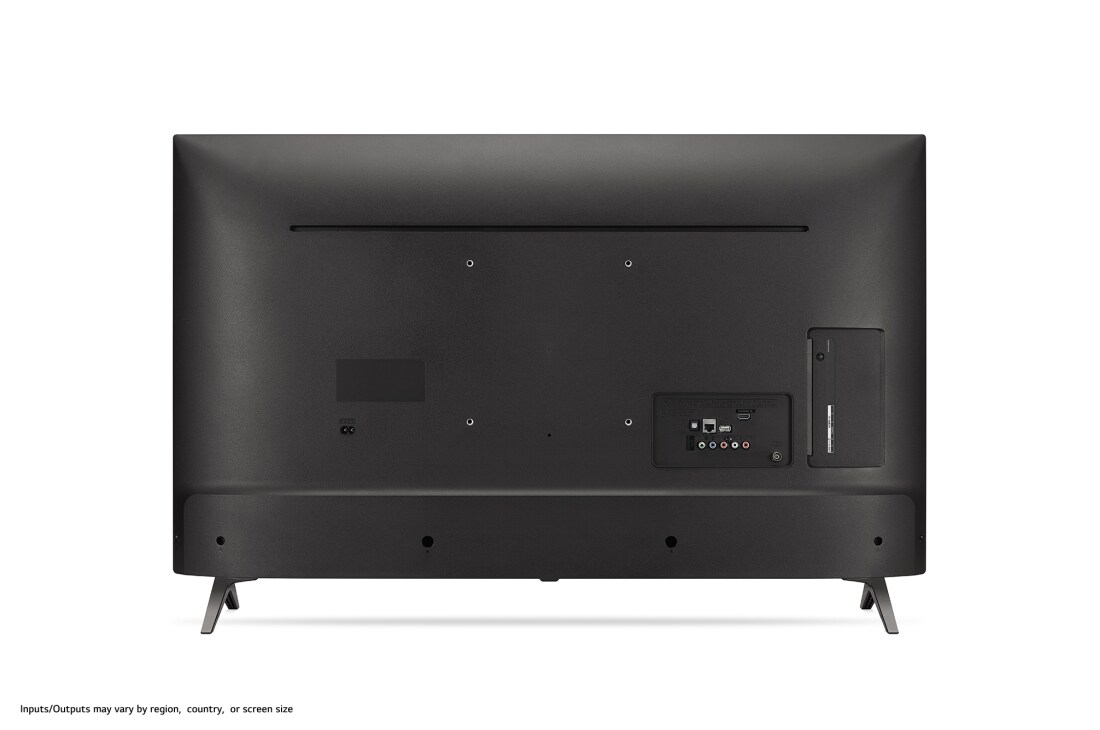

    Set Rear
    RF In (2), Digital Audio Out, HDMI/HDCP Input 2.0, RS-232C (Phone Jack Type, Control & Service), Headphone Out, RJ45, Debug

DIMENSION (UNIT: MM)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,110 x 709 x 231 / 11.3 kg
  • W x H x D / Weight (without stand)
    1,110 x 650 x 72 (SPK: 81.1) / 11.1kg
    W x H x D / Weight (Packing)
    1,193 x 770 x 158 / 13.4 kg

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    133.5
  • Typical
    107.9
    Energy saving (Min/Med/Max)
    75 / 55 / 33
  • Stand-by
    0.3

GENERAL

  • Region
    Europe
